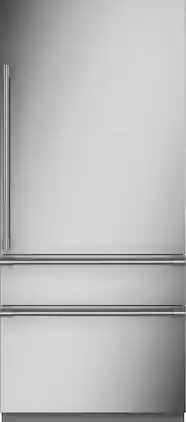

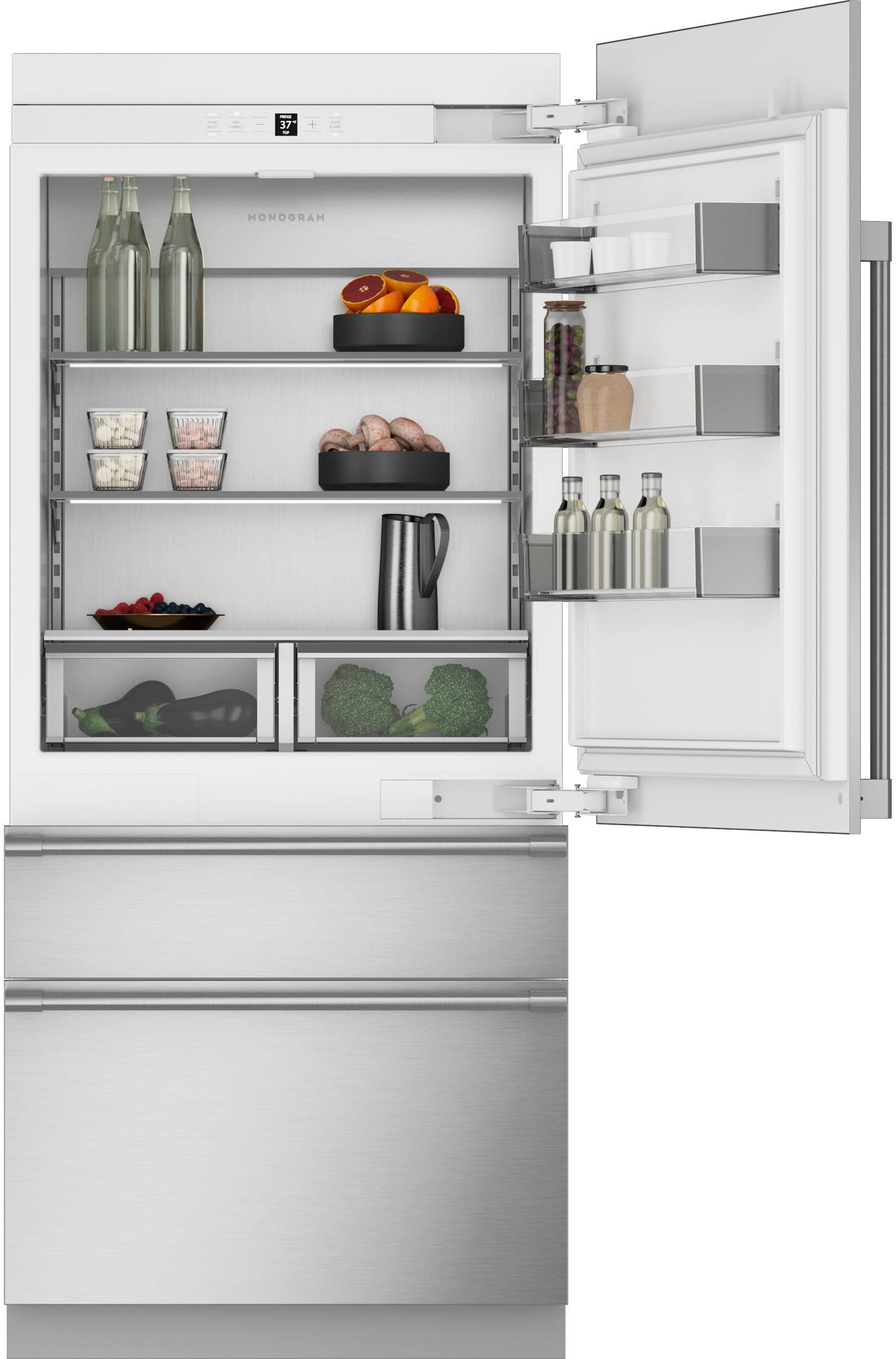

Monogram - 20.2 Cu. Ft. 3-Door Bottom-Freezer Built-In Smart Refrigerator with Convertible Temperature Drawer - Custom Panel Ready
Specifications
- Color FinishCustomProduct Height83 1/2 inchesProduct Width35 3/4 inchesHeight To Top Of Door Hinge83.5 inchesTotal Capacity20.2 cubic feetRefrigerator StyleBottom Freezer
- Key Specs
- Color Finish: Custom
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83.5 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Total Capacity: 20.2 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Monogram
- Model Number: ZIC363NBVRH
- Product Name: 20.2 Cu. Ft. 3-Door Bottom-Freezer Built-In Smart Refrigerator with Convertible Temperature Drawer
- Color: Custom Panel Ready
- Color Finish: Custom

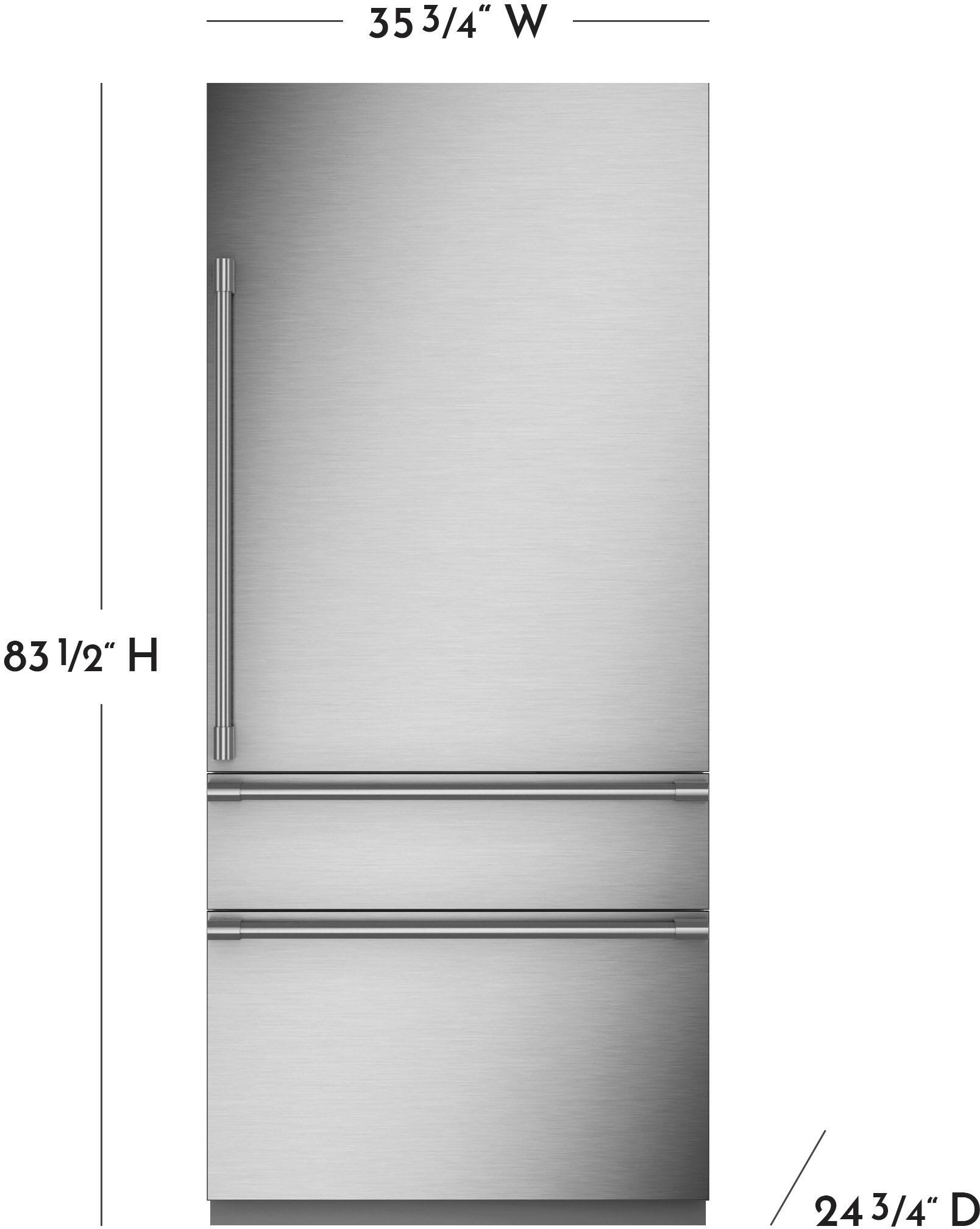

- Dimensions
- Product Height: 83 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 3/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Door Hinge: 83.5 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Product Weight: 586 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 36 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 20.2 cubic feet
- Refrigerator Capacity: 13.5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 3.5 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Convertible Temperature Zone Capacity: 2.9 cubic feet (Total amount of space within the convertible temperature compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Fingerprint Resistant: false
- Convertible Temperature Zone: true (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Convertible Temperature Zone Location: Middle
- Convertible Temperature Zone Range: 6 temperature settings
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Defrost Type: Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Ice only
- Ice and Water Dispenser Location: Internal
- Storage
- Number of External Doors/Drawers: 3
- Number of Refrigerator Shelves: 2
- Refrigerator Shelf Style: Adjustable
- Humidity-Controlled Crisper: true
- Refrigerator Shelf Material: Glass with trim
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Filter Info
- Water Filtration: true

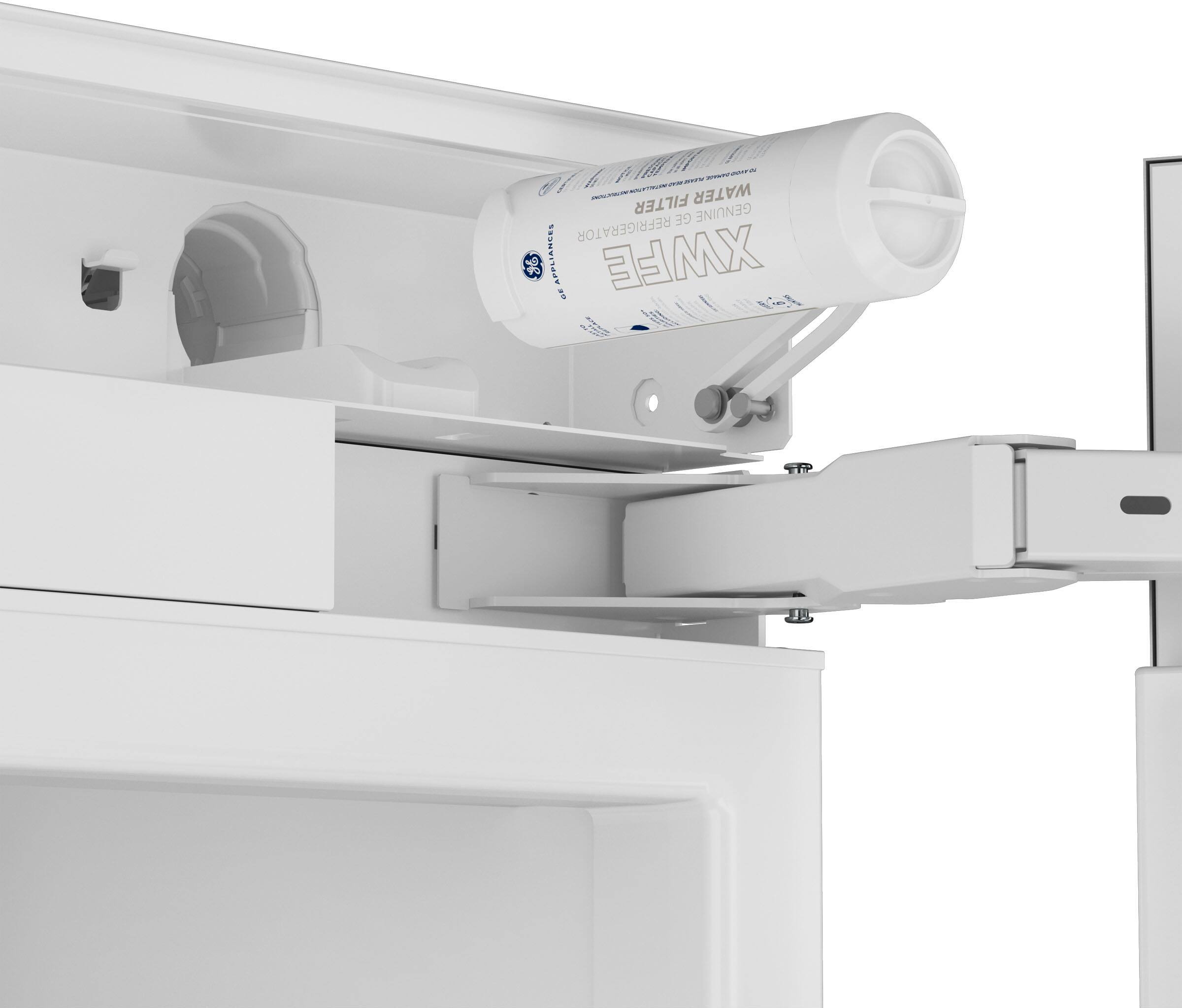

- Water Filter Model Number: XWFE (The water filter model(s) recommended for use with the product.)
- Electrical
- Amperage: 20 amperes (Strength of electrical current.)
- Voltage: 115 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Chemical Disclosures: Consumers may visit https://www.geappliances.com/chemical-reports to learn more about chemicals in certain GE Appliances products. Los consumidores pueden visitar https://www.geappliances.com/chemical-reports para obtener más información sobre los productos químicos en ciertos electrodomésticos de GE Appliances. (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 084691916154
Through passion and precision, Monogram is redefining the world of luxury appliances one detail at a time. We engineer steel to move as if it’s weightless. We create features that feel anything but ordinary. We select materials that perform and add a luxurious presence. And with two new collections, Monogram appliances complement any style preferences. The Statement Collection features edge-to-edge handles, polished stainless steel and brass accents that unify the overall appearance. The Minimalist Collection’s streamlined appearance and precisely machined metals create a contemporary yet functional aesthetic. Every Monogram bottom-freezer refrigerator is also outfitted with premium features the experts use. These 36” models include upfront electronic controls with digital readout that allow precise temperature settings and are positioned for maximum ease of use. A GE water filtration system provides clean, fresh-tasting water to the freezer's icemaker while six adjustable door bins offer added storage flexibility. And you can choose from free-standing or French door models, with stainless steel or custom panel exteriors. Altogether, Monogram appliances look, feel, and perform as if they were designed perfectly for you.

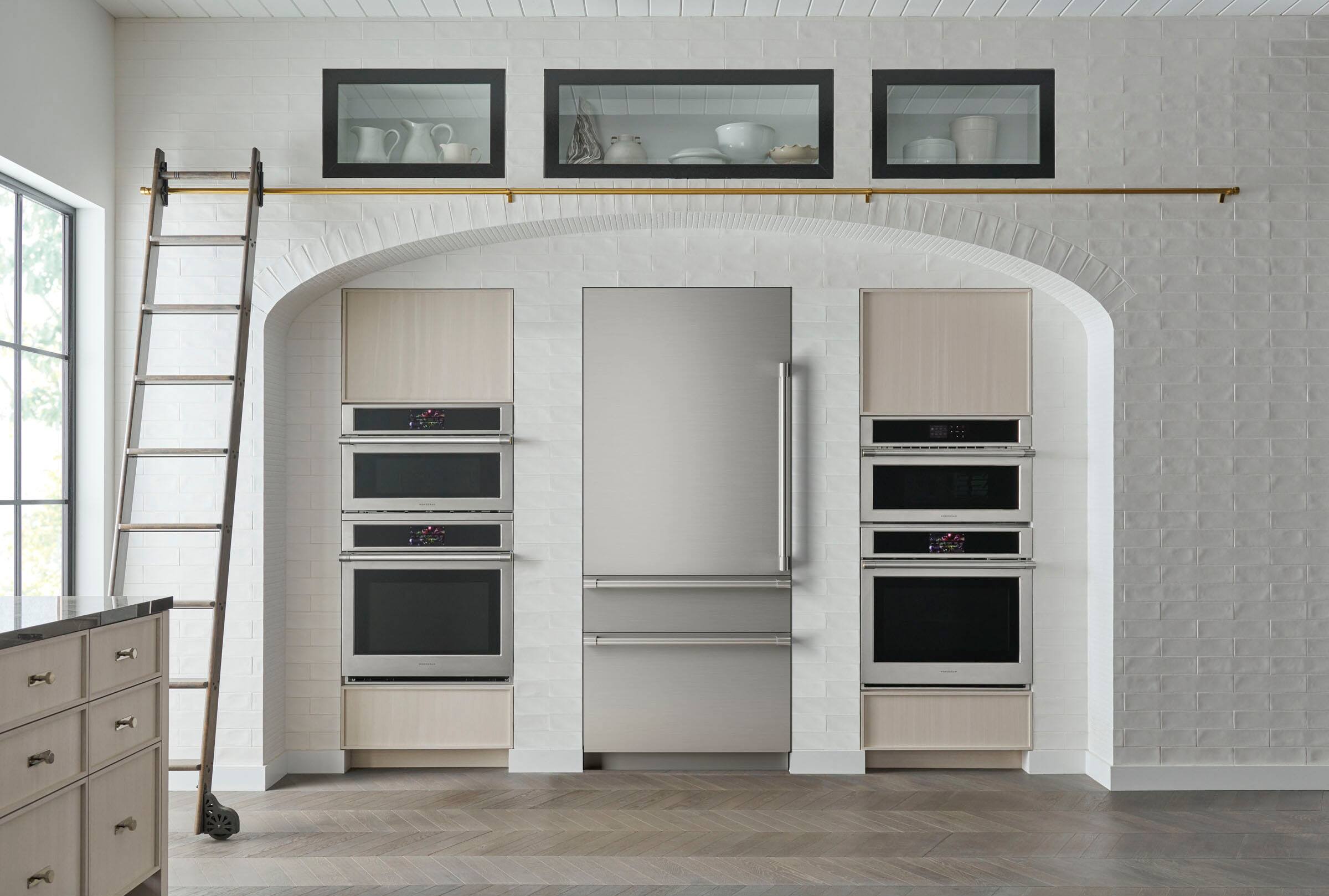

- Bottom Freezer with Flush Inset Installation: Sleek design allows the refrigerator to be installed flush with adjacent cabinetry.
- Convertible Drawer with Six Temperature Settings: The convertible drawer with six temperature settings allows you to choose whether the lower drawer is a freezer or a fresh food/wine or beverage refrigerator, with independent temperature controls for storage choice and flexibility.

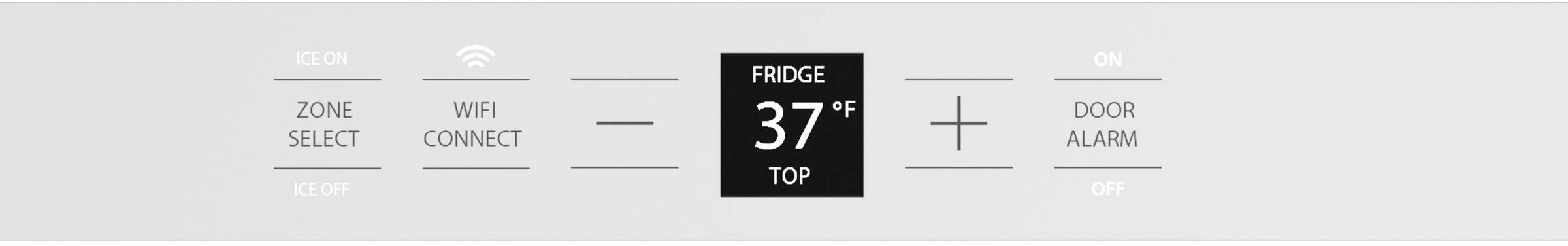

- Wi-Fi-Connected Refrigerator: The Wi-Fi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app.

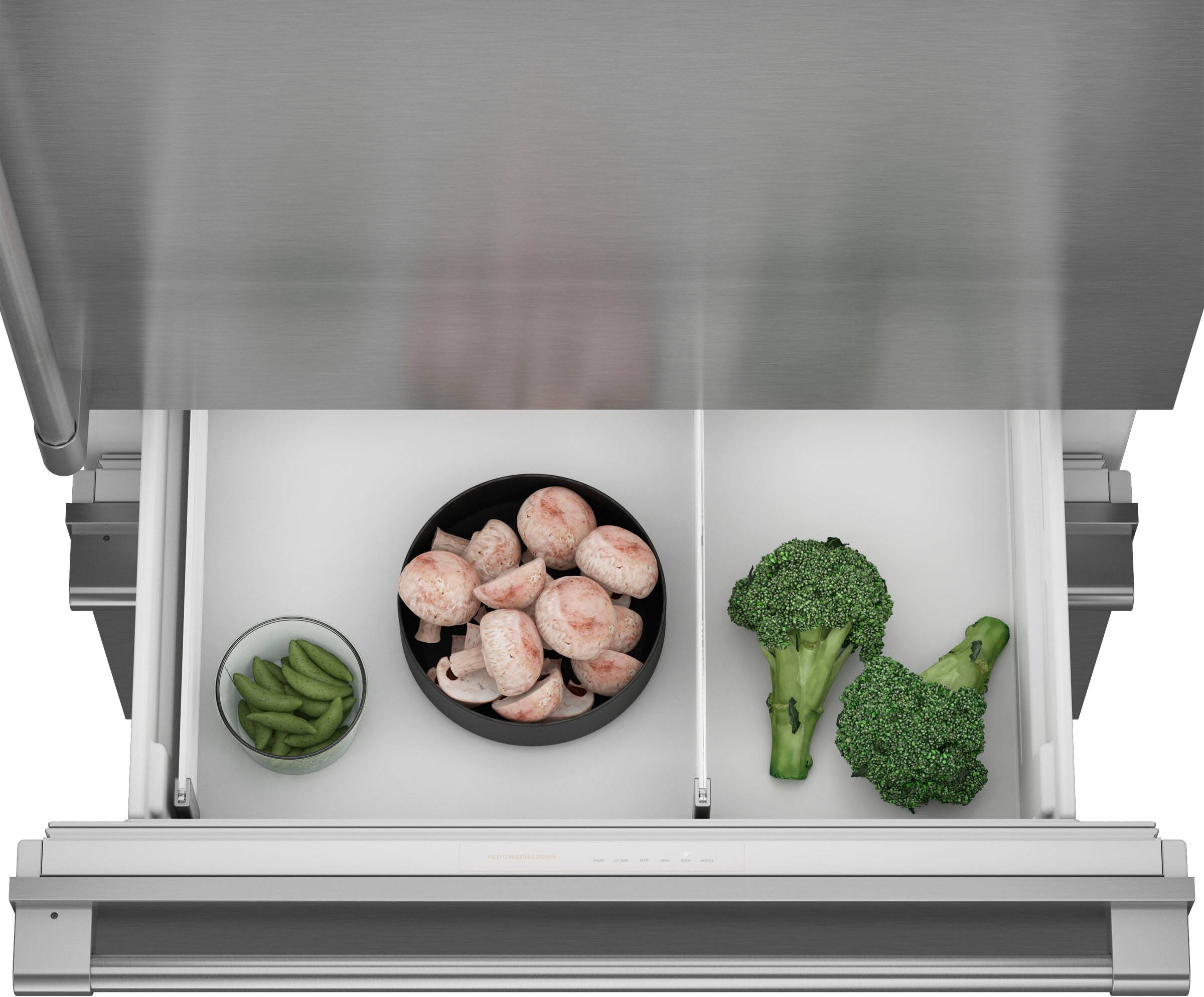

- Two Humidity-Controlled Vegetable Drawers: Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness.

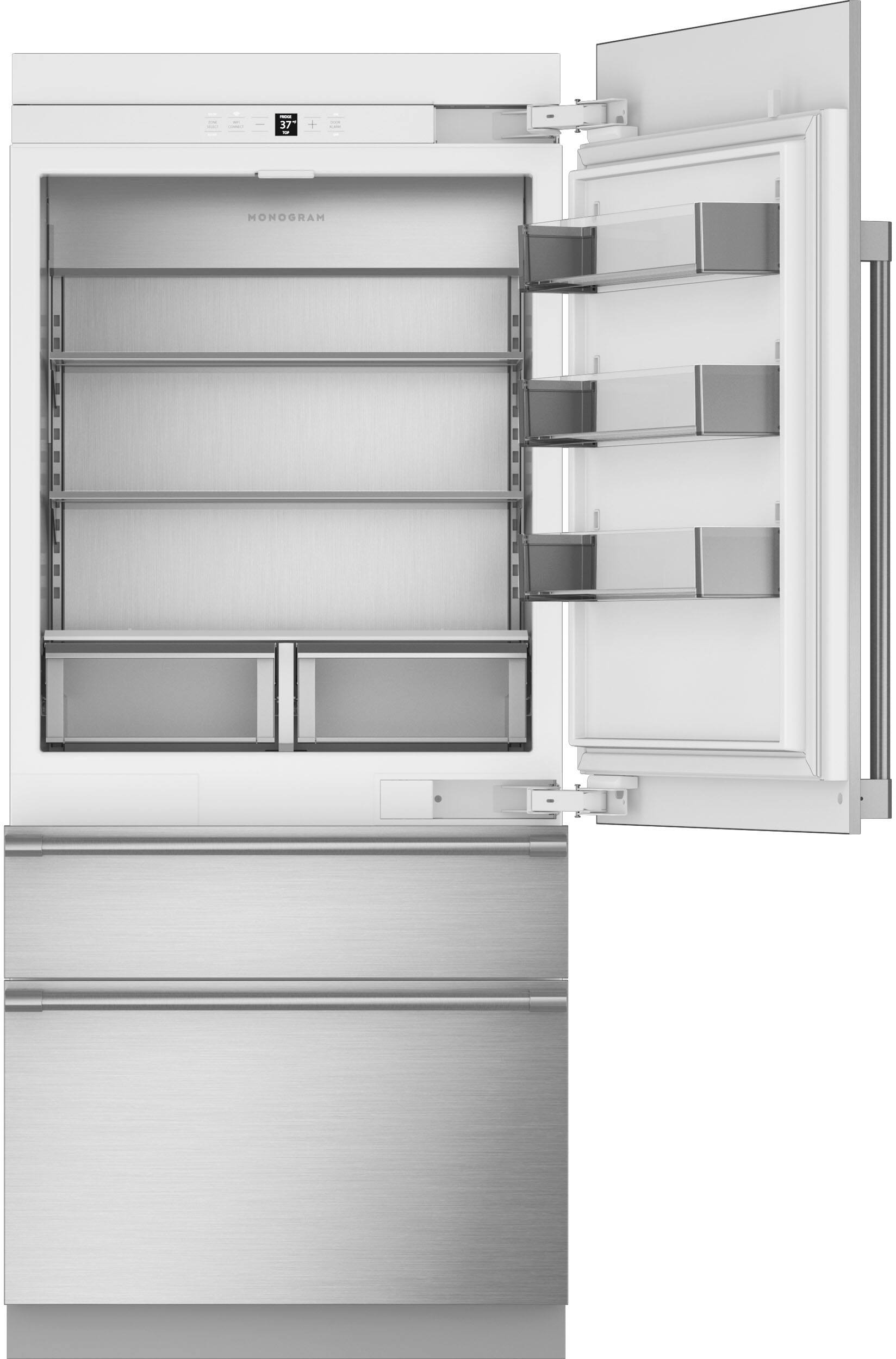

- Refrigerator Shelves: Edge-to-edge glass shelves provide convenient storage and a clean appearance.

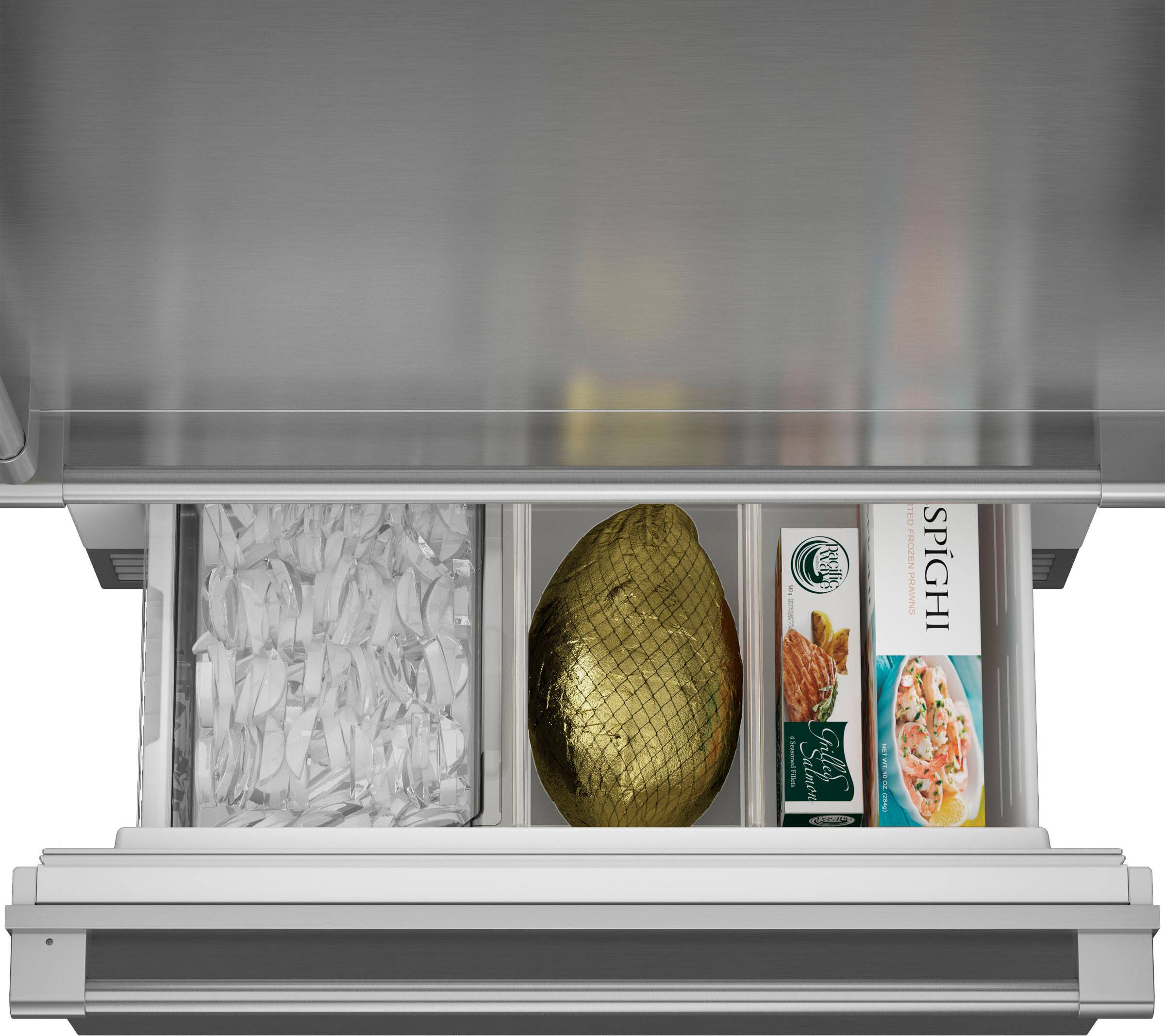

- Factory-Installed Ice Maker: Create all the ice you want, anytime you like, with this refrigerator with ice maker.
- Bottom Freezer with Flush Inset Installation: Sleek design allows the refrigerator to be installed flush with adjacent cabinetry.
- Convertible Drawer with Six Temperature Settings: The convertible drawer with six temperature settings allows you to choose whether the lower drawer is a freezer or a fresh food/wine or beverage refrigerator, with independent temperature controls for storage choice and flexibility.
- Wi-Fi-Connected Refrigerator: The Wi-Fi refrigerator allows you to wirelessly control refrigerator settings from your smartphone, using an available app.
- Two Humidity-Controlled Vegetable Drawers: Enjoy additional storage flexibility with pre-programmed settings that help to preserve food freshness.
- Refrigerator Shelves: Edge-to-edge glass shelves provide convenient storage and a clean appearance.
- Factory-Installed Ice Maker: Create all the ice you want, anytime you like, with this refrigerator with ice maker.
Product Manuals
- Specification Sheet
- Warranty Manual
- Installation Guide
- User Manual
- Product Datasheet/Brochure
- Material Safety Data Sheets
- Instructions/Assembly Guide
- Measurement Guide
- Specification Sheet
- Warranty Manual
- Installation Guide
- User Manual
- Product Datasheet/Brochure
- Material Safety Data Sheets
- Instructions/Assembly Guide
- Measurement Guide
Q: How many humidity-controlled vegetable drawers does this refrigerator have?
A: This Monogram refrigerator comes equipped with two humidity-controlled vegetable drawers, providing optimal storage conditions for preserving the freshness of your produce. These drawers feature pre-programmed settings that help maintain the ideal humidity levels for your fruits and vegetables.
Q: Does this refrigerator have a Sabbath mode?
A: Yes, this Monogram refrigerator has a Sabbath mode feature. The product specifications clearly state: "Sabbath Mode: true".
Q: What is the color finish of this Monogram refrigerator?
A: The color finish of the Monogram refrigerator is stainless steel. The product specifications section mentions "Color: Stainless Steel".
Q: What is the location of the ice maker in this refrigerator?
A: The ice maker in this Monogram refrigerator is located in the freezer compartment. The freezer is located at the bottom of the refrigerator.
Q: What are the dimensions of the cut-out required for installing this refrigerator?
A: The cut-out dimensions required for installing this Monogram refrigerator are 36 inches in width, 84 inches in height, and 25 inches in depth.

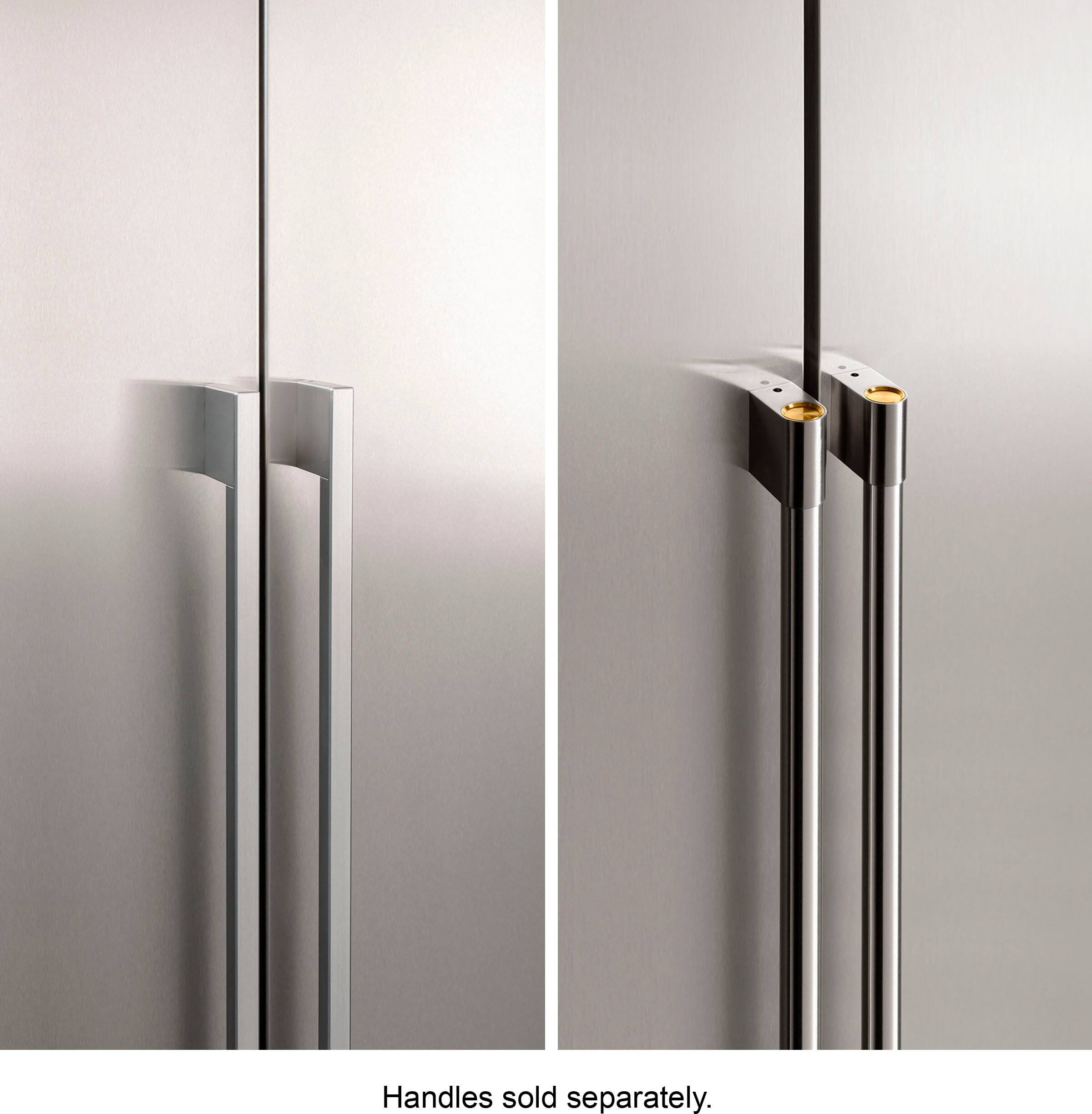

A: The Statement Collection features edge-to-edge handles, polished stainless steel, and brass accents, while the Minimalist Collection has a streamlined appearance and precisely machined metals for a contemporary look. Both collections offer premium features and precise temperature settings for optimal food preservation.
Q: What is the product weight of this Monogram refrigerator?
A: The product weight of the Monogram refrigerator, model number ZIC363NBVRH, is 586 pounds.
Q: What is the purpose of the GE water filtration system in this refrigerator?
A: The GE water filtration system in the Monogram 20.2 Cu. Ft. Bottom-Freezer Counter-Depth Refrigerator provides clean, fresh-tasting water to the freezer's icemaker, ensuring that the ice cubes produced are of high quality and free from impurities.
