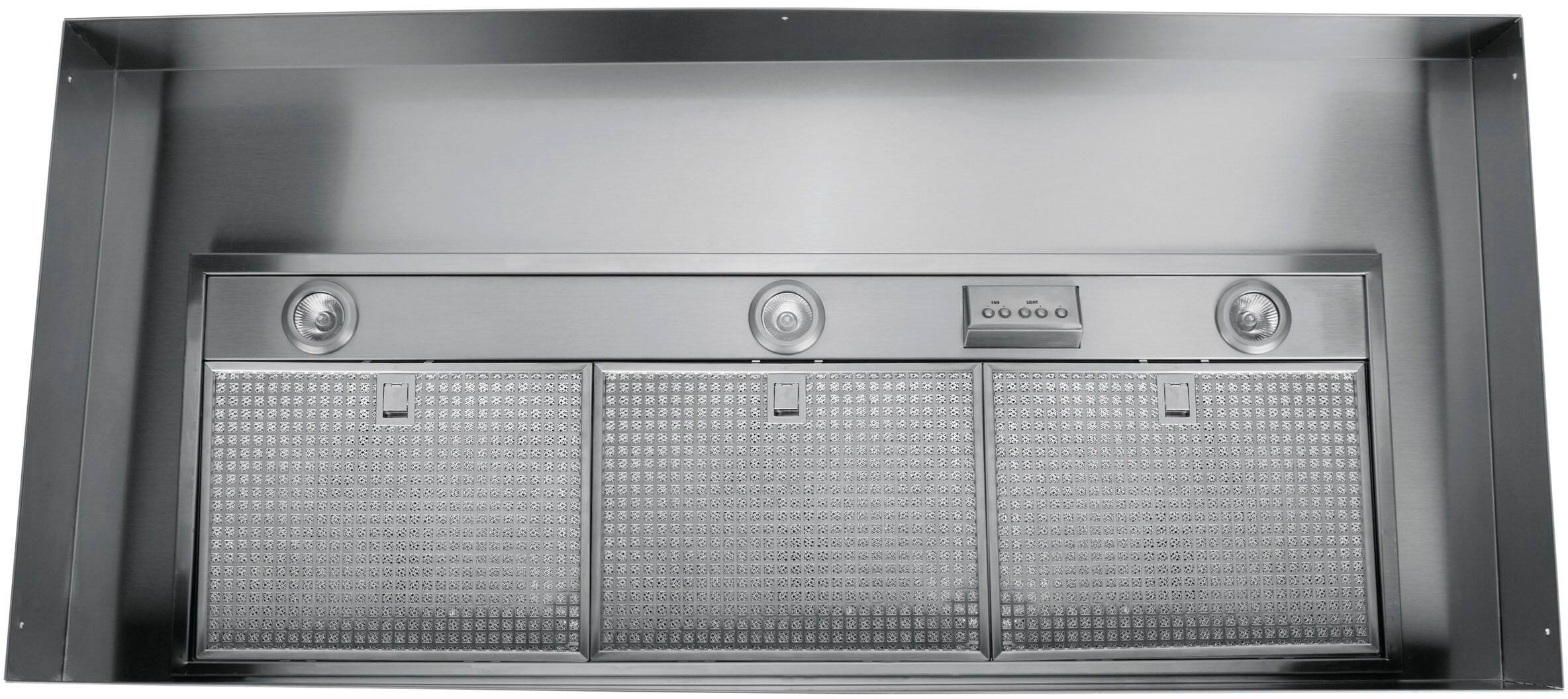

Monogram - 47 inches - Externally Vented - Under cabinet Range Hood - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 46 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: Monogram
- Model Number: ZVC48LSS
- Product Name: 47" Externally Vented Custom Hood Insert
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 18 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 30 inches
- Maximum Installation Height Above Cooktop: 36 inches
- Product Width: 46 1/2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 21 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 47 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 97 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 8 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted
- Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Under cabinet
- Number of Fan Speeds: 4
- Control Type: Button
- Integrated Light(s): true
- Number of Lights: 3
- Bulb Type Required: Halogen
- Bulb(s) Included: true
- Maximum Bulb Wattage: 150 watts
- Filter Info
- Filter Material: Stainless steel
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 3
- Electrical Specification
- Amperage: 10.3 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 084691148524
Dual-blower ventilation with 1140 CFM provides the power, necessary to capture the smoke and oily fumes, produced by high-performance cooking equipment.
- 1,140 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 4 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Electronic controls: Offer simple operation.
- 150W halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
- Stainless steel finish: Offers a sleek, stylish look.
- Designed to fit standard 8" round ductwork: For ease of installation.
- 1,140 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
- 4 fan-speed settings: Allow you to adjust ventilation to meet your needs.
- Electronic controls: Offer simple operation.
- 150W halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
- Stainless steel finish: Offers a sleek, stylish look.
- Designed to fit standard 8" round ductwork: For ease of installation.
Whats Included
- Monogram 47" Externally Vented Custom Hood Insert
- Owners Manual
- Monogram 47" Externally Vented Custom Hood Insert
- Owners Manual
Q: What is the amperage of this hood insert?
A: The amperage of the Monogram 47" Externally Vented Custom Hood Insert is 10.3 amperes.
Q: What is the maximum airflow capacity of this hood insert?
A: The maximum airflow capacity of the Monogram 47" Externally Vented Custom Hood Insert is 1,140 cubic feet per minute (cfm). This powerful ventilation system effectively removes smoke, cooking odors, and grease from the air, ensuring a clean and comfortable kitchen environment.
Q: What is the diameter of the round duct that this hood insert requires?
A: The diameter of the round duct that this hood insert requires is 8 inches. This information can be found in the "Product Features" section of the product description, where it states "Designed to fit standard 8\\" round ductwork: For ease of installation".
Q: What is the voltage requirement for this hood insert?
A: The voltage requirement for this Monogram 47" Externally Vented Custom Hood Insert is 120 volts.
Q: How many fan speed options does this hood insert offer?
A: This Monogram 47" Externally Vented Custom Hood Insert offers four fan speed options: LOW, MED, HIGH, and BOOST. The fan speed can be adjusted using the control panel buttons. The hood also features a sensor that will automatically turn on the fan at the MED setting if cooking temperatures become too high.
Q: How many halogen lights are included with this hood insert?
A: This Monogram 47" Externally Vented Custom Hood Insert comes with three (3) halogen lights. Each halogen light has a maximum wattage of 150 watts.
Q: What material is the grease filter made of?
A: The grease filter of the Monogram 47" Externally Vented Custom Hood Insert is made of stainless steel.
Q: How much does this hood insert weigh?
A: The weight of the 47" Externally Vented Custom Hood Insert from Monogram is 97 pounds.
