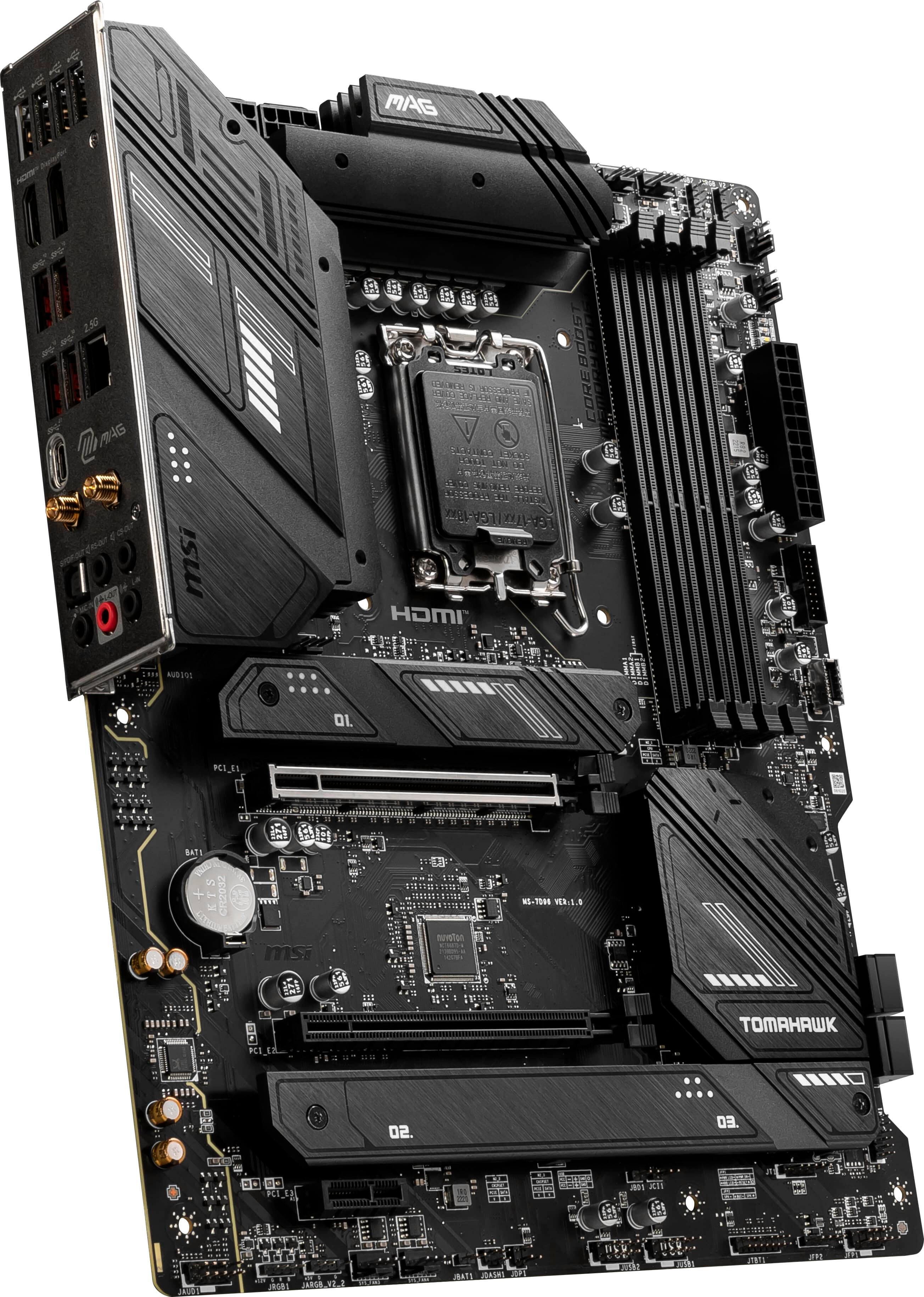

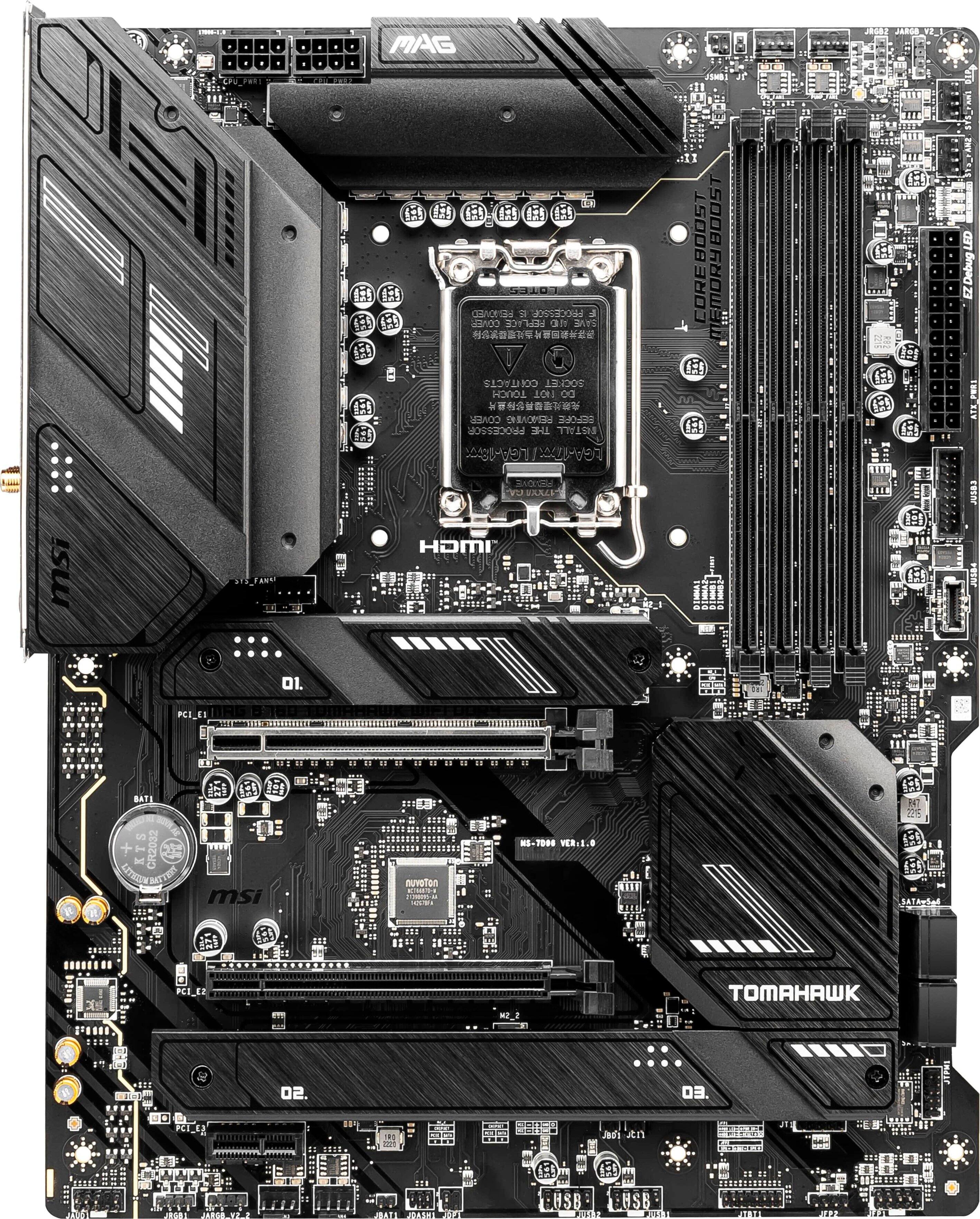

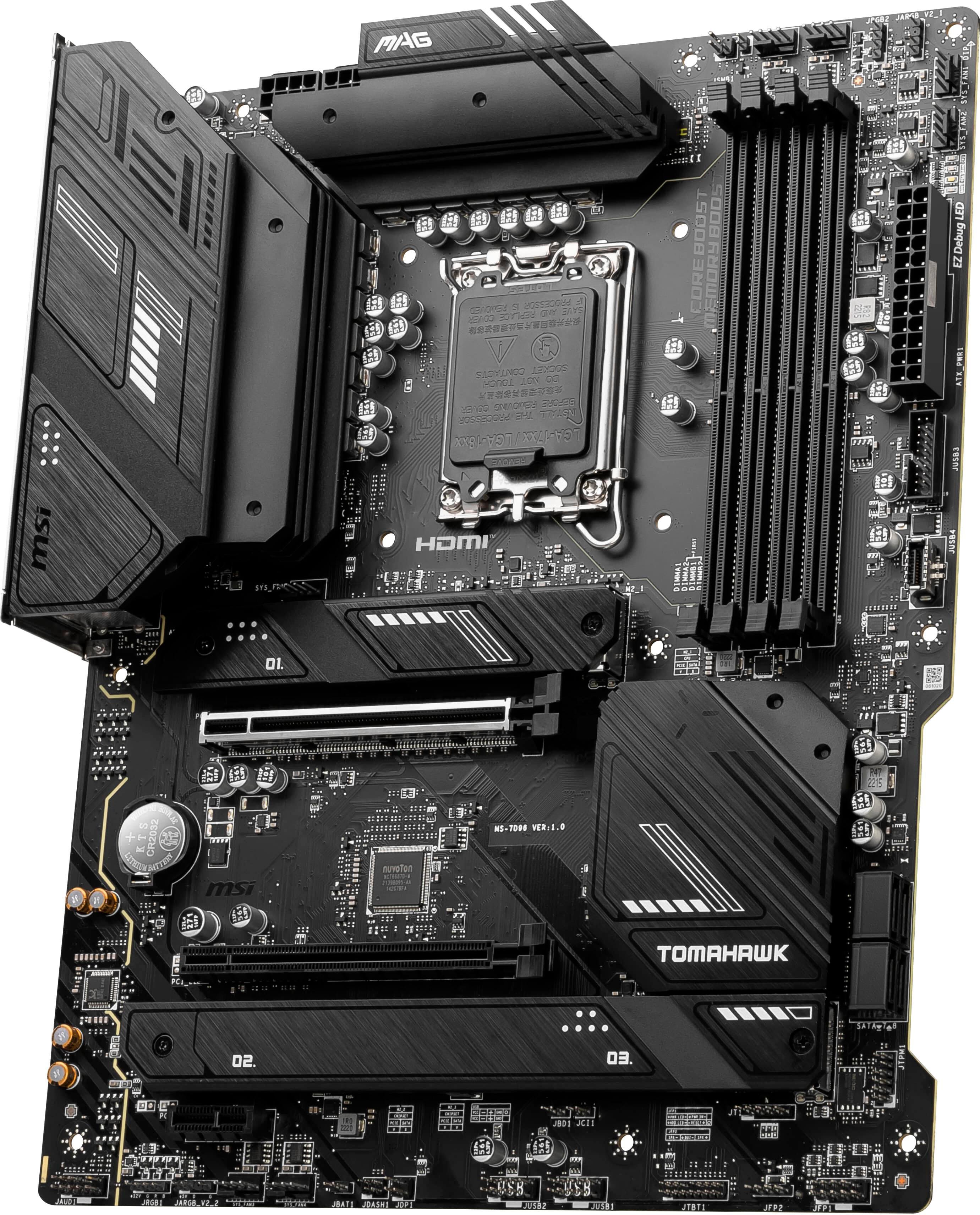

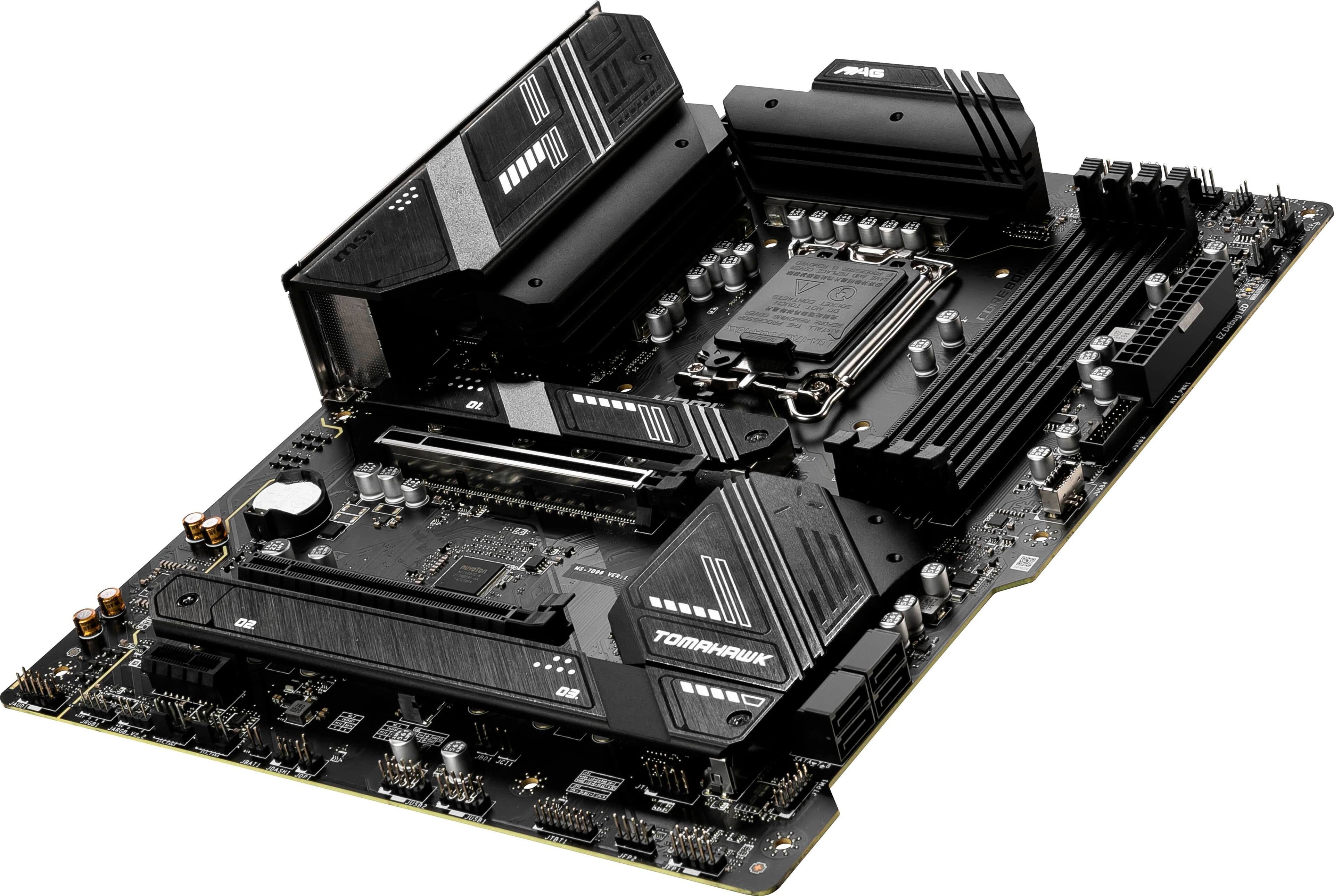

MSI - MAG B760 TOMAHAWK WIFI DDR4 (Socket LGA 1700) Intel B760 ATX DDR4 Wi-Fi 6E Motherboard - Black
Specifications
- ChipsetIntel B760Form FactorATXProcessor SocketSocket LGA 1700Number of PCI-E Slots3Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: Intel B760
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- General
- Brand: MSI
- Model Number: MAG B760 TOMAHAWK WIFI DDR4
- Product Name: MAG B760 TOMAHAWK WIFI DDR4 (Socket LGA 1700) Intel B760 ATX DDR4 Wi-Fi 6E Motherboard
- Color: Black
- Compatibility
- Chipset: Intel B760
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Core i9 14th Generation, Intel Core i7 14th Generation, Intel Core i5 14th Generation, Intel 13th Generation Core i9, Intel 13th Generation Core i7, Intel 13th Generation Core i5, Intel 12th Generation Core i9, Intel 12th Generation Core i7
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 3 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 3 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 2
- Number Of PCI-E x1 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)

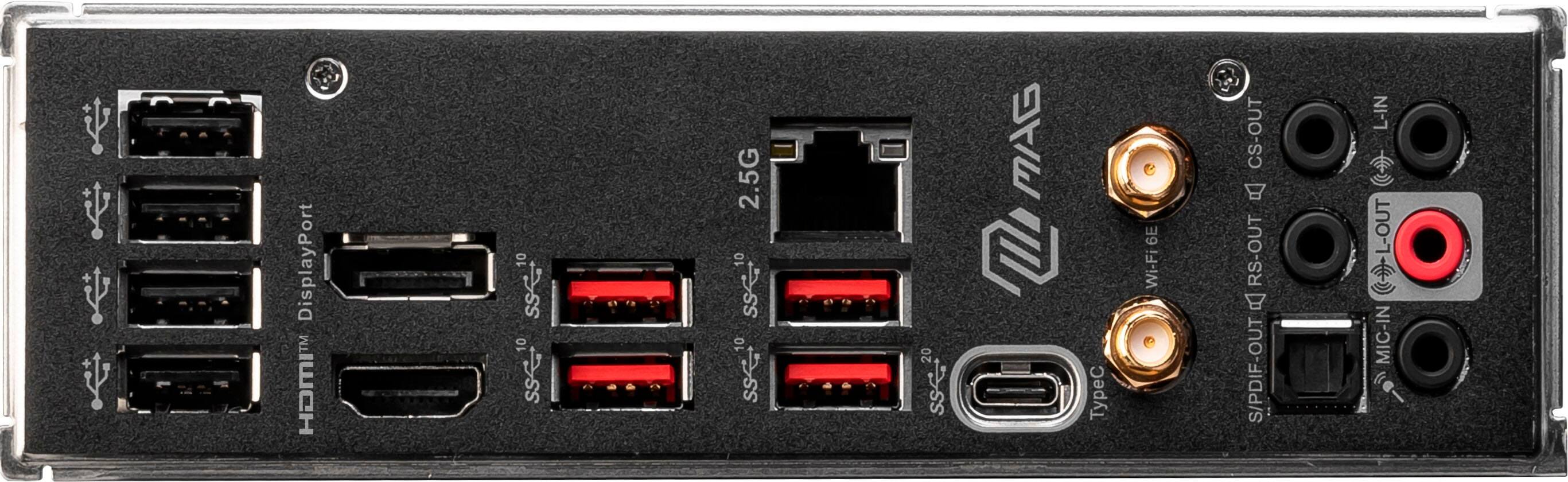

- Ports
- USB Ports: 8 x USB-A 2.0, 6 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 1x Front Audio (JAUD)
- Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 243.84 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 28 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR4
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 5333 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142305980
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
- Processor Compatibility: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Graphics: Integrated Graphics Processor
- DDR4 memory: 4 DIMMs, Duel Channel DDR4 5333+MHZ (OC)
- Audio: Realtek ALC 897
- Wifi 6E: The lastest wireless solution support 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
- Processor Compatibility: Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Graphics: Integrated Graphics Processor
- DDR4 memory: 4 DIMMs, Duel Channel DDR4 5333+MHZ (OC)
- Audio: Realtek ALC 897
- Wifi 6E: The lastest wireless solution support 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Q: Which generations of Intel Core processors are compatible with this motherboard?
A: This motherboard supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors.
Q: What is the form factor of this motherboard?
A: The form factor of this motherboard is ATX.
Q: What type of memory does this motherboard support?
A: It supports DDR4 memory.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, this motherboard comes with Wi-Fi 6E.
Q: How many M.2 slots are available on the motherboard?
A: This motherboard has 3 M.2 slots.
Q: What is the maximum memory supported by this motherboard?
A: The maximum memory supported is 128 gigabytes.
Q: will an i7 11700 work with this?
A: The MAG B760 Tomahawk WiFi DDR4 is compatible with 12th, 13th and 14th gen Intel CPUs.
A: The MAG B760 TOMAHAWK WiFi DDR4 is compatible with RTX 40 series graphics cards and 14th gen Intel CPUs.
