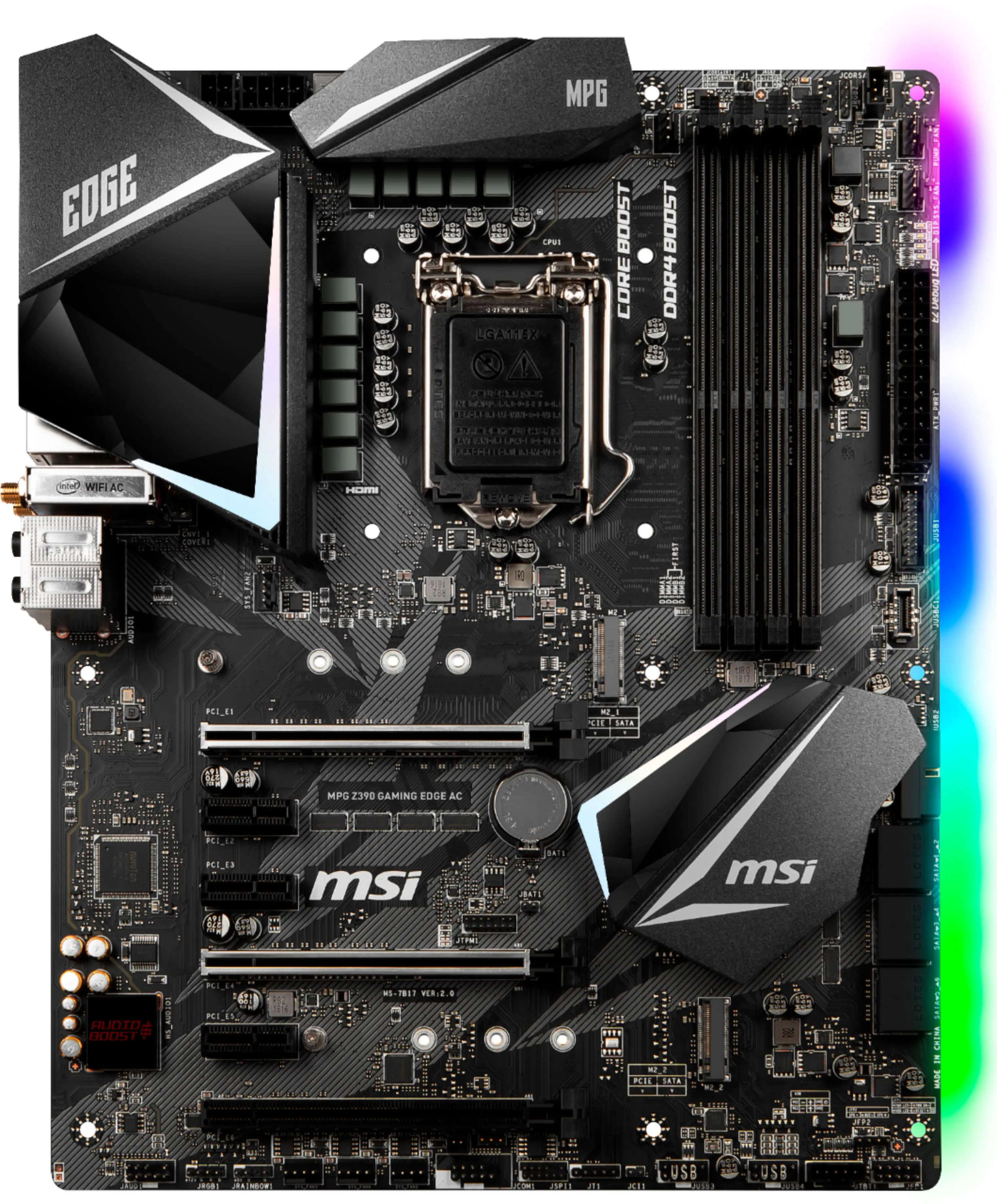

MSI - MPG Z390 GAMING EDGE AC (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard with LED Lighting
- Key Specs
- Chipset: Intel Z390
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- General
- Brand: MSI
- Model Number: MPG Z390 GAMING EDGE AC
- Product Name: MPG Z390 GAMING EDGE AC (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard with LED Lighting
- Compatibility
- Chipset: Intel Z390
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Core i5, Intel Core i3, Intel Core i7
- Connectivity
- Power Connector: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 824142170755
Design the perfect PC with this MSI MPG Z390 Gaming Edge AC motherboard. Featuring two advanced M.2 slots, DDR4-boosting technology and three PCI-e expansion slots, this motherboard accommodates and enhances a variety of high-end components. This MSI MPG Z390 Gaming Edge AC motherboard maximizes processor performance with an optimal layout and a digital power design.
- Supports Intel® processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1151 socket.
- Up to 4400MHz (OC) system speed: With an Intel® Z390 chipset for efficient operation.
- NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 HDMI, 1 LAN (Gigabit Ethernet), 1 USB 3.1 Gen 2, 2 USB 2.0, 1 PS/2 (mouse/keyboard), 1 DisplayPort, 1 USB-C Gen2, 1 audio line-out, 1 microphone, and more.
- Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
- Supports Intel® processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1151 socket.
- Up to 4400MHz (OC) system speed: With an Intel® Z390 chipset for efficient operation.
- NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 HDMI, 1 LAN (Gigabit Ethernet), 1 USB 3.1 Gen 2, 2 USB 2.0, 1 PS/2 (mouse/keyboard), 1 DisplayPort, 1 USB-C Gen2, 1 audio line-out, 1 microphone, and more.
- Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
Whats Included
- MSI MPG Z390 GAMING EDGE AC
- SLI bridge
- 2 x Serial ATA cable
- I/O back plate
- Software
- MSI MPG Z390 GAMING EDGE AC
- SLI bridge
- 2 x Serial ATA cable
- I/O back plate
- Software
Product Manuals
Q: Will this board go into a Intel core I3 8th generation
A: undefined
Q: does this MB come with screws that i can use them to tight this MB to my tower case.
A: Yes it does!
Q: Will this work with an i7-9700 (non k version)?
A: It should.
Q: Will this work for I7-7700k ?
A: No, this motherboard only supports 8th and 9th gen Intel CPUs.
A: Both sections are correct, specs just show a subset of compatible models. For a full list, you can reference the MSI website. https://www.msi.com/Motherboard/support/MPG-Z390-GAMING-EDGE-AC#support-cpu
Q: What kind of CPU cooler can you put on this?
A: I have a NZXT Kraken X52 Rev. 2 AIO on mine. I would venture say that any modern cooler that supports Intel should fit this board. I could be wrong.
Q: THIS MOTHERBOARD SUPPORT 4K ULTRA HD ?
A: depends on cpu if it has integrated graphics or the gpu. What cpu/gpu are you going with?
Q: Would this MB work with the nee i9 processors from intel, and the 2080ti Founders Edition?
A: Why wouldnt it? This is a great board. The only bad thing about it is that MSI was so lazy that there are absolutely NOOOOOOOOOOOOOOOOOOOO drivers on it. No ethernet, no wifi. Nothing. So make sure you use the disc it comes with.
