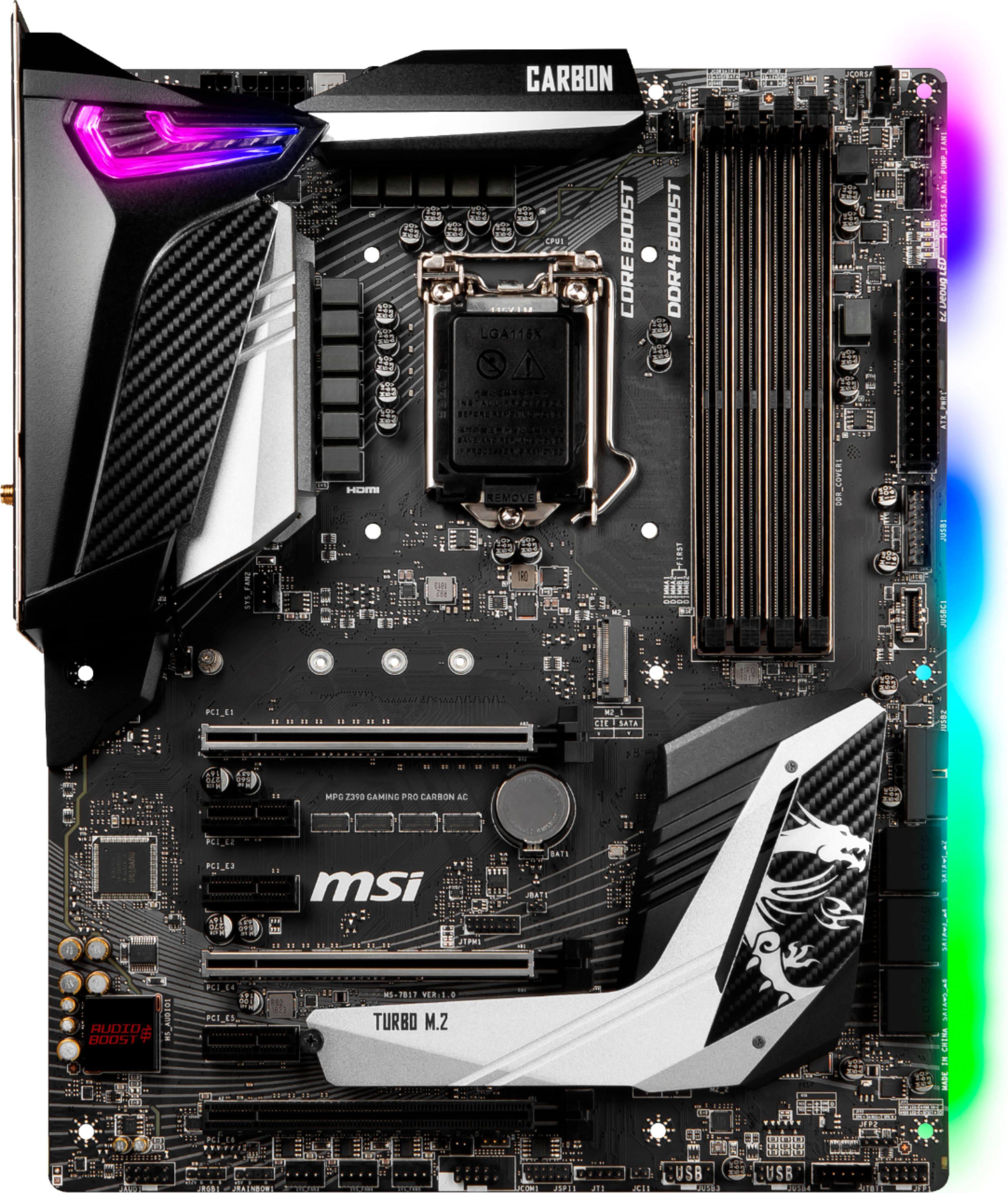

MSI - MPG Z390 GAMING PRO CARBON AC (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard
- Key Specs
- Chipset: Intel Z390
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- General
- Brand: MSI
- Model Number: MPG Z390 GAMING PRO CARBON AC
- Product Name: MPG Z390 GAMING PRO CARBON AC (Socket LGA1151) USB 3.1 Gen 1 Intel Motherboard
- Compatibility
- Chipset: Intel Z390
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1151 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Core i5, Intel Core i3, Intel Core i7
- Connectivity
- Power Connector: 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 12 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 824142169858
Take your gaming performance to the next level with this MSi gaming motherboard. Compatible with up to ninth-generation Intel processors, it supports high-performance features like DDR4 RAM and USB Type-C, and the Gaming I/O cover offers enhanced lighting options. This MSi gaming motherboard includes thermal enhancement features for high-speed M.2 storage to provide optimal performance.
- Supports Intel® processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1151 socket.
- Up to 4400MHz (OC) system speed: With an Intel® Z390 chipset for efficient operation.
- NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 HDMI, 1 LAN (Gigabit Ethernet), 3 USB 3.1 Gen 2, 2 USB 2.0, 1 PS/2 (mouse/keyboard), 1 DisplayPort, 1 USB-C Gen2, 1 audio line-out, 1 microphone, and more.
- Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
- Supports Intel® processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1151 socket.
- Up to 4400MHz (OC) system speed: With an Intel® Z390 chipset for efficient operation.
- NVIDIA 2-way SLI and AMD 3-way CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 HDMI, 1 LAN (Gigabit Ethernet), 3 USB 3.1 Gen 2, 2 USB 2.0, 1 PS/2 (mouse/keyboard), 1 DisplayPort, 1 USB-C Gen2, 1 audio line-out, 1 microphone, and more.
- Expansion capabilities: Include 3 PCI Express 3.0 x16 and 3 PCI Express 3.0 x1.
Whats Included
- MSI MPG Z390 GAMING PRO CARBON AC
- SLI bridge
- Serial ATA cable
- Software
- MSI MPG Z390 GAMING PRO CARBON AC
- SLI bridge
- Serial ATA cable
- Software
Product Manuals
Q: Does it has WiFi and Bluetooth?
A: Yes! The board comes with 2 coax inputs, and comes with an antenna. The antenna is plastic and runs 2 wires into the motherboard. The wires are long enough so that you can elevate the antenna, which is also wall mountable. The board is also Bluetooth compatible and syncs well with your devices
Q: Will this motherboard support the new RTX 30 series from Nvidia?
A: Yes it will
A: Yes it can.
Q: Do you have to install the motherboard software using the dvd or can you use something else?
A: You can go to the website and download it to a USB drive. That is what I did with mine. Then go into the BIOS and update it. It will ask if you where the source is and you just point it to the flash drive.
A: Yes, this board will support the new 9900k. This is a z390 board with a robust VRM and an 8 pin and 4 pin cpu power connector. I have a 9700k overclocked to 5Ghz. You’ll be very happy with the board!
Q: Does this motherboard work with the 10th gen Intel i9 10900k? Thanks!
A: No. Only 8th and 9th gen
A: Yes, this will work with that CPU and graphics card.
