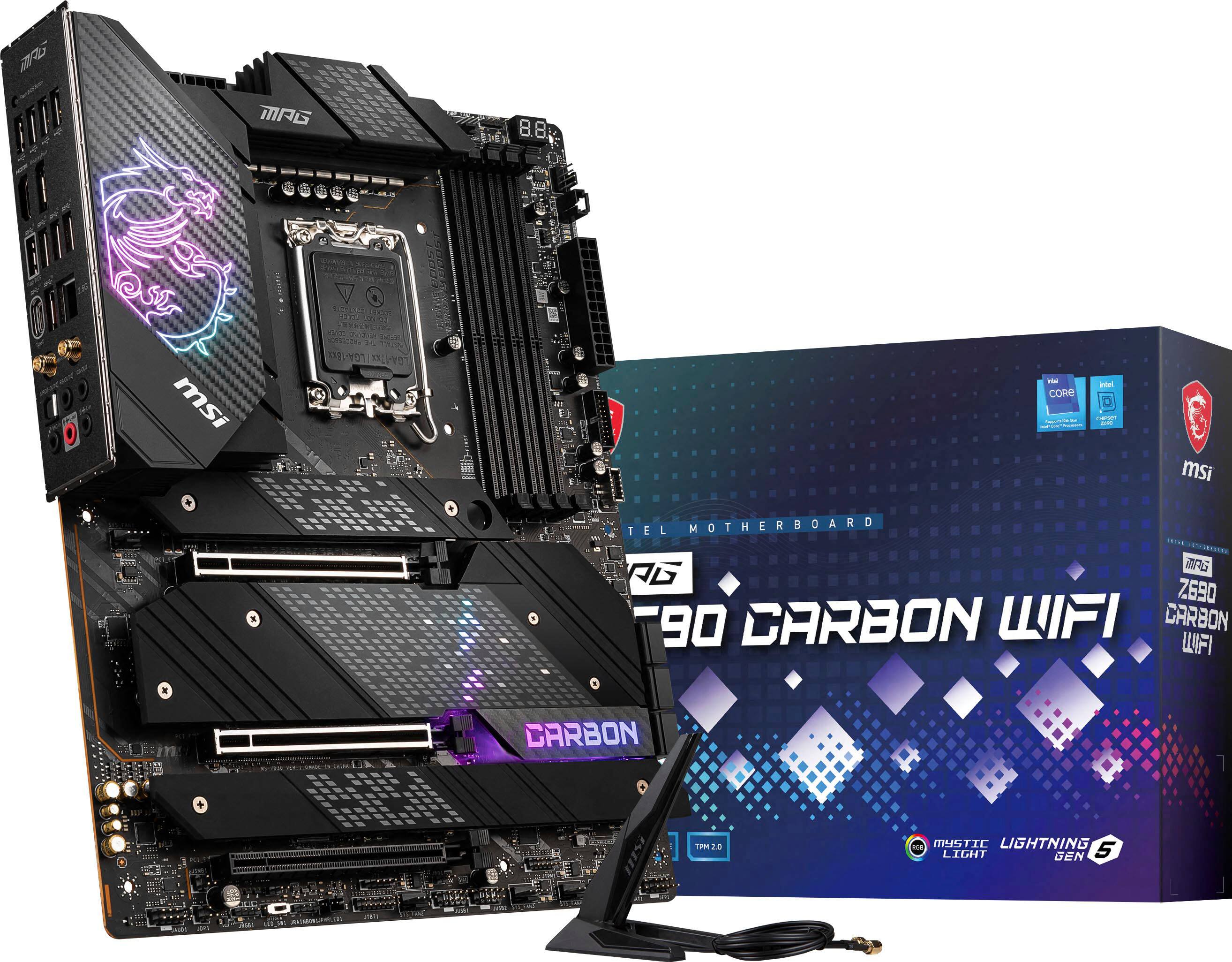

MSI - MPG Z690 CARBON WIFI Socket LGA 1700 USB 3.2 Intel Motherboard - Black
- Key Specs
- Chipset: Z690
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: MPG Z690 CARBON WIFI
- Product Name: MPG Z690 CARBON WIFI Socket LGA 1700 USB 3.2 Intel Motherboard
- Color: Black
- Compatibility
- Chipset: Z690
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel, Intel Core i9, Intel Core i7, Intel Core i5, Intel Core i3
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 5 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 3
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 6x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Fan/Cooling System Connector: 6x 4-pin (The configuration of the connector as it connects a computer component to a fan or cooling system.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 6 x USB-A 3.2, 1 x USB-C 3.2, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Audio Ports: 1x Front Audio (JAUD)
- Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 40 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: DIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 6666 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- Multi-GPU Support: CrossFire
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142269756
PREMIUM HARDWARE DESIGN With years of experience, MSI is no stranger to building high- performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions. DIRECT 18 + 1 +1 PHASES POWER DESIGN Unleash and sustain maximum performance with an aggressive VRM design built with a total of direct 18 +1+1 power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, MPG series motherboard is ready to sustain heavy daily work. Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking. MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules, configurations and even improve overclocking. The advanced SMT(Surface Mount Technology) welding process reduces the defect rate of slot solder joints, electromagnetism, and interference. Combining with exclusive Memory Boost technology allows MSI motherboards to deliver the clean and pure high-frequency DDR5 signal. The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
- Supports Intel® 12th Gen processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1700 socket
- Chipset: With an Intel® Z690 chipset for fast computing.
- Dual Channel DDR5-6666Mhz: 4 DIMM
- Graphics Interface: 2x PCIe 5.0 x16
- Expansion Slots: 1x PCIe 3.0 x16
- Storage: 4x M.2 Gen4 x4 64Gbps 1x M.2 Gen3 x4 32Gbps 6x SATA 6Gbps
- USB: 1x USB 3.2 Gen 2x2 20 Gbps (1 Type-C) 6x USB 3.2 Gen 2 10Gbps (5 Type-A + 1 Type-C) 2 x USB 3.2 Gen 1 5 Gbps (2 Type-A) 8x Usb 2.0
- Wireless: Intel Wi-Fi 6 module, Bluetooth 5.2
- Supports Intel® 12th Gen processors: Including Celeron®, Core™ i5, Core™ i3, Core™ i7, Core™ i9 and Pentium® Gold in an LGA 1700 socket
- Chipset: With an Intel® Z690 chipset for fast computing.
- Dual Channel DDR5-6666Mhz: 4 DIMM
- Graphics Interface: 2x PCIe 5.0 x16
- Expansion Slots: 1x PCIe 3.0 x16
- Storage: 4x M.2 Gen4 x4 64Gbps 1x M.2 Gen3 x4 32Gbps 6x SATA 6Gbps
- USB: 1x USB 3.2 Gen 2x2 20 Gbps (1 Type-C) 6x USB 3.2 Gen 2 10Gbps (5 Type-A + 1 Type-C) 2 x USB 3.2 Gen 1 5 Gbps (2 Type-A) 8x Usb 2.0
- Wireless: Intel Wi-Fi 6 module, Bluetooth 5.2
Product Manuals
A: You can find the memory QVL list for the MPG Z690 CARBON WiFi motherboard on the link provided. https://www.msi.com/Motherboard/MPG-Z690-CARBON-WIFI/support#mem
Q: Can i use a ddr5 ram on this motherboard
A: Yes, I'm running 4 16gb sticks of Corsair Dominator now.
Q: This says its for DDR5, is it backwards compatible with other RAM? would DDR4 work as well?
A: DDR5 and DDR4 are physically different and cannot be interchangeable.
A: Greetings from the Intel team. Thank you for your question. Yes, the MSI - MPG Z690 CARBON WIFI Socket LGA 1700 is compatible with the Intel® Core™ i9-13900K processor. Motherboard CPU compatibility: https://www.msi.com/Motherboard/MPG-Z690-CARBON-WIFI/support#cpu For more detailed information about the Intel® Core™ i9-13900K Processor, please visit: https://ark.intel.com/content/www/us/en/ark/products/230496/intel-core-i913900k-processor-36m-cache-up-to-5-80-ghz.html Thank you for choosing Intel! Emilio.
Q: When will i even be able to buy DDR5 Memory?
A: It’s going to take a few months for them to be available to purchase anywhere. You can still get it with random drops through Best Buy, newegg, etc. I used nowinstock to secure mine.
A: Yes, to support the 13th gen CPUs you'll need to update your bios on this motherboard. Easy task. You don't even need to install the CPU for the update.
