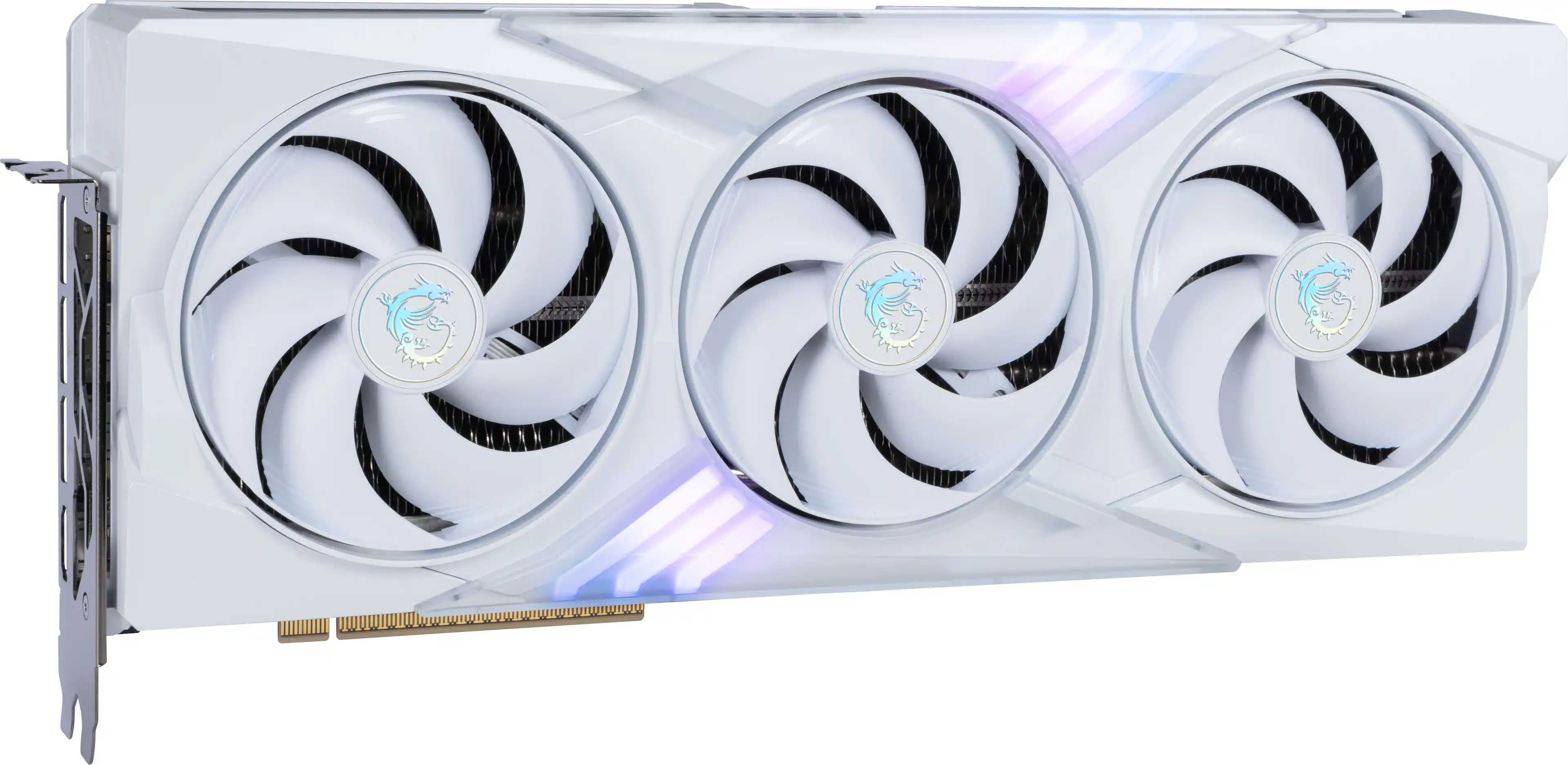

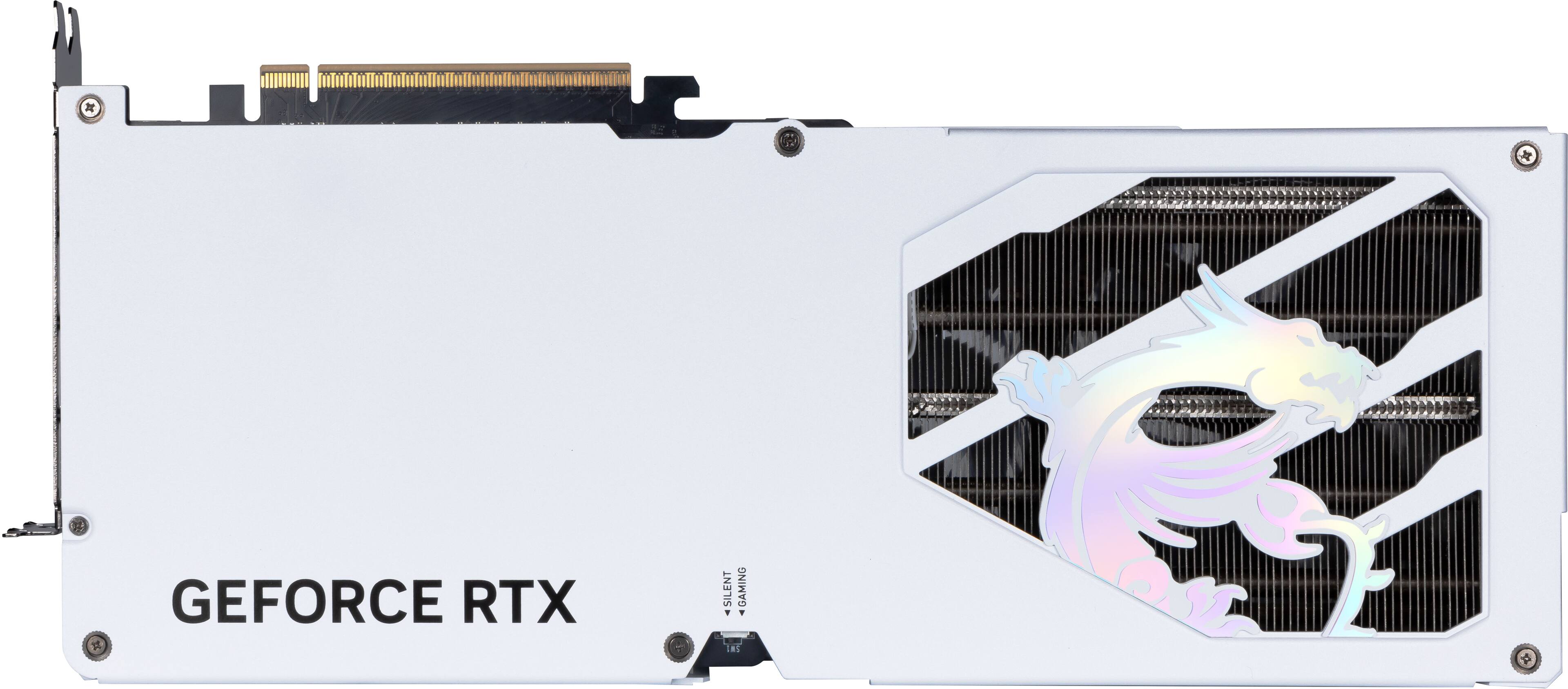

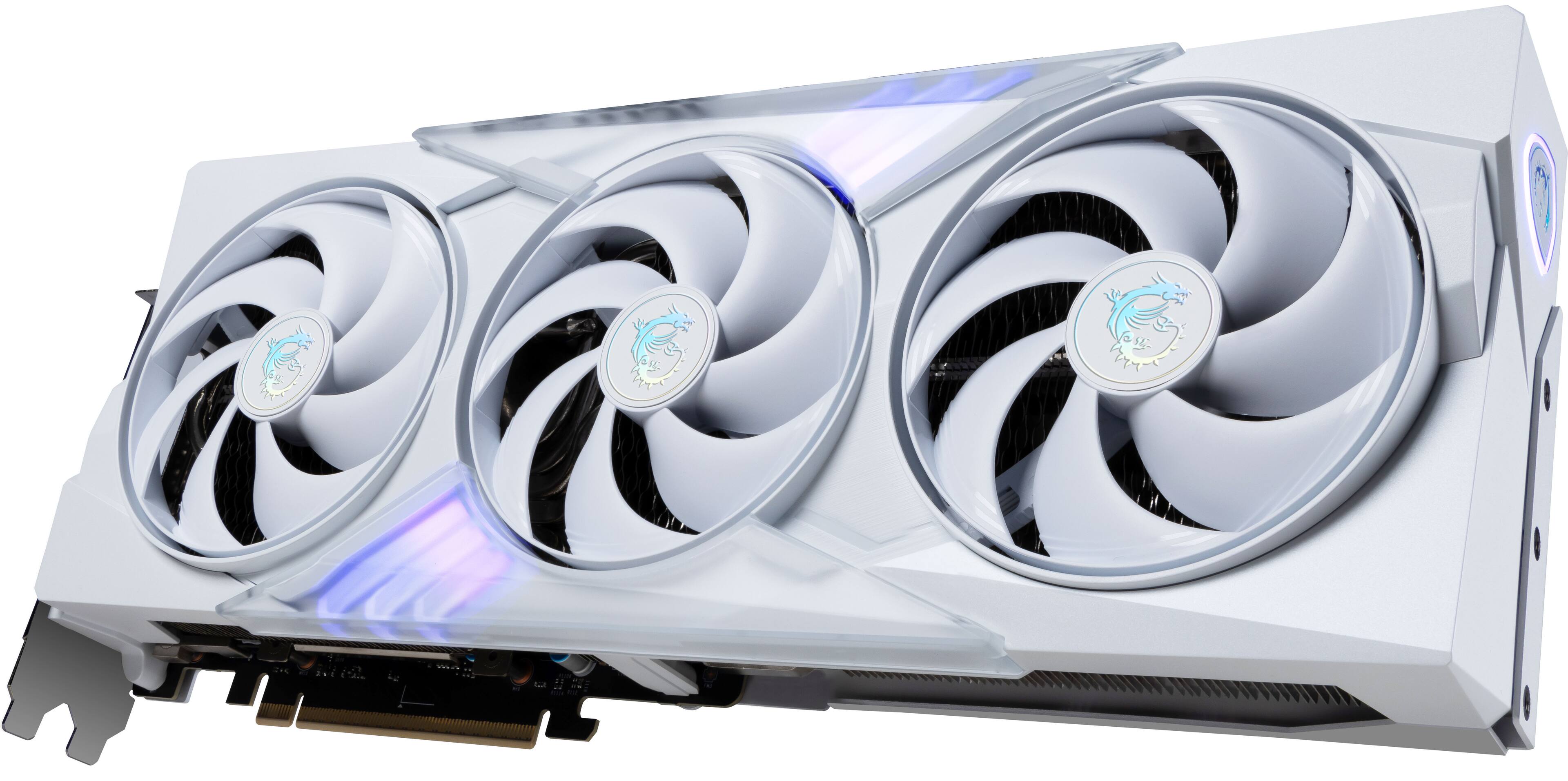

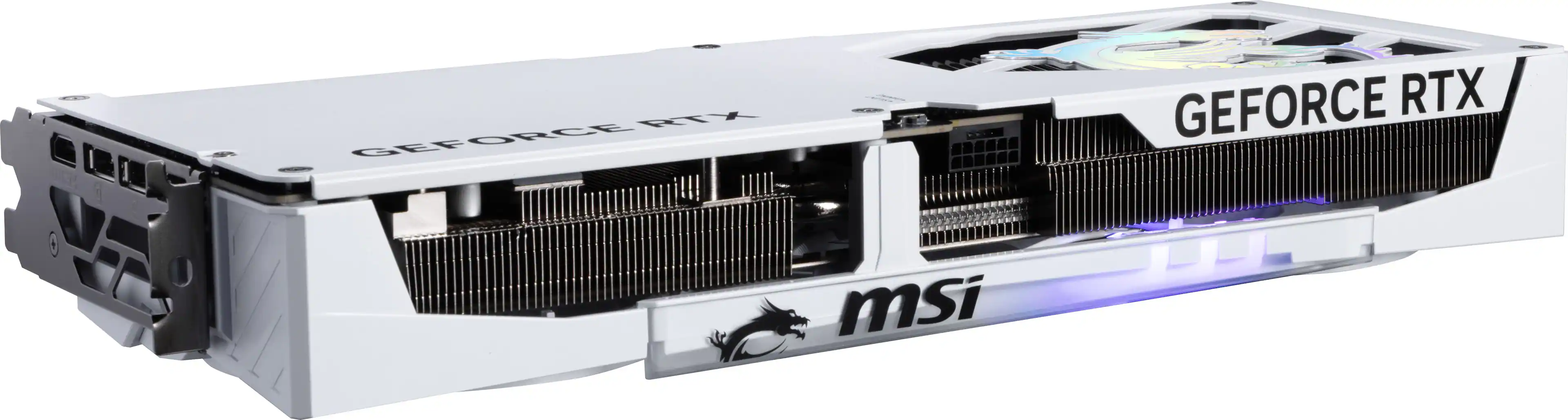

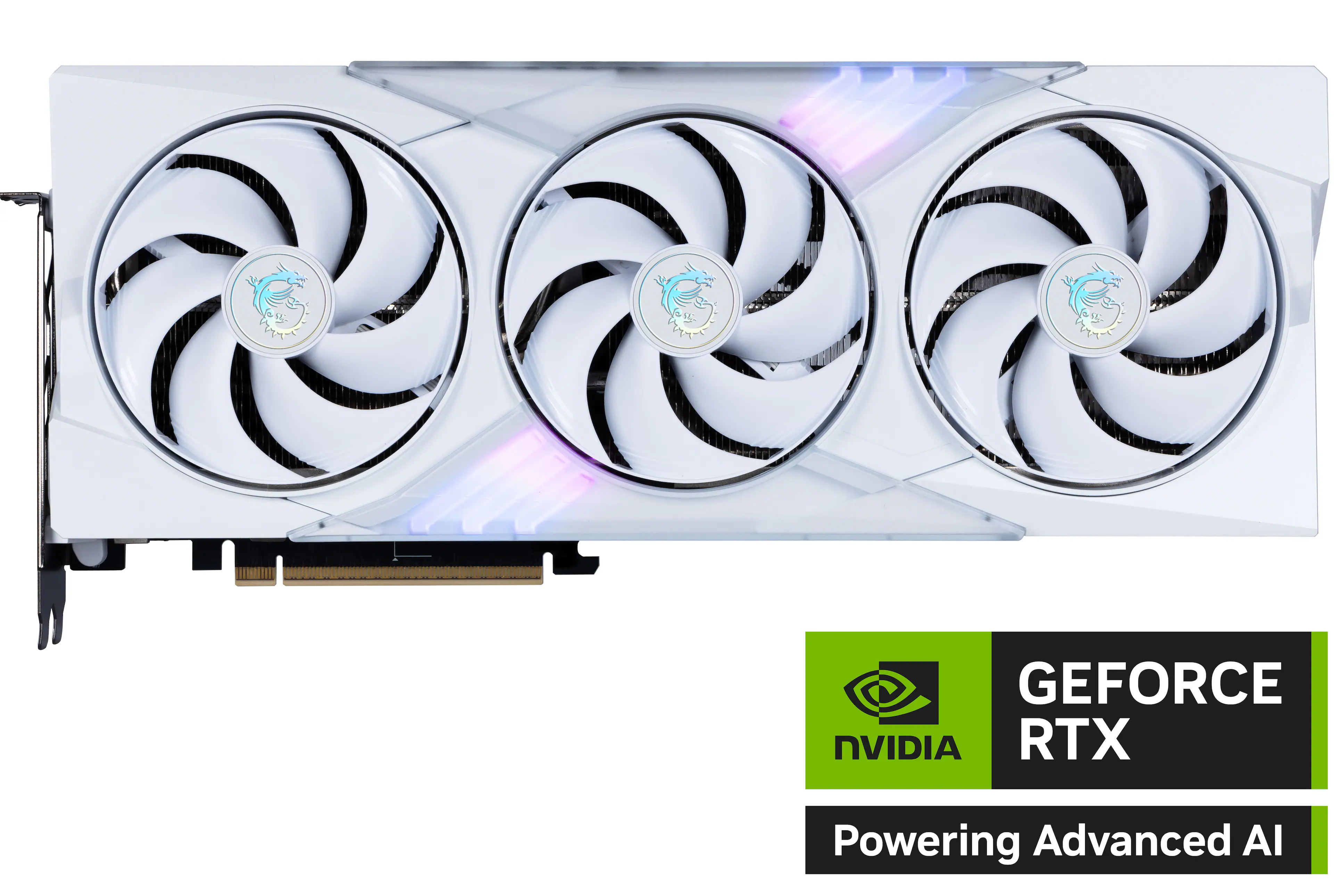

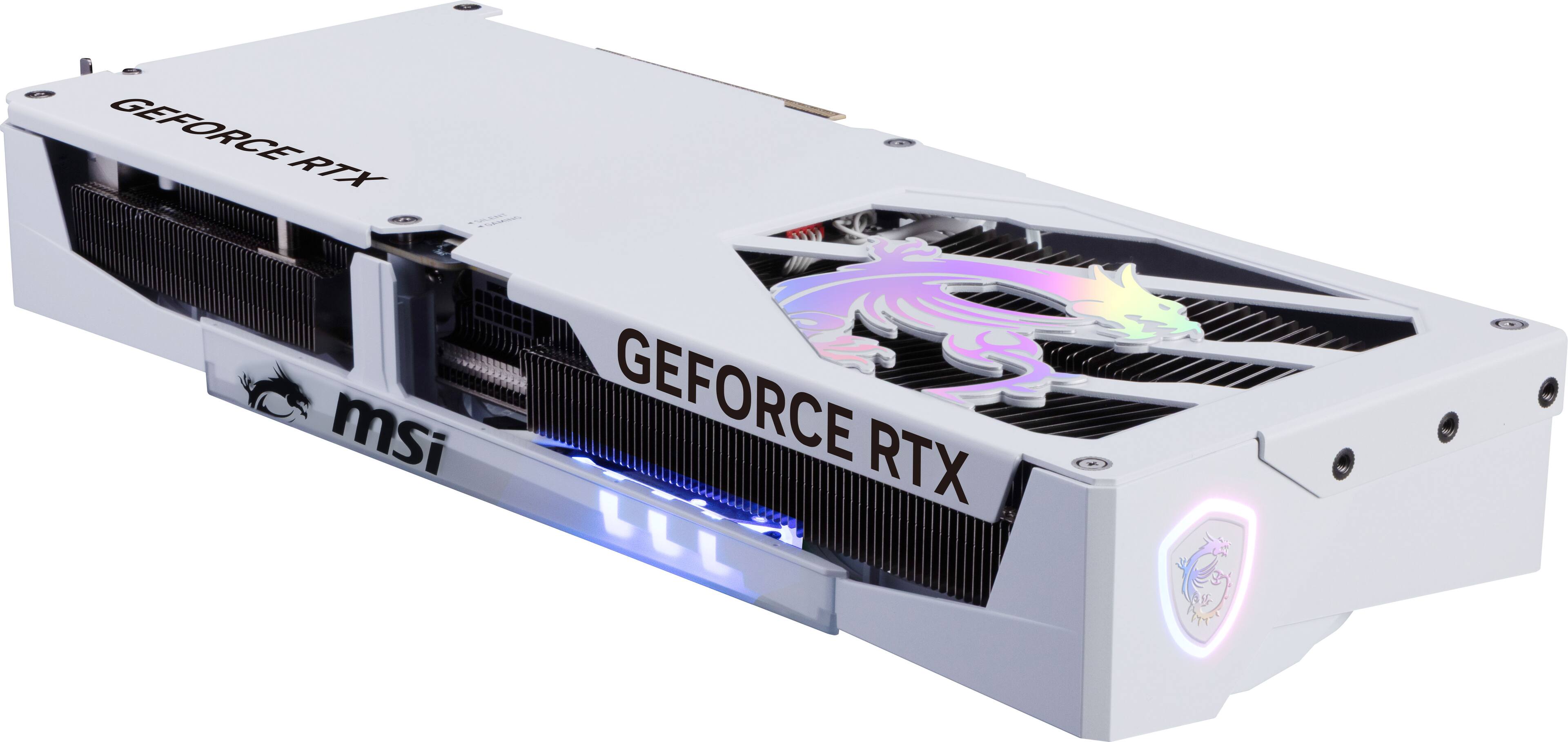

MSI - NVIDIA GeForce RTX 5070 TI 16G GAMING TRIO OC 16GB GDDR7 PCI Express Gen 5 Graphics Card - White
MSI - NVIDIA GeForce RTX 5070 TI 16G GAMING TRIO OC 16GB GDDR7 PCI Express Gen 5 Graphics Card - White
Related Item
Specifications
- GPU Base Clock Frequency2.325 gigahertzGPU Boost Clock Frequency2.572 gigahertzDisplayPort Ports3 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.325 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.572 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)

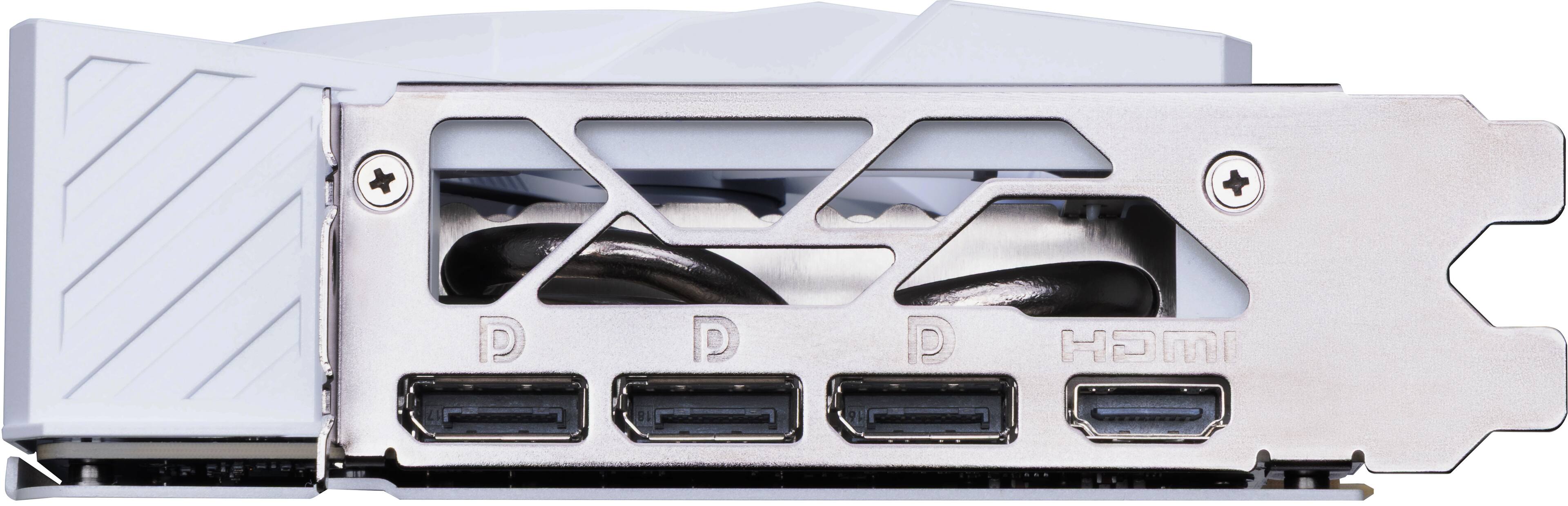

- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2.5-slot, 2.5-slot, 2.5-slot, 2.5-slot, 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 140.174 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 50.038 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 338.074 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5070 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: MSI
- Model Number: G507T-16GTCW
- Product Name: NVIDIA GeForce RTX 5070 TI 16G GAMING TRIO OC WHITE 16GB GDDR7 PCI Express Gen 5 Graphics Card
- Color: White
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5070 Ti (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.325 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.572 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan, Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 28 gigahertz
- Compatibility
- Slot Size: 2.5-slot, 2.5-slot, 2.5-slot, 2.5-slot, 2.5-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 300 watts
- Recommended Power Supply: 750 watts
- Dimensions
- Product Height: 140.174 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 50.038 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 338.074 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 2.86 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142402856
MSI GeForce RTX 5070 TI 16G GAMING TRIO OC WHITE: Bold and uncompromising, the GAMING TRIO delivers exceptional performance for both gaming and content creation. Its fierce design is matched by cutting-edge cooling technologies, ensuring stability under pressure. Built for those who play with purpose and push limits, GAMING TRIO is the ultimate ally on the battlefield.
- Graphics Processing Unit (GPU)/Clock Speed: Equipped with the NVIDIA GeForce RTX 5070 Ti graphics processing unit (GPU), featuring a boost clock.
- 16GB GDDR7: 16GB GDDR7 Video Memory.
- Interface Compatibility: PCI Express Gen 5 offers compatibility with a range of systems.
- NVIDIA G-SYNC: The Ultimate Gaming Display Technologies
- TRI FROZR 4 THERMAL DESIGN: Upgraded fans, enhanced airflow control, and advanced thermal innovations provide superior cooling and quieter operation, boosting the overall performance of the graphics card.
Whats Included
- NVIDIA GeForce RTX 5070 TI 16G GAMING TRIO OC WHITE 16GB GDDR7 PCI Express Gen 5 Graphics Card

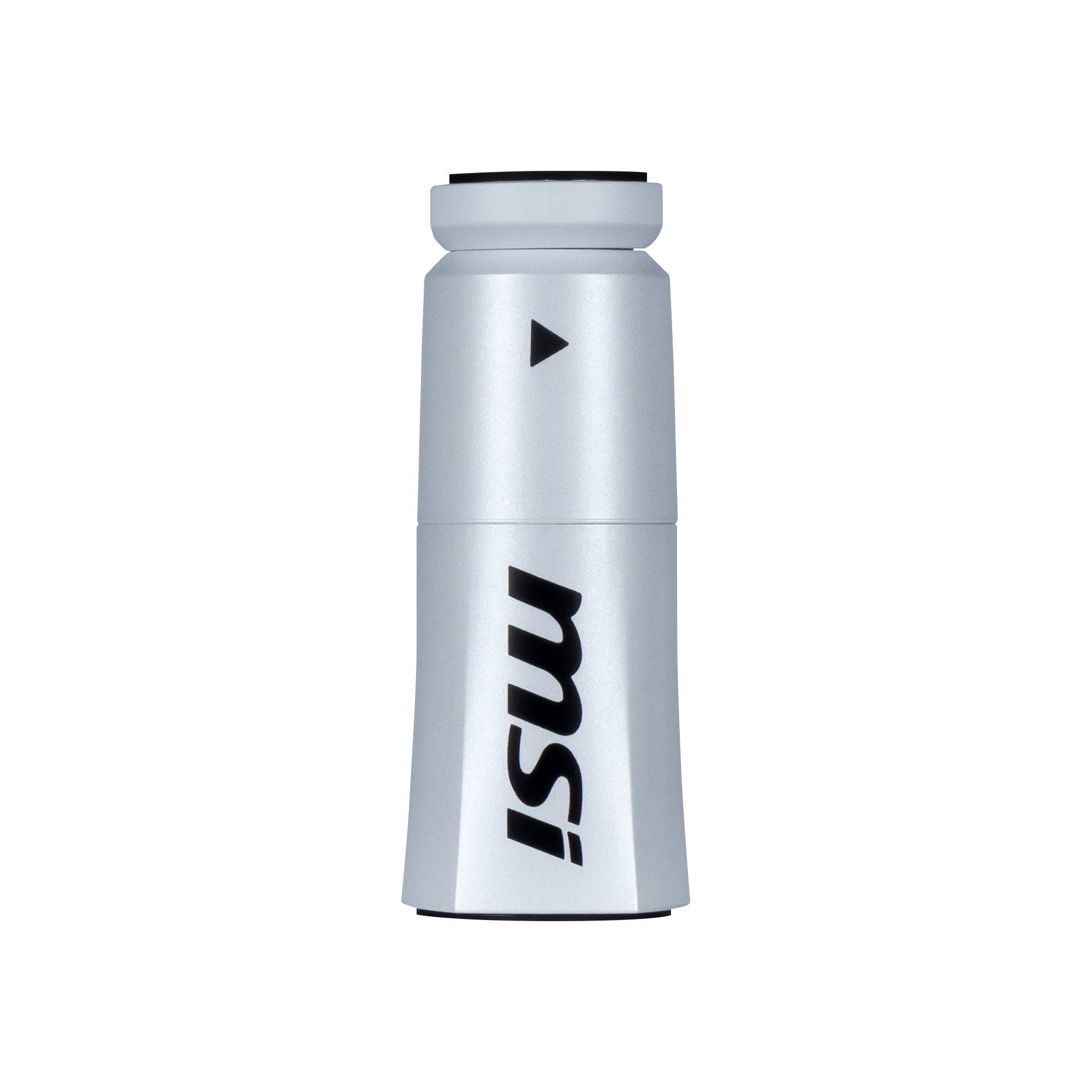

- Support Stand

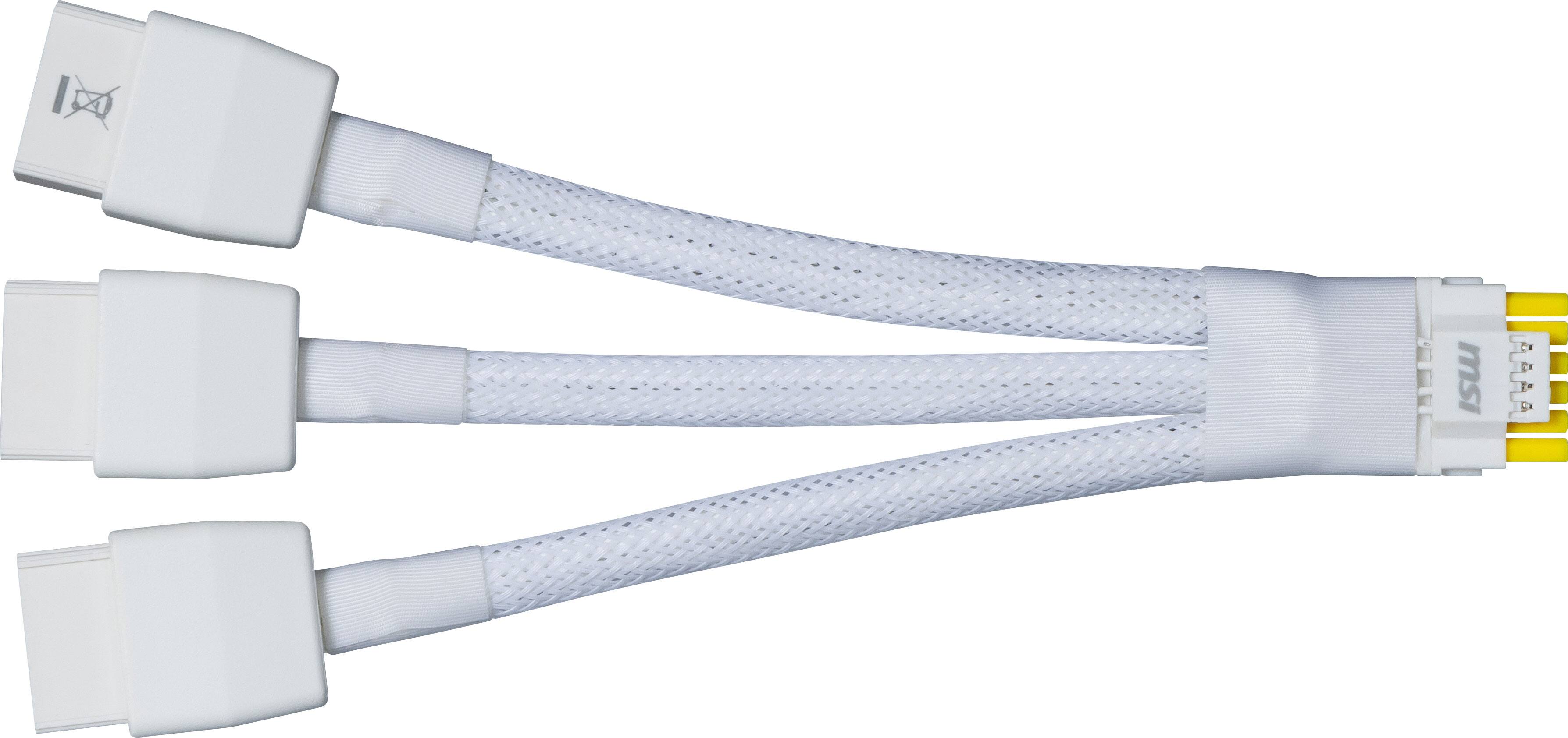

- Adapter Cable
Product Manuals
Q: What is the maximum resolution supported by this graphics card?
A: The maximum resolution supported is 8K (4320p).
Q: Does this graphics card support overclocking?
A: Yes, you can overclock it using MSI Afterburner software.
Q: What is the recommended power supply for this graphics card?
A: A 750-watt power supply is recommended.
Q: Which application programming interfaces are supported?
A: The card supports DirectX 12 Ultimate, Vulkan RT, and OpenGL 4.6.
Q: How many DisplayPort ports does the card have?
A: It has 3 DisplayPort 2.1 ports.
Q: What type of video memory does this graphics card have?
A: This graphics card has 16GB GDDR7 video memory.
Q: What is the total graphics power of this card?
A: The total graphics power is 300 watts.
A: Not sure what that reviewer was on, but I was watching my 3 screen layout when I read that remark. Some people have computer issues that they never figure out. The card will drive 4 monitors. 3 DisplayPort, 1 HDMI simultaneously. Don't worry.
Compare similar products
Reviews
Customers are saying
Customers are enthusiastic about the NVIDIA GeForce RTX 5070 TI 16G GAMING TRIO OC graphics card's overall performance, noting smooth frame rates. Users appreciate the effective heat dissipation and acceptable noise levels. Some find the design appealing and value the included GPU stand, while a few caution about the card's substantial size.

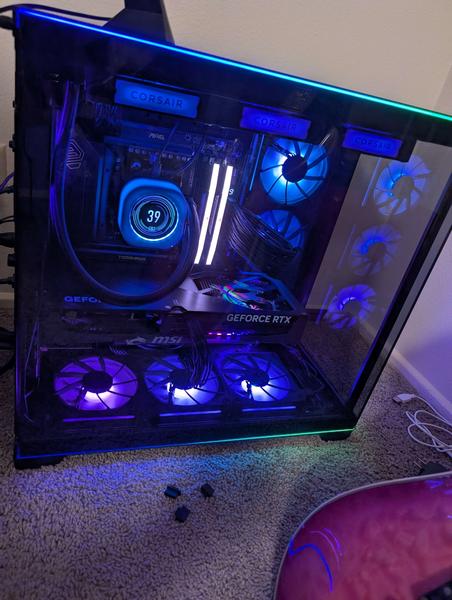

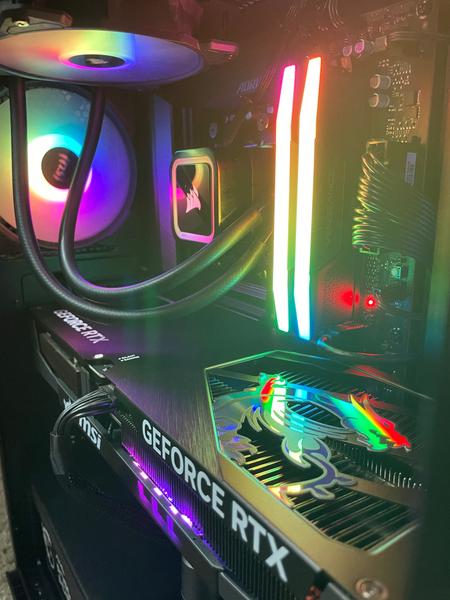

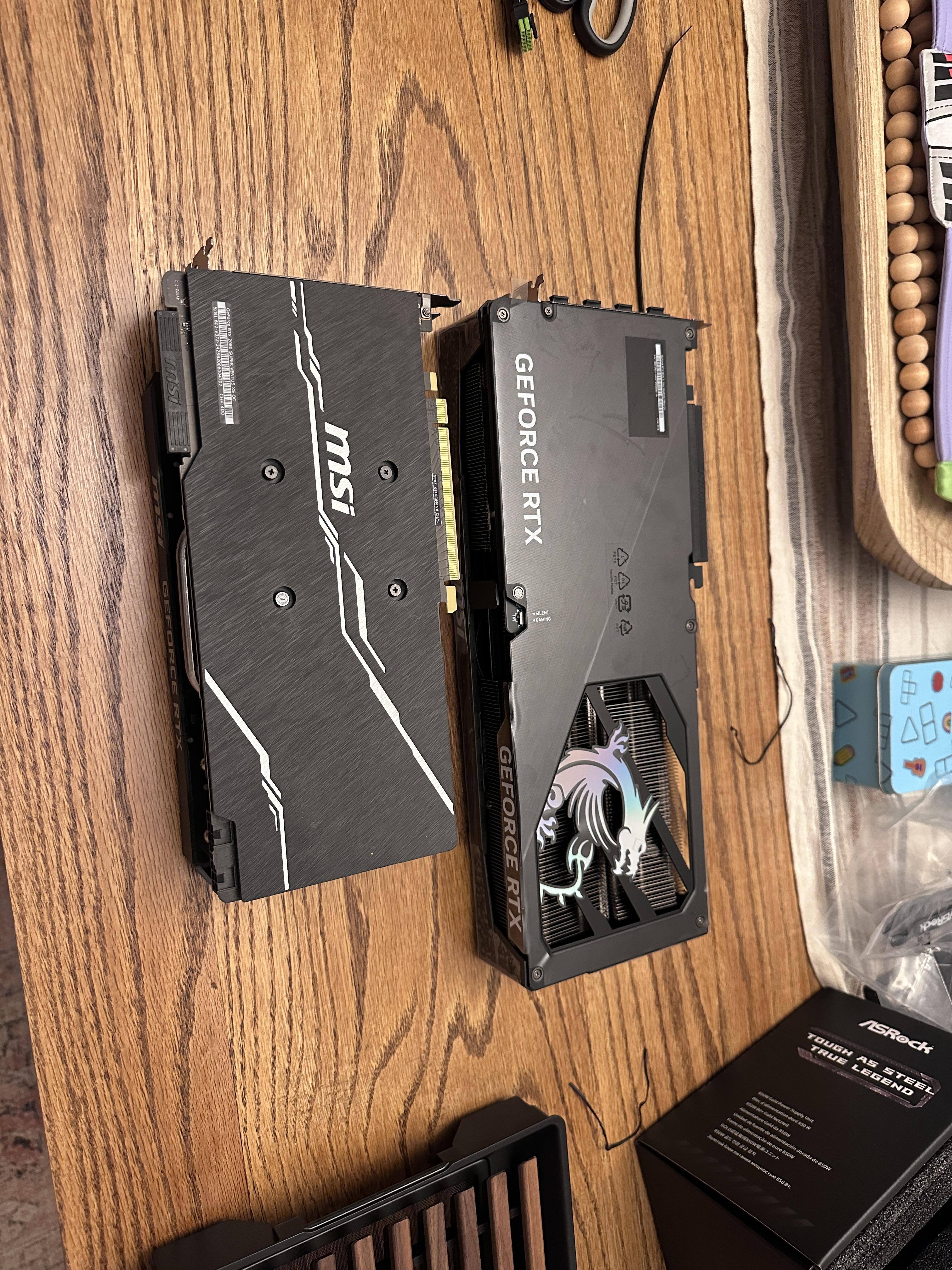

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
From a 3070 to a 5070ti. What a difference!
Expensive but so worth it and a better value that a 5080 because its literally 85% of the 5080 performance for $300 less on average. Zero regrets making this purchase. Coming from a 3070, its amazing how much better cyberpunk 2077 looks. Temps with cyberpunk stay around the mid 60s(undervolted 80% max power) whereas is was low 70s without undervolting(definitely case dependent, i dont have alot of fans) No coil-whine or any fan noise even under heavy load. I do recommend undervolting( MSI afterburner) so you'll use less power and lower temps but keep the performance. It is a HUGE card! barely fit in my h510i case so if you're running a mid sized case, keep that in mind. its not a SFF card. Comes with a good quality anti sag brace and the 12VHPWR adapter. I cant speak on the adapter quality because i didn't use that part in my build but im sure its good. Also to note, I don't like MSI lighting suite so will recommend using another program. Other than that minor grip, I love this card and ill gladly recommend it to anyone else
This review is from MSI - NVIDIA GeForce RTX 5070 Ti 16G GAMING TRIO OC 16GB GDDR7 PCI Express Gen 5 Graphics Card - Black
Anthony1516 Posted
- Rated 4 out of 5 stars
Good option if you can get it close to MSRP
I've been using it for a few weeks now and haven't had any issues so far. I did use MSI Afterburner to undervolt and reduce the power draw and temps, and it's been running under 50 c even at mid to high ray tracing in Cyberpunk at 1440p and giving 70-90 fps consistently. It could probably even handle more but the game looks great as is. I didnt notice any difference between gaming and silent mode so I just leave it on silent. It is quiet for the most part but every once in awhile there still will be a loud coil whine or fan sound, which I feel like at $850-1000 it should not have. I also would not have bought it if it hadn't gone on sale for $850+tax but I'm happy to have it as I've been preparing to upgrade my VRAM and this fits my needs. I'd also not have to fight with everyone for a super card that has more power draw and more VRAM than I need. I do want to mention though that the size of this GPU should NOT be underestimated. I watched so many videos when researching which GPU to buy and for some reason it just never clicked for me how big it is. I have a mid-sized ATX case and it just BARELY fit after turning it sideways then shimmying it into place, with 2cm between my front fans and the end of the GPU. The 12 pin adapter that comes with the GPU also does not fit in my case if I try to put the side panel back on. For a GPU this expensive and of this size it's baffling to me that they wouldn't include an angled adapter instead and is one of the reasons I can't rate this 5 stars.
This review is from MSI - NVIDIA GeForce RTX 5070 Ti 16G GAMING TRIO OC 16GB GDDR7 PCI Express Gen 5 Graphics Card - Black
IvyX Posted
- Rated 5 out of 5 stars
MSI Gaming Trio RTX 5070Ti
Works perfect, stays cool and quiet in graphically intensive games, and is a massive upgrade over my previous RTX 2080super
This review is from MSI - NVIDIA GeForce RTX 5070 Ti 16G GAMING TRIO OC 16GB GDDR7 PCI Express Gen 5 Graphics Card - Black
Will Posted
