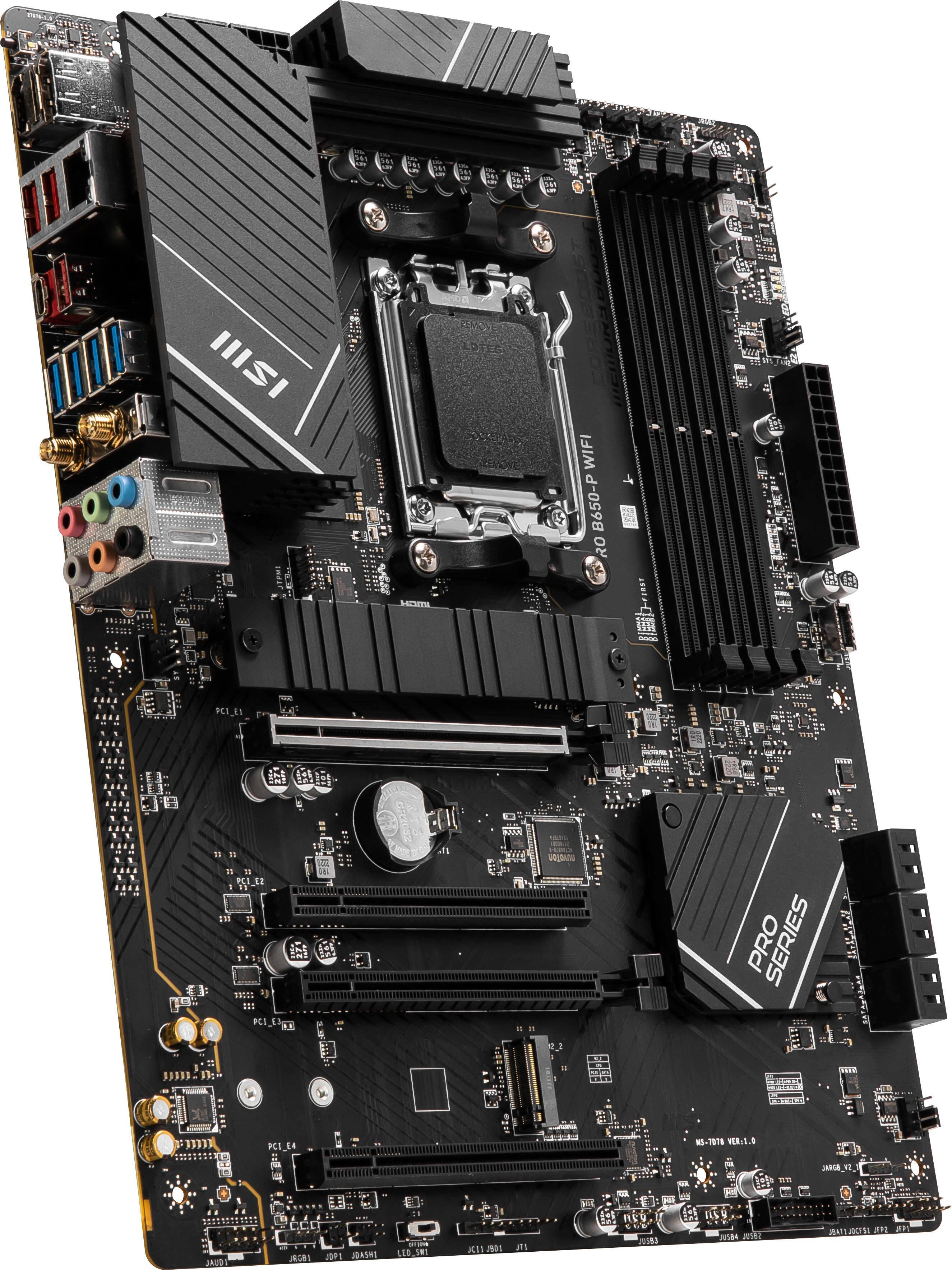

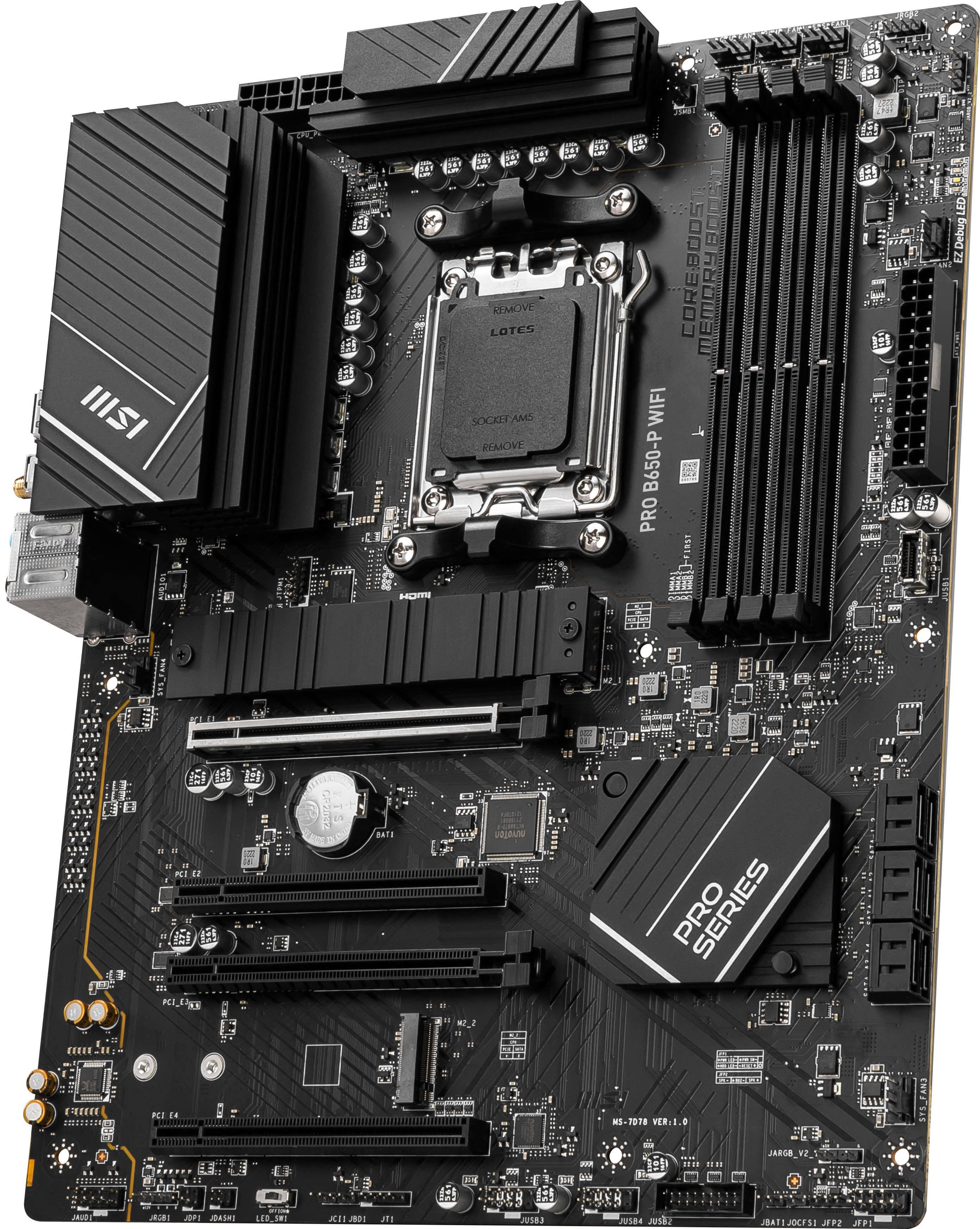

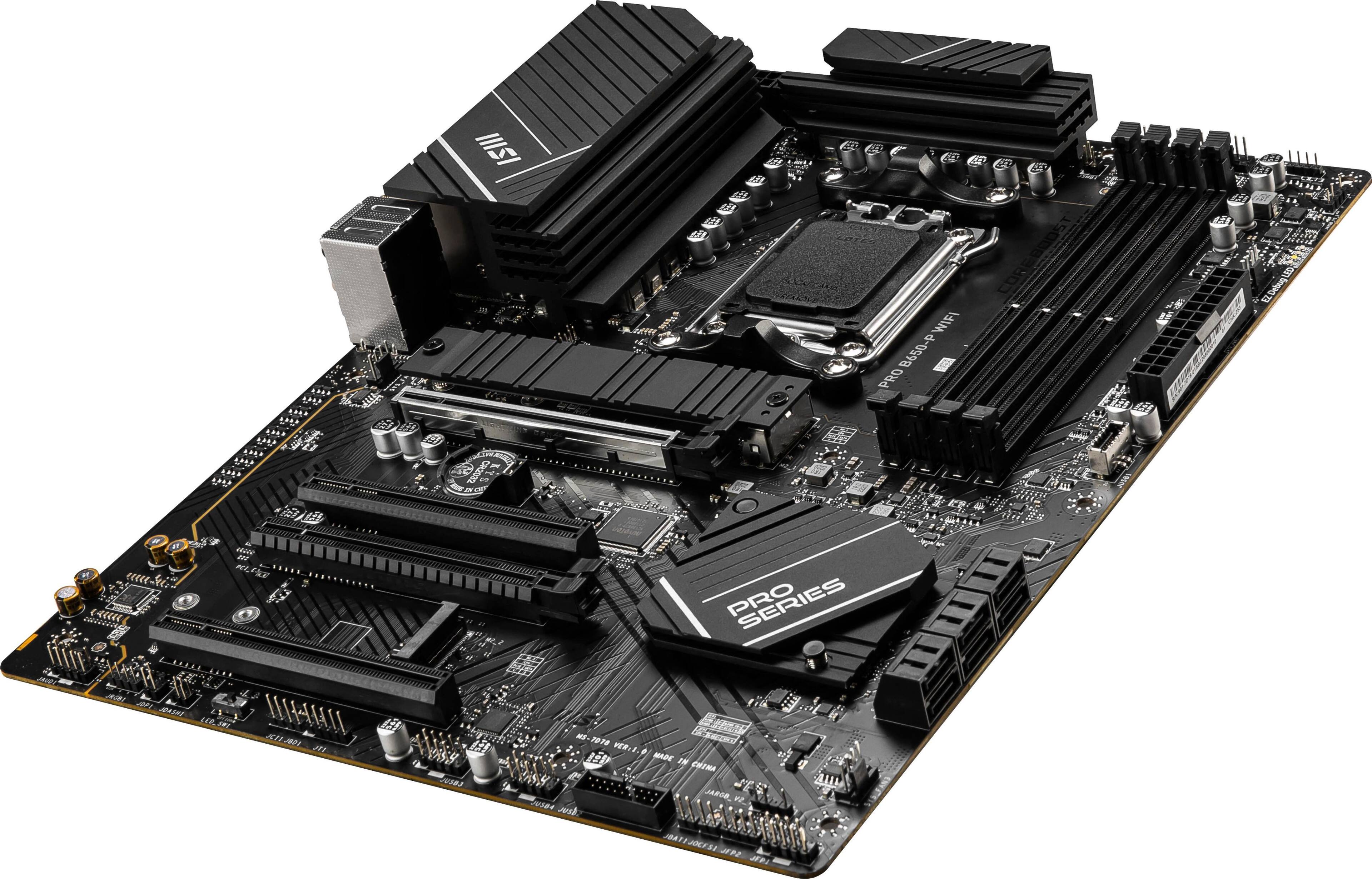

MSI - PRO B650-P WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black
- Intel - Core i5-14600K 14th Gen 14-Core 20-Thread - 4.0GHz (5.3GHz Turbo) Socket LGA 1700 Unlocked Desktop Processor - Multi$315.99
More Buying Options
Specifications
- ChipsetAMD B650Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots4Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4
- Key Specs
- Chipset: AMD B650
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5, DDR5
- General
- Brand: MSI
- Model Number: PRO B650-P WIFI
- Product Name: PRO B650-P WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Year of Release: 2022
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 9000 Series, AMD Ryzen 5 8000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 4 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 4
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 6x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

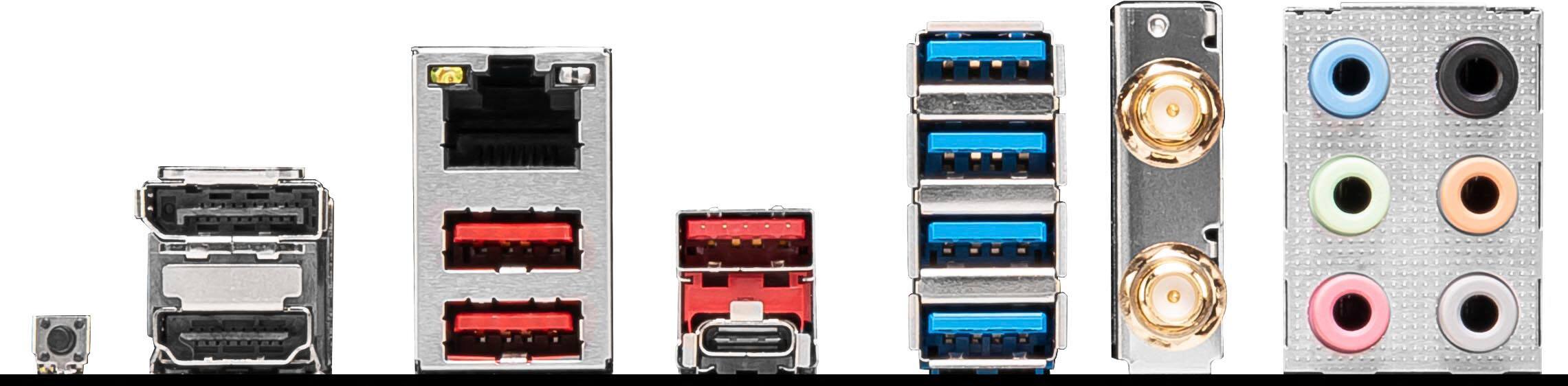

- USB Ports: 4 x USB-A 2.0, 7 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 1x Front Audio (JAUD)
- Number of Audio Channels: 8 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.84 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 24 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5, DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 7200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142301050
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
- Processor Compatibility: Supports AMD(AM5 socket) Ryzen 7000 Series Processors
- DDR5 memory: 288DIMMs X 4 with AMD EXPO & Intel XMP Memory Module Support
- Graphics: Integrated Graphics Processor
- Audio: Realtek ALC 4080
- Wifi 6E: The lastest wireless solution support 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Q: What is the maximum memory supported by this motherboard?
A: The maximum memory supported is 256 gigabytes.
Q: Which AMD processor series does this motherboard support?
A: This motherboard supports AMD Ryzen 7000 series processors.
Q: How many M.2 slots are available on the motherboard?
A: The motherboard has 2 M.2 slots.
Q: What type of memory does this motherboard support?
A: This motherboard supports the latest DDR5 memory.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, the motherboard comes with Wi-Fi 6E, the latest wireless solution.
Q: What kind of audio solution does this motherboard use?
A: This motherboard uses the Realtek ALC 4080 audio solution.
Q: Does this Motherboard accept a Amd Ryzen 7 5800X CPU? Thanks!
A: Hello Stephen - the AMD Ryzen 7 5800X utilizes the AM4 socket type, this motherboard supports the AM5 socket so it would not work with that CPU. Best Buy does sell a few MSI motherboards that support the AM4 platform.
A: Hey Cole - This motherboard comes with Wi-Fi 6E support as well as 2 Wi-Fi antennas that connect to the board. There are a lot of factors that impact Wi-Fi speeds (distance, obstructions, interference, number of users, etc.) so it will be difficult to provide what your results will be.
Compare similar products
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
ASUS TUF GAMING B650E-PLUS WIFI motherboard features DDR5, PCIe 5.0 x16 SafeSlot, triple M.2 (one PCIe 5.0), Wi-Fi 6E, 2.5Gb LAN, USB-C 20Gbps, Q-Release, Q-LED, RGB Gen 2, BIOS FlashBack, and 12+2+1 80A DrMOS—built tough for performance, reliability, and next-gen gaming builds
The PRO B650M-A WIFI Desktop Motherboard is engineered for high-performance computing, supporting AMD Ryzen™ 7000 Series processors on the AM5 socket. It accommodates up to 128 GB of DDR5 memory across four DIMM slots, ensuring robust multitasking capabilities. The motherboard offers versatile expansion options with two PCIe x16 slots and one PCIe x1 slot, along with two M.2 slots and four SATA 6Gb/s ports for diverse storage configurations. Connectivity is comprehensive, featuring 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3, and multiple USB ports, including USB 3.2 Gen 2 Type-A and Type-C, to meet various peripheral needs.
The MAG series fights aloneside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
| Pros for MSI - PRO B650-P WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
|---|---|---|---|
| Overall Performance, Ease of use, Compatibility, Features, Wi-Fi | Overall Performance, Connectivity, BIOS Usability, Installation Ease | There were no pros for this product— | Ease of use, Performance, BIOS, USB Ports, Price |
| Cons for MSI - PRO B650-P WIFI (Socket AM5) AMD B650 ATX DDR5 Wi-Fi 6E Motherboard - Black | |||
| USB | There were no cons for this product— | There were no cons for this product— | Boot Time, RGB, RAM |
Specs
Reviews
Customers are saying
Customers often highlight the overall performance and features of the PRO B650-P WIFI motherboard, noting its suitability for gaming builds. The motherboard is also praised for its compatibility and reliable Wi-Fi connectivity. However, some users have reported encountering USB overcurrent errors. Overall, the motherboard seems to be well-received, but potential buyers should be aware of the USB issue.
- Overall Performance (23)
- Compatibility (4)
- Ease of use (4)
- USB (3)
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Great motherboard
Great product, highly recommended for gaming and high performance machine builds.
TrevorSuna Posted
- Rated 4 out of 5 stars
Good Board, Upgrade if you can afford it!
Good Motherboard, I ended up paying the little bit extra for the MSI MAG B650 Tomahawk to get power stages instead of the discrete MOSFETs on this board.
TylerF Posted
- Rated 4 out of 5 stars
Good Motherboard for what I need
For Christmas I purchased an ASUS - TUF GAMING B650-PLUS WIFI with an AMD Ryzen 7 9700X and 32MB Corsair CMH32GX5M2B6400Z32 memory. The ASUS motherboard, even with the latest BIOS, failed to post if I tried to place the memory in dual-channel mode per the manual, (A1+B1 or A2+B2). I researched and, I found that this memory kit was not tested with said motherboard. I returned the motherboard and purchased the MSI - PRO B650-P WIFI (although it's lacking a third m.2 slot, and the onboard Realtek sound "codec" is lacking - old chip at 90-95 SnR). The Corsair CMH32GX5M2B6400Z32 memory worked out of the box in dual-channel mode at 6400MHz and AMD EXPO mode. I don't mind not having a third m.2 slot as I have 4TB of m.2 space already. As for the sound, I'm running an ASUS Xonar DX (116dB SNR) that is better than the onboard sound (Realtek ALC897 90dB, 95dB SNR) by a good margin. Yes, this motherboard has some glitches, I believe it's PCI-e 5x compatible, (The documentation states PCI-e 4x). However, at this time, there isn't much that can take advantage of a PCI-e 5x interface.
jwelch73 Posted
