NVX - BE-TOYHIG3-VS102 BOOST Bass Package Bundle
- General
- Brand: NVX
- Model Number: pbkbetoyhig3vs102
- Product Name: BE-TOYHIG3-VS102 BOOST Bass Package Bundle
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- Box Covering Material: Carpet
- Box Material: Fiberglass
- Number Of Speakers Held: 1
- Product Width: 11.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 15 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Depth: 17.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 41.65 pounds (The out of box weight of the item.)
- Enclosure Type: Sealed
- UPC: 810021840437

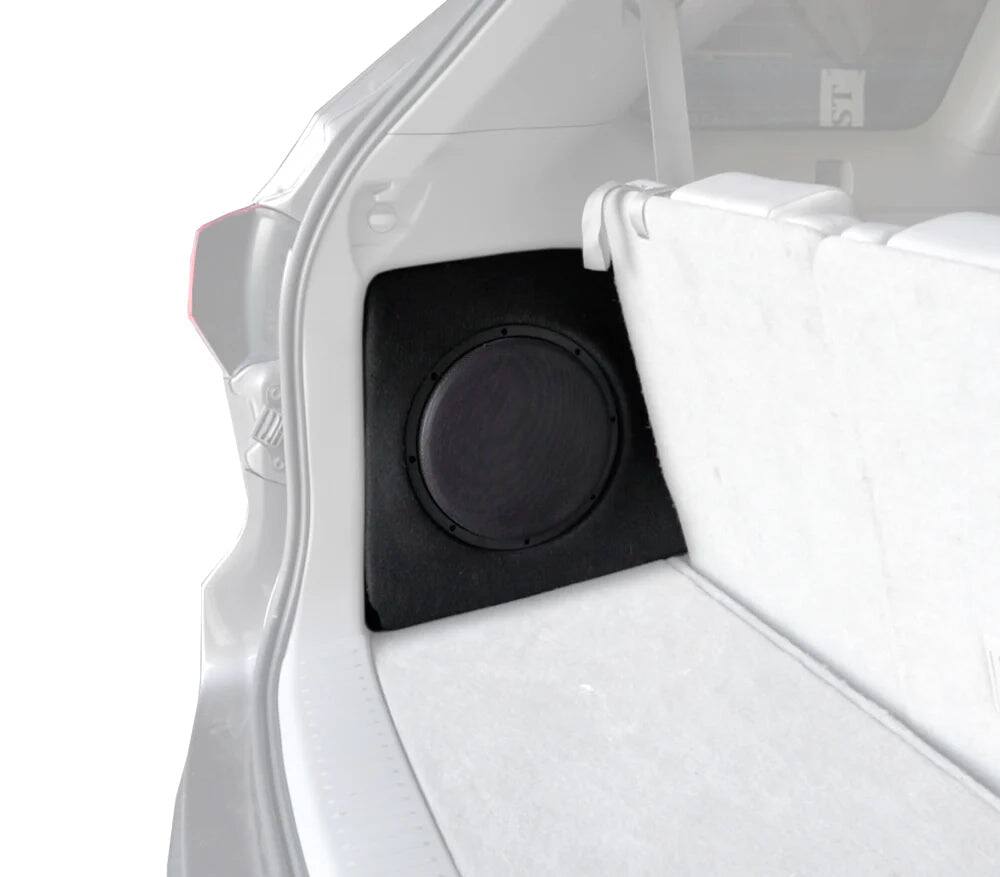

The NVX BE-TOYHIG3-VS102 is a custom-fit 500W RMS B.O.O.S.T. Series bass package specifically engineered for 2014–2019 Toyota Highlander models. This space-saving solution features a hand-laid, sealed fiberglass enclosure that installs into the rear driver-side storage cubby to maintain cargo utility, pre-loaded with a high-performance 10-inch VS-Series dual 2-ohm subwoofer featuring a non-pressed paper cone and ERI foam surround. The comprehensive bundle includes a compact VADM1 V2 Marine-Certified Class D monoblock amplifier, an XLCA2 2-channel line-out converter with xBOOST technology for seamless integration with the factory head unit, and a full XKIT82 8-gauge 100% oxygen-free copper (OFC) amplifier wiring kit. To ensure complete control and ease of installation, the package is rounded out with a wired remote bass level knob, RCA interconnects, and all necessary mounting hardware.

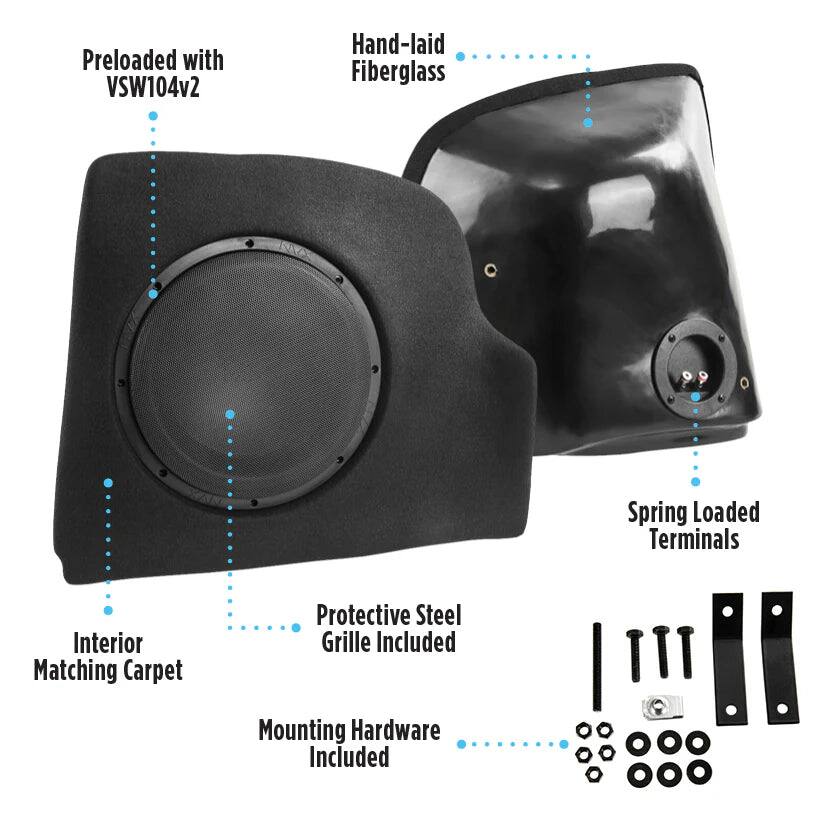

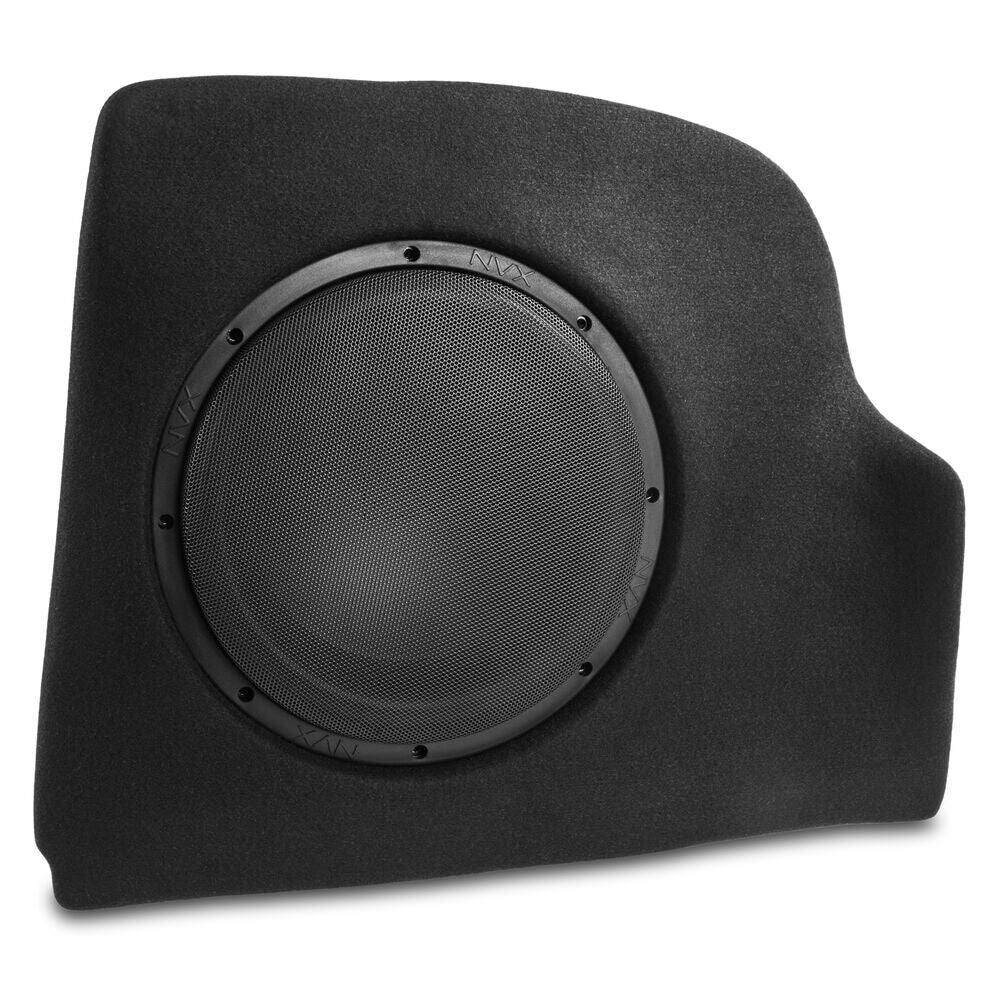

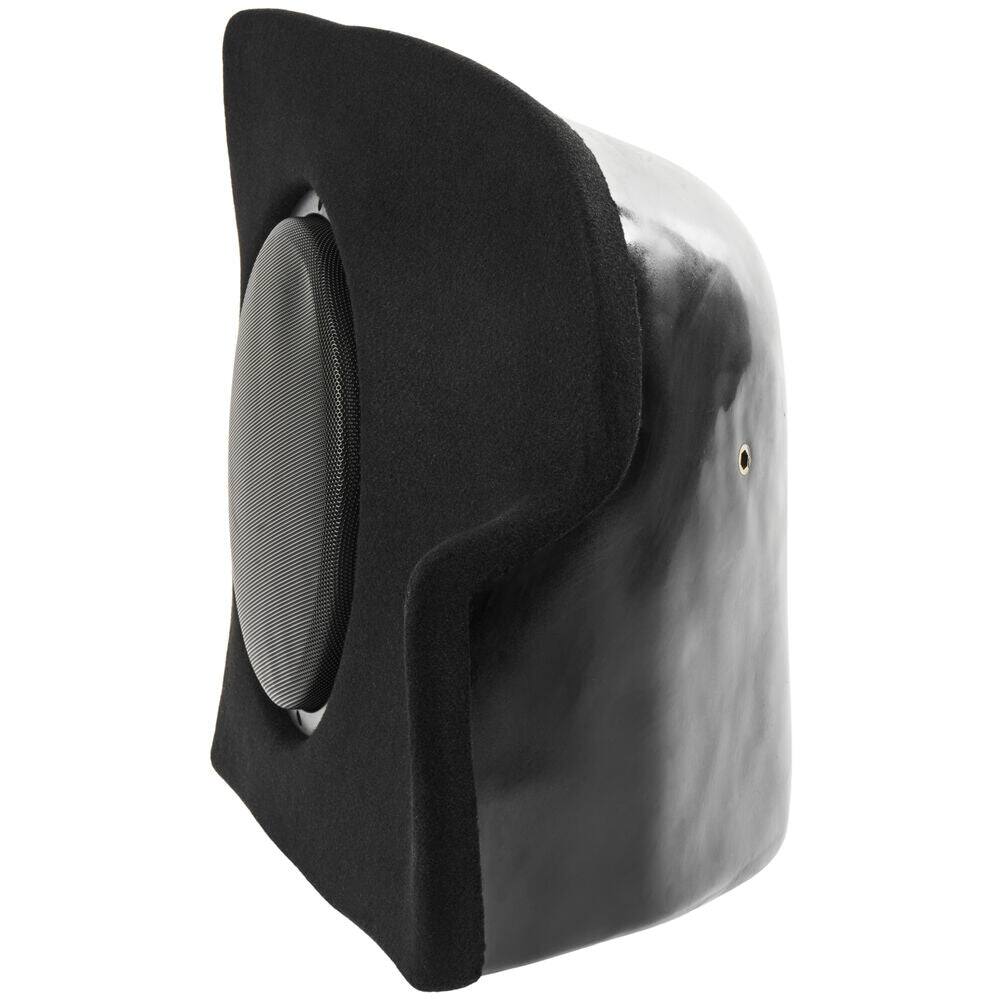

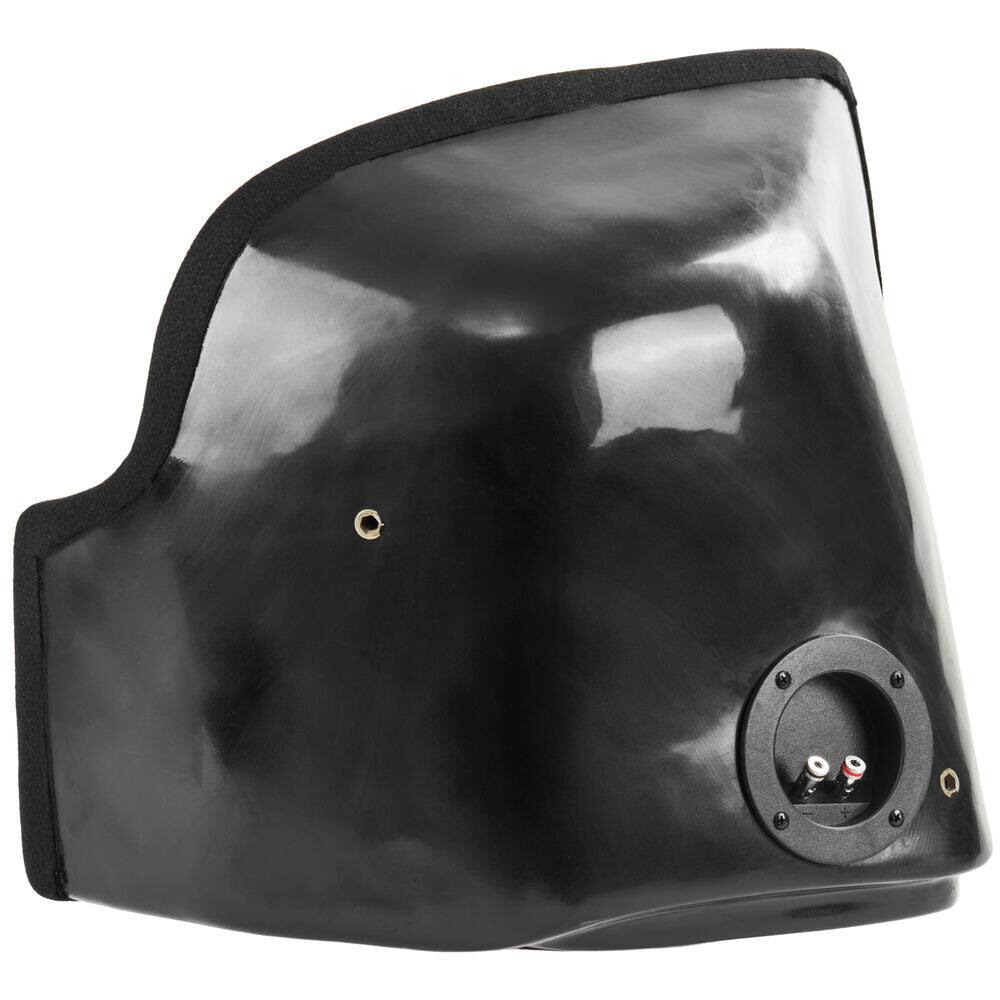

- Subwoofer and Enclosure: Includes one 10" VS-Series v2 subwoofer 500W RMS in a custom-fit, hand-laid fiberglass sealed enclosure designed to fit the storage cubby on the left side of the trunk.

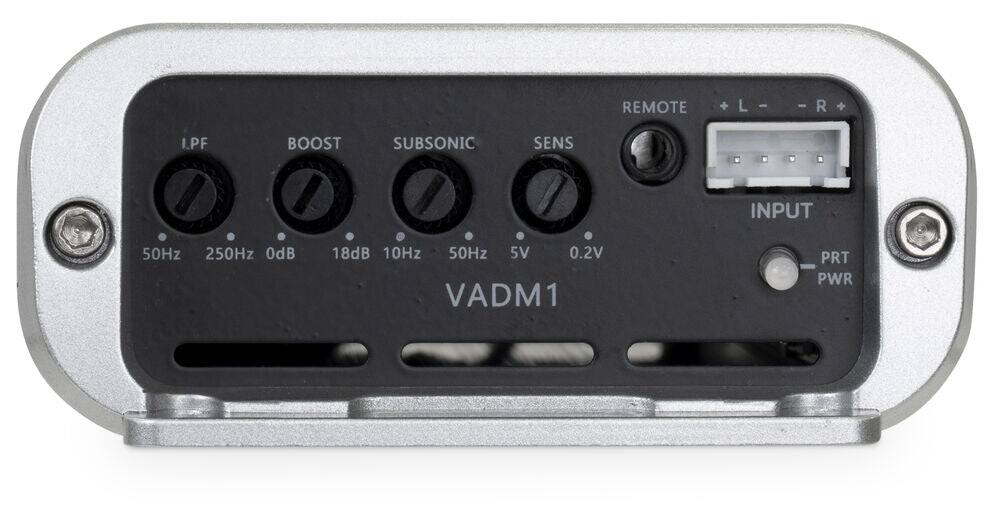

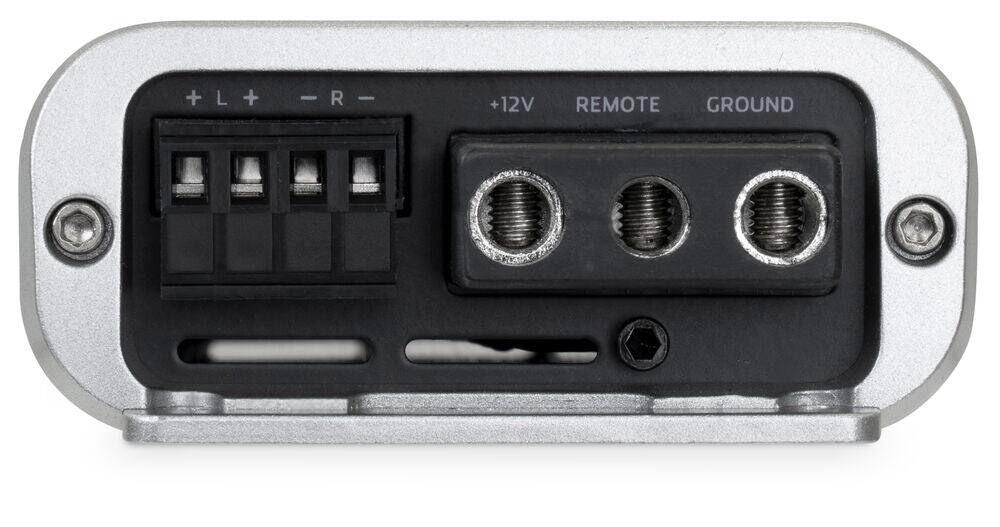

- Amplifier: Features the VADM1 V2 Micro Class D Monoblock, delivering 600W RMS; it is marine-certified with a conformal-coated circuit board and includes a wired remote bass level control.
- Line Output Converter: Utilizes the XLCA2 active 2-channel line out converter, which handles up to 30V input and features xBOOST technology to correct factory bass roll-off and provide a 9.5V RCA output.
- Amplifier Wiring Kit: Comes with the XKIT82 8-gauge 100% Oxygen-Free Copper (OFC) kit, featuring a 60-amp mini-ANL fuse, tinned corrosion-resistant conductors, and a 16.4 ft. dual-twisted pair RCA cable.
- Subwoofer and Enclosure: Includes one 10" VS-Series v2 subwoofer 500W RMS in a custom-fit, hand-laid fiberglass sealed enclosure designed to fit the storage cubby on the left side of the trunk.
- Amplifier: Features the VADM1 V2 Micro Class D Monoblock, delivering 600W RMS; it is marine-certified with a conformal-coated circuit board and includes a wired remote bass level control.
- Line Output Converter: Utilizes the XLCA2 active 2-channel line out converter, which handles up to 30V input and features xBOOST technology to correct factory bass roll-off and provide a 9.5V RCA output.
- Amplifier Wiring Kit: Comes with the XKIT82 8-gauge 100% Oxygen-Free Copper (OFC) kit, featuring a 60-amp mini-ANL fuse, tinned corrosion-resistant conductors, and a 16.4 ft. dual-twisted pair RCA cable.
Whats Included
- 4
- 4
Compare similar products
The NVX BE-TOYHIG3-VS102 is a custom-fit 500W RMS B.O.O.S.T. Series bass package specifically engineered for 2014–2019 Toyota Highlander models. This space-saving solution features a hand-laid, sealed fiberglass enclosure that installs into the rear driver-side storage cubby to maintain cargo utility, pre-loaded with a high-performance 10-inch VS-Series dual 2-ohm subwoofer featuring a non-pressed paper cone and ERI foam surround. The comprehensive bundle includes a compact VADM1 V2 Marine-Certified Class D monoblock amplifier, an XLCA2 2-channel line-out converter with xBOOST technology for seamless integration with the factory head unit, and a full XKIT82 8-gauge 100% oxygen-free copper (OFC) amplifier wiring kit. To ensure complete control and ease of installation, the package is rounded out with a wired remote bass level knob, RCA interconnects, and all necessary mounting hardware.
The Maxxlink MBXP-112 ported subwoofer enclosure is designed for most 12 inch subwoofers (not included) and features a durable MDF construction and finished with UV treated black carpet. The enclosure is ported and tuned for 38Hz while providing 1.3 cu ft of air space. Installation is simple and easy with the spring loaded wiring terminal.
The Maxxlink MBX-110 sealed subwoofer enclosure is designed for most 10 inch subwoofers (not included) and features a durable MDF construction and finished with UV treated black carpet. The enclosure is tuned for 38Hz while providing 0.73 cu ft of air space. Installation is simple and easy with the spring loaded wiring terminal.
The Q Power 12 inch QBOMB12V dual vented subwoofer box kicks the music up to the next level with deep sounding and powerful bass. The vented sub box is constructed of 0.75 inch MDF and finished with a black bedliner spray for increased durability and added style. It features a dual vented chamber design with a middle slot port and boasts 1.5 cubic feet of air space per subwoofer. If you are looking to really make the bass hit hard, then turn your ride into a sound machine with the Q Power QBOMB12V 12 inch subwoofer box.
| Pros for NVX - BE-TOYHIG3-VS102 BOOST Bass Package Bundle | |||
|---|---|---|---|
| There were no pros for this product— | Build Quality, Size | Build Quality, Size | There were no pros for this product— |
Specs
Reviews
This product doesn't have any reviews yet.
