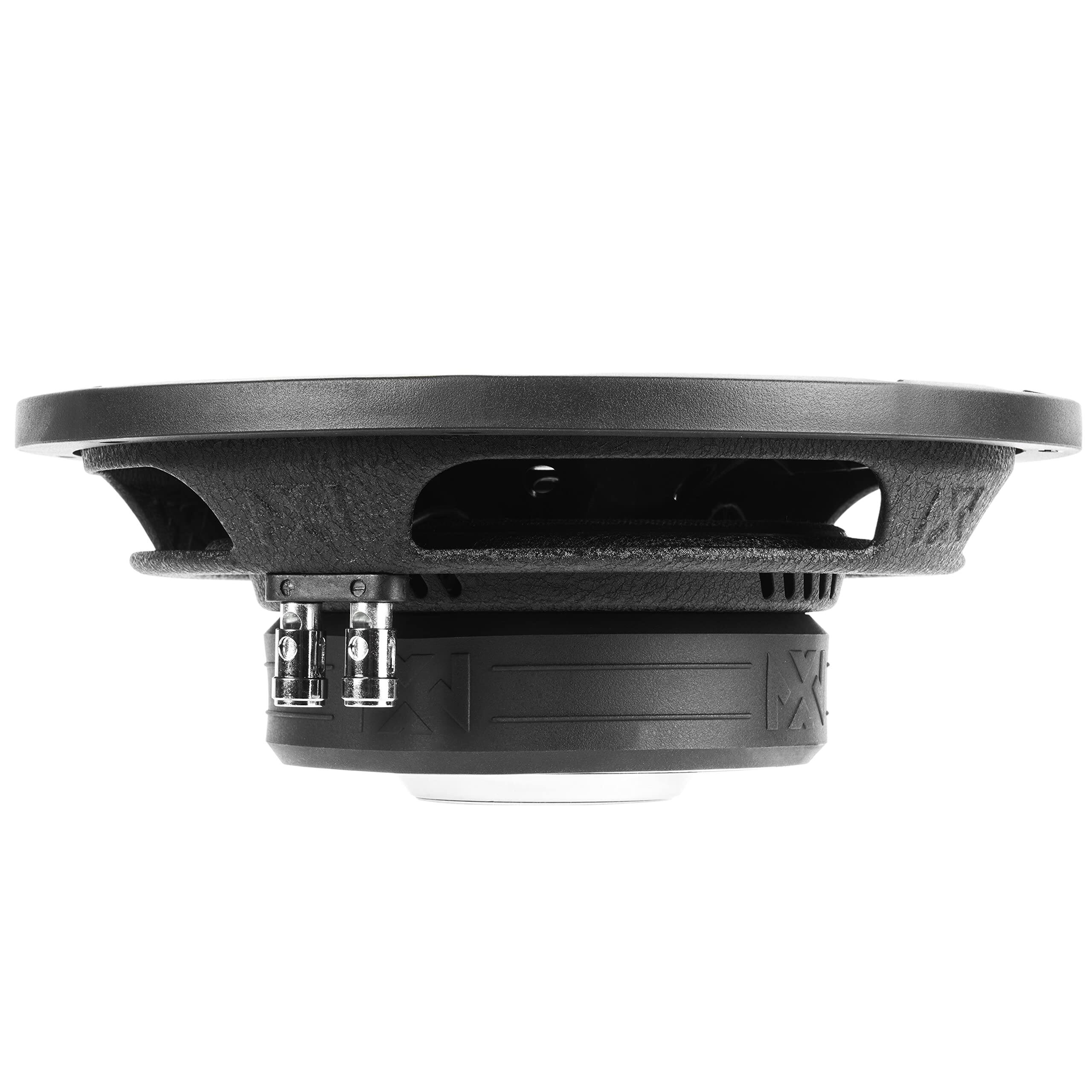

NVX - SMW10D4 700W Peak (350W RMS) S-Series Shallow-Mount 10in Dual 4-Ohm Subwoofer

Model: smw10d4
SKU: 12241492

Not yet reviewed

Sold & shipped by
NVX® Direct
$99.99
or
Availability
FREE shipping to
Sold & shipped by
NVX® Direct
5(1)
Specifications
  • RMS Power
    350 watts
    Peak Power Handling
    700 watts
    Impedance
    4 ohms
    Woofer Size
    10"
  • Key Specs
    • RMS Power: 350 watts (The maximum amount of continuous power the device is able to handle.)
    • Peak Power Handling: 700 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
    • Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
    • Woofer Size: 10"
  • General
    • Brand: NVX
    • Model Number: smw10d4
    • Product Name: SMW10D4 700W Peak (350W RMS) S-Series Shallow-Mount 10in Dual 4-Ohm Subwoofer
    • Number of Subwoofers Included: 1
  • Audio Power
    • RMS Power: 350 watts (The maximum amount of continuous power the device is able to handle.)
    • Peak Power Handling: 700 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
  • Audio
    • Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
  • Features
    • Marine: false
  • Dimensions
    • Woofer Size: 10"
    • Product Height: 5.91 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 11.42 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 11.42 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Product Weight: 8.4 pounds (The out of box weight of the item.)
  • Warranty
    • Warranty - Parts: 1-year Manufacturer's Warranty
    • Warranty - Labor: 1-year Manufacturer's Warranty
  • Other
    • UPC: 810021844404

Product Details: 10" Dual 4 ohm S Series Series Subwoofer. Power Handling: . Peak: 700 watts. RMS: 350 watts. Carbon Fiber Reinforced Polypropylene Cone. Butyl Rubber Surround. 50oz Y30 High Energy Ferrite Magnet. Top-mount depth: 3. 23". Includes Depth Extension Clearance Plate for extremely shallow boxes that the subwoofer may not fit in. This allows you to cut a hole in the box and mount the plate over the hole to allow more depth for the subwoofer. Cutout diameter: 9. 14". Frequency Response: 25 - 350 Hz. Sensitivity: 88 dB. Resonance Frequency (Fs): 35. 83 Hz. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX SMW10D4 Manual

  • High-Performance 10" Shallow-Mount Subwoofer: The NVX SMW10D4 is a 10-inch dual 4-ohm shallow-mount subwoofer designed to deliver deep, powerful bass while fitting into tight spaces. With a peak power handling of 700 watts and an RMS of 350 watts, it offers impressive sound output for various audio systems.

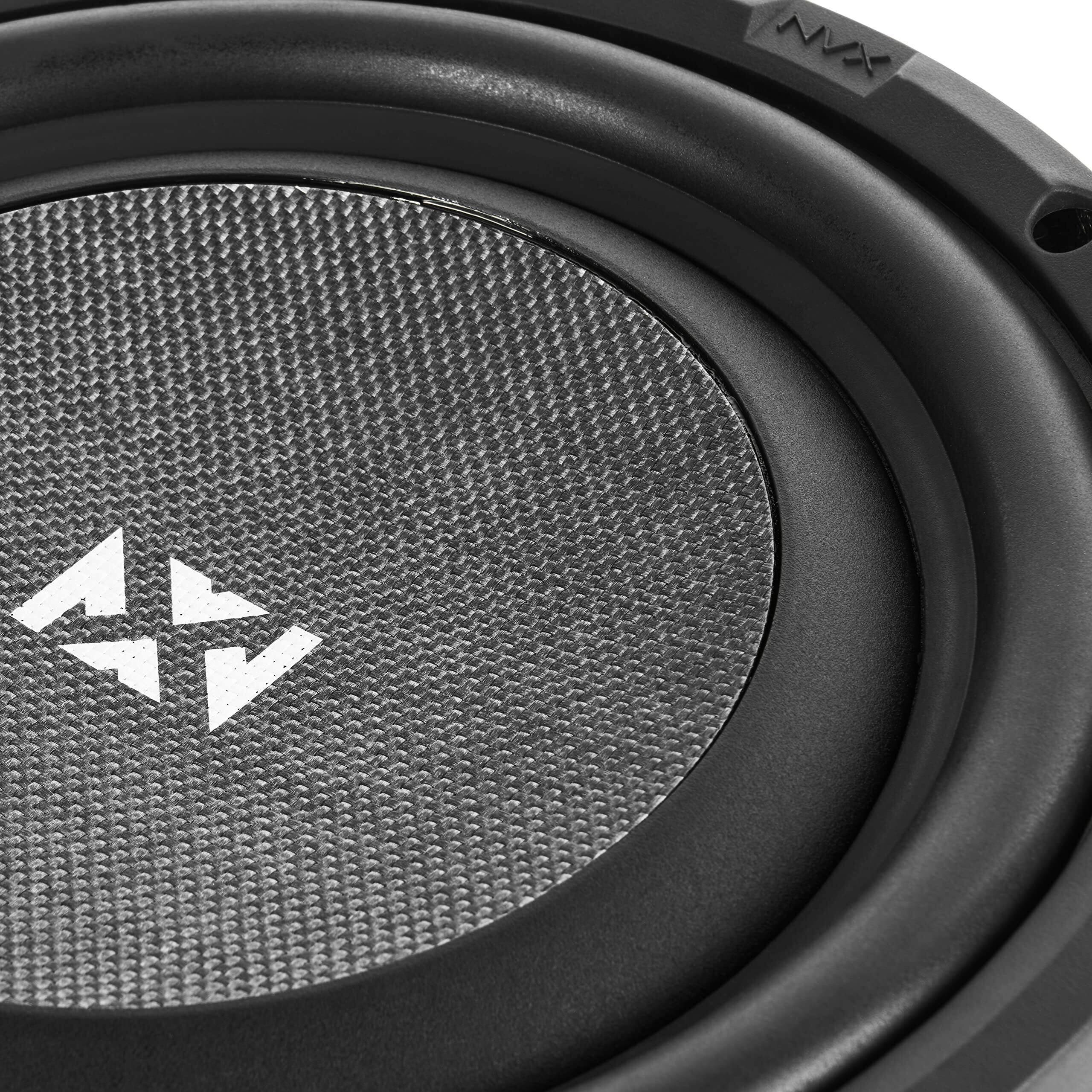

  • Durable Carbon Fiber Reinforced Cone: This subwoofer features a carbon fiber reinforced polypropylene cone, providing superior rigidity and durability for enhanced sound performance. The cone ensures tight bass response and minimizes distortion, even at high output levels.
  • Butyl Rubber Surround for Longevity: The butyl rubber surround increases the subwoofer’s durability and ensures long-lasting performance by allowing for greater excursion without compromising sound quality, even during heavy bass play.
  • High-Energy Ferrite Magnet: The 50oz Y30 high-energy ferrite magnet delivers powerful and consistent performance, ensuring that the subwoofer can handle demanding bass frequencies while maintaining clarity and precision.
  • Shallow-Mount Design with Depth Extension Plate: The top-mount depth of just 3.23 inches allows for easy installation in compact spaces, while the included depth extension clearance plate ensures that the subwoofer can fit into extremely shallow boxes by adding extra clearance for mounting.
Whats Included
  • 1
