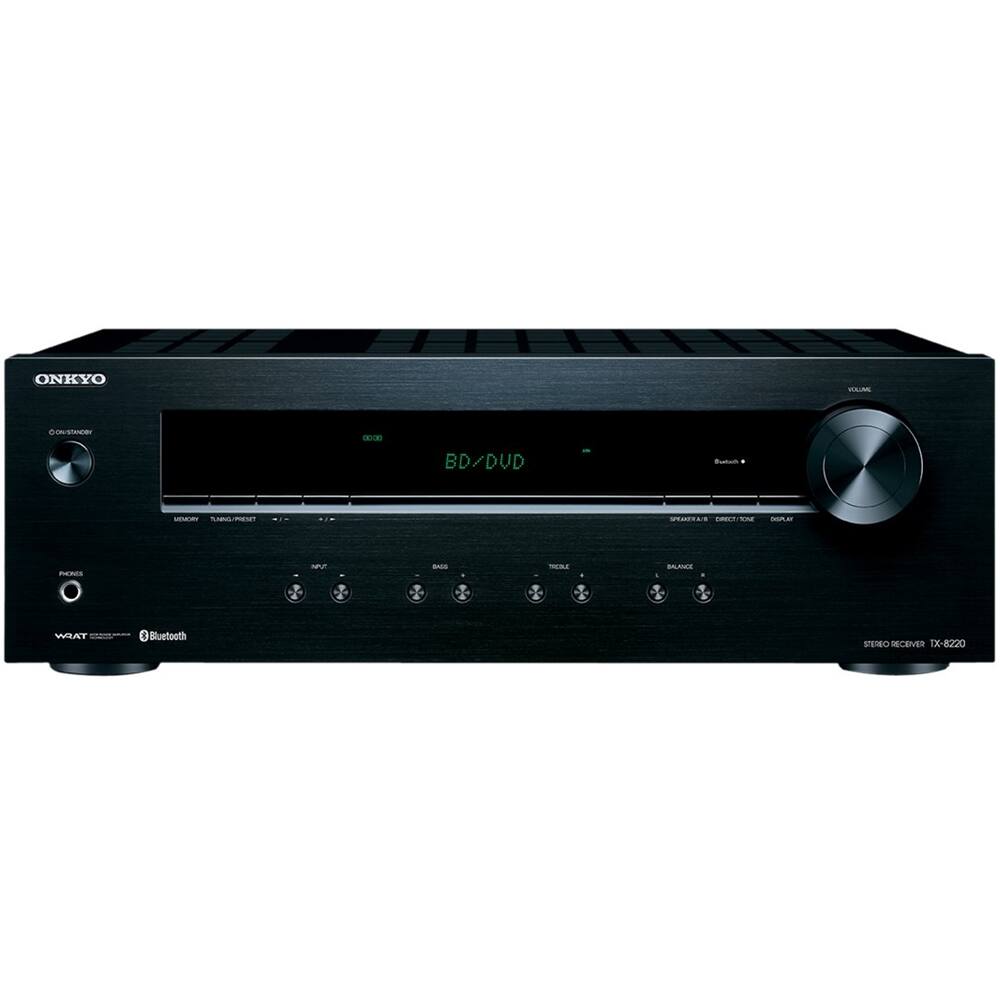

Onkyo - TX-8220 2.0-Ch. A/V Home Theater Receiver - Black
Model: TX-8220
SKU: 6091736
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 100 watts x 2 channels @ 4 ohms
- Number of Channels: 2.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio, 2 x Analog audio, 1 x Phono
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Brand: Onkyo
- Model Number: TX-8220
- Product Name: Onkyo TX-8220 2.0-Ch. A/V Home Theater Receiver
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 100 watts x 2 channels @ 4 ohms
- Number of Channels: 2.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: false (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Number of Audio Zones: 1 (Audio zones, typically designated by rooms in a home, are areas in which all speakers are dependent on the same sound source. Whether a zone encompasses one or multiple rooms, the receiver or preamp/processor is used to control all aspects of its audio and is able to select which zones receive sound.)
- Number of Audio Zone Source Outputs: 1 (Multiple source outputs from the receiver mean different speakers are able to receive different sound sources from the receiver or preamp/processor. For every output, a different sound source can be accessed simultaneously in different zones. For example, two source outputs could be a streaming media player in one room and a Blu-ray player in another.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 192 kHz (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Speaker A/B Switching: true (Allows a user to select between one of two sets of primary speakers.)
- Supported File Formats: PCM
- Equalizer: false (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- Inputs
- Audio Only Inputs: 1 x Optical digital audio, 1 x Coaxial digital audio, 2 x Analog audio, 1 x Phono
- Number of HDMI Inputs (Total): 0
- Outputs
- Number of HDMI Outputs (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- Auto Calibration: false (Home theater systems and receivers with an autocalibration function can automatically determine basic settings like speaker volume, crossover point, equalization, and more.)
- Remote Control Included: true
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: false (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Dimensions
- Product Height: 5.9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 13 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 15 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Other
- UPC: 889951001096
Transform mobile audio into room-filling sound with this Bluetooth-capable Onkyo stereo receiver. It's rated at 45W per channel at 8 ohms for powerful sound production, and it has four line-level analog inputs for connecting CD players, turntables and other accessories. This Onkyo stereo receiver has an internal amplifier and large transformers for enhanced audio with minimal distortion.
- Speaker A/B switching: Lets you switch between 2 sets of speakers to expand your listening environment.
- 0.08% total harmonic distortion: Ensures clear audio.
- Bass and treble controls: Enable simple sonic customization, so you can tailor the sound to suit your preferences.
- Remote: Lets you control the receiver from afar.
- AM/FM tuner: With 40 station presets lets you program your favorites for simple one-touch recall.
- Headphone jack: Enables private listening.
- Auxiliary input: Makes it easy to connect a variety of devices.
- WRAT (Wide Range Amp Technology): Reduces distortion for high-quality sound and drives your speakers with high, fast current.
- Bluetooth technology: Supports simple wireless music streaming via compatible devices. Advanced music optimizer technology promotes quality sound when streaming audio.
Whats Included
- Onkyo TX 2.0-Ch. A/V Home Theater Receiver
Q: Is the subwoofer connection for passive or powered subwoofer?
A: It is recommended to connect a powered subwoofer.
A: There are 4 analog inputs, 2 digital inputs, and 1 phono input, so yes, you can hook all three of them up. There is no tape loop function so your recording would be limited. As far as the speakers, there are 5-way binding posts on the back of the unit, which will accept bare wire or banana plugs.
Q: Can the Onkyo TX-8220 be set up with a keypad? if yes, which do you recommend? thanks
A: undefined
Q: Can this connect to my WiFi network?
A: No, this will not connect to a WiFi network.
A: Speaker impedance is complex and nominal speaker impedance is a simplification. I wouldn't recommend two 6 ohm speaker pairs in parallel (3 ohms) on any amplifier. Yes, I would expect this amplifier to overheat driving 3 ohms.
