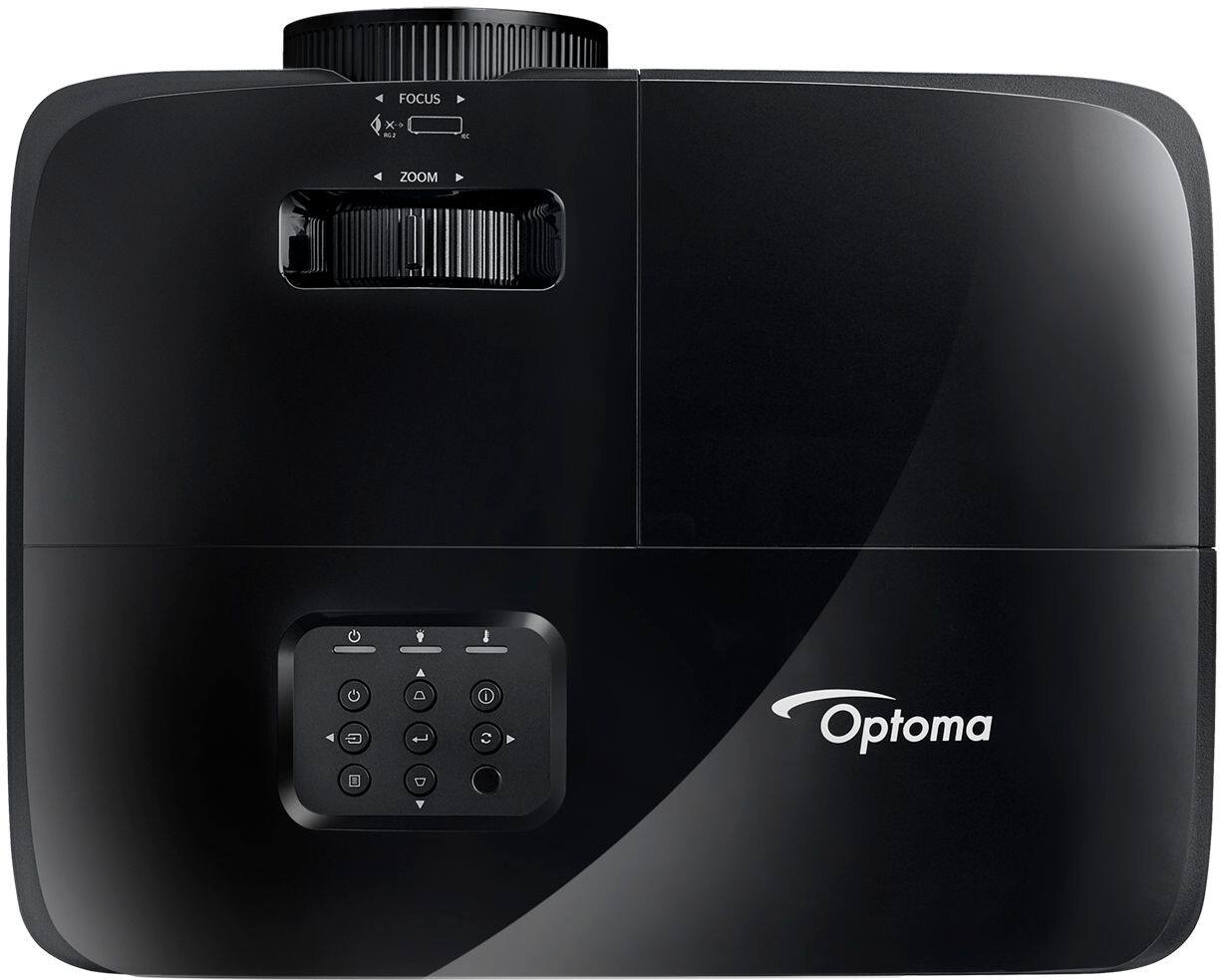

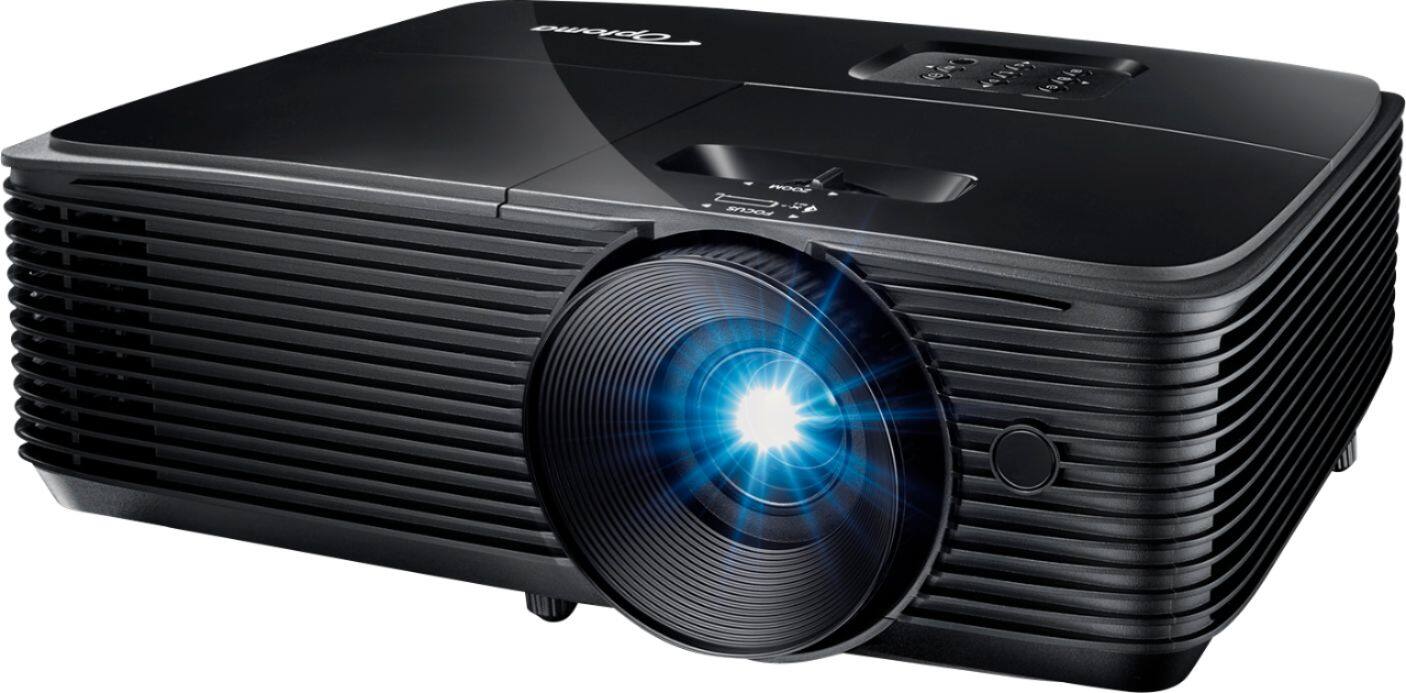

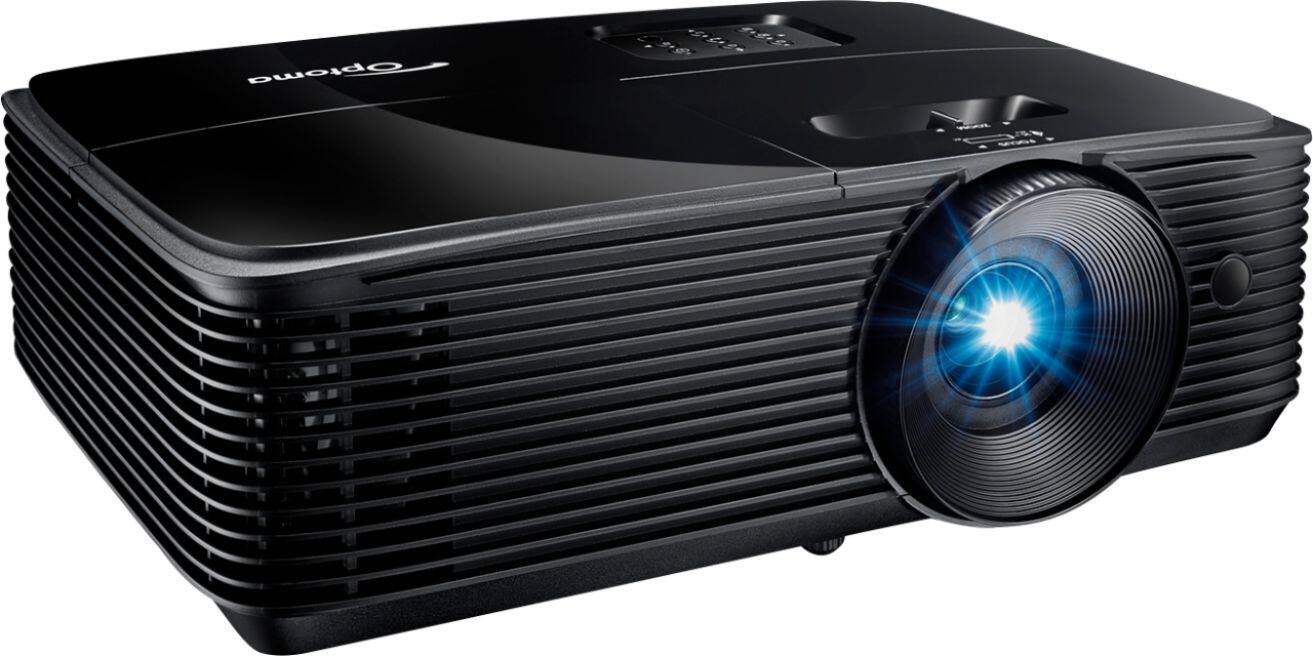

Optoma - HD146X High Performance, Bright 1080p Home Entertainment Projector with Enhanced Gaming Mode - Black
- Key Specs
- Product Weight: 6.2 pounds (The out of box weight of the item.)
- Light Source: Lamp
- Resolution: Full HD (1080p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Contrast Ratio: 25000:1 (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Projector Use: Home Theater, Gaming
- Projector Throw Type: Standard Throw (The distance from the screen that the projector can be placed to project images. Standard throw projectors typically need to be at least 6 feet away while short throw and ultra short throw projectors can be placed closer to the screen for use in smaller rooms.)
- Portability: Fixed (Fixed projectors are ideal when creating an authentic theater atmosphere in your home. Often designed to stay in one place they may require significant recalibration if moved. Portable projectors, weighing around 5 pounds, are easy to move, but will still require set-up calibration and often have technology to reduce the complexity. Ultra-portable projectors are very light, often battery-powered, and ideal for on-the-go use.)
- Display Connector(s): 1 x HDMI (The number and type of connectors used to connect to an external display.)
- General
- Brand: Optoma
- Model Number: HD146X
- Product Name: HD146X High Performance, Bright 1080p Home Entertainment Projector with Enhanced Gaming Mode
- Color: Black
- Dimensions
- Product Height: 4.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6.2 pounds (The out of box weight of the item.)
- Display
- Light Source: Lamp
- Display Technology: DLP (Denotes the product’s visual process, sometimes manufacturer specific, used to display an image.)
- Resolution: Full HD (1080p) (Refers to the number of pixels, both horizontally and vertically, used to capture video/images. The higher the resolution the finer the detail that can be seen.)
- Resolution (Native): 1920 x 1080 (Native resolution of a screen refers to its single, fixed resolution. Sometimes screens must scale an image up or down in order to fit the native resolution. This can cause a loss of resolution or detail.)
- High Dynamic Range (HDR): false (An HDR-compatible 4K TV or other HDR-compatible product displays HDR video content when it's available from sources like 4K Ultra HD Blu-ray Discs and 4K streaming services.)
- Light Source Life (Normal Mode): 4000 hours (The light source's estimated length of operating time when normal operating mode is enabled.)
- Contrast Ratio: 25000:1 (Measured difference between a displayed image's brightest whites and darkest blacks. The larger the first number, the more detail and color that can be displayed.)
- Aspect Ratio: 16:9 (The measurement of the width of a screen compared to the height of a screen, expressed as a ratio.)
- Throw Ratio Range: 1.47 - 1.62:1 (This measurement indicates what size of projected image can be produced from a certain distance. The smaller the ratio, the closer the projector can be to the screen while still producing a large image.)
- Horizontal Scan Rate: 91.146kHz (Number of horizontal lines displayed per second on the device.)
- Vertical Scan Rate: 120Hz (Number of vertical lines displayed per second on the device.)
- Response Time: 16 milliseconds (The speed at which pixels can change colors is called response time. It is measured in milliseconds (ms).)
- 3D Technology: true
- Viewing
- Minimum Projector Distance: 3.2 feet (Minimum distance that the projector can be placed from the screen to produce a display with acceptable visual performance.)
- Maximum Projector Distance: 35 feet (Maximum distance that the projector can be placed from the screen to produce a display with acceptable visual performance.)
- Minimum Viewable Screen Size: 28 inches
- Maximum Viewable Screen Size: 301 inches
- Features
- Projector Use: Home Theater, Gaming
- Projector Throw Type: Standard Throw (The distance from the screen that the projector can be placed to project images. Standard throw projectors typically need to be at least 6 feet away while short throw and ultra short throw projectors can be placed closer to the screen for use in smaller rooms.)
- Portability: Fixed (Fixed projectors are ideal when creating an authentic theater atmosphere in your home. Often designed to stay in one place they may require significant recalibration if moved. Portable projectors, weighing around 5 pounds, are easy to move, but will still require set-up calibration and often have technology to reduce the complexity. Ultra-portable projectors are very light, often battery-powered, and ideal for on-the-go use.)
- Remote Control Included: true
- Minimum Noise Level: 26 decibels
- Cable Lock Slot: Kensington Security Slot (K-Slot)
- Exposure Control
- Minimum Aperture: f/2.1 (The smallest opening of a lens, typically expressed in f-numbers. The larger the number, the smaller the aperture and the less light that can enter the lens. A smaller aperture creates a larger depth of field, which keeps both foreground and background in focus.)
- Maximum Aperture: f/2.31 (The limit to how wide a lens can be open, typically expressed in f-numbers. The smaller the number, the larger the aperture and the more light that can enter the lens. A larger aperture creates a shallower depth of field, helpful for keeping subjects in focus and blurring background details.)
- Optical Zoom: 1.1x (The optical zoom uses a combination of lenses that magnify the image prior to it being registered at high resolution by the imaging sensor.)
- Digital Zoom Capability: true (Projectors with this feature allow for digital adjustment to the projected image size without changing the location of the projector.)
- Connectivity
- Number of HDMI Inputs (Total): 1
- Display Connector(s): 1 x HDMI (The number and type of connectors used to connect to an external display.)
- Number of USB Port(s): 0
- Audio
- Integrated Speaker(s): true
- Speaker(s) Included: true
- Watts Per Channel: 3 watts
- Compatibility
- Operating System Compatibility: Not Applicable
- Other
- UPC: 796435813666
Embrace the huge-screen cinematic experience with the affordable 3,600 lumens Optoma HD146X 1080p home theater projector. The excellent color reproduction and high-quality 25, 000: 1 contrast ratio ensures images up to 301-inches look incredible for unmatched immersion for movies and gaming. Enhanced Gaming Mode delivers lightning-fast input response times of 16ms, perfect for fastpaced and competitive console or PC gaming. Game Display Mode provides a visual advantage by boosting shadows and dark scenes for greater visibility of impending obstacles. HDMI-Link technology enables control of the projector and connected devices using a single remote, all via the HDMI connection. Up to 15,000- hour lamp life delivers many years of use with minimal maintenance when using Dynamic mode.
- Portable design: Weighing less than 7 pounds in a small form factor, the compact and portable HD146X is easy to take from room to room, and even outdoors.
- DLP image technology: Offers higher contrast, faster response time, good pixel structure and virtually no color degradation.
- Accurate Colors: A 6-segment color wheel (RYGCWB) produces accurate color with sRGB & REC.709 color profile
- ±40° vertical keystone correction: For distortion-free images.
- 3600 lumens of brightness: Offer a highly visible display with clear on-screen images.
- 25,000:1 contrast ratio: Provides a multitude of shades between black and white for rich color saturation.
- 1080p (1920 x 1080) native resolution: Creates a sharp, detailed high-definition picture.
- HDMI input: Makes it easy to connect to high-definition sources.
- 28" - 301" viewable screen size: Allows everyone in the room to enjoy a clear view.
- 3.2' - 35' projector distance: Allows flexible placement.
- 1.47 - 1.62:1 throw ratio range: Reproduces wide images in their correct proportions.
- Supports a variety of signals: Including 480p, 720p, 1080i, 480i, 576i and 576p for a wide range of compatibility options.
- 240W lamp: Delivers up to 4,000 hours of lamp life in normal mode for extended use.
- 26dB fan noise: Ensures quiet operation.
- Built-in 3W speakers: Provide crisp sound.
- Included remote: Provides simple control from across the room.
- Portable design: Weighing less than 7 pounds in a small form factor, the compact and portable HD146X is easy to take from room to room, and even outdoors.
- DLP image technology: Offers higher contrast, faster response time, good pixel structure and virtually no color degradation.
- Accurate Colors: A 6-segment color wheel (RYGCWB) produces accurate color with sRGB & REC.709 color profile
- ±40° vertical keystone correction: For distortion-free images.
- 3600 lumens of brightness: Offer a highly visible display with clear on-screen images.
- 25,000:1 contrast ratio: Provides a multitude of shades between black and white for rich color saturation.
- 1080p (1920 x 1080) native resolution: Creates a sharp, detailed high-definition picture.
- HDMI input: Makes it easy to connect to high-definition sources.
- 28" - 301" viewable screen size: Allows everyone in the room to enjoy a clear view.
- 3.2' - 35' projector distance: Allows flexible placement.
- 1.47 - 1.62:1 throw ratio range: Reproduces wide images in their correct proportions.
- Supports a variety of signals: Including 480p, 720p, 1080i, 480i, 576i and 576p for a wide range of compatibility options.
- 240W lamp: Delivers up to 4,000 hours of lamp life in normal mode for extended use.
- 26dB fan noise: Ensures quiet operation.
- Built-in 3W speakers: Provide crisp sound.
- Included remote: Provides simple control from across the room.
Whats Included
- HD146X Projector
- AC Power Cord
- Remote Control
- Batteries for Remote Control
- Quick Start User Manual
- HD146X Projector
- AC Power Cord
- Remote Control
- Batteries for Remote Control
- Quick Start User Manual
Product Manuals
Q: can this be used outdoors with a screen?
A: Absolutely, we use it both indoors and outdoors. We purchased a 120 inch outdoor screen, and we move the projector from indoors to outside when we want an outside movie night. Our setup includes, this projector, a projector stand, an outdoor portable screen, a bluetooth transmitter and a huge/powerful bluetooth speaker. It works fabulously to provide a great outdoor movie night experience. Note: the projector will NOT work in the daylight hours. No projector will, because the projection lamp isn't as bright as the sun. However, at dusk, it looks good, and then at night it looks spectacular.
Q: Hello, does this include Bluetooth to able to connect to a portable speaker and/or AV receiver?
A: Hi. No, it doesn't have BT, unfortunately. You can however, use a BT adapter/receiver to it. I personally use my laptop to play the media through the projector via HDMI. I then just use the BT on my laptop to connect to my soundbar and this seems to work really well. Hope this helps!
Q: Can I connect my fire stick ?
A: Hello Walter, Yes, you can. It picks up media through either a USB or an HDMI (no wifi or Bluetooth). Also, the picture is great! I hope this helps. Marc
Q: Does this have an audio output to set up external speakers?
A: 3.5mm jack output
A: unfortunately, it does not. And they don't seem to offer one you can purchase. I've been looking for an alternative solution, because I can't imagine that this lens is different from any other lens. All lenses should be protected when not in use.
A: undefined
Q: This projector is HD resolution, I can connect a GOOGLE Chromecast 4K?
A: Thank you for your interest in the HD146x High Performance projector. Please contact Optoma technical support at 888-289-6786 Monday - Friday 6 AM - 5 PM PST for further assistance.
A: Thank you for your inquiry regarding the HD146X Projector. I would like to inform you that this projector is compatible with the following 3D formats: Top and bottom, Frame packing, Side by side, Top and bottom, and Frame sequential. Then you will require DLP Link Active Shutter 3D Glasses to view. Should you have any additional questions, I kindly encourage you to reach out to Optoma technical support at 888-289-6786, available Monday through Friday from 6 AM to 5 PM PST for further assistance.
