Orei - 4K HDBaseT 4x4 HDMI™ Extender Matrix (Loop) - 230ft (cat6)-UHD44-EX230-K - Black
Orei - 4K HDBaseT 4x4 HDMI™ Extender Matrix (Loop) - 230ft (cat6)-UHD44-EX230-K - Black
FREE shipping to
Related Item
About This Item
- General
- Brand: Orei
- Model Number: UHD44-EX230-K
- Product Name: OREI 4K HDBaseT 4x4 HDMI™ Extender Matrix (Loop) - 230ft (cat6)-UHD44-EX230-K
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI

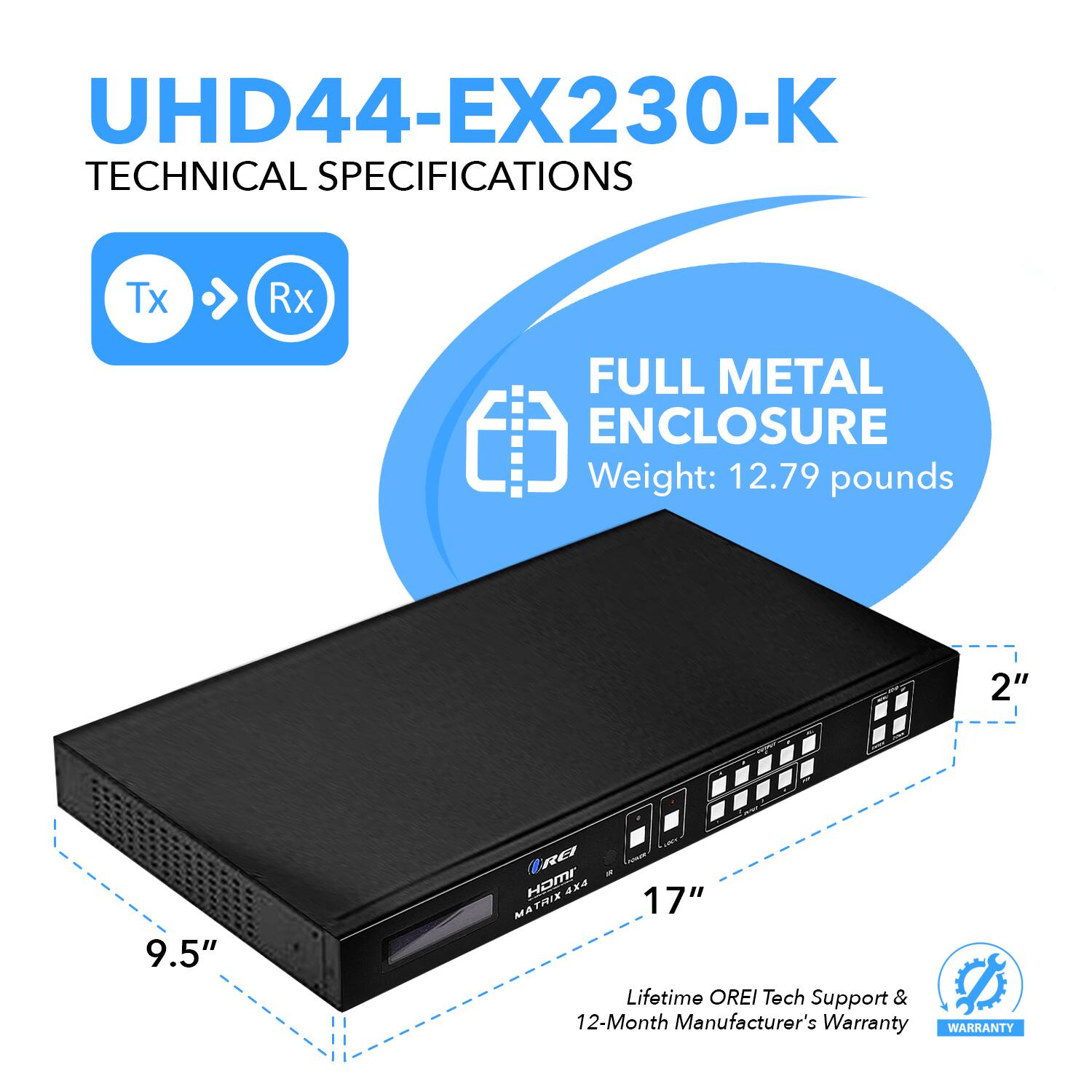

- Dimensions
- Product Height: 1.8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.9 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 Year Warranty
- Warranty - Labor: None
- Other
- UPC: 850008956089

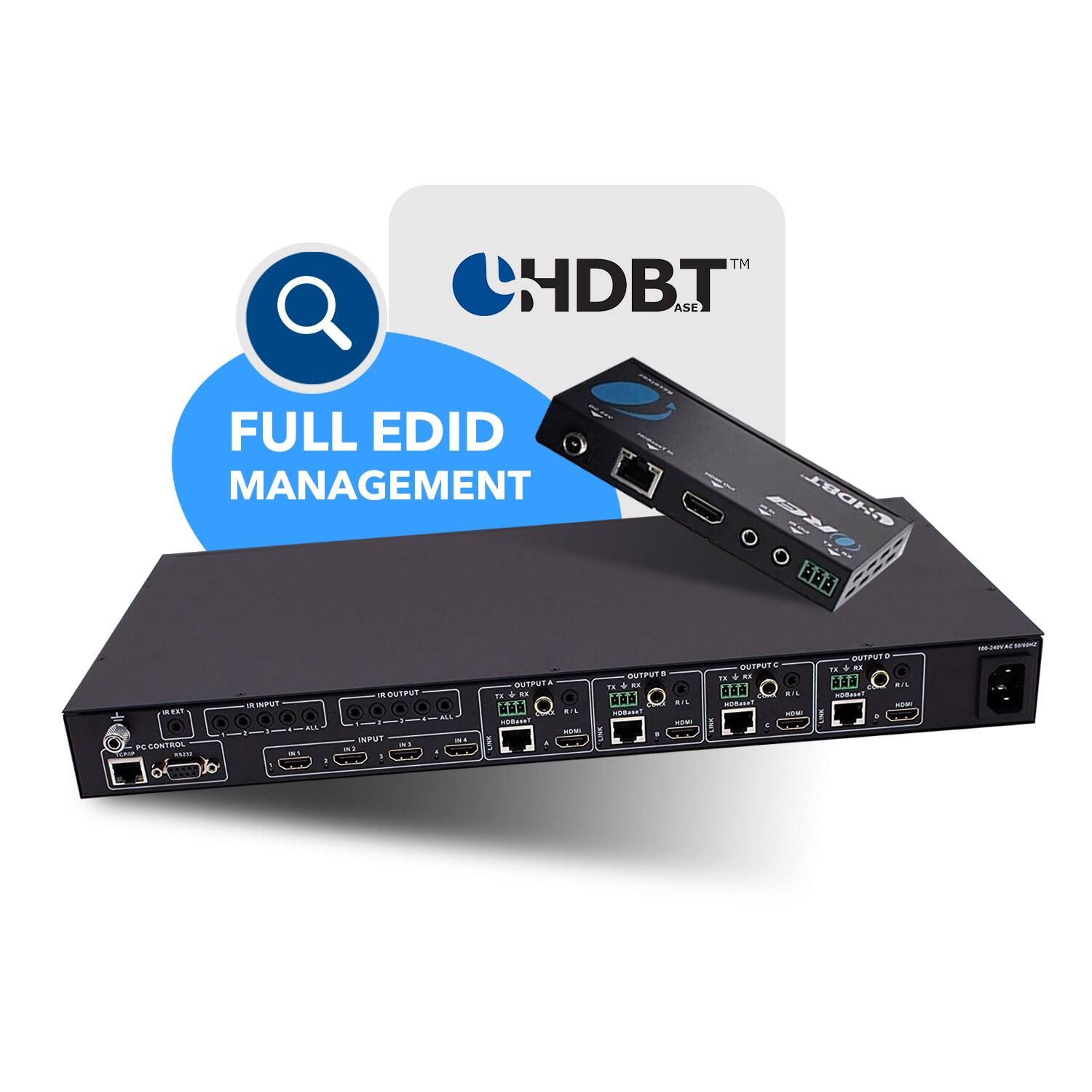

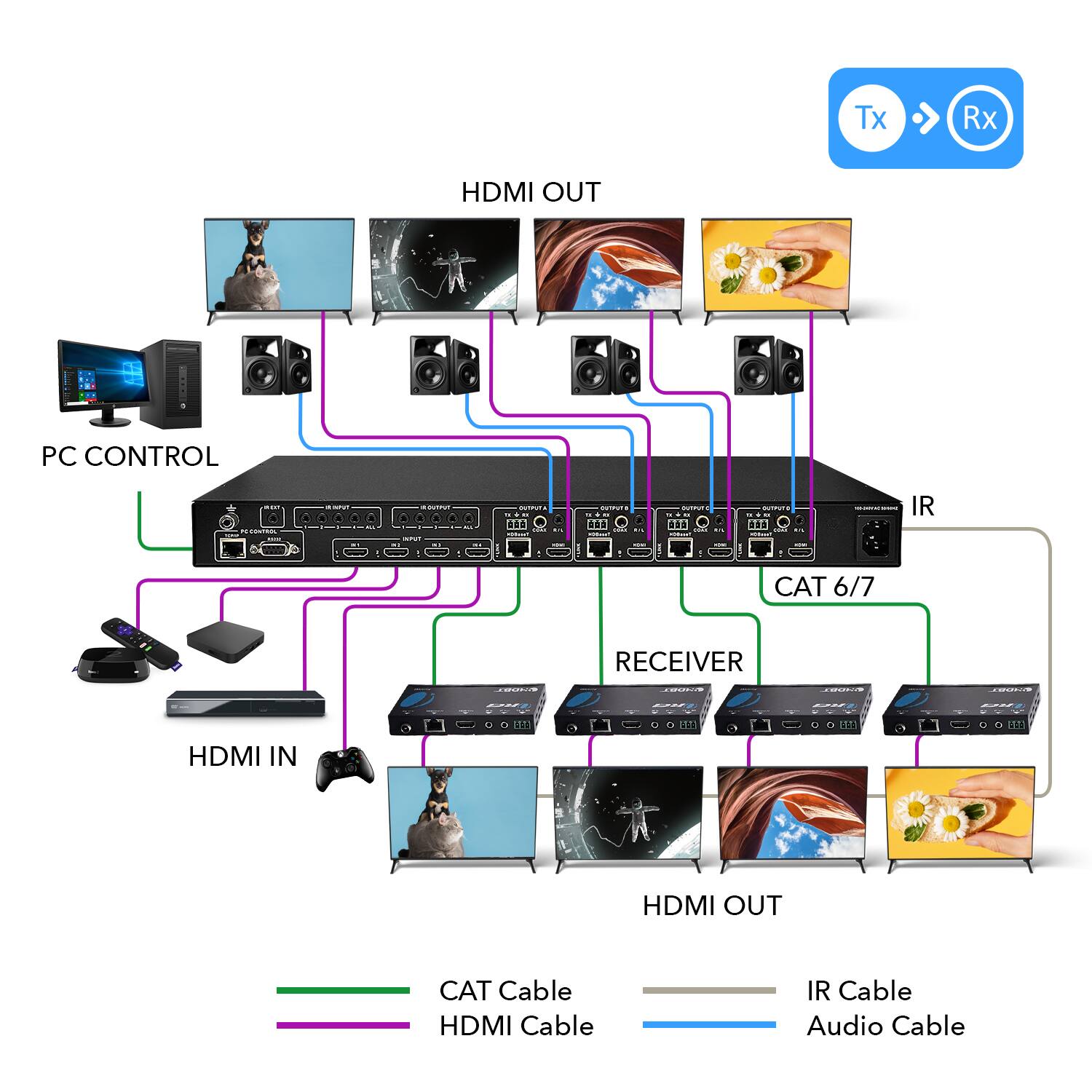

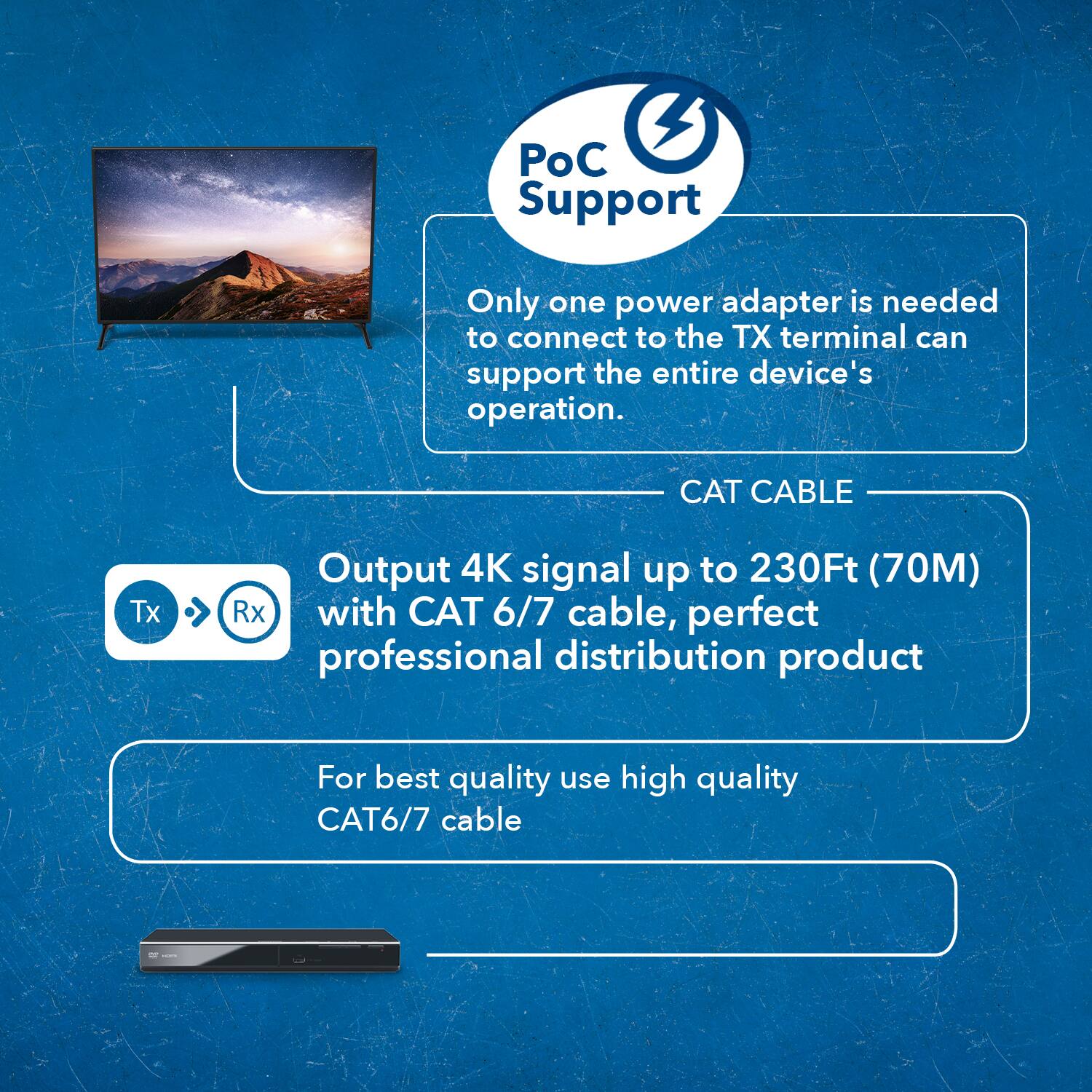

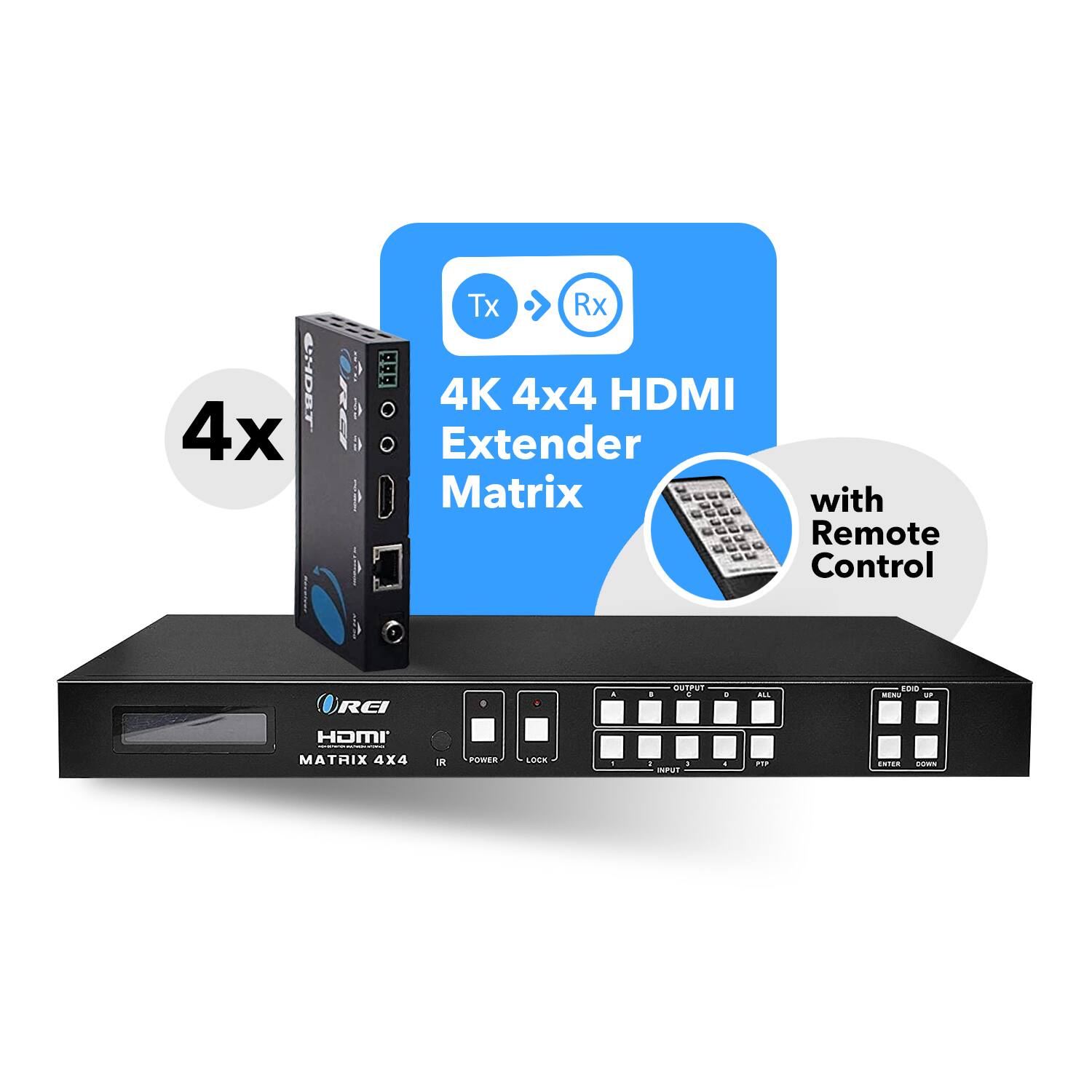

The OREI UHD44-EX230-K HDMI HDBaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources to up to four displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a HDBaseT output over a cat5e/cat6 cable which attaches to an additional receiver that converts the output to HDMI. This matrix switch supports the transmission of video (resolutions up to 4K @ 60Hz YUV 4:2:0) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The extended connection over lan cable can be up to 230 ft for multi-room connectivity for each of the receivers. It also supports bi-directional IR control to send IR signals from the displays to the source or from the source to the displays. RS-232 command prompt control and TCP/IP control to send commands using a PC. It also features Digital coaxial audio output and analog L/R 3.5mm output for each of the four outputs. Full EDID management: Copy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings set within the Matrix. This is a great solution for multimedia setup in an environment with multiple displays such as conference rooms, sports bars, schools, news network rooms and more.
- OREI UHD44-EX230-K: 4x4 HDMI Matrix Extender: Full Ultra HD Support - 4K @ 60/50Hz @ 12 bit YUV 4:2:0, 4K @ 30Hz 24 bit, 1080p/i @ 60/50Hz, 720p @ 60/50Hz, 576p/i @ 60/50Hz, 480p/i @ 60/50Hz; Supports all Audio formats: Such as LPCM, DTS HD, and Dolby trueHD. HDCP 2.2 Compliant
Reviews
This product doesn't have any reviews yet.
Compare similar products
The OREI UHD44-EX230-K HDMI HDBaseT 4x4 HDMI Matrix with simultaneous CAT5e/6/7 and HDMI outputs connects four HDMI sources to up to four displays. This matrix features four HDMI outputs and each HDMI output is mirrored to provide a HDBaseT output over a cat5e/cat6 cable which attaches to an additional receiver that converts the output to HDMI. This matrix switch supports the transmission of video (resolutions up to 4K @ 60Hz YUV 4:2:0) and supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The extended connection over lan cable can be up to 230 ft for multi-room connectivity for each of the receivers. It also supports bi-directional IR control to send IR signals from the displays to the source or from the source to the displays. RS-232 command prompt control and TCP/IP control to send commands using a PC. It also features Digital coaxial audio output and analog L/R 3.5mm output for each of the four outputs. Full EDID management: Copy the EDID settings from any of your HDMI displays or choose from a wide selection of pre-programmed EDID settings set within the Matrix. This is a great solution for multimedia setup in an environment with multiple displays such as conference rooms, sports bars, schools, news network rooms and more.
The UHD-EX120C-K is a USB C to HDMI Extender that transmits a media signal from a laptop or PC to an HDMI display over ethernet, reaching distances of up to 196 feet at 4K@60Hz. It is HDMI 2.0 and HDCP 2.2 compliant, with video resolutions up to 4K@120Hz over 82 feet. Features 18Gbps video bandwidth with HDR10 support. Only the Receiver unit requires power. This extender is perfect for professional applications like presentations, digital signage, and more.
The HD14-EX165-K efficiently distributes one HDMI source signal to any four display devices placed far away. It supports video resolutions up to 4K@30Hz and 1080p@60hz up to 165 feet over a CAT6/7 cable. The device is HDMI 1.4 and HDCP 1.4 compliant. It provides video bandwidth of 10.2Gbps while providing support for audio formats such as LPCM 7.1, Dolby True HD and DTS-HD Master Audio. The Transmitter features an HDMI loop out to connect a display near the source. The device also comes with unidirectional IR control from Receiver to the Transmitter and also support PoC requiring only one power adapter. This Extender Splitter is perfect for video distribution to 4 displays placed far away in any residential or commercial setups given its robust metal build and plug and play setup.
The HDA-934 is an ARC/eARC HDMI audio extractor switch with 1 HDMI ARC/eARC soundbar port, 3 HDMI input ports, and 1 HDMI ARC/eARC output port. This device can extract audio from the HDMI sources or an ARC/eARC TV, providing ARC/eARC audio output directly to the soundbar. It is HDMI 2.0b and HDCP 2.2 compliant, supporting a video bandwidth of up to 18Gbps. It supports video resolutions up to 4K@60Hz 4:4:4 with HDR10+ and Dolby Vision pass-through. Please note that in order to extract audio from TV’s internal apps, the TV must be compatible with ARC/eARC. Only HDMI input 1 can connect to a soundbar, others are non-ARC/eARC standard HDMI ports to connect HDMI sources to connect to the TV. Control options include control via front panel buttons or IR remote. Advanced EDID management to select the settings (AUTO/2.0/5.1/7.1). Compact design, perfect for commercial or personal setups.
