Orei - 4K HDBaseT 8x8 HDMI™ Extender Matrix (Loop) - 230ft (cat6)-UHD88-EXB230R-K - Black

The UHD816-EX230-K Matrix can connect up to 8 HDMI sources and output to 16 displays. It features eight HDMI outputs, and each HDMI output is mirrored to provide a CAT-Cable output which runs simultaneously. It supports transmission of video with resolutions up to 4K@60Hz and 2K@60Hz and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio. The Matrix can be used for multi-room connectivity, and the HDMI signals can be extended up to 230ft/70m via CAT-Cable outputs by connecting the included CAT Receivers. The Matrix supports one-way IR matrix function. It can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

The UHD44-EXB400R-K can connect up to 4 HDMI sources and output to 8 displays. It features four HDMI outputs, and each HDMI output is mirrored to provide a CAT-Cable output that runs simultaneously. It supports transmission of video with resolutions up to 4K@60Hz and 2K@60Hz. Audio de-embedded to analog and coaxial audio is supported. Each HDMI output supports a 4K to 1080P downscale function independently. HDBaseT output can extend video transmission distance up to 492ft/150m via a single Cat 5e/6/7 cable. The product supports Bi-Directional IR control. The product provides an intuitive set of front panels with OLED screens and supports control via the front panel buttons, IR remote, RS-232, LAN, and Web GUI.

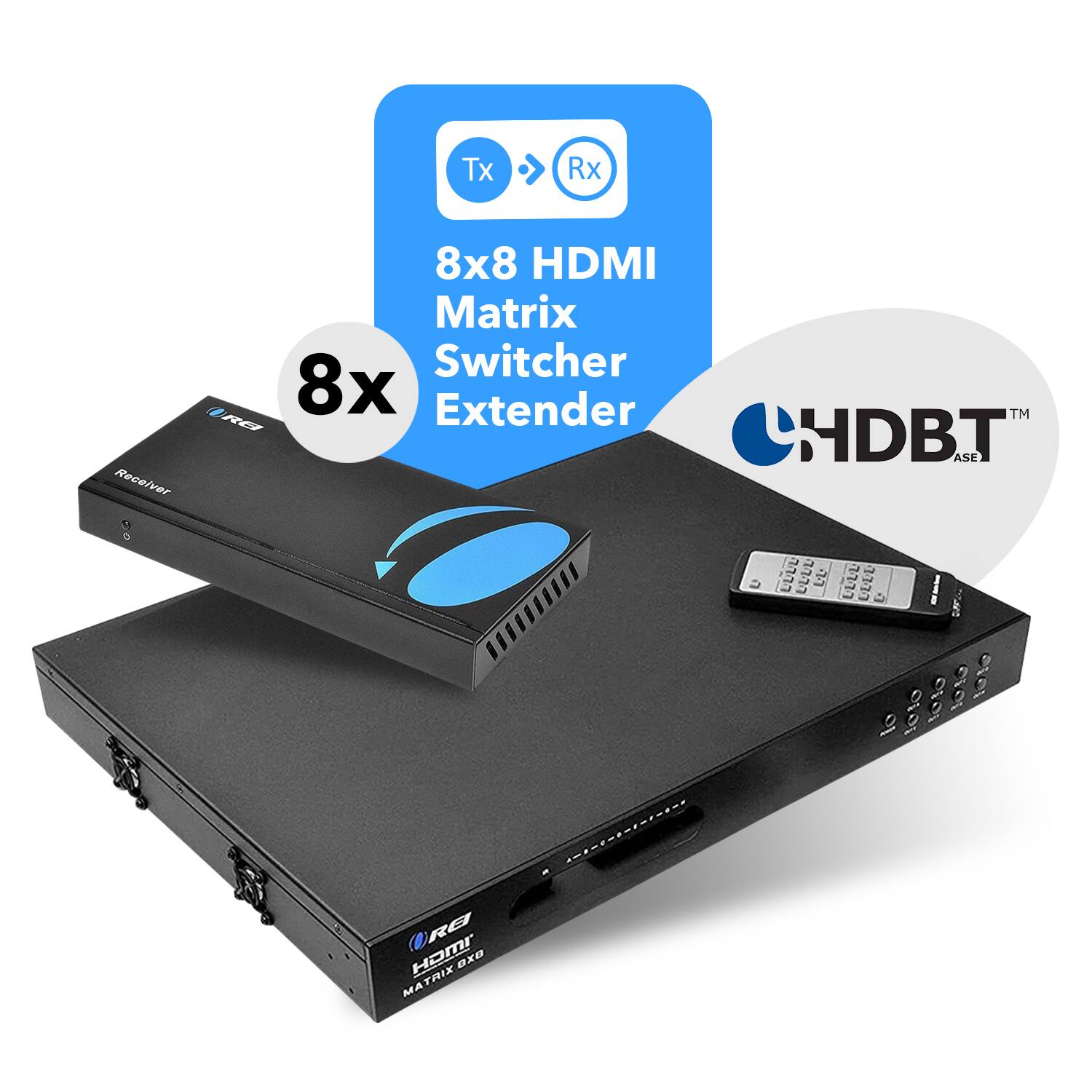

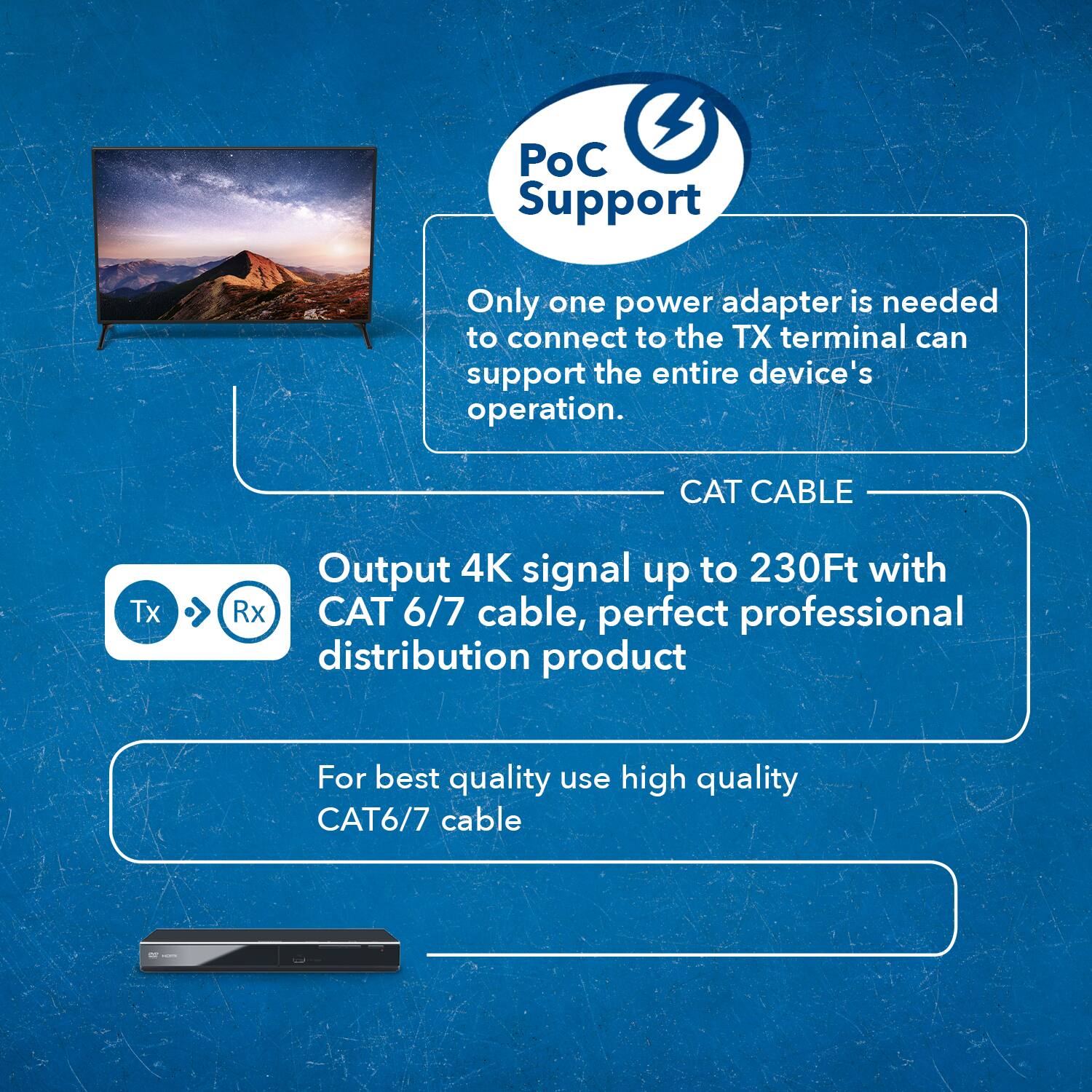

The UHD88-EXB400R-K is a 4K HDMI Matrix extender that distributes media signals from 8 inputs to 8 distant displays. It supports video resolutions up to 4K@60Hz and 2K@60Hz and is compliant with HDMI 2.0b and HDCP 2.2 standards. This matrix extender can extend HDMI signals up to 300 feet at 4K@60Hz 4:4:4. With a video bandwidth of 18Gbps, it also allows for seamless pass-through of HDR, HDR10, HDR10+, Dolby Vision, and HLG. For displays that don't support 4K resolution, this matrix extender can downscale the resolution to 1080p for any HDBaseT output ports. This matrix extender supports a wide range of audio formats up to 7.1 channels, including LPCM, Dolby TrueHD, and DTS-HD Master Audio, with audio de-embedding (audio extraction) through analog and coaxial outputs simultaneously. It is equipped with bi-directional IR control allowing the control of the source device from the receiver's location and vice versa. Its Power over cable technology enables powering up the setup through only one power adapter connected to the transmitter. The unit can be controlled via the front panel buttons, remote control, RS-232, LAN, or the WebGUI interface. With its rack-mounted design, integration into both residential and commercial setups becomes easy.
