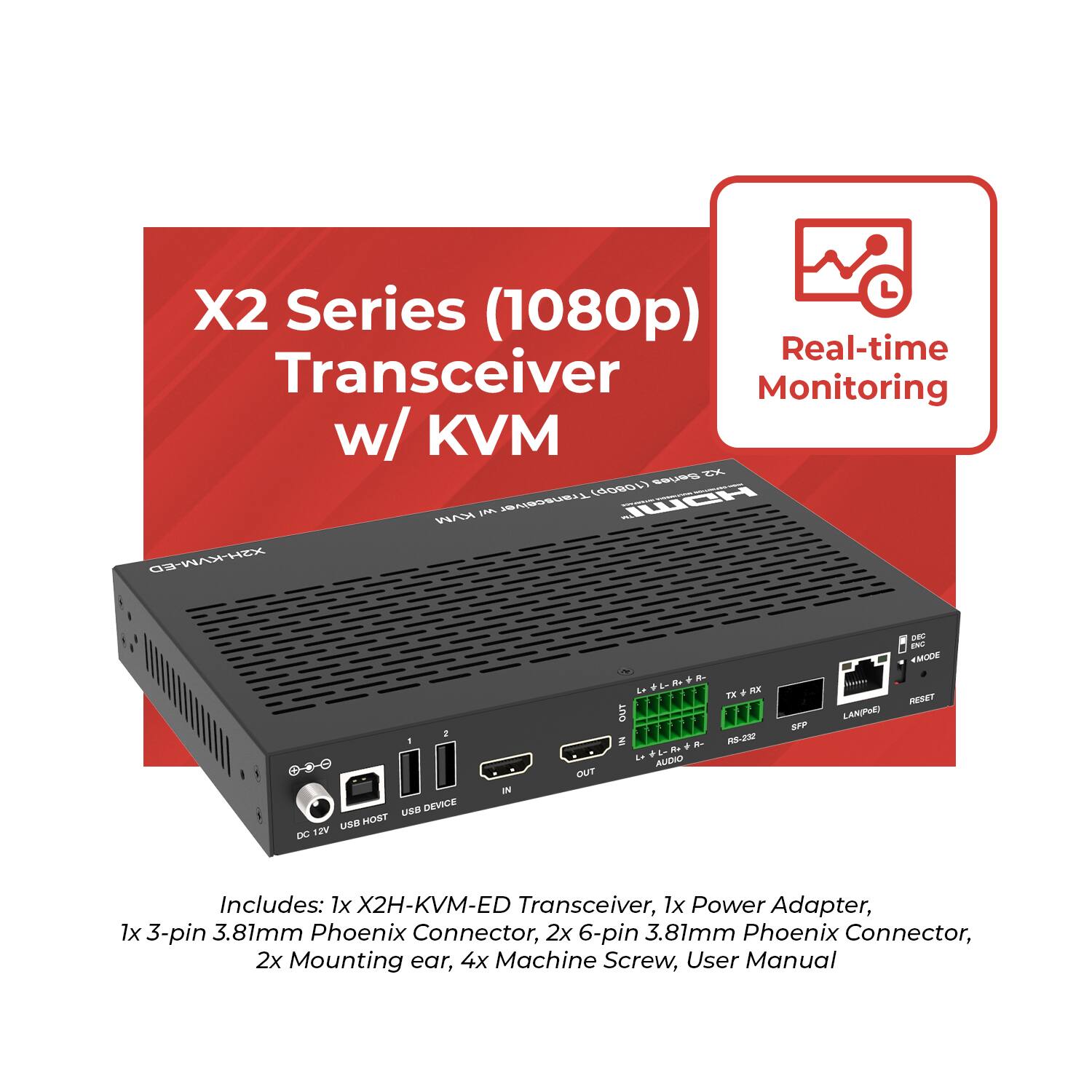

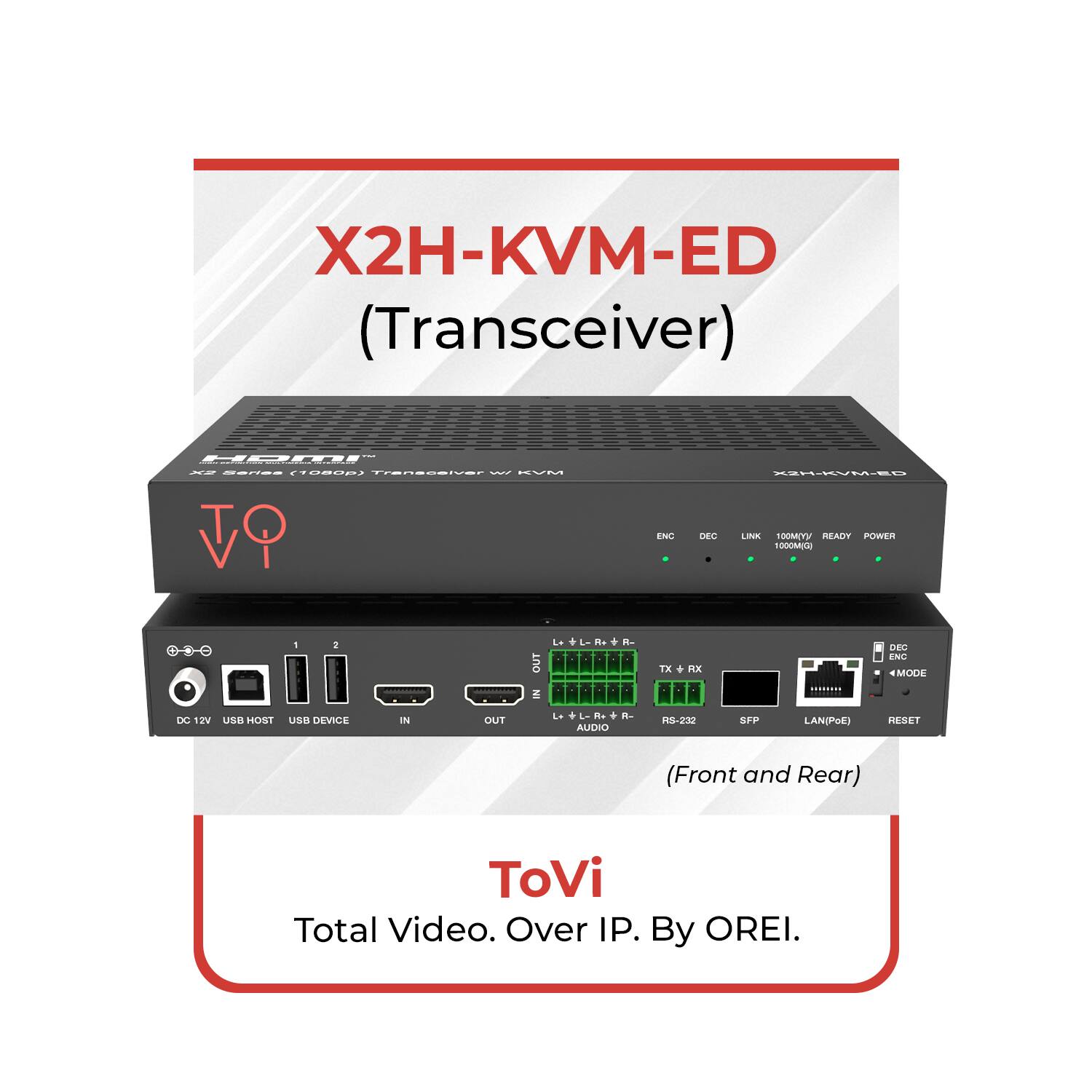

Orei - ToVi X2 1080p Transceiver (Video Wall, KVM) - X2H-KVM-ED - Black
Orei - ToVi X2 1080p Transceiver (Video Wall, KVM) - X2H-KVM-ED - Black
FREE shipping to
Related Item
About This Item
- General
- Brand: Orei
- Model Number: X2H-KVM-ED
- Product Name: ToVi X2 1080p Transceiver (Video Wall, KVM) - X2H-KVM-ED
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Warranty
- Warranty - Parts: 5 Year Warranty
- Other
- UPC: 810162900915

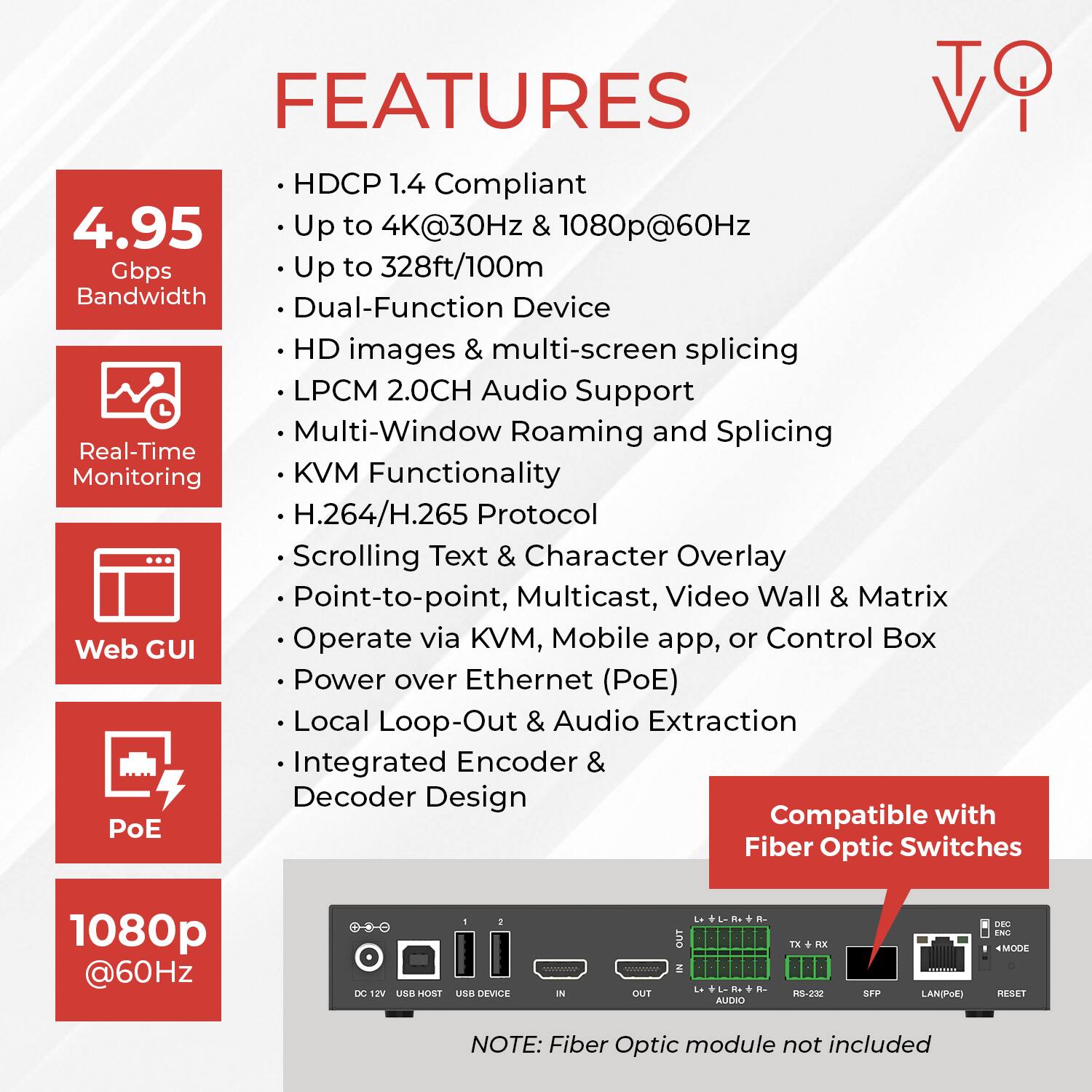

The X2H-KVM-ED is a high-performance AV-over-IP solution for advanced video distribution, system control, and flexible display management. It supports HDMI 1.4 & HDCP 1.4 and delivers 4K@30Hz & 1080p@60Hz video with 4.95Gbps bandwidth, ensuring ultra-HD quality. With LPCM 2.0CH 48kHz audio, it also features audio routing with 6-pin phoenix Analog input and output. The combined encoder/decoder design allows you to configure it as either a transmitter or receiver. It supports both Fiber optic and RJ45 for signal transmission up to 328ft/100m.
- HDMI 1.4 & HDCP 1.4 Compliant: Ensures compatibility with protected UHD content.
- Video Resolutions: In addition to pristine 4K@30Hz (4:4:4), it supports high-refresh and multi-resolution formats such as 2560×1440@25/30/60Hz, and 4096×2160@25/30Hz
- Long distance transmission: Transmit audio/video signals up to 328ft/100m.
- 4:2:2 encoding/decoding: Delivers accurate color restoration for vivid imagery.
- Dual-Function Device: Can be configured as either a transmitter or receiver, switchable based on application needs.
Reviews
This product doesn't have any reviews yet.
Compare similar products
The X2H-KVM-ED is a high-performance AV-over-IP solution for advanced video distribution, system control, and flexible display management. It supports HDMI 1.4 & HDCP 1.4 and delivers 4K@30Hz & 1080p@60Hz video with 4.95Gbps bandwidth, ensuring ultra-HD quality. With LPCM 2.0CH 48kHz audio, it also features audio routing with 6-pin phoenix Analog input and output. The combined encoder/decoder design allows you to configure it as either a transmitter or receiver. It supports both Fiber optic and RJ45 for signal transmission up to 328ft/100m.
OREI UHD41-EX230-KVM is a 4K@60Hz 4X1 HDMI KVM Switch which supports 4 HDMI signal inputs and 1 HDMI signal output. It supports one set of keyboard and mouse to control 4 computers and share 1 monitor, conveniently switch among games, movies, TV shows and other contents. Users can easily control the KVM switch via RS-232 port, remote control and the panel button. This product can be widely used in security monitoring, education and training, exhibitions and broadcasting, command centers, etc.
This Insignia HDMI to VGA Adapter can mirror the display from a computer or gaming console to any VGA-enabled monitor. Or extend your existing display to a second monitor, making it easier to organize programs and windows for day-to-day use at work or while browsing. This adapter supports resolutions up to 1920 × 1080 at 60Hz for high-quality video, and a 3.5 mm port lets you hook up your audio. Its hassle-free setup requires no additional software.

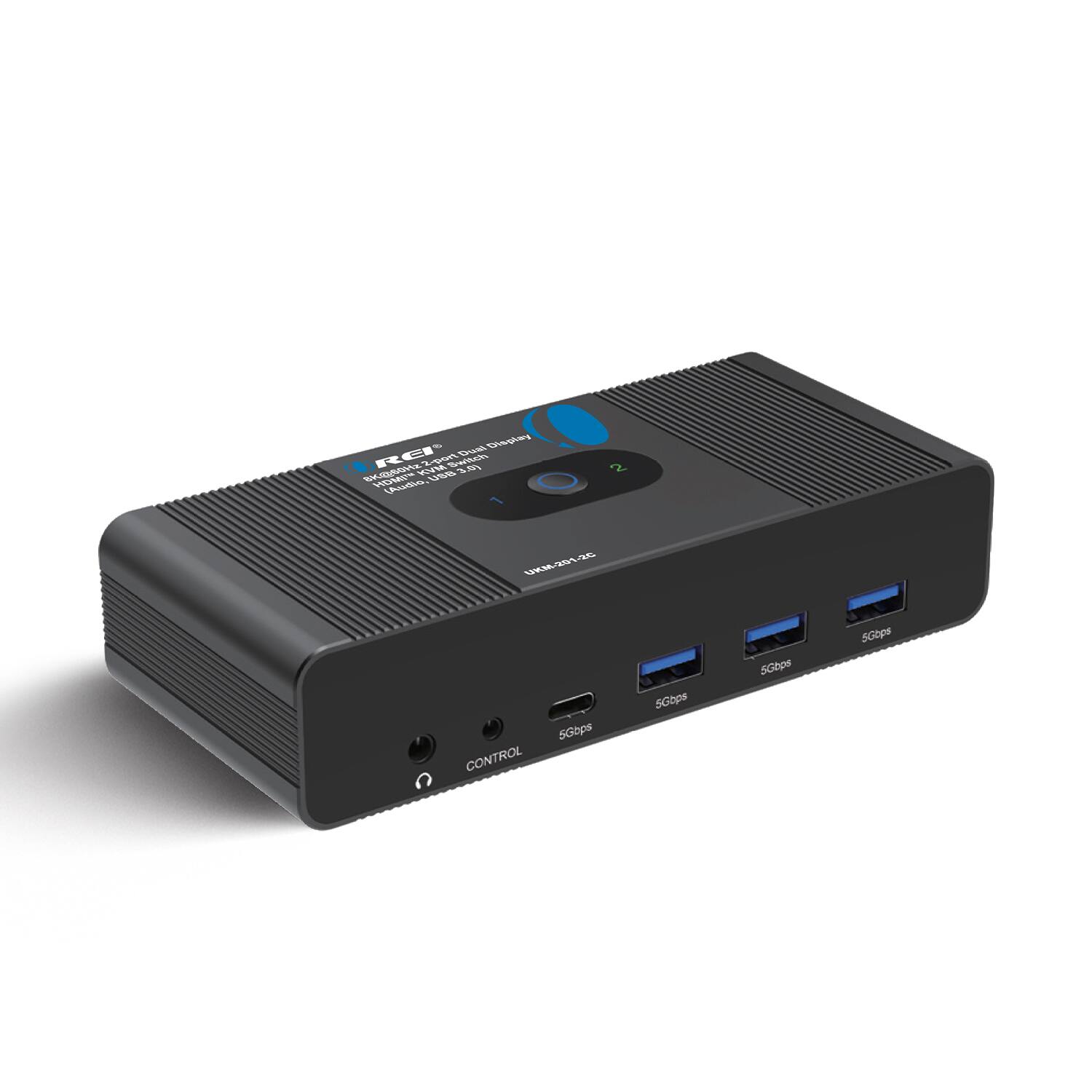

The UKM-201-2C is a high-performance 8K HDMI KVM Switch that lets you control two computers using one set of peripherals and dual external displays. It supports dual HDMI 8K@60Hz (YUV 4:4:4) with HDR10, HDR10+, Dolby Vision, HLG, 3D at 1080p, and HDCP 2.3. The dual HDMI outputs support Extend Mode (MST) for running different content on two screens. It features 12-bit Deep Color, 48Gbps bandwidth, CEC, and advanced audio including Uncompressed LPCM, and Compressed Dolby TrueHD, and DTS-HD Master Audio over HDMI. Supported resolutions also include 4K@120/144/165Hz, 2K@60/120/144/165Hz, and 1080p@120/144/165/240Hz. With three USB-A 3.0 ports and one USB-C 3.0 device port, it allows fast (5Gbps) sharing of keyboards, mice, SSDs, touchscreens, and other peripherals between both systems. A 3.5mm stereo audio output is included for flexible monitoring with speakers or headsets. Switching between computers is simple via the top button or wired remote, ensuring smooth workflow transitions. Compact and built for advanced multi-display setups, it’s ideal for commercial workstations, creative studios, and high-efficiency home offices. Note: Extended display mode requires two HDMI outputs and MST support. macOS laptops support only SST, so extended displays will not work on Macs
