About This Item
- General
- Brand: Orei
- Model Number: X4UH-WUC-ETX
- Product Name: ToVi X4 4K Wall Plate Encoder (Video Wall, KVM) (X4UH-WUC-ETX)
- Color: White
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Warranty
- Warranty - Parts: 1 Year Warranty
- Other
- UPC: 810162900960

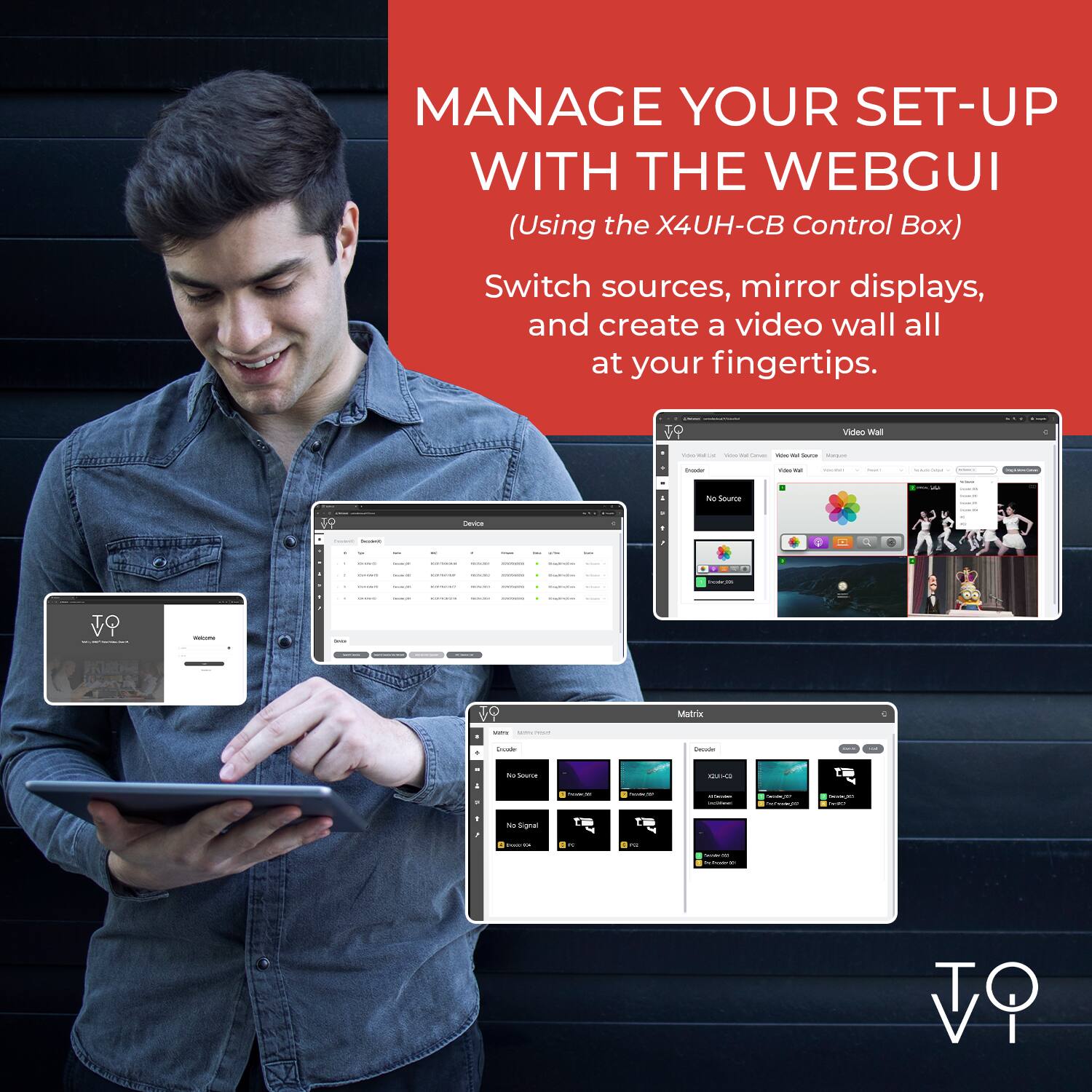

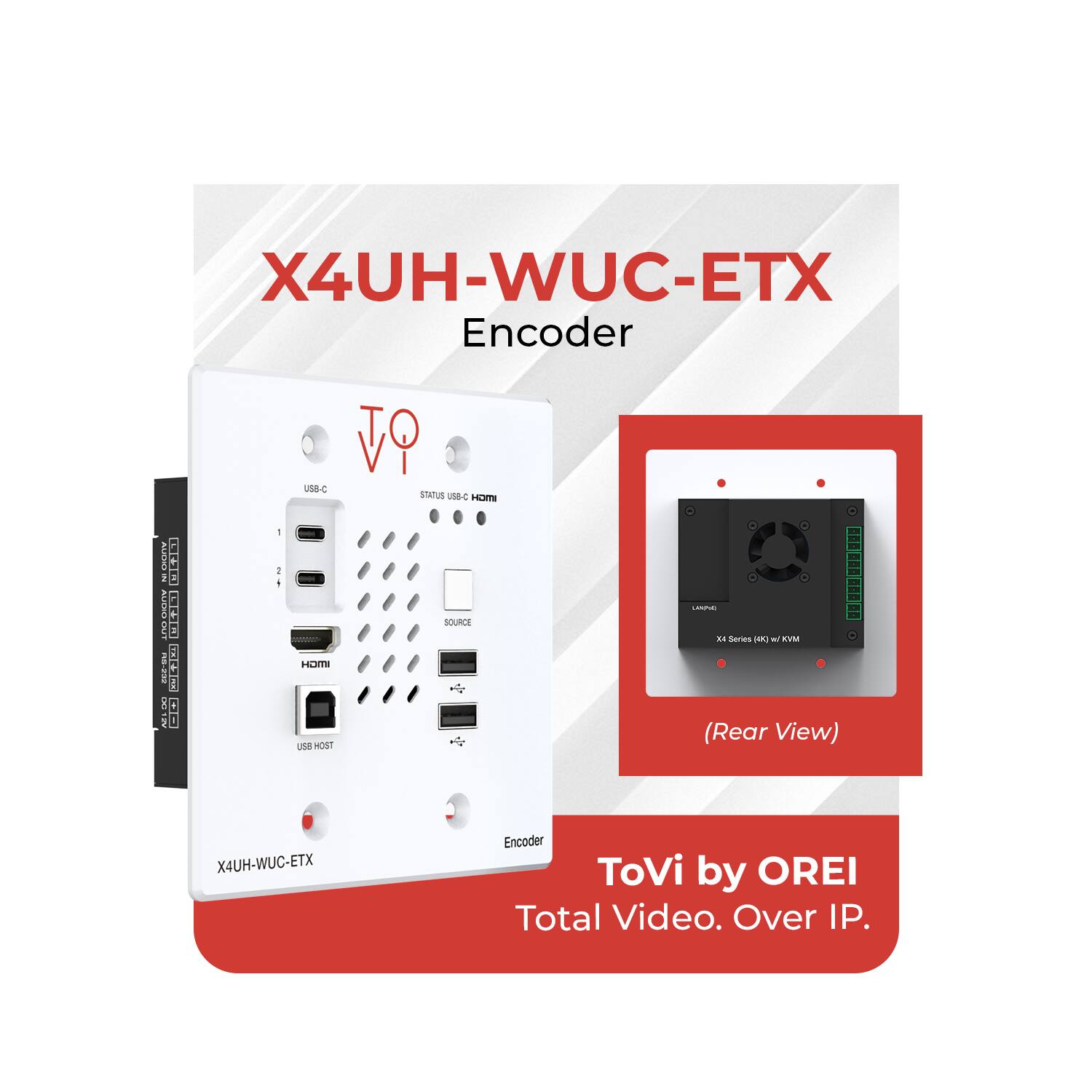

X4UH-WUC-ETX is a high-performance AV over IP Encoder designed for professional AV distribution over a Gigabit network. Built on advanced JPEG2000 technology with ASPEED AST1530 for image compression, it ensures visually lossless 4K@60Hz 4:4:4 video transmission with ultra-low latency, ideal for KVM and interactive applications. This wall-plate encoder features dual HDMI™ and USB-C inputs, supporting automatic and manual switching between sources, along with audio embedding and de-embedding, USB 2.0/KVM functionality, bi-directional RS-232 and CEC pass-through. With support for advanced video formats like HDR10, Dolby Vision, and HLG, and comprehensive audio compatibility including Dolby Atmos, DTS:X, and LPCM up to 7.1CH, the X4UH-WUC-ETX is a reliable solution for demanding AV installations in conference rooms, educational facilities, and control centers. The system is Linux-based for enhanced stability and offers flexible control via Web GUI, RS-232, TCP/IP, and third-party control systems. Its smart networking design, PoE support, and compact 2-gang wall-plate form factor make it easy to install and manage.
- HDCP 2.2 & DP 1.2 Compliant: Ensures compatibility with modern content protection and DisplayPort standards.
- Ultra HD Video Support: In addition to pristine 4K@60Hz (4:4:4), it supports high-refresh rate and multi-resolution formats such as 1080p@120Hz, 2560×1440@25/30/60Hz, and 4096×2160@25/30/60Hz.
- 18Gbps Video Bandwidth: Delivers uncompressed, high-quality video signals.

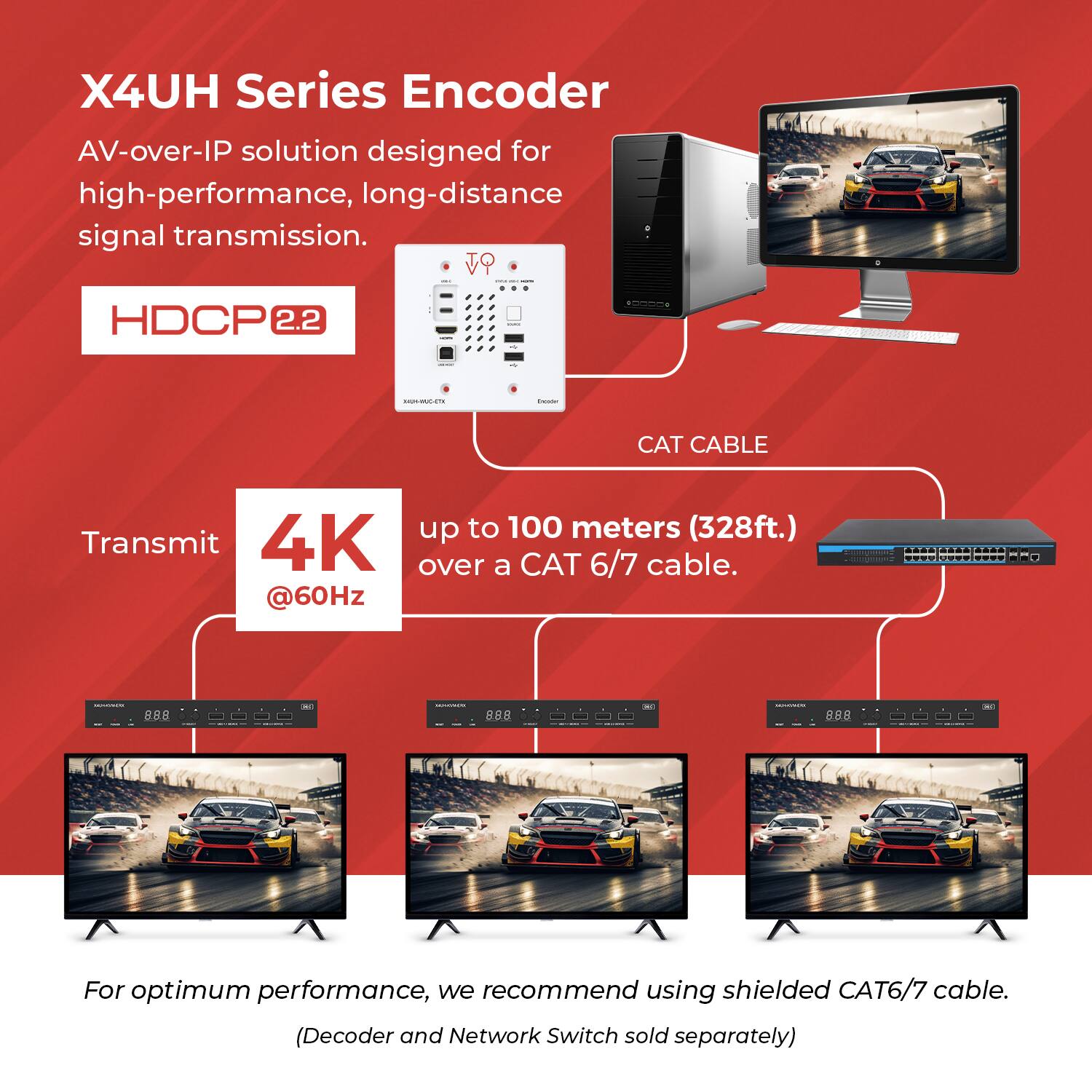

- Long-Distance Transmission: Extends signals up to 328ft (100m) over Cat6/6A/7 cables.
- HDMI™ & USB-C Dual Inputs: Supports automatic or manual source switching for flexible operation.
