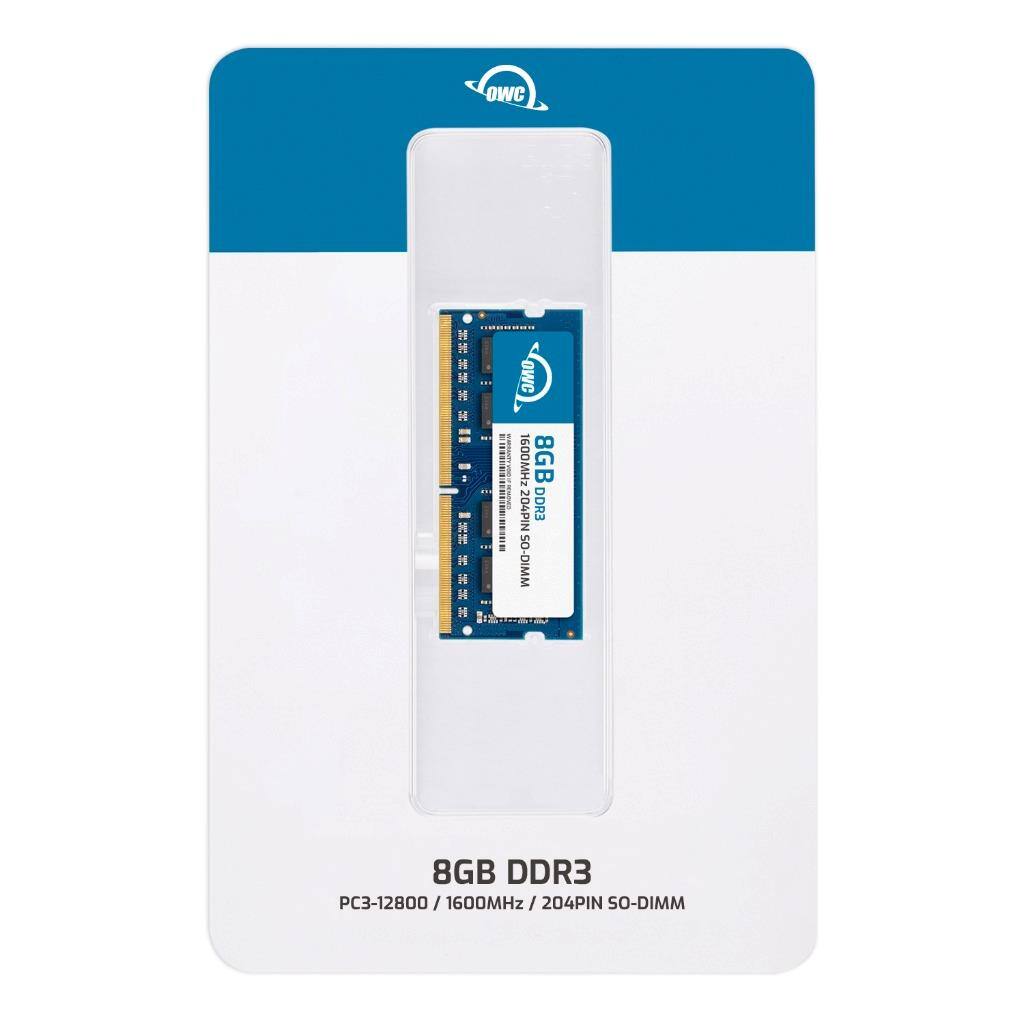

OWC - 8GB Memory RAM For HP Pavilion TouchSmart 23 Series using DDR3 Memory Omni 220-1155xt Omni 220-1185qd - Black Chips
OWC - 8GB Memory RAM For HP Pavilion TouchSmart 23 Series using DDR3 Memory Omni 220-1155xt Omni 220-1185qd - Black Chips
Memory Capacity (Total)
8GBFREE shipping to
- CORSAIR - iCUE LINK RX120 RGB 120mm PWM Computer Case Fan Expansion Fan - White$26.99The price was $34.99
Specifications
- Type of Memory (RAM)DDR3Form FactorLaptopSpeed1600 megahertzLatency11CAS Latency11Lighting TypeNone
- Key Specs
- Type of Memory (RAM): DDR3
- Form Factor: Laptop (The type of computer the memory is configured to fit in.)
- Speed: 1600 megahertz
- Latency: 11 (Refers to the amount of time between the moment a memory request is initiated and the moment the request is retrieved by a processor, commonly written as a series of 4 numbers, or timings. Each timing measures the performance of the module according to a specific parameter. Generally, the lower the numbers, the faster the RAM can respond to requests.)
- CAS Latency: 11 (Column Address Strobe (CAS) Latency refers to the number of clock cycles (for synchronous DRAM) or nanoseconds (for asynchronous DRAM) between the moment an instruction or command is initiated and the moment the data result is available. Generally, the lower the numbers, the better.)
- Lighting Type: None
- Performance Profile(s): Not Applicable
- Memory Capacity (per Module): 8 gigabytes (Refers to the maximum amount of data that can be stored on the memory module.)
- Memory Capacity (Total): 8 gigabytes (Refers to the maximum total amount of data that can be stored on all included memory modules.)
- General
- Brand: OWC
- Model Number: 1S6D32R808GB-B442
- Product Name: OWC 8GB Memory RAM For HP Pavilion TouchSmart 23 Series using DDR3 Memory Omni 220-1155xt Omni 220-1185qd
- Color: Black Chips
- Memory Capacity (per Module): 8 gigabytes (Refers to the maximum amount of data that can be stored on the memory module.)
- Number Of Modules: 1
- Memory Capacity (Total): 8 gigabytes (Refers to the maximum total amount of data that can be stored on all included memory modules.)
- Compatibility
- Type of Memory (RAM): DDR3
- Pin Configuration: 204
- Memory Format: SODIMM (Memory module size that determines what size device the memory stick will fit.)
- Form Factor: Laptop (The type of computer the memory is configured to fit in.)
- Speed
- Memory Speed Rating: PC3-12800 (The RAM's bandwidth rating. The numbers refer to generation and transfer speed and are typically separated with a hyphen. For example, PC3-12800 would indicate that the module is 3rd generation and has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the second number, the faster the speed.)
- Speed: 1600 megahertz
- Latency: 11 (Refers to the amount of time between the moment a memory request is initiated and the moment the request is retrieved by a processor, commonly written as a series of 4 numbers, or timings. Each timing measures the performance of the module according to a specific parameter. Generally, the lower the numbers, the faster the RAM can respond to requests.)
- CAS Latency: 11 (Column Address Strobe (CAS) Latency refers to the number of clock cycles (for synchronous DRAM) or nanoseconds (for asynchronous DRAM) between the moment an instruction or command is initiated and the moment the data result is available. Generally, the lower the numbers, the better.)
- Features
- Buffered or Registered: Unbuffered (Registered (buffered) memory modules are classified by the addition of a register between the memory controller and DRAM modules. When compared to conventional unbuffered (unregistered) memory, this type provides more stability with less electrical load on the controller, making it a common choice for use in robust applications, such as servers.)
- Data Integrity Check: Non-ECC (Error-correcting code (ECC) memory helps to maintain data integrity within a computer system, protecting it from potential crashes as well as losses or changes to data due to undetected errors. Systems that use ECC have an additional chip on the RAM that acts as the error check.)
- Memory Channels: Single (Multi-channel memory increases the rate of data transfer between the DRAM memory and memory controller by adding more channels of communication. The more channels, the more memory bandwidth.)
- Lighting Type: None
- Fan Included: false
- Performance Profile(s): Not Applicable
- Power
- Voltage: 1.5 volts (Amount of power needed to support an electrical current.)
- Warranty
- Warranty - Parts: OWC Limited Lifetime Replacement Warranty with Advance Replacement
- Warranty - Labor: None
- Other
- UPC: 810147681259
Capacity: 8GB --- Technology: DDR3 --- Speed: PC3-12800 1600MHz CL11 --- ECC Type: Non-ECC Unbuffered --- Form Factor: 204-Pin Non-ECC SODIMM --- Voltage: 1.5V --- Backward Compatibility: Also compatible with 1333MHz and 1066MHz --- System Compatibility: HP Pavilion TouchSmart 23 Series using DDR3 Memory --- Replacement For: HP 656291-150, 667217-161, 667217-361, 667217-661, 667217-961, 670034-001, 670034-005, 689374-001, B4U40AA, H2P65AA --- OWC DDR3 memory is Fully compliant with JEDEC specifications, ROHS compliant, providing a warranty safe upgrade. OWC Memory is the most cost effective and simple DIY upgrade you can install to unleash your Mac or PC's full potential and speed up overall responsiveness. Become a multitasking maven when you upgrade your Mac or PC with OWC Memory. Open more apps. Open larger files. Plus, work with multiple files all at the same time. We test every OWC memory module at our in house lab so you can upgrade with the confidence that your memory is built to last. We built your OWC Memory upgrade to meet or exceed the toughest industry specs to provide years of worry-free service. OWC recommends that all DIMMs be the same capacity, speed, and manufacturer to ensure optimal memory performance.
- WHAT YOU NEED TO KNOW: OWC 8GB UPGRADE: Consists of a single 8GB DDR3 1600 PC3-12800 CL11 2Rx8 204-pin 1.5V SODIMM Memory RAM Module Upgrade memory module compatible with HP Pavilion TouchSmart model 23 Series using DDR3 Memory.
