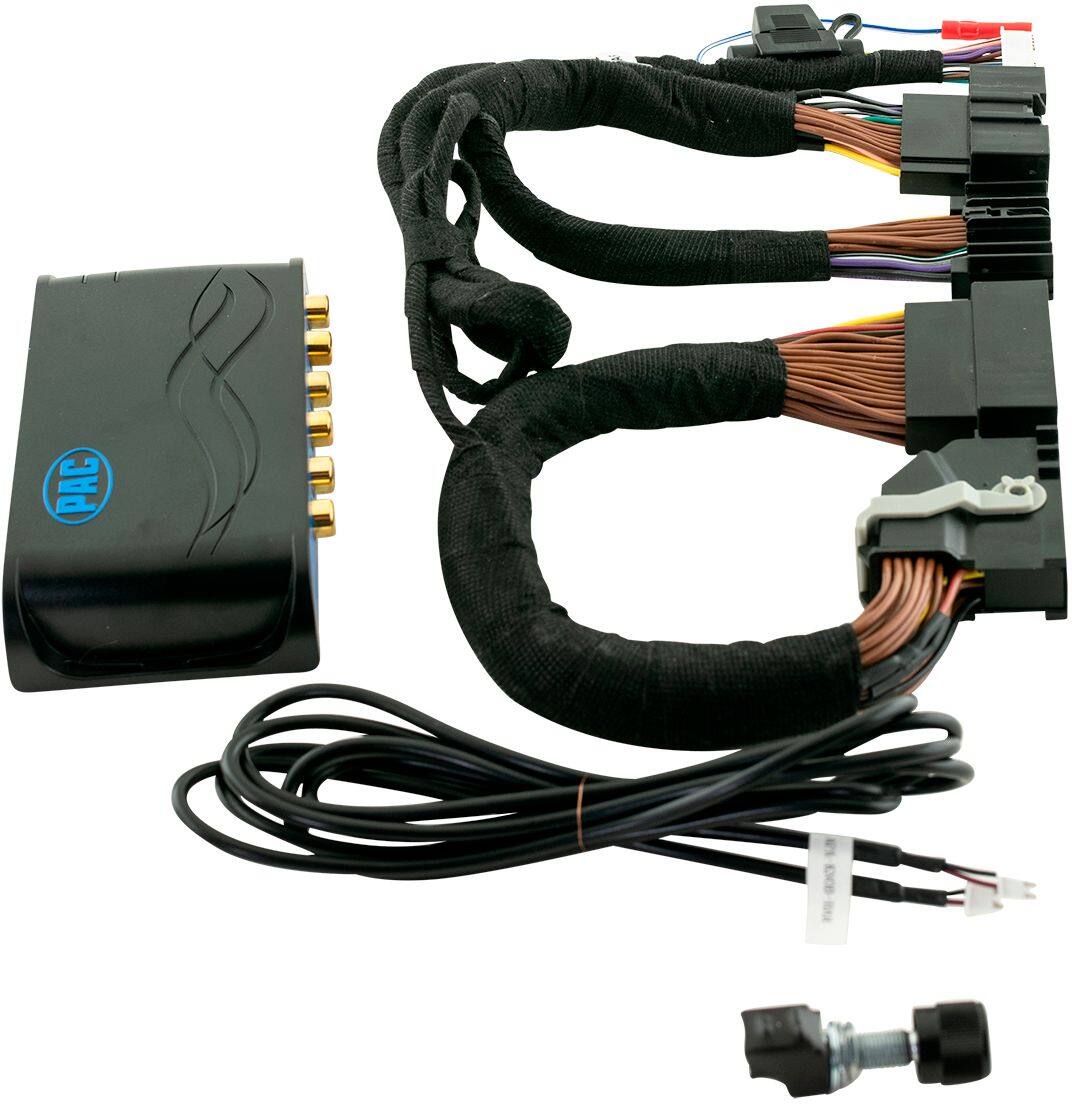

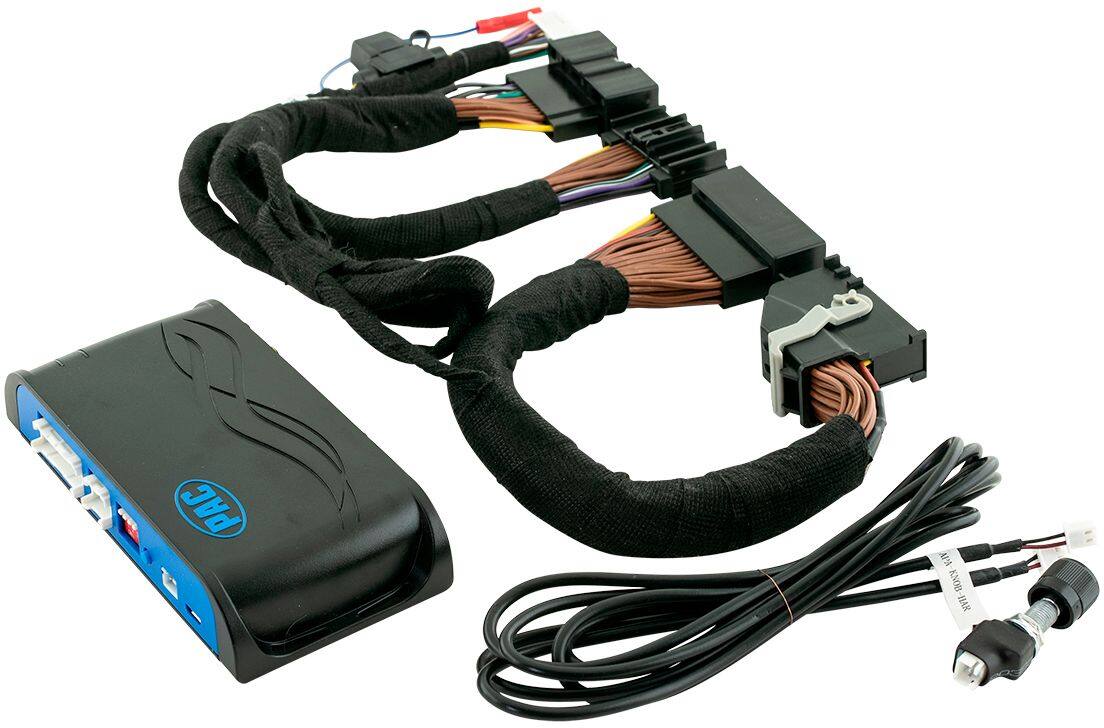

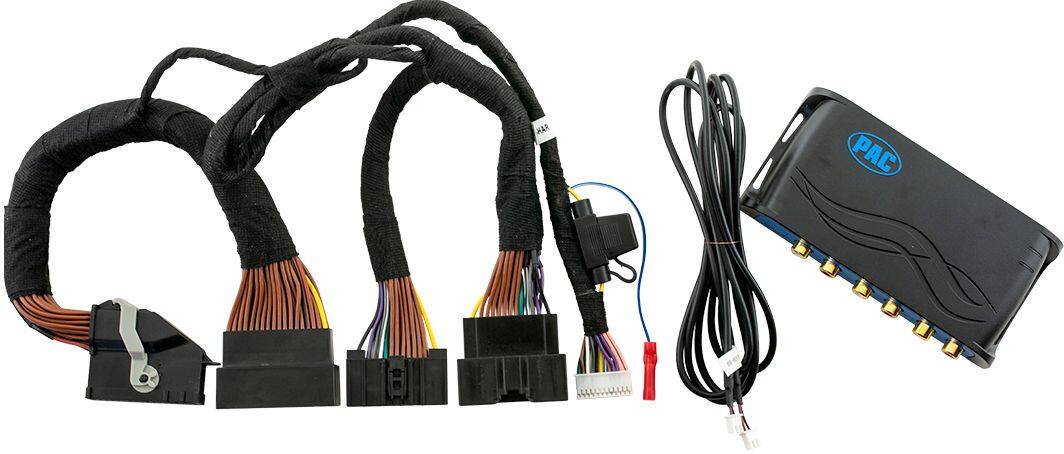

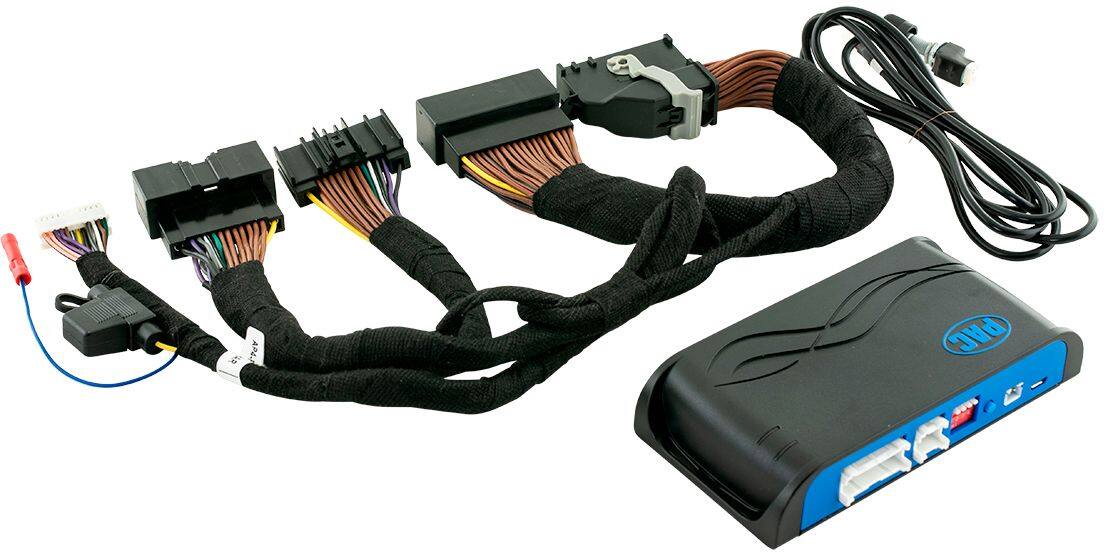

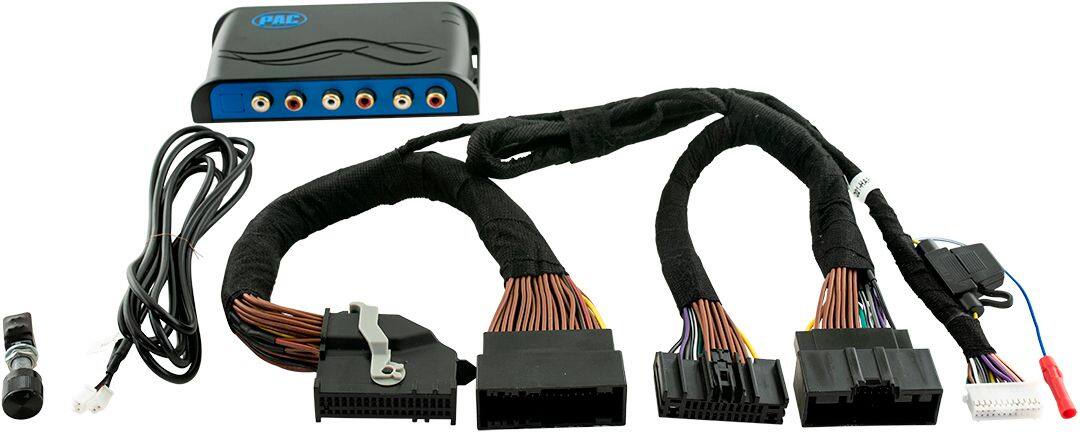

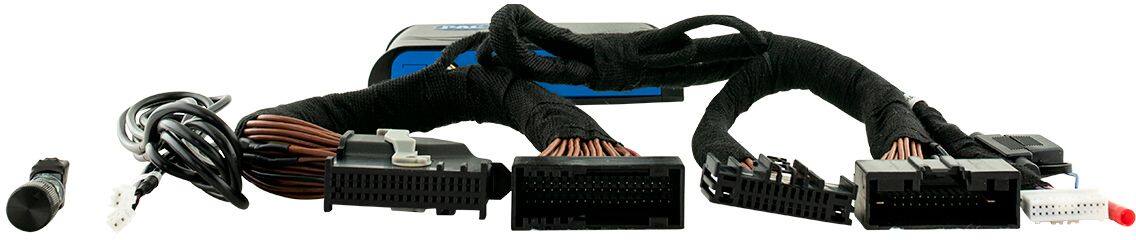

PAC - Amplifier Integration Interface for Select Ford Vehicles with 8.4” Radio and Sony System - Black/Blue
- General
- Brand: PAC
- Model Number: AP4-FD21
- Product Name: Amplifier Integration Interface for Select Ford Vehicles with 8.4” Radio and Sony System
- Color: Black/Blue
- Compatibility
- Vehicle Compatibility: Select 2011-2020 Ford vehicles equipped with 8.4" radios and Sony factory amplified audio systems
- Product Compatibility: Amplifier
- Product Type: Interface
- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 20 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 0 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 609098817042
Simplify amplifier installation in your Ford vehicle with this Amplifier Integration Interface by PAC. The AP4-FD21 eliminates the need for DSP and summing devices by providing a 6-channel preamp output so you can upgrade your amplifier without modifying the factory radio. This amplifier integration interface retains all audio from factory features and includes plug-and-play connections for easy installation.
- Compatible with select Ford vehicles equipped with 8.4” radios and Sony factory amplified audio systems: Including 2015-2018 Edge, 2016 Escape, 2015-2017 Expedition, 2011-2018 Explorer, 2013-2017 F-150, 2013-2019 F-250, and 2013-2019 F-350 models.
- Variable 5V RMS front, rear, and sub preamp outputs: Features fading, balance, equalization, and level control capabilities.
- Customized OE bass, mid, and treble center frequency selection: Allows precision tuning.
- Provides flat audio output: For a solid audio foundation.
- Retains audio from factory features: Including SYNC, Bluetooth audio, safety warning chimes, parking sensor chimes, and navigation prompts.
- Data-controlled remote amplifier turn-on: Automatically powers the amplifier when the radio is turned on.
- Enables subwoofer installation: Allows you to add a subwoofer to the factory sound system and adjust sublevel with the included bass knob.
- Optional TOSLINK optical output: Provides a variable 2-channel fiber optic digital audio output when used in conjunction with APA-TOS1 (sold separately).
- Plug-and-play installation: For quick and easy setup.
- Compatible with select Ford vehicles equipped with 8.4” radios and Sony factory amplified audio systems: Including 2015-2018 Edge, 2016 Escape, 2015-2017 Expedition, 2011-2018 Explorer, 2013-2017 F-150, 2013-2019 F-250, and 2013-2019 F-350 models.
- Variable 5V RMS front, rear, and sub preamp outputs: Features fading, balance, equalization, and level control capabilities.
- Customized OE bass, mid, and treble center frequency selection: Allows precision tuning.
- Provides flat audio output: For a solid audio foundation.
- Retains audio from factory features: Including SYNC, Bluetooth audio, safety warning chimes, parking sensor chimes, and navigation prompts.
- Data-controlled remote amplifier turn-on: Automatically powers the amplifier when the radio is turned on.
- Enables subwoofer installation: Allows you to add a subwoofer to the factory sound system and adjust sublevel with the included bass knob.
- Optional TOSLINK optical output: Provides a variable 2-channel fiber optic digital audio output when used in conjunction with APA-TOS1 (sold separately).
- Plug-and-play installation: For quick and easy setup.
Q: Is this Amplifier Integration Interface compatible with my 2016 Ford Escape?
A: Yes, this interface is compatible with select Ford vehicles equipped with 8.4” radios and Sony factory amplified audio systems, including the 2016 Ford Escape.
Q: How does the interface handle amplifier turn-on?
A: The amplifier is automatically powered on when the radio is turned on using data-controlled remote amplifier turn-on.
Q: Does this amplifier integration interface retain the factory features in my Ford?
A: Yes, this interface retains all audio from factory features, including SYNC, Bluetooth audio, safety warning chimes, parking sensor chimes, and navigation prompts.
Q: What is the purpose of the flat audio output provided by this interface?
A: The flat audio output provides a solid audio foundation for a sound system upgrade.
Q: Can I add a subwoofer to my factory sound system with this interface?
A: Yes, this interface enables subwoofer installation and allows you to adjust the sub level with the included bass knob.
Q: How does this interface simplify the installation of an amplifier?
A: This interface eliminates the need for DSP and summing devices by providing a 6-channel preamp output.
