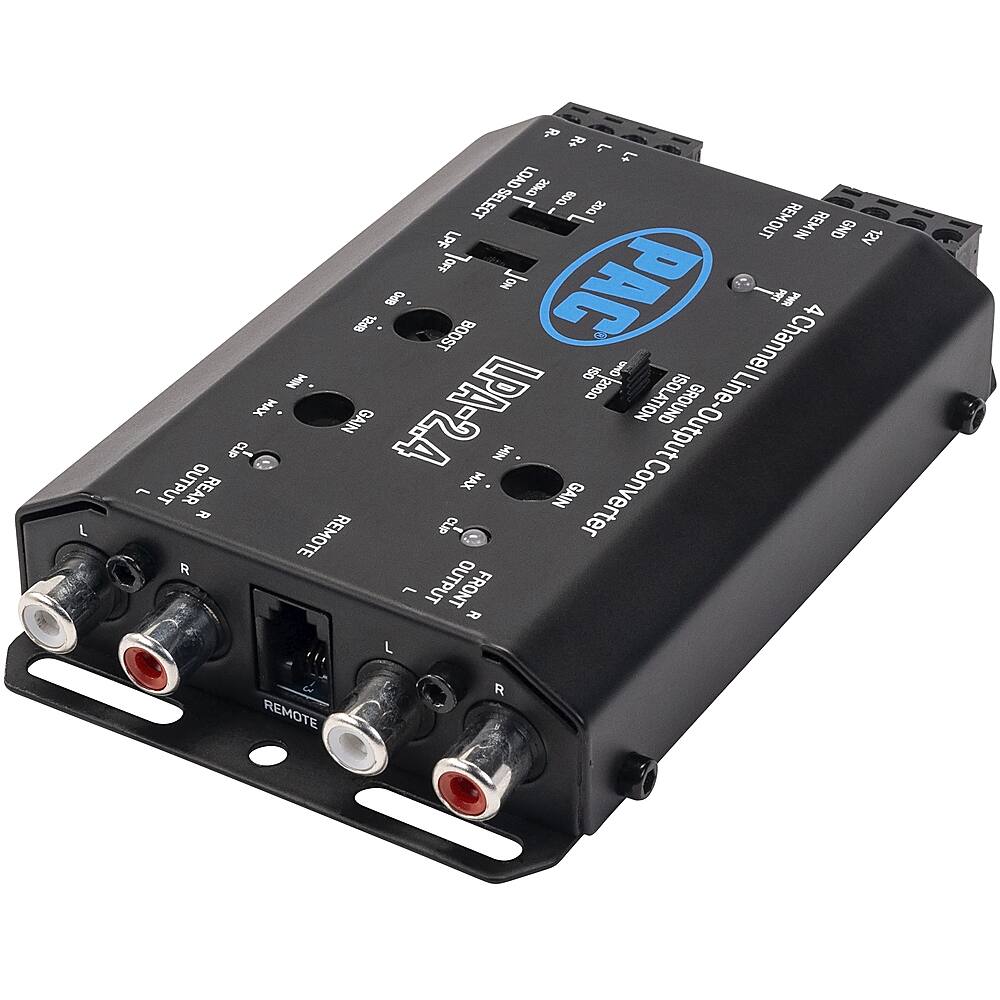

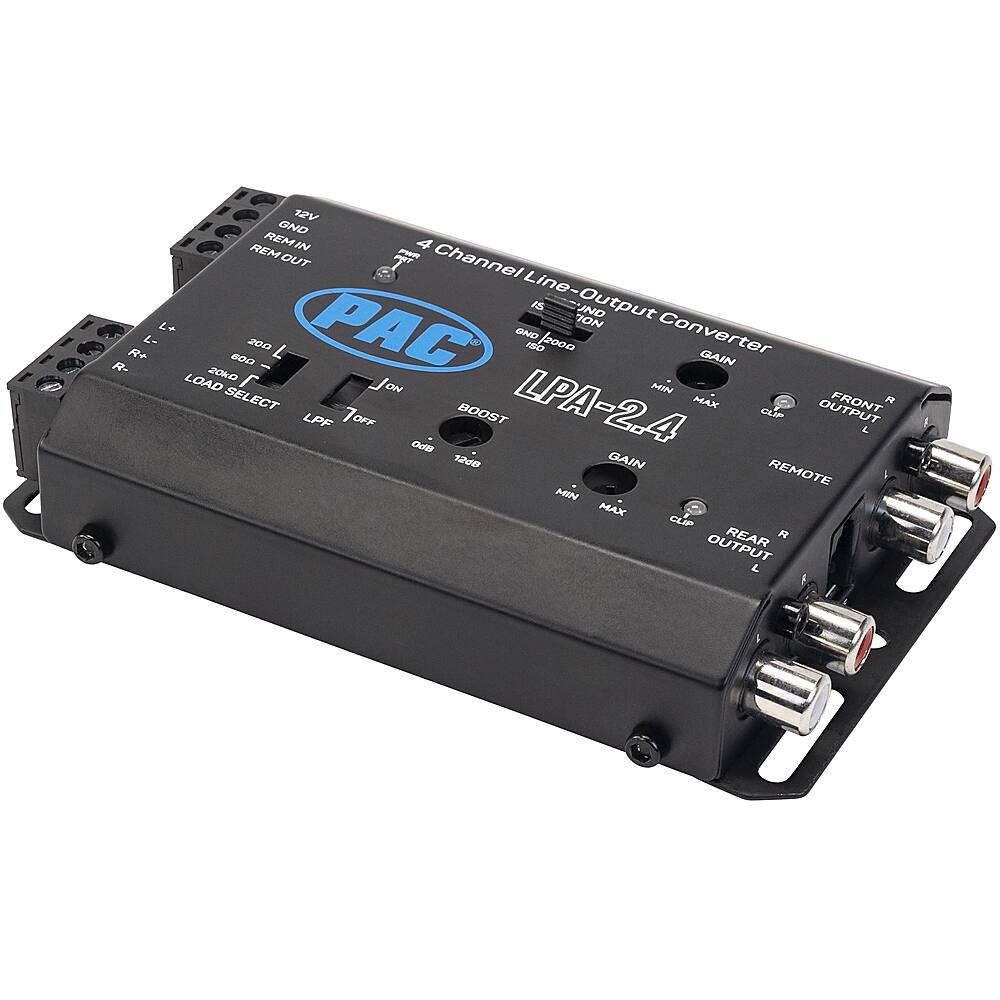

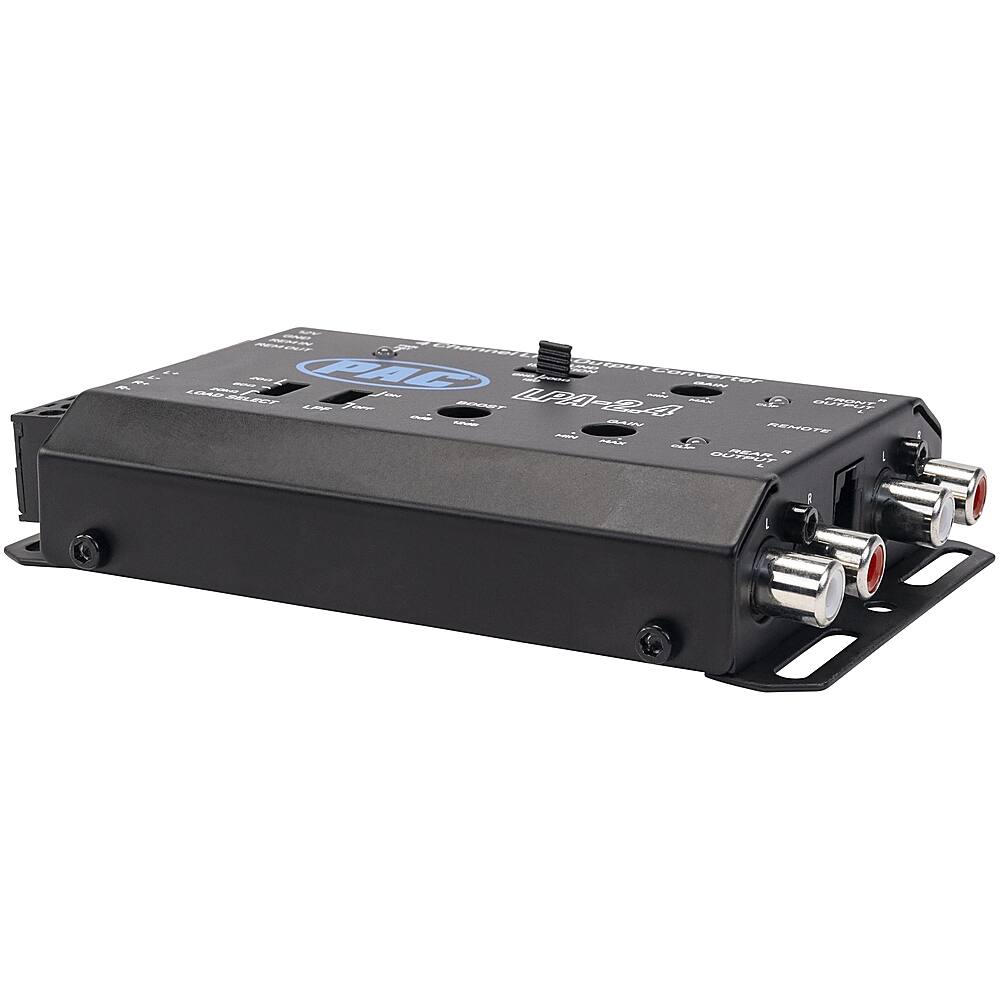

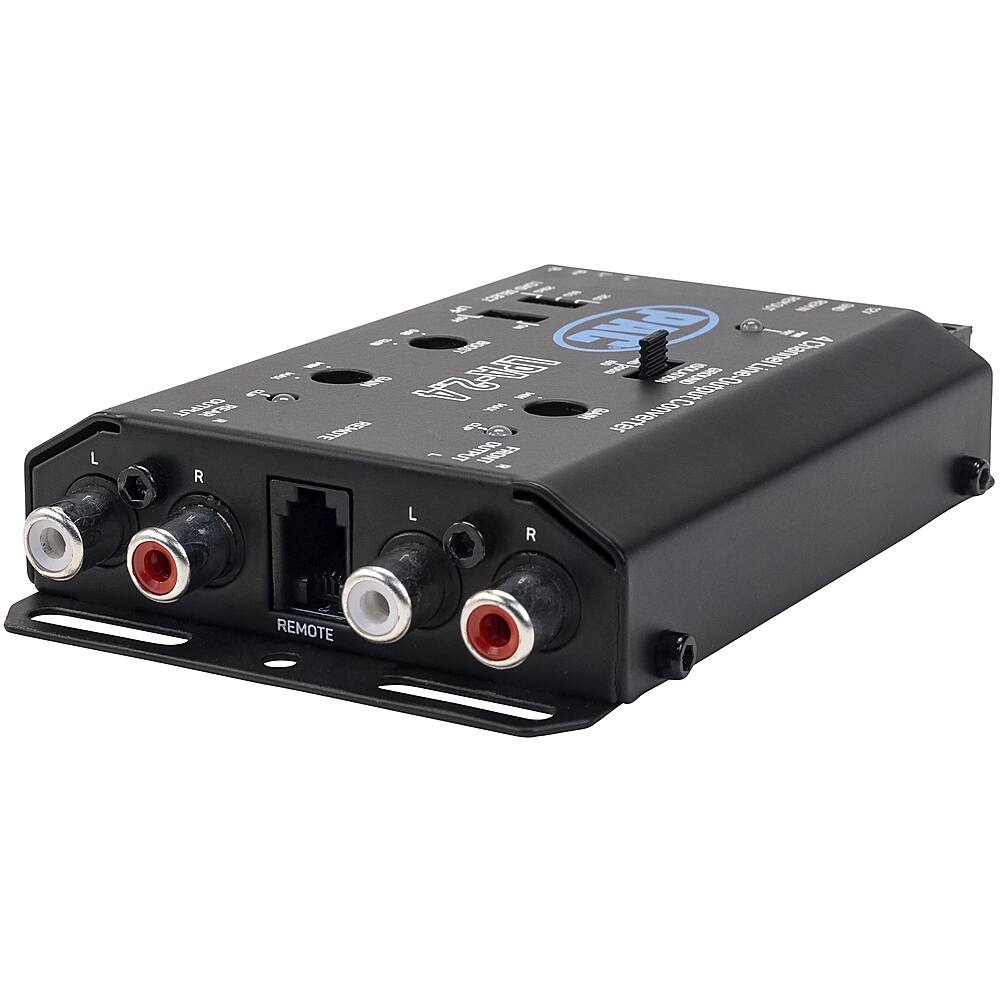

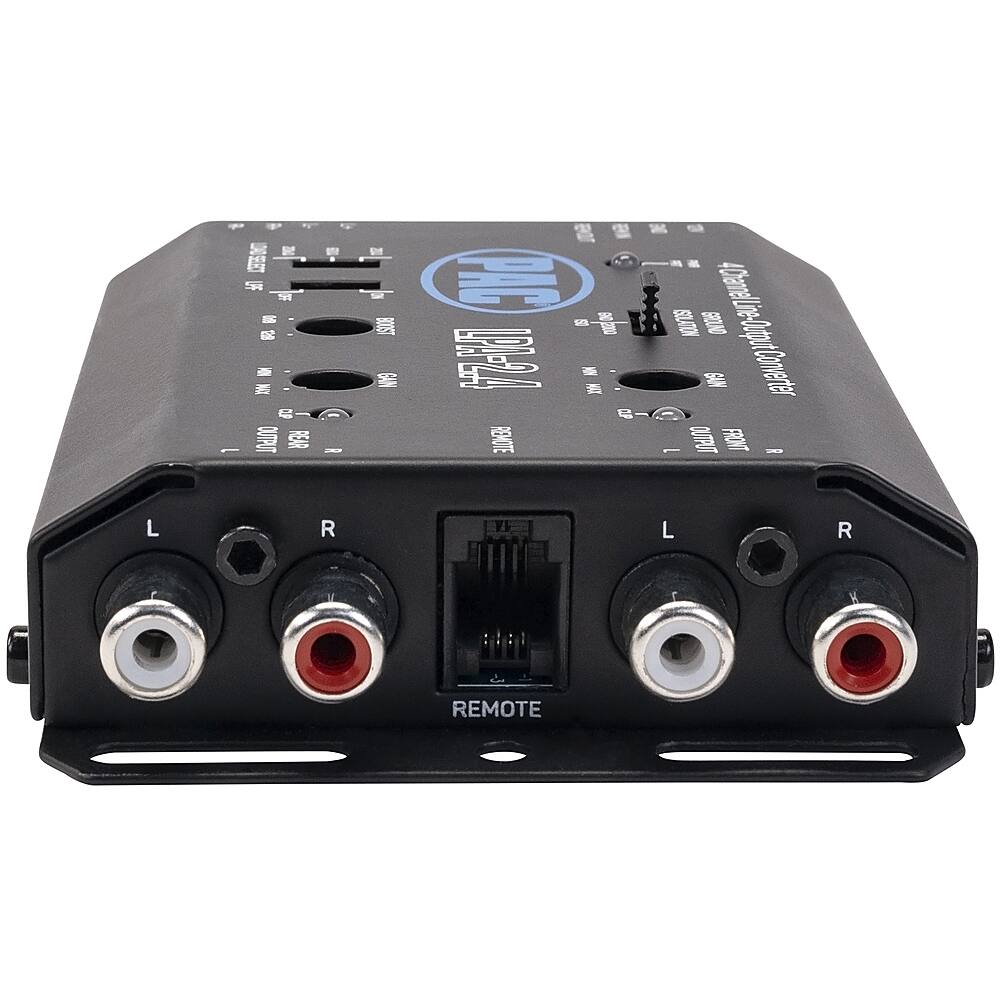

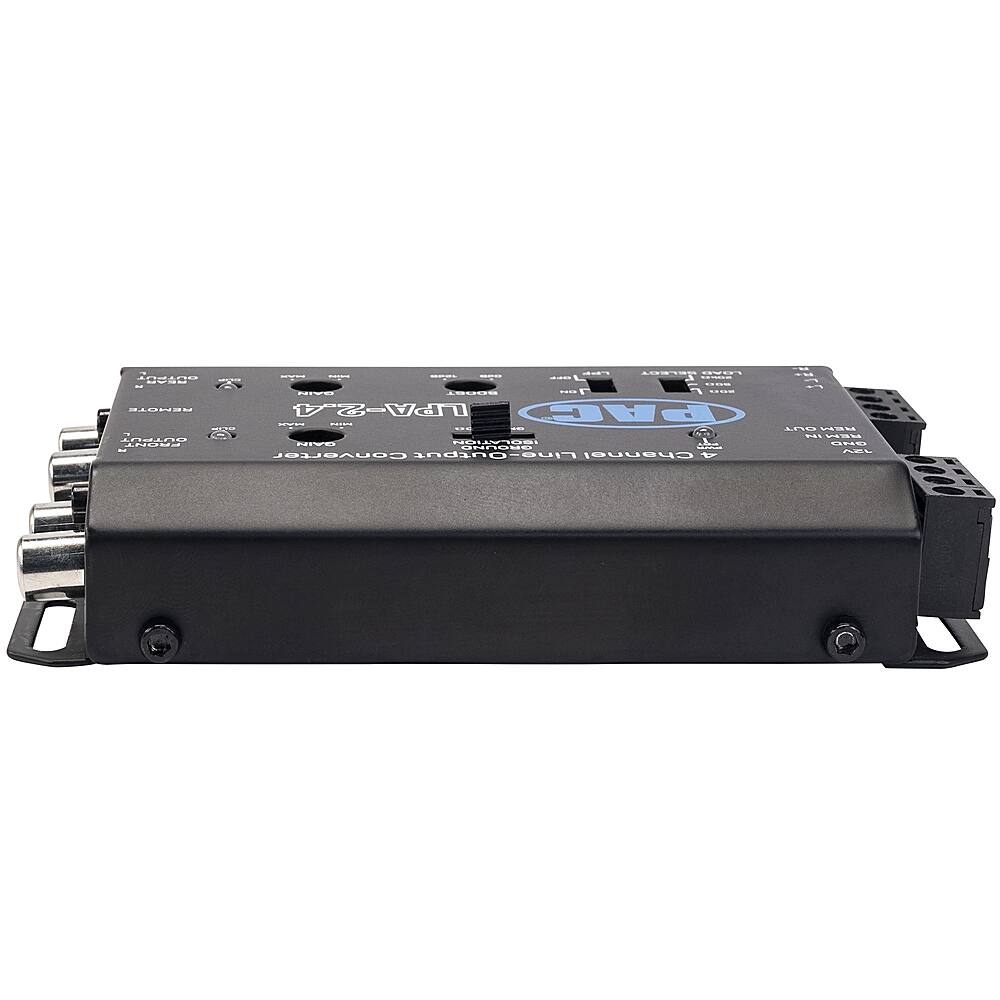

PAC - LocPRO Advanced 4-Channel Active Line Output Converter with Auto Turn-On - Black
- General
- Brand: PAC
- Model Number: LPA-2.4
- Product Name: LocPRO Advanced 4-Channel Active Line Output Converter with Auto Turn-On
- Color: Black
- Compatibility
- Vehicle Compatibility: Universal
- Product Compatibility: Amplifier
- Product Type: Line output converter
- Dimensions
- Product Height: 0.91 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 2.99 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 4.74 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.67 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: None
- Other
- UPC: 609098834803
Easily add an aftermarket amplifier to your vehicle’s factory audio system with the LocPRO Advanced 4-Channel Active Line Output Converter with Auto Turn-On by PAC. The LPA-2.4 converts speaker-level (high-level) audio signals to RCA preamp (low-level) signals so you can install an aftermarket amplifier without replacing your factory radio. This four-channel active line output converter can also be used to retain your vehicle’s OEM amplified audio system when replacing your factory radio.
- Compatible with most vehicles’ OEM audio systems: For use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs or when replacing your vehicle’s factory radio and retaining the factory amplified audio system.
- 4-channel interface: Features two inputs and four outputs for integration with your existing audio system.
- Auto turn-on mode selection: Choose between remote wire input or DC offset (3V - 7V turn on trigger) to automatically power the amplifier when the radio is turned on.
- Dual variable stereo gain control with clipping indicator: Allows you to adjust the output signal from -28dB to +1dB and indicates signal clipping when gain is set to high.
- Selectable on-board load resistors: Including 20 ohms, 60 ohms, and 20k ohms impedance for newer factory-amplified vehicles.
- 400W (40V) peak power input per channel @ 20k ohms: For high-quality sound.
- 9.5V (RMS) maximum output voltage @ 13.8V: For efficient operation.
- Selectable ground isolation: Choose from common, ISO (default), or 200 ohms.
- 10Hz - 20kHz frequency response: Ensures faithful sound reproduction.
- >110dBA signal-to-noise ratio @ 6.4V output: Enjoy crisp audio.
- <0.01% Total Harmonic Distortion (THD): For clean sound.
- Up to 12dB bass boost (CH 3-4): Customize your bass using the optional LPA-REM remote controller (sold separately).
- <250Hz low-pass filter (CH 3-4): Ensures flexible operation.

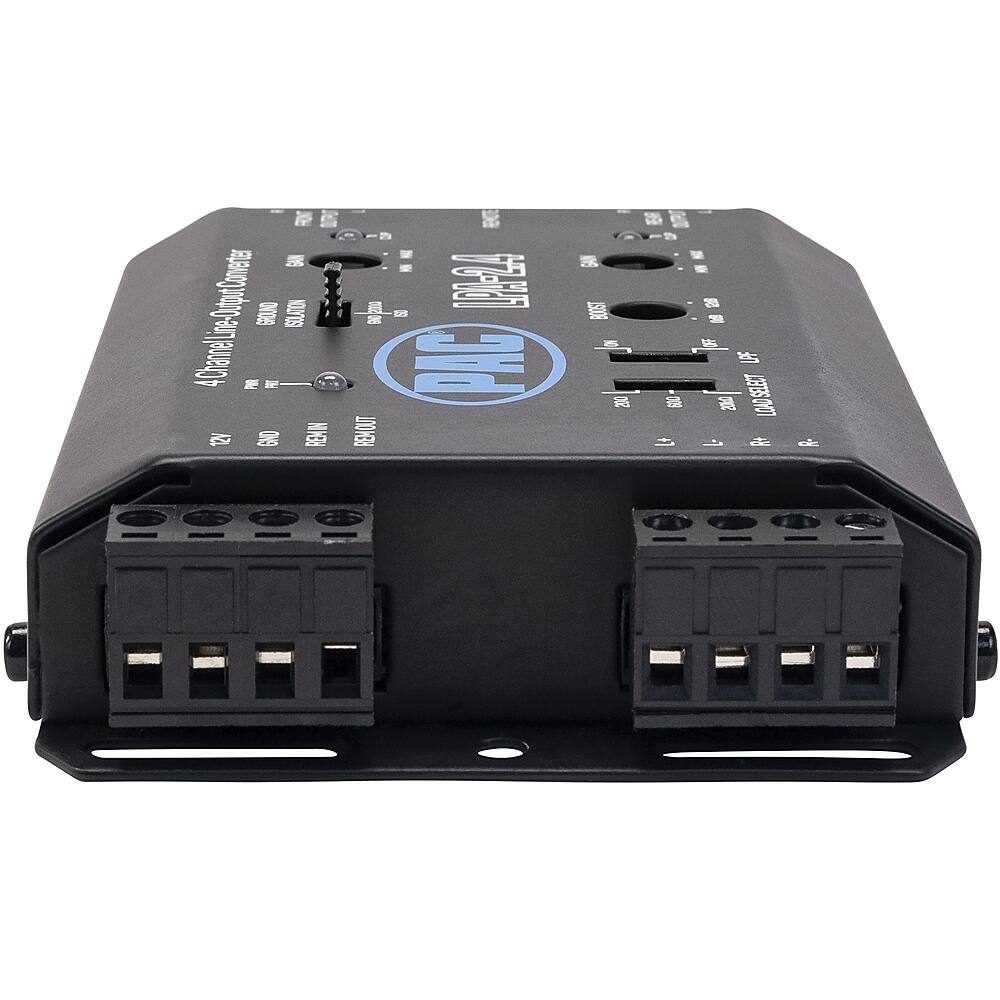

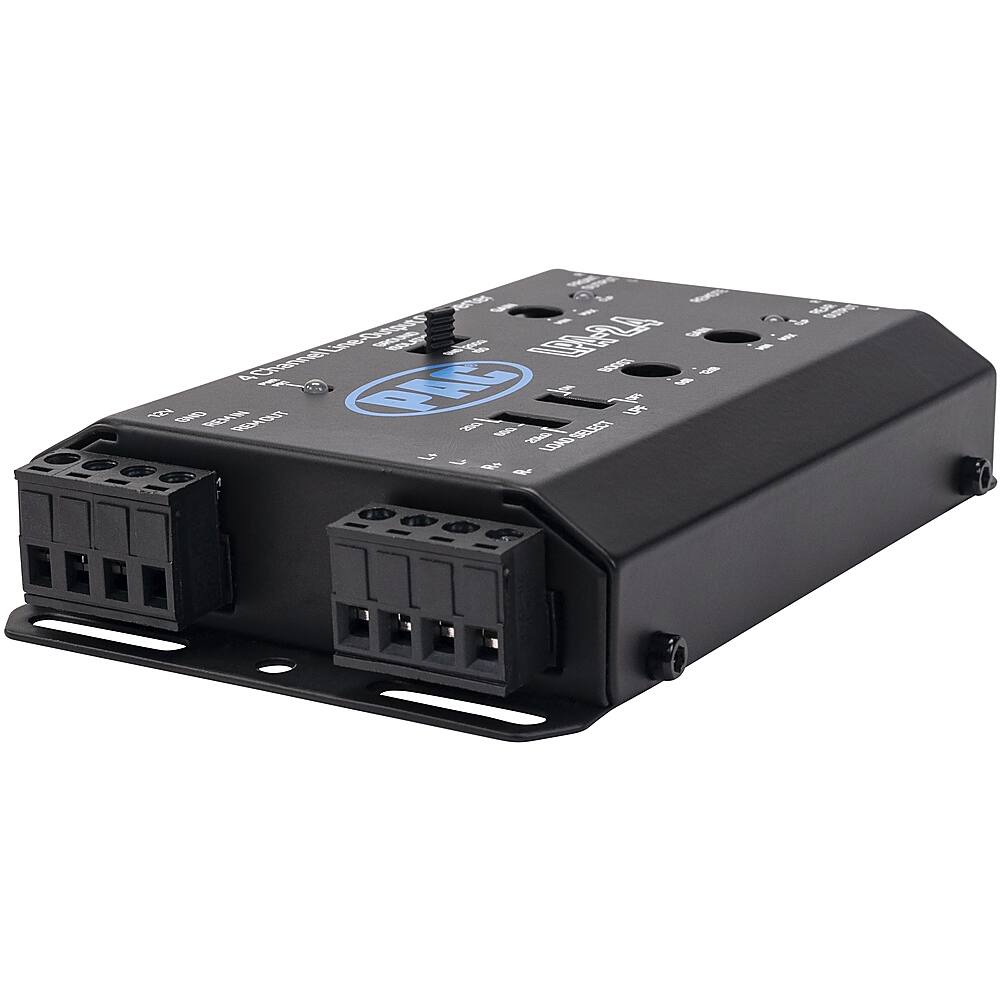

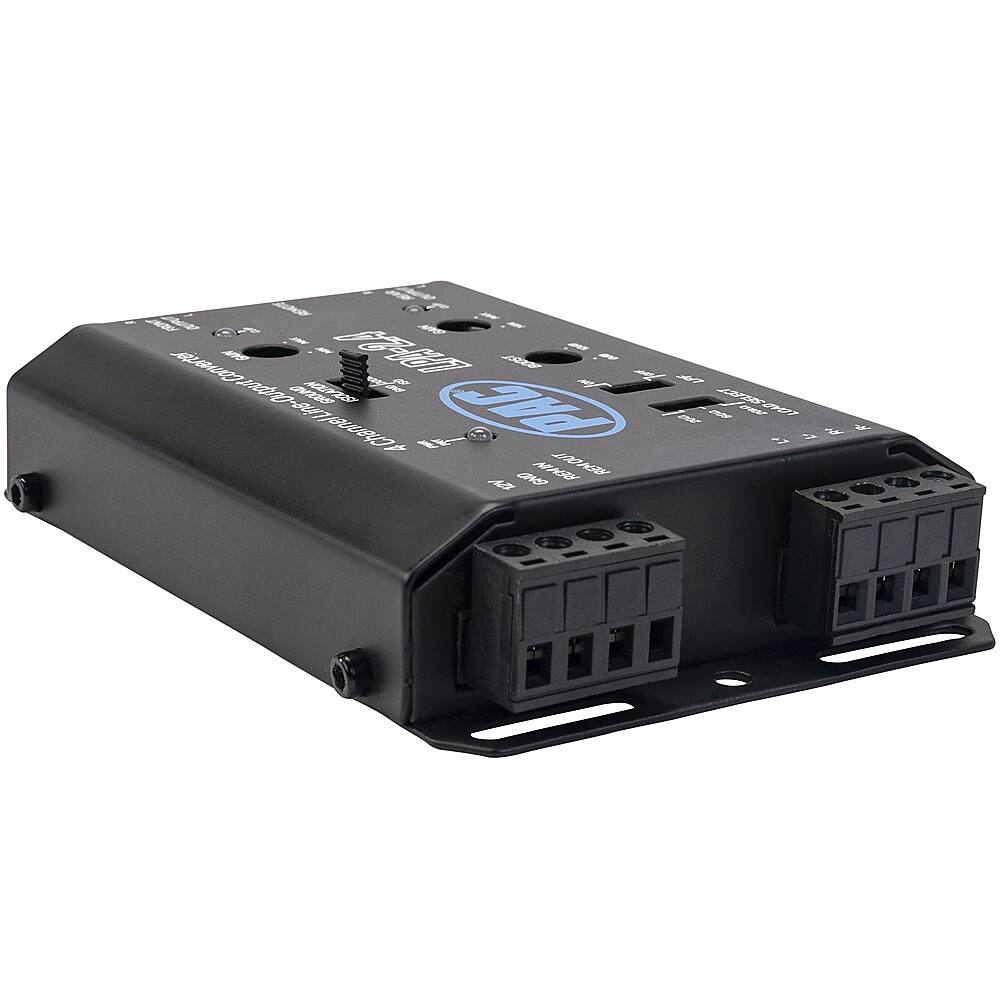

- 18AWG removable quick-connect with screw-type terminal: Provides secure connections.
- Stamped steel chassis and housing: Enables increased heat dispersion and durability.
- Compatible with most vehicles’ OEM audio systems: For use when adding aftermarket amplifiers to car audio systems without RCA preamp outputs or when replacing your vehicle’s factory radio and retaining the factory amplified audio system.
- 4-channel interface: Features two inputs and four outputs for integration with your existing audio system.
- Auto turn-on mode selection: Choose between remote wire input or DC offset (3V - 7V turn on trigger) to automatically power the amplifier when the radio is turned on.
- Dual variable stereo gain control with clipping indicator: Allows you to adjust the output signal from -28dB to +1dB and indicates signal clipping when gain is set to high.
- Selectable on-board load resistors: Including 20 ohms, 60 ohms, and 20k ohms impedance for newer factory-amplified vehicles.
- 400W (40V) peak power input per channel @ 20k ohms: For high-quality sound.
- 9.5V (RMS) maximum output voltage @ 13.8V: For efficient operation.
- Selectable ground isolation: Choose from common, ISO (default), or 200 ohms.
- 10Hz - 20kHz frequency response: Ensures faithful sound reproduction.
- >110dBA signal-to-noise ratio @ 6.4V output: Enjoy crisp audio.
- <0.01% Total Harmonic Distortion (THD): For clean sound.
- Up to 12dB bass boost (CH 3-4): Customize your bass using the optional LPA-REM remote controller (sold separately).
- <250Hz low-pass filter (CH 3-4): Ensures flexible operation.
- 18AWG removable quick-connect with screw-type terminal: Provides secure connections.
- Stamped steel chassis and housing: Enables increased heat dispersion and durability.
Q: What is the frequency response range of the converter?
A: The maximum frequency response is 20 kilohertz and the minimum is 10 hertz.
Q: What is the maximum power handling of the converter?
A: The maximum power handling of the converter is 400 watts.
Q: Is the converter compatible with any vehicle?
A: This converter is compatible with any vehicle.
Q: Does the converter have adjustable output level control?
A: The LocPRO Advanced 4-Channel Active Line Output Converter does have adjustable output level control.
Q: How many channels does the converter have?
A: The converter has four channels.
Q: What is the warranty on the converter?
A: The manufacturer offers a 1-year warranty on parts for this converter.
