Panasonic - LUMIX Full-Frame Box-Style Live & Cinema Camera, 6K 24p / 5.9K 30p 10-bit Unlimited Video - DC-BS1H - Black
Specifications
- Image Sensor Size35mm Full Frame (36 x 24 mm)Effective Pixels24.2 megapixelsStandardized Video Resolution4K (2160p)
- Key Specs
- Image Sensor Size: 35mm Full Frame (36 x 24 mm)
- Effective Pixels: 24.2 megapixels (The actual number of pixels which make up the viewable image.)
- Standardized Video Resolution: 4K (2160p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- General
- Brand: Panasonic
- Model Number: DC-BS1H
- Product Name: LUMIX Full-Frame Box-Style Live & Cinema Camera, 6K 24p / 5.9K 30p 10-bit Unlimited Video - DC-BS1H
- Color: Black
- Digital Camera Type: Mirrorless Camera Body Only
- Imaging
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Image Sensor Size: 35mm Full Frame (36 x 24 mm)
- Digital Zoom: None (A digital zoom is accomplished electronically, with no adjustment of the camera's optics, and no optical resolution gained in the process. The existing data is not enhanced or added to, merely displayed at a lower resolution, thereby giving an illusion of an enlarged image.)
- Focus
- Autofocus: true (Allows the camera to automatically focus through the lens, rather than by adjusting the lens manually.)
- Eye Autofocus (Eye AF): false (Automatically seeks out and focuses on the subject's eye and holds it as the camera and subject move and as the photographer shoots at high frame rates.)
- Exposure Control
- Shutter Speeds: Motion picture: 1/16,000 - 1/2 (The length of time the shutter remains open when the shutter release is activated, expressed in fractions of seconds. The longer the shutter is open, the more light that is able to be captured by the camera sensor.)
- Effective Pixels: 24.2 megapixels (The actual number of pixels which make up the viewable image.)
- Flash
- Integrated Flash: false
- Display
- Display Type: LCD
- Video
- Standardized Video Resolution: 4K (2160p) (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- Video Resolution(s) and Frame Rate(s): 4K (2160p) video recording (Refers to the number of pixels, both horizontally and vertically, and the frame rate used to capture the video. The higher the resolution the finer the video detail that can be seen. The faster the frame rate the smoother the playback for higher motion activities like sports.)
- Compatibility
- Memory Card Compatibility: Secure Digital Extended Capacity (SDXC), Secure Digital High Capacity (SDHC) (The type of memory card(s) recommended for use with the product.)
- Features
- Integrated GPS: No
- Connectivity
- Wireless Connectivity: Bluetooth, WiFi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- PictBridge Enabled: false (PictBridge allows digital cameras, camcorders and other image capture devices to connect and print directly to photo printers and other output devices without using a computer.)
- Power
- Rechargeable Battery: true
- Included
- Number of Lenses Included: 0
- Camera Bag/Case Included: false
- Dimensions
- Product Height: 3.66 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.66 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 3.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.29 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 885170387065
The LUMIX BS1His a versatile box-style camera that features the cinema-quality video performance of the LUMIX S1H in an easy-to-deploy profile. The BS1H contains a 24.2MP 35mm full-frame CMOS sensor with Dual Native ISO technology that captures 6K resolution at maximum ISO 51200. Maximizing the use of the pixels in the full-frame image sensor, the LUMIX BS1H is capable of 6K/24p, 5.4K/30p (3:2) or 5.9K/30p (16:9) high-resolution, smooth video recording. It also provides 10-bit 60p 4K/C4K* HEVC video and 4:2:2 10-bit 4K30p in H.264 recording modes. The BS1H provides 14+ stops of dynamic range in V-Log which is as wide as those of cinema cameras and V-Log / V-Gamut compatible with popular calorimetry called “VariCam Look.” The BS1H is capable of 4:2:2 10-bit 4K 60p/50p HDMI output. Adopting a new heat dispersion structure, it achieves unlimited video recording in a variety of recording formats, including 4:3 Anamorphic mode. Moreover, [5.9K] / [4K] / [Anamorphic (4:3) 3.5K] 12-bit RAW video data can be output over HDMI to save Apple ProRes RAW in Atomos Ninja V or save Blackmagic RAW in Blackmagic Video Assist 12G HDR**. The BS1H offers an IP streaming function over Ethernet, even allowing 4K 60p (50p) video streaming in H.265. The BS1H provides a variety of practical ports such as a USB 3.1 Type-C, a 3G-SDI (BNC) and an HDMI Type-A terminal which can be used for simultaneous output. Genlock IN and Timecode functions are also available. Power over Ethernet+ (PoE+) makes it is easy to install both physically and electrically. Control over maximum 12 sets of LUMIX BS1H cameras*** is available using LUMIX Tether for Multicam. Last but not least, Φ3.5 audio jack, Wi-Fi, Bluetooth and tethered photo shooting with LUMIX Tether for Multicam software are also available. For even higher quality sound recording, XLR microphone DMW-XLR1 (sold separately) can be used. An SDK**** for camera control via USB/LAN will be provided for free. *Corresponding to 4K (4096×2160) as defined by Digital Cinema Initiatives (DCI). **For the RAW output function, please refer to each company website for the information on the corresponding firmware version of each external monitor/recorder. All functions may not be available depending on the situation. Apple and ProRes are trademarks or registered trademarks of Apple Inc. in the United States and/or other countries. ATOMOS / Ninja V are registered trademarks of ATOMOS Limited. ‘Blackmagic Design’ and ‘Blackmagic RAW’ are registered trademarks of Blackmagic Design Pty. Ltd. ***Operation may be unstable depending on the connection environment and performance of the connected PC. **** The SDK for BS1H will be available at following site. https://panasonic.jp/support/global/cs/soft/tool/sdk.html
- Box-Style Live & Cinema Full-Frame Camera: For large format 4K cinema, broadcasting, or live streaming, LUMIX BS1H offers the exceptional performance you need in a box camera body with 6K 24p / 5.9K 30p 10-bit unlimited video recording capability.
- Add XLR Microphone (sold separately): Connect an XLR microphone and achieve high-quality stereo sound. High-res sound recording at 96 kHz/24-bit is also selectable in MOV recording. This accessory also supports the use of plug-in power.
- Ethernet and PoE+ Compatible: Simply by connecting the BS1H via Ethernet cable, your camera will be powered over Ethernet and allow multiple-camera remote control through the LUMIX Tether for Multicam software.

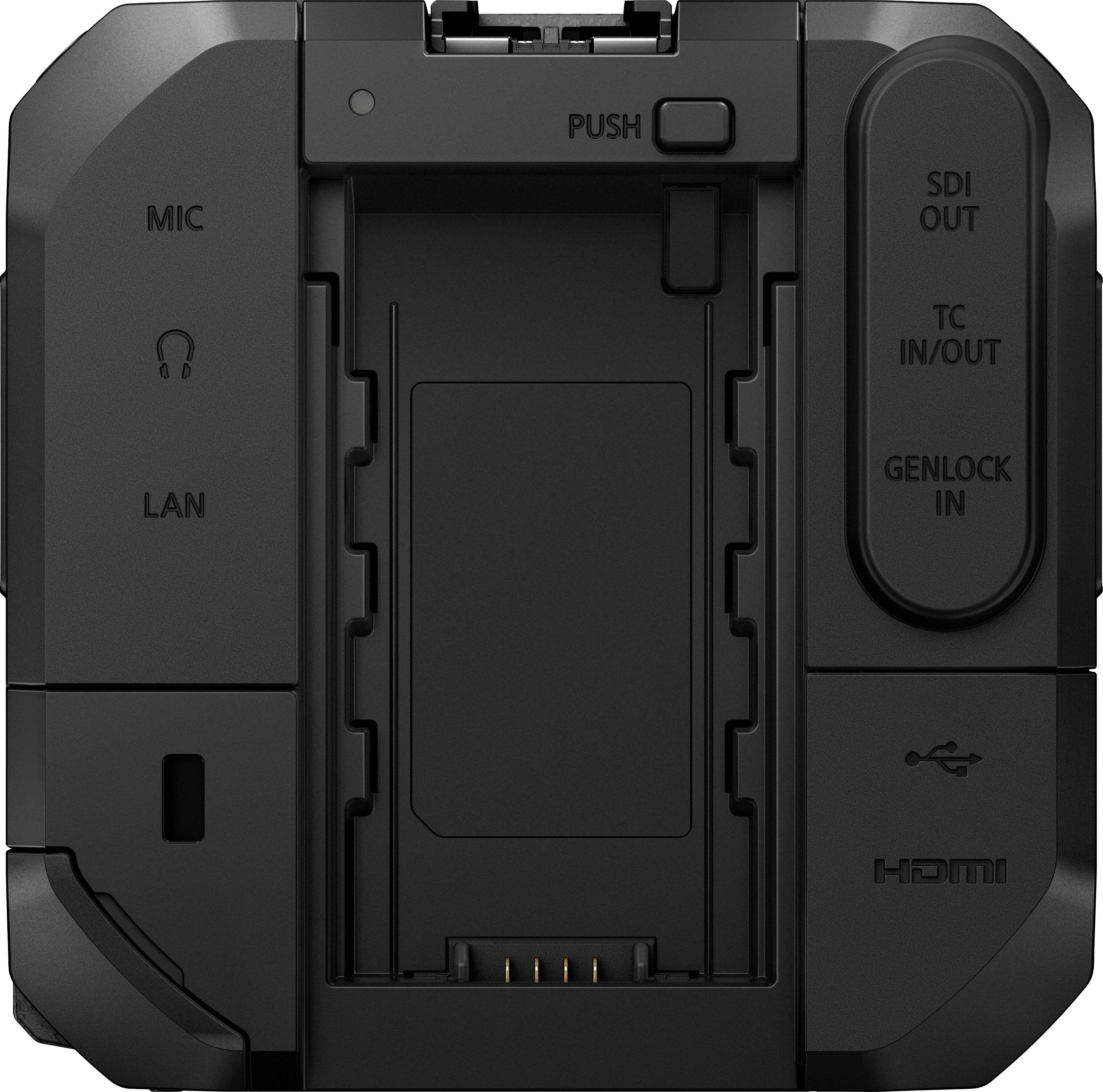

- Stable Connectivity with Simultaneous SDI/HDMI Output: Simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering.
- Genlock IN and Timecode IN/OUT: Supporting GenLock IN enables multiple-camera control and streaming. Used in combination with the time code feature, it satisfies high-precision live video production.
- 3 Power Source Options: Three power source options are offered. 1. AC Adaptor (12V, 3A) (bundled) / 2. Li-ion Battery Pack (7.28V) (sold separately) / 3. PoE+ (IEEE802.3at compliant) (sold separately).
- Higher Functionality Remote Control Compatibility: The remote terminal (2.5mm super mini jack) of the BS1H offers compatibility with widely used high-functionality remote controls, a LUMIX first, which enables precise remote operation
- Internal/External Recording: The BS1H supports simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording.
- 14+ stops of V-Log and V-Gamut for a "VariCam Look": V-Log and V-Gamut come preinstalled. With 14+ stops of dynamic range and a wide color spectrum, BGH1 performance rivals that of a VariCam professional cinema camera.
- Enhanced Remote Control Compatibility: Compatibie with widely-used high-functionality remote controls, the remote terminal (2.5mm super mini jack) of the LUMIX BS1H offers versatile and precise remote operation.
- RAW Video Data Output: Output RAW video data over HDMI to save as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder, or Blackmagic RAW on Video Assist 12G HDR. *29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) and Anamorphic 3.5K (3536x2656, 4:3) 12-bit RAW video data
- 24.2 Full-Frame Sensor: The 24.2-megapixel full-frame CMOS sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology further enhances video performance.
- 6k Video Performance: BS1H meets diverse professional video production needs with a wide array of recording modes. *6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p** 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording
- Unlimited Video Recording: Enjoy unlimited recording, thanks to a cooling fan that keeps the BS1H within the guaranteed operating temperature range.
- Box-Style Live & Cinema Full-Frame Camera: For large format 4K cinema, broadcasting, or live streaming, LUMIX BS1H offers the exceptional performance you need in a box camera body with 6K 24p / 5.9K 30p 10-bit unlimited video recording capability.
- Add XLR Microphone (sold separately): Connect an XLR microphone and achieve high-quality stereo sound. High-res sound recording at 96 kHz/24-bit is also selectable in MOV recording. This accessory also supports the use of plug-in power.
- Ethernet and PoE+ Compatible: Simply by connecting the BS1H via Ethernet cable, your camera will be powered over Ethernet and allow multiple-camera remote control through the LUMIX Tether for Multicam software.
- Stable Connectivity with Simultaneous SDI/HDMI Output: Simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering.
- Genlock IN and Timecode IN/OUT: Supporting GenLock IN enables multiple-camera control and streaming. Used in combination with the time code feature, it satisfies high-precision live video production.
- 3 Power Source Options: Three power source options are offered. 1. AC Adaptor (12V, 3A) (bundled) / 2. Li-ion Battery Pack (7.28V) (sold separately) / 3. PoE+ (IEEE802.3at compliant) (sold separately).
- Higher Functionality Remote Control Compatibility: The remote terminal (2.5mm super mini jack) of the BS1H offers compatibility with widely used high-functionality remote controls, a LUMIX first, which enables precise remote operation
- Internal/External Recording: The BS1H supports simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording.
- 14+ stops of V-Log and V-Gamut for a "VariCam Look": V-Log and V-Gamut come preinstalled. With 14+ stops of dynamic range and a wide color spectrum, BGH1 performance rivals that of a VariCam professional cinema camera.
- Enhanced Remote Control Compatibility: Compatibie with widely-used high-functionality remote controls, the remote terminal (2.5mm super mini jack) of the LUMIX BS1H offers versatile and precise remote operation.
- RAW Video Data Output: Output RAW video data over HDMI to save as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder, or Blackmagic RAW on Video Assist 12G HDR. *29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) and Anamorphic 3.5K (3536x2656, 4:3) 12-bit RAW video data
- 24.2 Full-Frame Sensor: The 24.2-megapixel full-frame CMOS sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology further enhances video performance.
- 6k Video Performance: BS1H meets diverse professional video production needs with a wide array of recording modes. *6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p** 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording
- Unlimited Video Recording: Enjoy unlimited recording, thanks to a cooling fan that keeps the BS1H within the guaranteed operating temperature range.
Whats Included
- Digital camera body
- AC adaptor
- AC cable
- Cable lock band
- Body cap
- Hot shoe cover
- BNC/ HDMI/ AUDIO/ DC IN/ REMOTE terminal cover
- Digital camera body
- AC adaptor
- AC cable
- Cable lock band
- Body cap
- Hot shoe cover
- BNC/ HDMI/ AUDIO/ DC IN/ REMOTE terminal cover
Product Manuals
Q: Which recording formats does the camera support for unlimited video recording?
A: This camera achieves unlimited video recording in a variety of recording formats, including 4:3 Anamorphic mode.
Q: Is the camera compatible with Power over Ethernet+ (PoE+)?
A: Power over Ethernet+ (PoE+) makes it easy to install the camera both physically and electrically.
Q: Can the camera output 12-bit RAW video data over HDMI?
A: The LUMIX BS1H camera can output [5.9K] / [4K] / [Anamorphic (4:3) 3.5K] 12-bit RAW video data over HDMI.
Q: What is the weight of the camera?
A: The product weight is 1.29 pounds.
Q: What is the maximum video resolution the camera can capture?
A: The LUMIX BS1H camera is capable of capturing 6K resolution video at a maximum ISO of 51200.
Q: Does it have an Anti-Aliassing (AA) Filter? or OLPF (Optical Low Pass Filter)?
A: Hello Shon! The DC-BS1H camera includes an Optical Low Pass Filter. We hope this information will be useful! - S
