Blackmagic Design - PYXIS 6K Cinema Box Camera (Leica L)
Reviews coming soon
More Buying Options from Marketplace sellers
Related Item
Specifications
- Image Sensor Size35mm Full Frame (36 x 24 mm)Effective Pixels24.6 megapixelsStandardized Video Resolution6K
- Key Specs
- Image Sensor Size: 35mm Full Frame (36 x 24 mm)
- Effective Pixels: 24.6 megapixels (The actual number of pixels which make up the viewable image.)
- Standardized Video Resolution: 6K (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- General
- Brand: Blackmagic Design
- Model Number: BMD-CINECAMCPYXA60LFL
- Product Name: PYXIS 6K Cinema Box Camera (Leica L)
- Digital Camera Type: Mirrorless Camera Body Only
- Imaging
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Image Sensor Size: 35mm Full Frame (36 x 24 mm)
- Total Pixels: 24.4 megapixels (Generally, the more pixels, the higher the image resolution and the finer the detail that can be seen.)
- Digital Zoom: None (A digital zoom is accomplished electronically, with no adjustment of the camera's optics, and no optical resolution gained in the process. The existing data is not enhanced or added to, merely displayed at a lower resolution, thereby giving an illusion of an enlarged image.)
- Focus
- Autofocus: false (Allows the camera to automatically focus through the lens, rather than by adjusting the lens manually.)
- Exposure Control
- Shutter Speeds: 1/24 – 1/2000 sec (The length of time the shutter remains open when the shutter release is activated, expressed in fractions of seconds. The longer the shutter is open, the more light that is able to be captured by the camera sensor.)
- Effective Pixels: 24.6 megapixels (The actual number of pixels which make up the viewable image.)
- Lens
- Lens Mount Compatibility: Leica L-Mount
- Flash
- Integrated Flash: false
- Display
- Screen Size: 5 inches (Size of the screen, measured diagonally from corner to corner.)
- Video
- Standardized Video Resolution: 6K (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- Video Resolution(s) and Frame Rate(s): 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps; 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps (Refers to the number of pixels, both horizontally and vertically, and the frame rate used to capture the video. The higher the resolution the finer the video detail that can be seen. The faster the frame rate the smoother the playback for higher motion activities like sports.)
- Compatibility
- Memory Card Compatibility: CFexpress (The type of memory card(s) recommended for use with the product.)
- Features
- Integrated GPS: No
- Connectivity
- Wireless Connectivity: Bluetooth, WiFi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Power
- Rechargeable Battery: true
- Included
- Number of Lenses Included: 0
- Batteries Included: false (Indicates whether the product comes with the required batteries for its operation.)
- Memory Card Included: false (Indicates whether a memory card is included.)

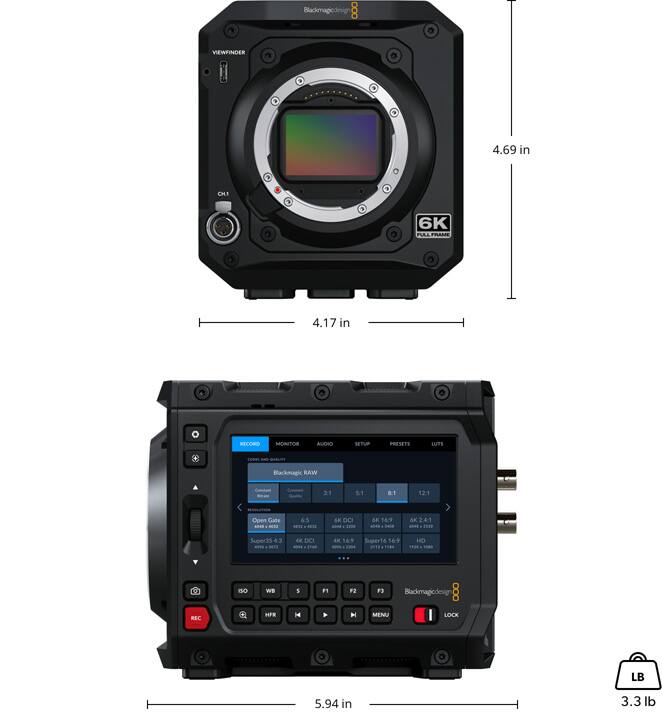

- Dimensions
- Product Height: 4.69 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.94 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Limited 1-Year Manufacturer Warranty
- Warranty - Labor: Limited 1-Year Manufacturer Warranty
- Other
- UPC: 9338716008906

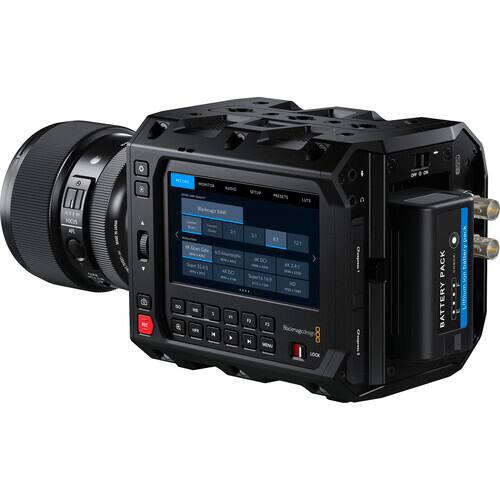

Blackmagic PYXIS 6K L-Mount is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full frame HDR sensor with built in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 6K L-Mount features a fixed L-Mount that works with the latest full frame lenses and a wide range of lens adapters.
- Full-Frame 6K Sensor with 13-Stop Dynamic Range: The 24 x 36mm sensor captures full-frame 6K video at a native 6048 x 4032 resolution with a 13-stop dynamic range and dual-native ISO at 400 and 3200, expandable up to 25,600, delivering rich color, accurate skin tones, and clean imagery across a wide range of lighting conditions.
- Versatile Shooting Formats & Frame Rates: The PYXIS 6K supports a broad range of resolutions and frame rates, including 6048 x 4032 Open Gate 3:2 up to 36 fps, 4832 x 4032 Anamorphic 6:5 up to 36 fps, 6048 x 2520 (6K 2.4:1) up to 60 fps, and 1920 x 1080 up to 120 fps making it adaptable across narrative, commercial, and documentary productions.
- Simultaneous RAW & Proxy Recording: The camera records Blackmagic RAW and H.264 proxy files simultaneously to dual CFexpress Type-B card slots or via a USB-C expansion port, streamlining post-production workflows with high-quality masters and lightweight files ready for immediate editing or sharing.
- Built-In Live Streaming via Ethernet or 4G/5G: The PYXIS includes built-in live streaming capability over Ethernet or supported 4G/5G modems, with support for SRT and RTMP protocols compatible with platforms such as YouTube, Facebook, and custom RTMP destinations, all without requiring external hardware.

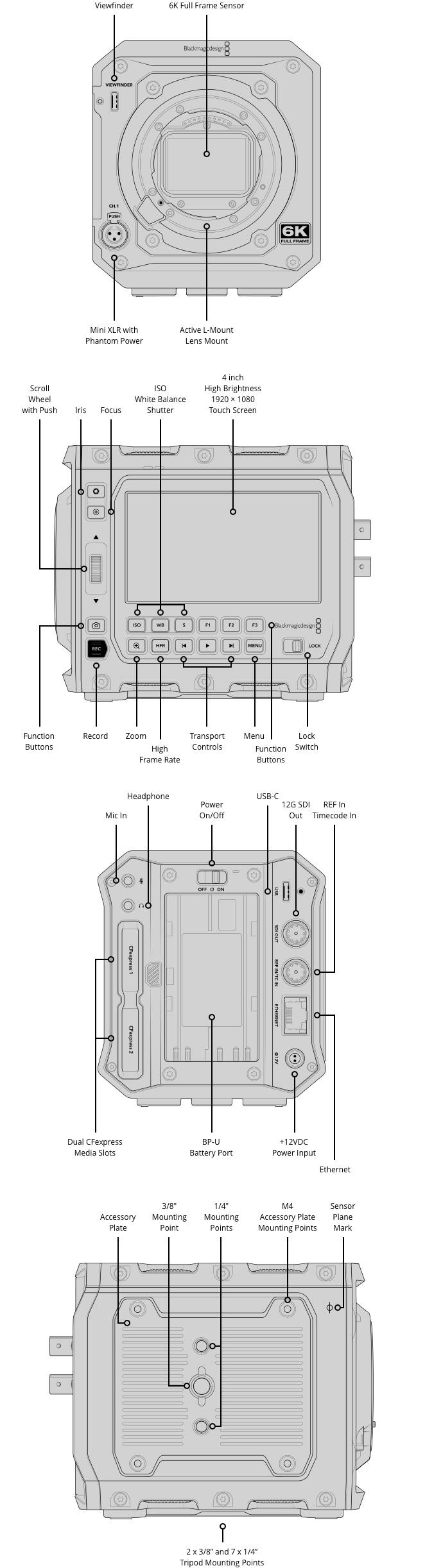

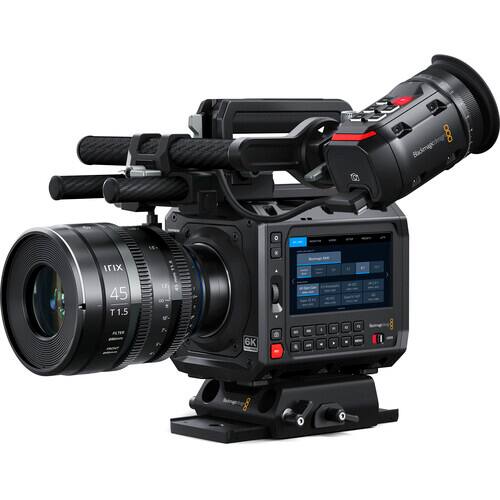

- Modular Design with Active Leica L Mount: The box-style body features an active Leica L mount for electronic lens control and adaptability, along with customizable side plates and multiple accessory mounting points, allowing cinematographers to build fully tailored rigs for any production environment.
Whats Included
- PYXIS 6K Cinema Box Camera (Leica L), PYXIS Standard Mounting Plate & SSD Mounting Plate, Lens Cap, Power Supply w/Adapters, Resolve Studio Key
