Blackmagic Design - PYXIS 6K Cinema Box Camera (Canon EF)
Related Item
Specifications
- Image Sensor Size35mm Full Frame (36 x 24 mm)Effective Pixels24.4 megapixelsStandardized Video Resolution6K
- Key Specs
- Image Sensor Size: 35mm Full Frame (36 x 24 mm)
- Effective Pixels: 24.4 megapixels (The actual number of pixels which make up the viewable image.)
- Standardized Video Resolution: 6K (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- General
- Brand: Blackmagic Design
- Model Number: BMD-CINECAMCPYXD60LFEF
- Product Name: PYXIS 6K Cinema Box Camera (Canon EF)
- Digital Camera Type: Mirrorless Camera Body Only
- Imaging
- Image Sensor Type: CMOS (CCD and CMOS are the two main technologies used in image sensors. CCD, the older of the two types, turns analog light signals into digital pixels. This conversion happens without distortion, resulting in high-quality images. Newer CMOS sensors use transistors at each pixel to move electrical charges. CMOS sensors are typically less expensive, but also require more light to create distortion-free images.)
- Image Sensor Size: 35mm Full Frame (36 x 24 mm)
- Digital Zoom: None (A digital zoom is accomplished electronically, with no adjustment of the camera's optics, and no optical resolution gained in the process. The existing data is not enhanced or added to, merely displayed at a lower resolution, thereby giving an illusion of an enlarged image.)
- Focus
- Autofocus: false (Allows the camera to automatically focus through the lens, rather than by adjusting the lens manually.)
- Exposure Control
- Shutter Speeds: 1/48 – 1/10000 (The length of time the shutter remains open when the shutter release is activated, expressed in fractions of seconds. The longer the shutter is open, the more light that is able to be captured by the camera sensor.)
- Effective Pixels: 24.4 megapixels (The actual number of pixels which make up the viewable image.)
- Lens
- Lens Mount Compatibility: Canon EF
- Flash
- Integrated Flash: false
- Video
- Standardized Video Resolution: 6K (An approximated measurement of the product’s video resolution. This may not be the exact resolution of the product, which may be slightly more or less when using a pixel-by-pixel measurement.)
- Video Resolution(s) and Frame Rate(s): 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps; 4K at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps (Refers to the number of pixels, both horizontally and vertically, and the frame rate used to capture the video. The higher the resolution the finer the video detail that can be seen. The faster the frame rate the smoother the playback for higher motion activities like sports.)
- Compatibility
- Memory Card Compatibility: CFexpress (The type of memory card(s) recommended for use with the product.)
- Features
- Integrated GPS: No
- Connectivity
- Wireless Connectivity: Bluetooth, WiFi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Power
- Rechargeable Battery: true
- Included
- Number of Lenses Included: 0
- Memory Card Included: false (Indicates whether a memory card is included.)
- Dimensions

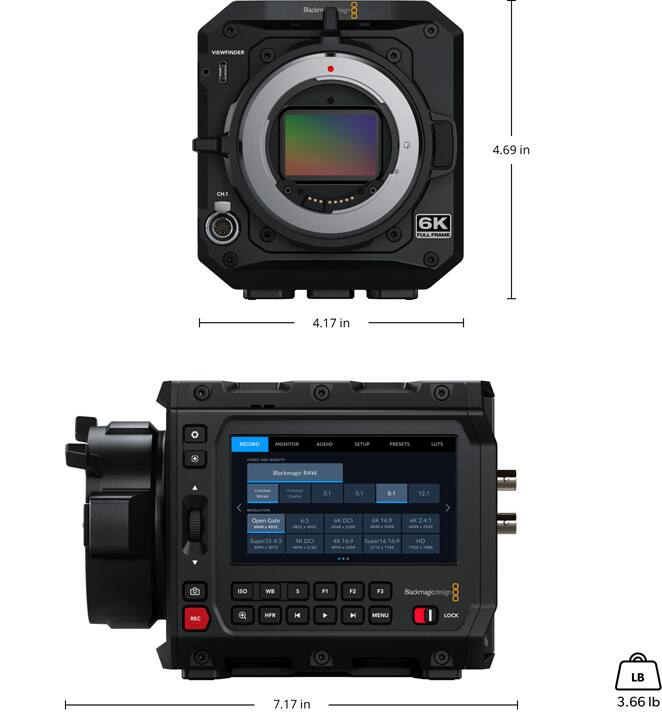

- Product Height: 4.69 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 5.94 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Limited Manufacturer Warranty
- Warranty - Labor: 1-Year Limited Manufacturer Warranty
- Other
- UPC: 9338716008913

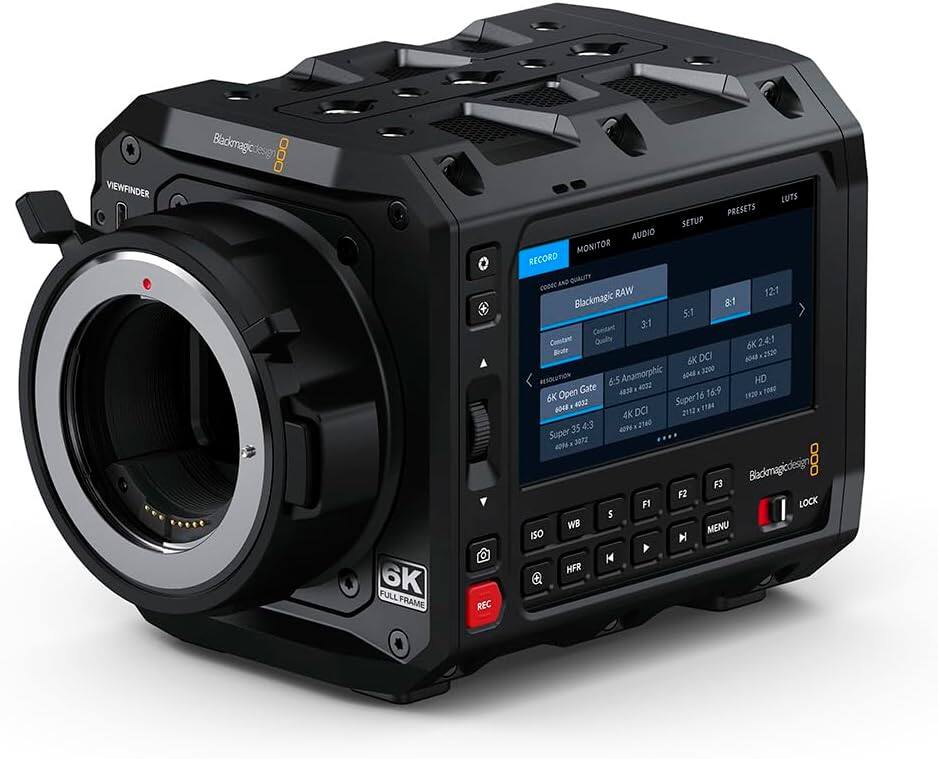

Blackmagic PYXIS 6K EF is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full frame HDR sensor with built in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 6K EF features a fixed locking EF mount that works with Canon compatible photo and cine lenses.
- Full-Frame 6K Sensor with 13 Stops of Dynamic Range: Features a massive 24 x 36mm full-frame sensor with a native resolution of 6048 x 4032 — three times the size of a Super 35 sensor — delivering exceptional shallow depth of field, rich color reproduction, and accurate skin tones across a wide dynamic range.
- Versatile Frame Rates and Anamorphic Support: Capable of recording up to 6K Open Gate 3:2 video at 36 fps or 6K Anamorphic 6:5 video at 60 fps, among other selectable resolutions, giving filmmakers true cinematic flexibility on set.
- Dual-Format Recording with Cloud Integration: Records both Blackmagic RAW and H.264 proxy files simultaneously, with the ability to upload directly to Blackmagic Cloud via Ethernet or by connecting a 4G/5G mobile phone through the USB-C port — keeping production and post-production workflows tightly connected.
- Live Streaming and Broadcast-Ready Output: Live stream directly from the camera via SRT and RTMP protocols to platforms such as YouTube, Facebook, and X, or use an ATEM Streaming Bridge for a wireless link back to the studio — ideal for live event production and remote broadcasting.

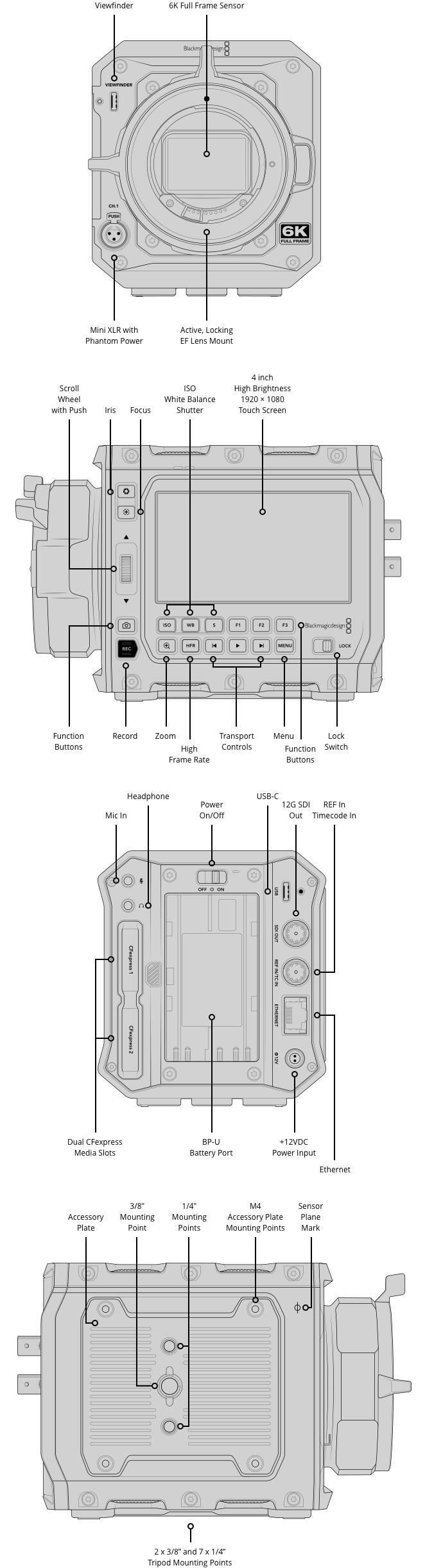

- Modular Design with Professional Audio and Connectivity: The front of the camera features a USB-C port for the Blackmagic URSA Cine EVF and a mini 3-pin XLR analog audio input with +48V phantom power, while the back includes a 12G-SDI output, RJ45 Ethernet, headphone jack, and a locking DC power connector — all housed in a box-style body with customizable side plates for flexible rigging.
Whats Included
- PYXIS 6K Cinema Box Camera (Canon EF), PYXIS Standard Mounting Plate & SSD Mounting Plate, Lens Cap, Power Supply w/Adapters, Resolve Studio Key
