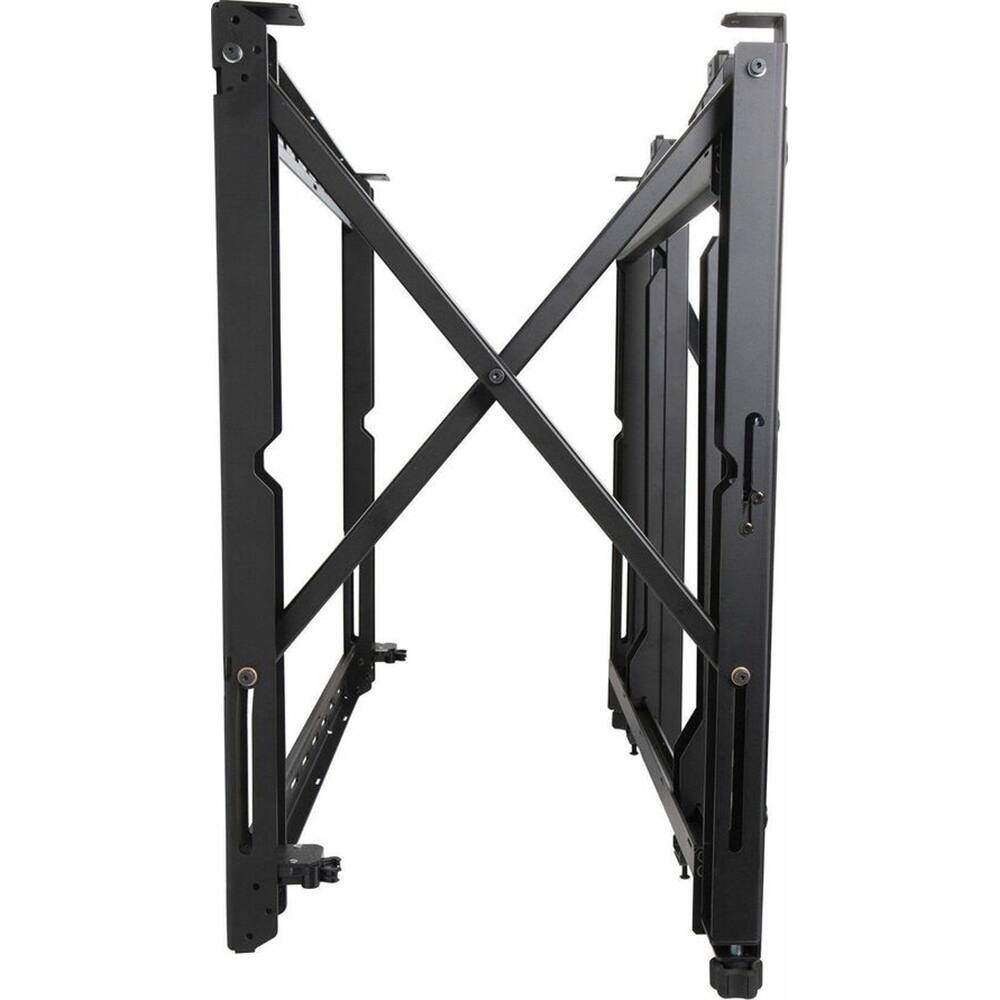

Peerless-AV - 65"-98" Full Service Video Wall Mount DS-VW795-QR - Black
FREE shipping to
More Buying Options
About This Item
- General
- Brand: Peerless-AV
- Model Number: DS-VW795-QR
- Product Name: 65"-98" Full Service Video Wall Mount DS-VW795-QR
- Color: Black
- Features
- Mount Profile: Recessed (The view of the product when seen attached to a wall or surface.)
- Motorized: false
- Compatibility
- Maximum Weight Capacity: 225 pounds (The maximum load that can be supported by the product.)
- Compatibility: Screen Sizes 65 to 98"
- Mount Location: Wall
- Maximum Television Size: 98 inches
- VESA Wall Mount Standard: 200mm x 200mm, 600mm x 600mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 27.58 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 32.87 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.43 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 39.99 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Full Manufacturers Warranty
- Warranty - Labor: Full Manufacturers Warranty
- Other
- UPC: 735029301455
The DS-VW795-QR full service video wall mount with quick release offers an easy to install and service solution for both landscape and portrait large format displays. Designed for quick service access in recessed video wall applications, the DS-VW795-QR provides versatility demanded by today's integrator. With the quick-release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. Featuring tool-less micro adjustment at eight points, the mounts can overcome uneven walls to create a seamless video wall display. In addition, custom wall plate spacers eliminating the guesswork and on-site installation calculations and measurement reducing installation time and cost. With no-tool-required micro-adjustments and easy-access to any display for quick serviceability it's the ultimate video wall mounting solution. Integrated cable management tie-backs make display-to-display cabling simple. Modular mount for unlimited video wall display configurations. Reusable custom wall plate spacers eliminate the guesswork and on-site installation calculations. Accommodates displays in landscape and portrait orientation. Tool-less micro-adjustments at 8 points allows the mount to overcome uneven walls to create a seamless video wall display. Carriage extension force can be adjusted to accommodate the weight of the display, allowing the quick release to activate with gentle force. Quick release can be eliminated with a locking screw to prevent unintentional pop-outs. Quick release pop out mechanism provides convenient display access in recessed application.
- Quick And Easy Setup: Quick release can be eliminated with a locking screw to prevent unintentional pop-outs.
- Quick And Easy Setup: Quick release can be eliminated with a locking screw to prevent unintentional pop-outs.
