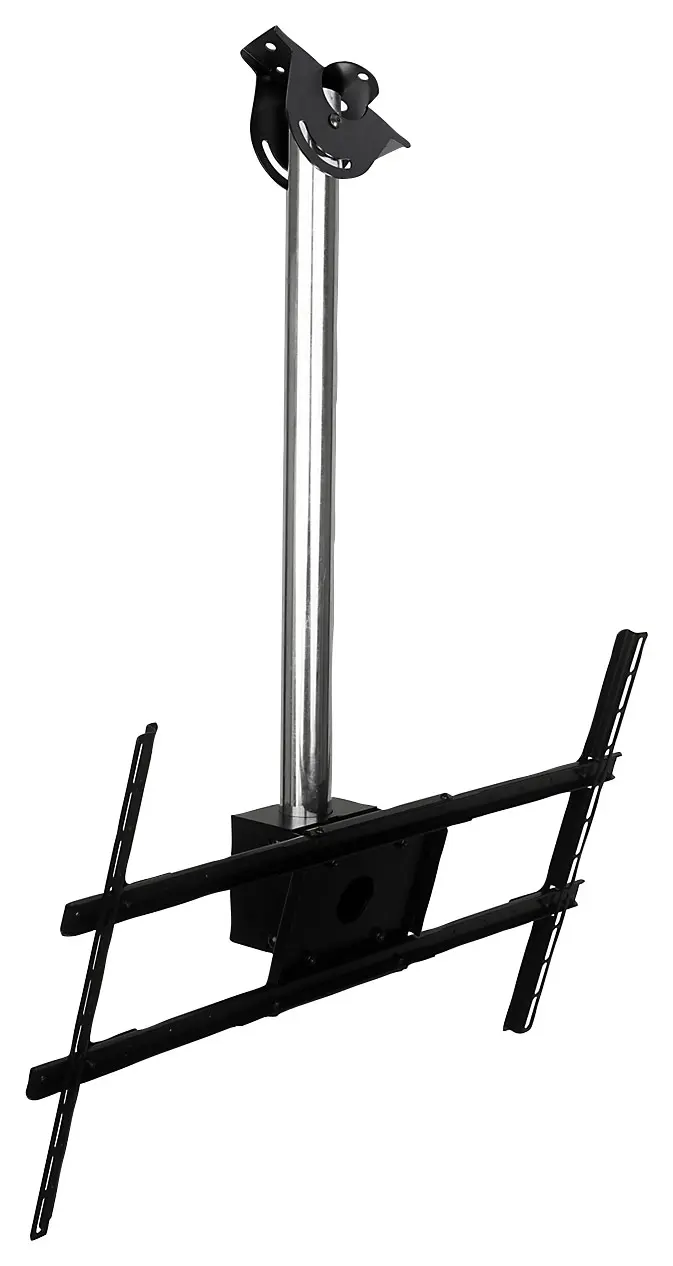

Peerless-AV - Modular Series Ceiling Kit For 39" to 75" Displays - Black
- General
- Brand: Peerless-AV
- Model Number: MOD-FPSKIT100-B
- Product Name: Modular Series Ceiling Kit For 39" to 75" Displays
- Color: Black
- Assembly Required: No
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting
- Adjustable Height: false
- Compatibility
- Maximum Weight Capacity: 264 pounds (The maximum load that can be supported by the product.)
- Compatibility:
Single Display Up to 3' (1m) Height
- Mount Location: Ceiling
- Maximum Television Size: 75 inches
- Minimum Television Size: 39 inches
- VESA Wall Mount Standard: 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 39 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 28 9/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 3/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 13.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 Year Limited
- Warranty - Labor: 5 Year
- Other
- UPC: 735029290124
Modular Series Ceiling Kit for up to 75'' Displays; 39" (1m) height
- Kit Includes: Cathedral Ceiling Plate, 39" (1m) black Extension Pole, Single Display Flat Panel Mount, Large Universal Adaptor
- Integrated Cable Management: Runs through Poles with open access at both ends for ease of use
- Quick Connect Design: Includes simple hook-on feature, with +20� to -5� tilt and locks at every 5� increment
- Universal Mounting: Installs to wood joist and concrete or to truss/ pipes via U-Bolt Adaptor Accessory (MOD-AUB)
- Match Any D�cor: Extension Pole available in black or zinc plated
- Kit Includes: Cathedral Ceiling Plate, 39" (1m) black Extension Pole, Single Display Flat Panel Mount, Large Universal Adaptor
- Integrated Cable Management: Runs through Poles with open access at both ends for ease of use
- Quick Connect Design: Includes simple hook-on feature, with +20� to -5� tilt and locks at every 5� increment
- Universal Mounting: Installs to wood joist and concrete or to truss/ pipes via U-Bolt Adaptor Accessory (MOD-AUB)
- Match Any D�cor: Extension Pole available in black or zinc plated
Whats Included
- Cathedral Ceiling Plate
- 3' (1m) Black Extension Pole
- Single Display Flat Panel Mount
- Large Universal Adapter
- Owner's manual
- Cathedral Ceiling Plate
- 3' (1m) Black Extension Pole
- Single Display Flat Panel Mount
- Large Universal Adapter
- Owner's manual
Product Manuals
Q: What is the tilt range of this ceiling mount?
A: This ceiling mount offers a tilt range of +20 degrees to -5 degrees, locking at every 5-degree increment.
Q: How is this ceiling mount installed?
A: It can be installed to wood joists and concrete, or to truss/pipes using a U-Bolt Adaptor Accessory (MOD-AUB).
Q: What is the maximum weight capacity of this ceiling mount?
A: The maximum weight capacity of this ceiling mount is 264 pounds.
Q: Does this ceiling mount come with a cable management system?
A: Yes, it has an integrated cable management system that runs through the poles with open access at both ends.
Q: Does this ceiling mount require assembly?
A: No, assembly is not required for this ceiling mount.
Q: What size TVs is this ceiling mount compatible with?
A: This ceiling mount is compatible with most flat-panel TVs ranging from 32 to 60 inches.
Q: does this ceiling mount swivel?
A: Yes, it swivels and tilts.
A: You definitely need to perform a level cut of the post to the desired height with a hacksaw. The T.V. bracket is meant to rest at the bottom of the post. Other than this minor design flaw, the bracket is very sturdy and flexible in a number of different ways...I highly recommend the bracket as a vertical mount solution of which there are very few good choices.
