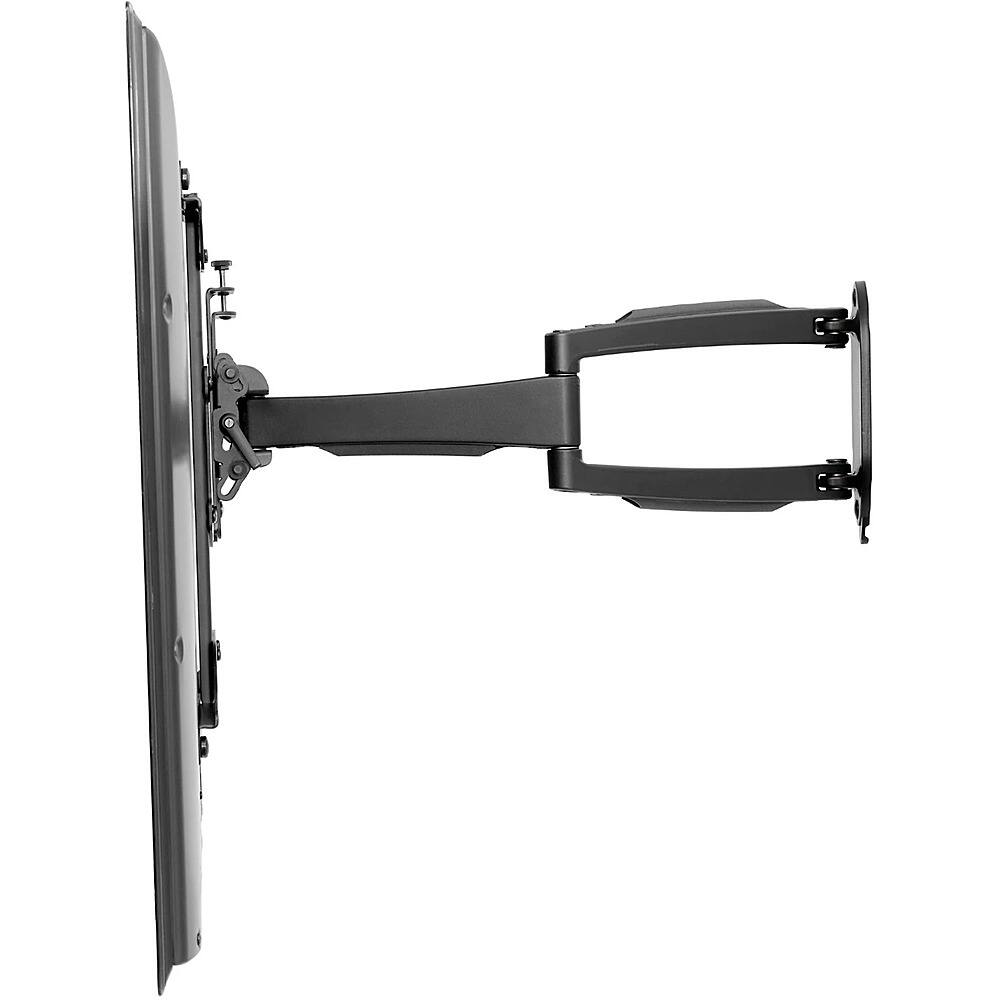

Peerless-AV - SmartMount Articulating, Retractable, Swivel, Tilt Display Wall Mount For Most 32" - 50" Flat Panel Displays - Semi-gloss Black
- General
- Brand: Peerless-AV
- Model Number: SA746PU-M
- Product Name: SmartMount Articulating, Retractable, Swivel, Tilt Display Wall Mount For Most 32" - 50" Flat Panel Displays
- Color: Semi-gloss Black
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Swiveling
- Adjustable Height: false
- Compatibility
- Maximum Weight Capacity: 80 pounds (The maximum load that can be supported by the product.)
- Compatibility: Information not available
- Mount Location: Wall
- Maximum Television Size: 50 inches
- Minimum Television Size: 32 inches
- VESA Wall Mount Standard: 200mm x 100mm, 400mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 16 4/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 18 1/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 1/5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.7 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Warranty
- Warranty - Parts: 5 Year Limited
- Warranty - Labor: 5 Year
- Other
- UPC: 735029278238
The SmartMount� Articulating Wall Mount series offers the most versatile installation features and mounting options. The I-Shaped Adaptor plate�s innovative design helps avoid blocking connections on back of display. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SA746PU, extend the display up to 22.22" (564mm) or fully-retract it to just 3.46" (88mm) from the wall for the perfect viewing position. The display can now simply be installed by a single person with the Hook-and-Hang� system. One-Touch� tilt technology offers +15�/-5� vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
- One-Touch� Tilt: +15�/-5� vertical tilt movement for the ideal viewing angle
- Extends up to 22.22" (564mm): Offers the perfect viewing angle
- Flexible Mounting Locations: Mounts to wood stud, concrete, cinder block or breeze block
- Integrated Cable Management: Protects, contains and conceals cables for a clean, professional installation
- Includes: All necessary wall and display attachment hardware
- One-Touch� Tilt: +15�/-5� vertical tilt movement for the ideal viewing angle
- Extends up to 22.22" (564mm): Offers the perfect viewing angle
- Flexible Mounting Locations: Mounts to wood stud, concrete, cinder block or breeze block
- Integrated Cable Management: Protects, contains and conceals cables for a clean, professional installation
- Includes: All necessary wall and display attachment hardware
Whats Included
- Articulating Wall Mount For 32" To 50" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Owner's manual
- Articulating Wall Mount For 32" To 50" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Owner's manual
Product Manuals
A: Yes most definitely...great bracket, great price...
Q: Does this work with a Samsung Frame TV?
A: https://docs.peerless-av.com/SELL%20SHEET-LIT1388-1-1.1-1.PDF YEs if the Samsung has up to a 400 mm x 400 mm mounting pattern and weighs up to 80 lbs.
A: its about a foot and a half long.
