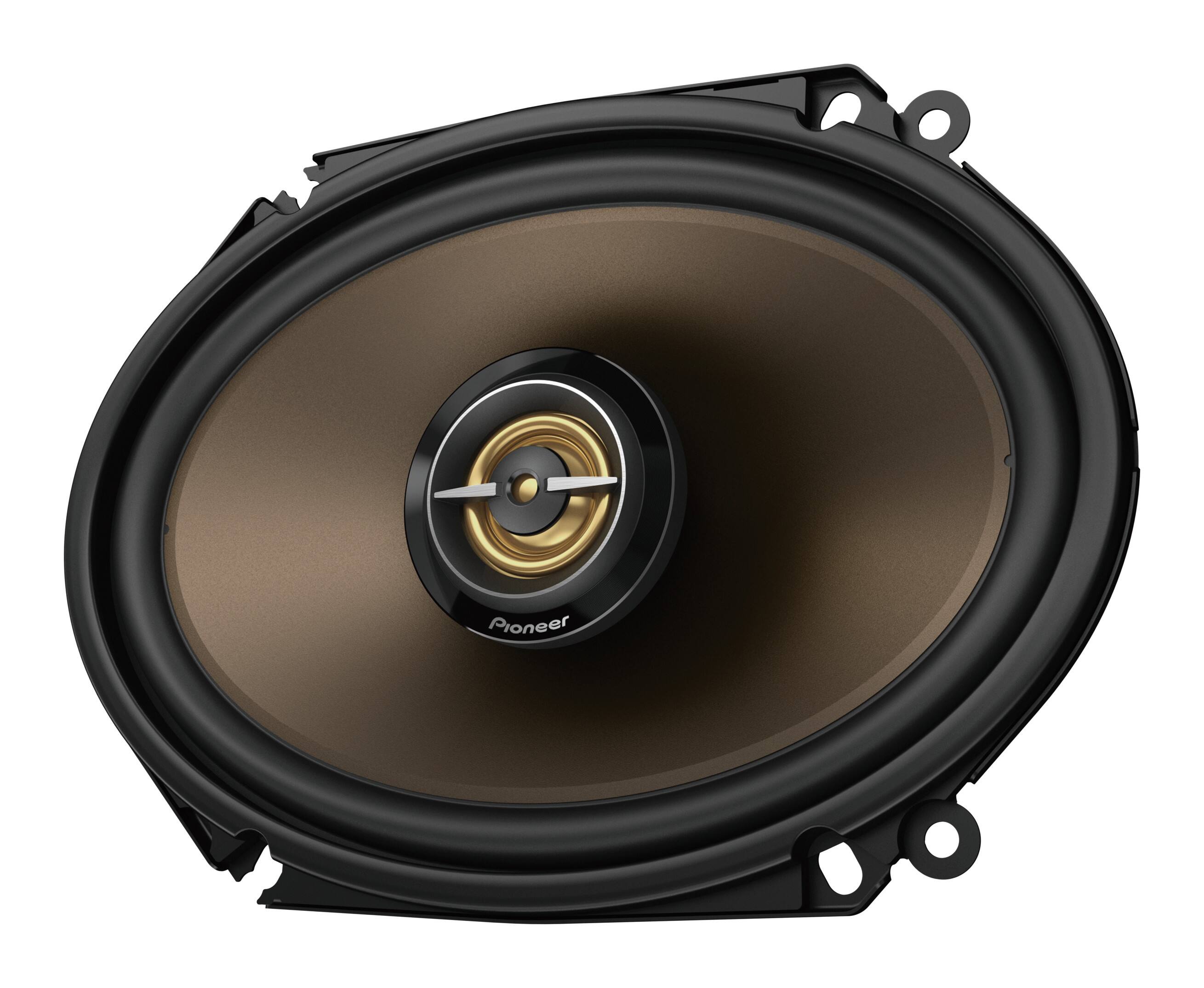

Pioneer - 6" x 8" 2-way Car Speakers Aramid Fiber-reinforced IMPP cone (Pair) - Black
More Buying Options
Related Item
Specifications
- RMS Power85 wattsPeak Power Handling370 wattsSensitivity90 decibelsSpeaker Size6" x 8"Speaker TypeCoaxial, 2-wayWoofer CompositionCarbon and Mica reinforced Injected Molded Polypropylene - IMPP
- Key Specs
- RMS Power: 85 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 370 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Sensitivity: 90 decibels
- Speaker Size: 6" x 8"
- Speaker Type: Coaxial, 2-way
- Woofer Composition: Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
- Woofer Surround Material: Rubber
- General
- Brand: Pioneer
- Model Number: TS-A683FH
- Product Name: 6" x 8" 2-way Car Speakers Aramid Fiber-reinforced IMPP cone (Pair)
- Color: Black
- Number Of Speakers: 2
- Audio
- RMS Power: 85 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 370 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Sensitivity: 90 decibels
- Features
- Marine: false
- Grille Included: true
- Design
- Speaker Size: 6" x 8"
- Speaker Type: Coaxial, 2-way
- Woofer Composition: Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
- Woofer Surround Material: Rubber
- Dimensions
- Product Height: 3.48 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.76 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11.16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.602 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Warranty - Labor: 1-year Limited Warranty from date of delivery. See Limited Warranty terms and conditions for further details.
- Other
- UPC: 884938509428
The Pioneer TS-A683FH 6" x 8" 2-way speakers can handle up to 370 W Max (85 W Nominal). The woofer cone is made of Aramid Fiber reinforced Injection Molded Polypropylene (IMPP) for rigidity, low-frequency responsiveness, and weather resistance. The 20mm PI dome tweeter adds in the high-frequency details to provide music enjoyment.
- CarSoundfit: Pioneer’s Car Sound Fit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades can offer for your vehicle.
- Installation 6"x8 custom-fit: Included with the speaker are original equipment (OE) 6˝ x 8˝ (Ford & Mazda) custom-fit installation adapters that optimize fitment in applicable original equipment (OE) speaker locations for improved acoustic performance.
- Open & smooth: This Pioneer sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
- A Series: Upgrade to high performance with Pioneer A-series sound. These speakers are acoustically matched to provide dynamic bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH provides a seamless transition between the midrange/tweeter drivers delivering uniform frequency response.
- CarSoundfit: Pioneer’s Car Sound Fit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades can offer for your vehicle.
- Installation 6"x8 custom-fit: Included with the speaker are original equipment (OE) 6˝ x 8˝ (Ford & Mazda) custom-fit installation adapters that optimize fitment in applicable original equipment (OE) speaker locations for improved acoustic performance.
- Open & smooth: This Pioneer sound concept provides a seamless and smooth transition between the midrange and tweeter drivers and delivers uniform off-axis frequency response optimized for automotive applications where one or more speakers are often aimed away from the listeners’ ears.
- A Series: Upgrade to high performance with Pioneer A-series sound. These speakers are acoustically matched to provide dynamic bass that lets you hear and feel the music. Pioneer’s OPEN & SMOOTH provides a seamless transition between the midrange/tweeter drivers delivering uniform frequency response.
Whats Included
- (2) 2-way speakers
- (2) Bottom mount brackets
- (2) 12" lengths of speaker wire
- (8) various mounting screws
- 1 Year warranty sheet
- (2) 2-way speakers
- (2) Bottom mount brackets
- (2) 12" lengths of speaker wire
- (8) various mounting screws
- 1 Year warranty sheet
Product Manuals
Q: Are these speakers compatible with marine applications?
A: No, these speakers are not designed for marine applications.
Q: What is the benefit of the carbon mica material used in the speaker cones?
A: Carbon mica provides good detailed expression in sound and is suitable for a variety of music genres, resulting in a quicker reaction and perfect handling of low to high-frequency sounds.
Q: Does this speaker come with a grille?
A: Yes, the speaker comes with a grille.
Q: What is the woofer material used in these car speakers?
A: The woofer cone is made of Aramid Fiber reinforced Injection Molded Polypropylene (IMPP).
Q: What is the sensitivity of these speakers?
A: These speakers have a sensitivity of 90 decibels.
Q: How does the Open & Smooth technology enhance the sound?
A: Pioneer's Open & Smooth technology ensures a seamless transition between the midrange and tweeter drivers, providing a uniform off-axis frequency response.
Q: What is the peak power handling of these Pioneer speakers?
A: These Pioneer speakers have a peak power handling of 370 watts.
Q: Is this model an upgrade from TS-G680 6x8 speakers. Or they almost the same around performance?
A: Yes, the TS-A683FH is an upgrade from the TS-G680. The build quality is better.
Compare similar products
The Pioneer TS-A683FH 6" x 8" 2-way speakers can handle up to 370 W Max (85 W Nominal). The woofer cone is made of Aramid Fiber reinforced Injection Molded Polypropylene (IMPP) for rigidity, low-frequency responsiveness, and weather resistance. The 20mm PI dome tweeter adds in the high-frequency details to provide music enjoyment.
The Pioneer TS-G680 6" x 8" is a 2-way speaker system with 250 W maximum power handling/40 W continuous power handling. In addition, it has a 30mm Tweeter to enrich high-range reproduction. The speaker cone comprises of polypropylene IMPP cone and a rubber-coated cloth surround giving your music more impact and presence.
Experience stunning sound quality with these KICKER CS-Series component speakers. The 6 x 8-inch subwoofers produce deep, realistic bass, while the Extended Voice Coil technology improves bass response for greater clarity. These KICKER CS-Series component speakers have 0.75-inch titanium tweeters with neodymium magnets which deliver impressively detailed audio at high frequencies. Geek Squad Installation Recommended Visit your local Best Buy store for more information.
Customize your car's audio system with these KICKER KS Series coaxial speakers. The high-quality woofer and 0.79-inch silk-dome tweeter produce crisp, powerful sound for total immersion in your favorite music, while the polypropylene and rubber construction offers reliable durability. These KICKER KS Series coaxial speakers have a thin-mount design for easy installation. Geek Squad Installation Recommended Visit your local Best Buy store for more information.
| Pros for Pioneer - 6" x 8" 2-way Car Speakers Aramid Fiber-reinforced IMPP cone (Pair) - Black | |||
|---|---|---|---|
| Sound Quality | Sound Quality, Ease of Installation, Price, Fit, Highs | Sound Quality, Ease of Installation, Price, Fit, Bass | Sound Quality |
| Cons for Pioneer - 6" x 8" 2-way Car Speakers Aramid Fiber-reinforced IMPP cone (Pair) - Black | |||
| There were no cons for this product— | Bass | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews
Customers are saying
Customers commend the 6" x 8" 2-way Car Speakers for their impressive sound quality. Many reviewers were pleasantly surprised by the rich and full sound produced by these speakers, noting a significant improvement over their original equipment. The speakers are also praised for their clarity and precision, delivering an enjoyable listening experience. Overall, customers are highly satisfied with the performance of these car speakers.
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Door speakers
Replaced stick door speakers, these sound way better and I am happy with them.
Posted by Jason
- Rated 5 out of 5 stars
Replacement for stock speakers in 2004 Ranger XLT
Used these to upgrade the sound of my sons 2004 Ranger XLT. Two in the front (door) and two in the rear). They fit directly into the openings and I had all 4 changed in less then an hour. I did not use an amp so there is not a huge difference over the old stock speakers but definitely an improvement. Plus if we decide to add an amp in the future these can handle that and will really shine. Plus they happened to be on sale, down to 75.00 a pair from the normal 100.00 per pair.
Posted by ScottJ
- Rated 5 out of 5 stars
Great Replacement for OEM
These speakers are much better than orginal equipment in my Mustang. Installed in rear deck. Thevbass is deeper and i hear high end just enough to have vocals in the acoustic center of the car
Posted by Rongilb770
