Specifications
- RMS Power100 wattsPeak Power Handling250 wattsDual Voice CoilsNoWoofer Size10"Woofer Surround MaterialUrethane
- Key Specs
- RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 250 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Dual Voice Coils: false
- Woofer Size: 10"
- Woofer Surround Material: Urethane
- General
- Brand: Pioneer
- Model Number: TS-WX400DA
- Product Name: Compact Amplified Subwoofer with a built-in 250 W (Max.) amplifier for under-seat or limited space applications.
- Color: Black
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 100 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 250 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Integrated Amplifier: false
- Features
- Dual Voice Coils: false
- Dimensions
- Woofer Size: 10"
- Product Height: 3.875 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.875 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8.13 pounds (The out of box weight of the item.)
- Design
- Woofer Surround Material: Urethane
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 884938416221

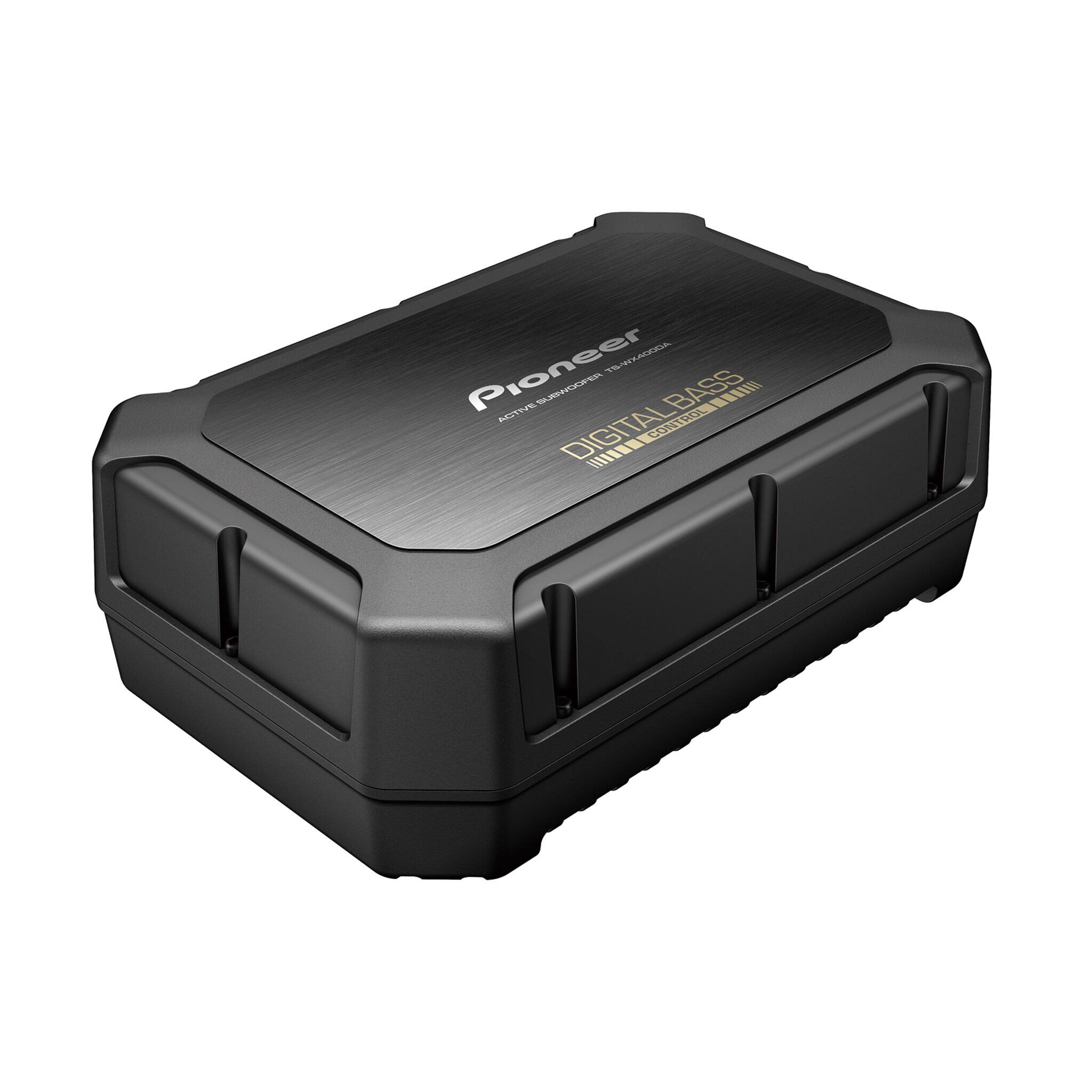

Small in size yet able to produce powerful and impactful bass, the TS-WX400DA compact active subwoofer is a perfect upgrade for many of today’s vehicles where small size and low power consumption are priorities. Featuring a powerful, built-in 250 W Max (100 W RMS) Class D amplifier, a down-firing 9" x 5.5" rectangular subwoofer, and Pioneer's DIGITAL BASS CONTROL, the TS-WX400DA can be tuned to your listening preferences and vehicle acoustics. The TS-WX400DA also has multiple input options, allowing connectivity to both aftermarket and OE (Original Equipment) car audio systems.
- Easy Installation: This speaker is particularly compact, allowing for installation in a wide range of vehicle applications.
- Low current consumption: The TS-WX400DA features built-in high-efficiency Class-D amplification, offering a low average current consumption of only 9.4 amps (max).
- No RCAs, No Problem!: With the included RCA (low-voltage) input and speaker line (high-voltage) input cables, you can start your setup right out of the box.
- Small size, Big Deliveries!: This amplified subwoofer features a built-in, high-quality, low-distortion Class D amplifier, specifically designed to work in partnership with the high-sensitivity woofers.
- CarSoundfit: Pioneer’s Car Sound Fit app is a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades can offer for your vehicle.
Whats Included
- (1) 9" x 5-1/2" subwoofer and built-in amplifier in sealed enclosure (1) Wire Harness (1) Wired Digital Bass Remote Control with attached 16.25' cable
