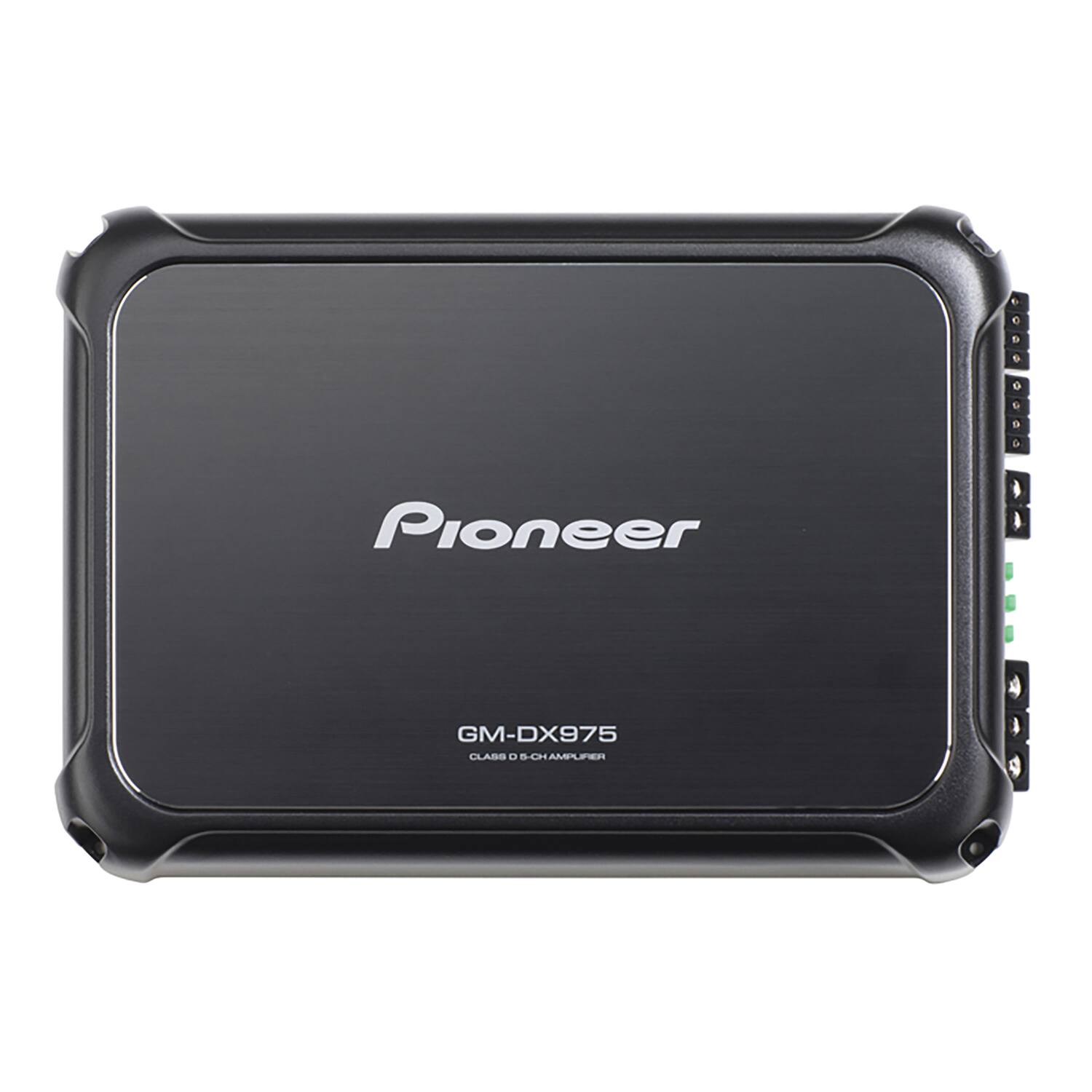

Pioneer - GM-DX975 2,000-Watt Max 5-Channel Class D Amplifier with Wired Bass Boost Remote - Black
Pioneer - GM-DX975 2,000-Watt Max 5-Channel Class D Amplifier with Wired Bass Boost Remote - Black
FREE shipping to
More Buying Options
Related Item
Specifications
- Maximum Watts x Channel @ Ohms150W @ 4ohm, 700W @ 4ohmAmplifier ClassDNumber Of Channels5Bass BoostFixedBridgeableYesSpeaker-Level InputsYes
- Key Specs
- Maximum Watts x Channel @ Ohms: 150W @ 4ohm, 700W @ 4ohm (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 5
- Bass Boost: Fixed (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: Pioneer
- Model Number: GM-DX975
- Product Name: GM-DX975 2,000-Watt Max 5-Channel Class D Amplifier with Wired Bass Boost Remote
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Total Power Handling RMS: 150 watts
- Maximum Watts x Channel @ Ohms: 150W @ 4ohm, 700W @ 4ohm (This is the maximum load the speaker, subwoofer or amp can drive.)
- Total Power Handling Maximum: 2000 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 5
- Minimum Frequency Response: 10 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 50 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 75 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Fixed (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Input
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 2.375 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 7.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 884938421867
The Pioneer GM-DX975 5-Channel Class D Amplifier can power your entire car audio system, sending up to 100 watts RMS to each of your front and rear speakers while delivering up to 600 watts RMS to your sub. CTA-2006 compliant, this highly efficient Class D technology keeps this powerful amp running and will fit in a lot of out of the way spaces. The frequency response of the full-range channels stretches up to 50 kHz to support crystal clear Hi-Res Audio certified playback. The GM-DX975 uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Put your GM-DX975 into 3-channel mode to create a strong front soundstage with bass by outputting up to 200 watts RMS each to a set of high-performance components up front, plus up to 600 watts RMS to your sub. The speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, and a wired remote boost that lets you control the amount of bass boost from the front seat.
- High Power Output: Delivers up to 2,000 watts max power with 150 watts x 4 channels and 700 watts x 1 channel for full car audio coverage
- Versatile Channel Configuration: Supports 5 channels with flexible RMS power options and 2-ohm to 8-ohm load impedance for various speaker setups
- Hi-Res Audio Certified: Offers frequency response up to 50 kHz for crystal clear, high-resolution audio playback
- Class D Technology: Compact design fits easily in tight spaces while providing efficient power and reduced heat generation

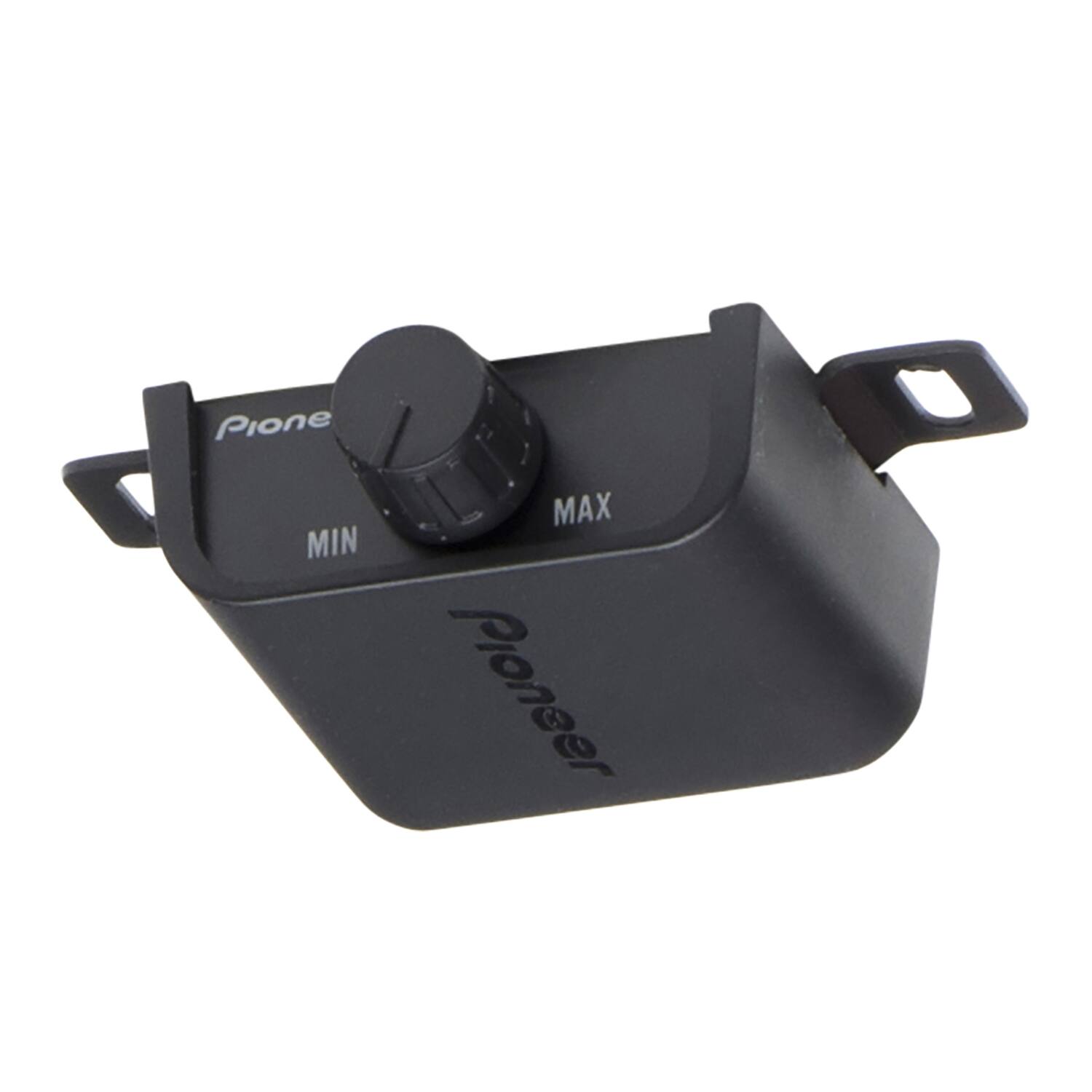

- Bass Boost Remote: Includes wired bass boost remote for convenient control of bass levels from the front seat
Whats Included
- 5-Channel Amp w/ 3 30A Fuses, Bass Boost Remote & Cable, Speaker-to-RCA Adapter, 4 Screws, 2 Terminal Tools, Manual, Warranty
Product Manuals
Compare similar products
The Pioneer GM-DX975 5-Channel Class D Amplifier can power your entire car audio system, sending up to 100 watts RMS to each of your front and rear speakers while delivering up to 600 watts RMS to your sub. CTA-2006 compliant, this highly efficient Class D technology keeps this powerful amp running and will fit in a lot of out of the way spaces. The frequency response of the full-range channels stretches up to 50 kHz to support crystal clear Hi-Res Audio certified playback. The GM-DX975 uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Put your GM-DX975 into 3-channel mode to create a strong front soundstage with bass by outputting up to 200 watts RMS each to a set of high-performance components up front, plus up to 600 watts RMS to your sub. The speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, and a wired remote boost that lets you control the amount of bass boost from the front seat.
The Pioneer GM-DX874 four-channel amplifier will deliver up to 150 watts RMS to each of your front and rear speakers for powerful music. Highly efficient Class D technology keeps this powerful amp running as cool as it looks, and allows for a compact chassis that fits in a lot of out of the way spaces. The frequency response of this amplifier stretches up to 50,000 Hz, for Hi-Res Audio Certified playback. Pioneer uses high-grade electronic parts and gold-plated RCA connections to ensure maximum performance. Speaker-level inputs allow you to install this amp in a factory system with no RCA connections. The amplifier switches its input mode automatically when it detects the high-level signal, eliminating the need to run a turn-on lead to your receiver or fuse box. Built-in high- and low-pass filters let you adjust the sound for your vehicle's interior, whether you're driving speakers or subs.
The KENWOOD KAC-835 is a 1600 watts high-performance 5-Channel Amplifier designed to deliver powerful, clear, and dynamic sound. Engineered for audio enthusiasts who seek both precision and versatility in their car audio systems. The KAC-835 provides the perfect blend of power, flexibility, and ease of installation. The 5-channel design allows the KAC-835 to power both front and rear speakers as well as a dedicated subwoofer channel, offering a complete audio solution in a single unit. Despite its powerful performance, the KENWOOD KAC-835 is designed to be compact and easy to install. The KAC-835 amplifier fits into tight spaces, making it ideal for vehicles where space is at a premium. The KENWOOD KAC-835 is equipped with both high-pass and low-pass filters. The high-pass filter is adjustable and allows users to set the crossover frequency for the full-range speakers, ensuring that only the appropriate frequencies are sent to the speakers, preventing distortion, and maximizing clarity. The low-pass filter, dedicated to the subwoofer channel, ensures that the subwoofer receives only the low-end frequencies, delivering tight, punchy bass. For those who crave deep, powerful bass, the KAC-835 features a variable bass boost function that allows you to adjust the low-frequency output to your preference.
The GM-DX871 mono subwoofer amplifier can deliver up to 800 watts RMS to your subwoofer, for powerful bass that will give every song a strong and heavy beat. Highly efficient Class D technology keeps this powerful amp running as cool as it looks, and allows for a small chassis that fits in a lot of out of the way spaces.
| Pros for Pioneer - GM-DX975 2,000-Watt Max 5-Channel Class D Amplifier with Wired Bass Boost Remote - Black | |||
|---|---|---|---|
| There were no pros for this product— | Sound Quality, Power, Size, Installation Ease | There were no pros for this product— | Power, Sound Quality, Size, Ease of use, Price |
| Cons for Pioneer - GM-DX975 2,000-Watt Max 5-Channel Class D Amplifier with Wired Bass Boost Remote - Black | |||
| There were no cons for this product— | Heat Dissipation | There were no cons for this product— | Heat |
