Pioneer - Quantum Hyperformance 1-Zone 12,000 BTU 25 SEER2 Ductless Energy-Star Mini-Split Inverter Heat Pump 230V - White
Pioneer - Quantum Hyperformance 1-Zone 12,000 BTU 25 SEER2 Ductless Energy-Star Mini-Split Inverter Heat Pump 230V - White
Related Item
Specifications
- Recommended Room Size500 square feetBTU Cooling Rating12000 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate205 cubic feet per minuteRemote ControlYes
- Key Specs
- Recommended Room Size: 500 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 12000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 205 cubic feet per minute
- Remote Control: true
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 14 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Seasonal Energy Efficiency Ratio (SEER): 25 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Air Conditioner Type: Wall
- General
- Brand: Pioneer
- Model Number: WYT012GLSI25RH-16S
- Product Name: Quantum Hyperformance 1-Zone 12,000 BTU 25 SEER2 Ductless Energy-Star Mini-Split Inverter Heat Pump 230V
- Color: White
- Air Conditioner Type: Wall
- Dimensions
- Indoor Unit Dimensions: 36.25 x 7.63 x 12
- Outdoor Unit Dimensions: 34 x 13.75 x 23.75
- Cord Length: 192 inches
- BTU Rating
- Recommended Room Size: 500 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 12000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 12000 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 5
- Number of Fan Speeds: 5
- Airflow Rate: 205 cubic feet per minute
- Maximum Noise Level: 30 decibels adjusted
- Remote Control: true
- Control Type: Button
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Number of Indoor Units: 1
- Number of Outdoor Units: 1
- Power
- Energy Efficiency Ratio: 14 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Seasonal Energy Efficiency Ratio (SEER): 25 (This rating is generally used to measure a central air conditioner's and mini-split air conditioner's energy efficiency and will not be found on window or room air conditioners. SEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) over the course of an entire cooling season. Generally, the higher the SEER rating, the more energy efficient the equipment is.)
- Amperage: 4.4 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): ETL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Amazon Alexa, Google Home (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Number of Remotes Included: 1
- Unit Placement
- Indoor Unit1 Placement: Wall mount
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: Not applicable
- Other
- UPC: 810102183927
The Pioneer Quantum Hyperformance 12000 BTU WYT-25 is a premium ductless mini split system designed for efficient year round comfort. Delivering 25 SEER2 cooling efficiency and 14.0 EER2 performance, this Energy Star certified system provides powerful air conditioning while minimizing energy costs. In heating mode it produces up to 12000 BTU with an HSPF2 rating of 10.5 backed by advanced inverter technology that maintains consistent indoor temperatures even in extreme climates with reliable operation down to 22°F in heating and up to 131°F in cooling. The slim wall mounted indoor unit blends seamlessly into bedrooms offices or medium sized living spaces offering whisper quiet comfort as low as 30 dB(A). The outdoor condenser is compact yet durable built for dependable operation year after year. WiFi connectivity is included allowing full control through the Pioneer Airlink app or the supplied remote. Multiple operation modes including cooling heating drying fan only plus ECO Sleep Turbo Memory Self Clean and IFEEL functions adapt performance to your lifestyle with ease. Factory precharged with eco friendly R454b refrigerant this complete kit includes a 16 ft installation line set drain hose wall bracket and all essential components for standard installation. Combining advanced efficiency quiet comfort and modern smart features the Quantum Hyperformance series is the ideal choice for reliable energy saving climate control.
- High-Efficiency Cooling & Heating: 12,000 BTU/hour cooling (25 SEER2, 14.0 EER2) and 12,000 BTU/hour heating (10.5 HSPF2, 4.0 COP2) for year-round comfort in rooms 250-500 sq. ft.

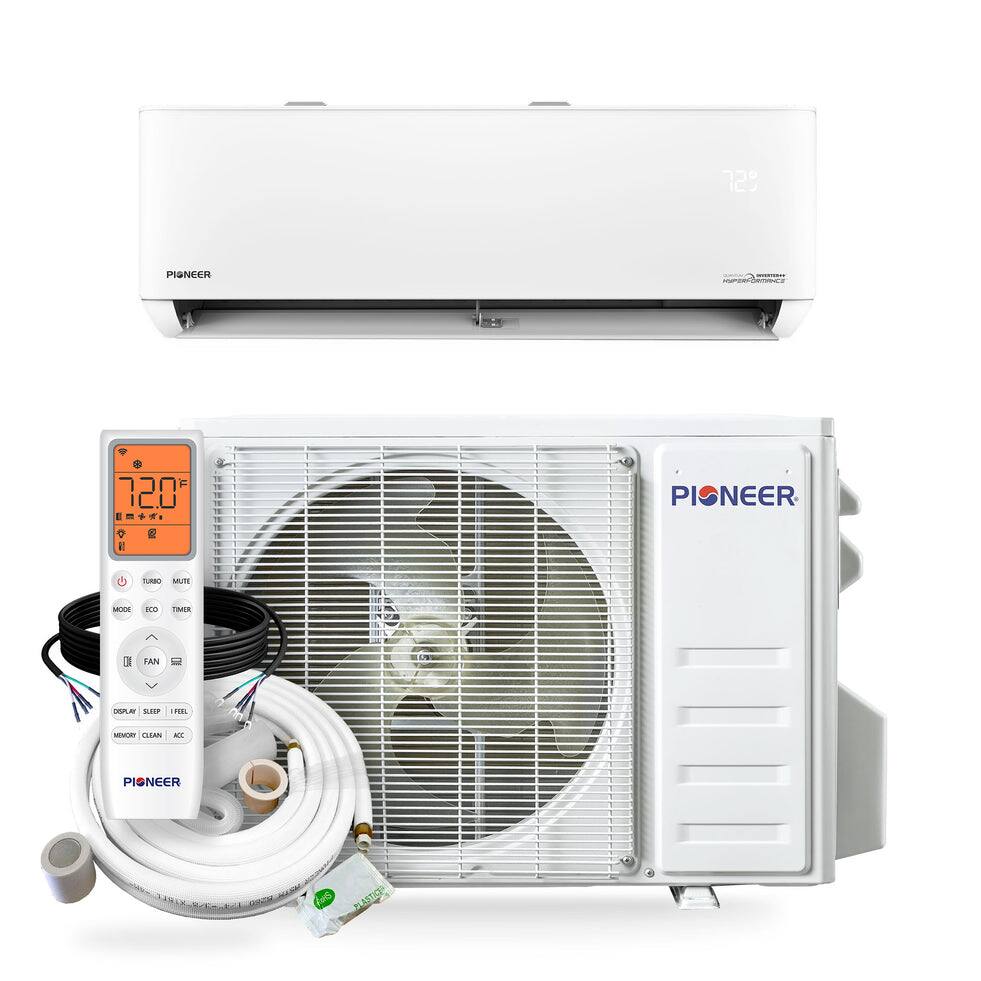

- Complete System Included: Indoor fan coil, outdoor condenser, wireless remote with holder, 16 ft. line set, installation accessories, and vibration absorber feet.
- Advanced Inverter Technology: Pulse width modulation DC inverter compressor and variable-speed DC inverter fan motors for high performance, low power consumption, and reliable operation.
- User-Friendly Controls & Versatile Operation: Dual-axis airflow, ECO and SLEEP modes, self-clean cycle, memory function, TURBO mode, IFEEL temperature sensing, timer on/off control, and standard ambient range operation (-22°F heating / 131°F cooling).
- Certified & Energy-Safe: ETL, AHRI, and DOE certified; operates on 208/230V, 60Hz, 1Ph, and uses R-454b refrigerant; backed by support hotline for installation, troubleshooting, and warranty.
Product Manuals
Documents
- Energy_Guide_PDF
Disclaimers
- Read all instructions before use. Only use approved parts. Failure to follow instructions may cause damage or void warranty.
Compare similar products
The Pioneer Quantum Hyperformance 12000 BTU WYT-25 is a premium ductless mini split system designed for efficient year round comfort. Delivering 25 SEER2 cooling efficiency and 14.0 EER2 performance, this Energy Star certified system provides powerful air conditioning while minimizing energy costs. In heating mode it produces up to 12000 BTU with an HSPF2 rating of 10.5 backed by advanced inverter technology that maintains consistent indoor temperatures even in extreme climates with reliable operation down to 22°F in heating and up to 131°F in cooling. The slim wall mounted indoor unit blends seamlessly into bedrooms offices or medium sized living spaces offering whisper quiet comfort as low as 30 dB(A). The outdoor condenser is compact yet durable built for dependable operation year after year. WiFi connectivity is included allowing full control through the Pioneer Airlink app or the supplied remote. Multiple operation modes including cooling heating drying fan only plus ECO Sleep Turbo Memory Self Clean and IFEEL functions adapt performance to your lifestyle with ease. Factory precharged with eco friendly R454b refrigerant this complete kit includes a 16 ft installation line set drain hose wall bracket and all essential components for standard installation. Combining advanced efficiency quiet comfort and modern smart features the Quantum Hyperformance series is the ideal choice for reliable energy saving climate control.
The Pioneer Quantum Hyperformance 18000 BTU WYT-25 is a high performance ductless mini split system engineered to deliver efficient year round comfort. With a 23.5 SEER2 cooling efficiency and 12.5 EER2 rating this Energy Star certified system provides powerful cooling while keeping energy costs low. In heating mode it produces up to 18000 BTU with a 10.0 HSPF2 rating supported by advanced inverter technology that ensures steady indoor temperatures even in extreme climates with operation down to 22°F in heating and up to 131°F in cooling. The sleek wall mounted indoor unit is designed to blend seamlessly into larger bedrooms offices or living areas while providing whisper quiet operation starting at just 34 dB(A). The outdoor condenser is compact durable and built for reliable performance year after year. WiFi connectivity comes standard giving you full control through the Pioneer Airlink app or the included remote. Multiple modes such as cooling heating drying fan only ECO Sleep Turbo Memory Self Clean and IFEEL adjust performance for maximum comfort and convenience. Precharged with eco friendly R454b refrigerant this complete kit comes ready for installation with essential components included. Combining energy saving performance modern smart features and quiet dependable comfort the Quantum Hyperformance 18000 BTU series is the ideal solution for medium to large living spaces.
Experience superior comfort and energy efficiency with the Pioneer Quantum Ultra 24,000 BTU Floor/Ceiling/Low-Wall Ductless Mini-Split Air Conditioner and Heat Pump Full Set. Engineered for optimal performance, this system delivers 22,200 BTU/h cooling capacity at 20 SEER2 and 24,400 BTU/h heating capacity with 9.5 HSPF2, ensuring year-round climate control. Featuring a variable-speed DC inverter compressor and environmentally friendly R454b refrigerant, it operates efficiently from -13°F heating to 131°F cooling conditions. Designed for versatile installation, it supports floor, ceiling, or low-wall mounting to fit your space perfectly. Enjoy quiet operation with indoor sound levels as low as 40 dB(A) and robust airflow up to 647 CFM. The system's advanced features include dual drainage ports, washable reusable filters, and dual-axis airflow with motorized louvers for precise air distribution. The included remote offers ECO and SLEEP modes, timer control, TURBO boost, self-clean cycle, memory settings, and IFEEL temperature sensing for personalized comfort. Easy to install with a 208/230V single-phase power supply and requiring a 20A double-pole breaker, this high-efficiency heat pump is ideal for areas between 750 and 1,000 sq. ft. Upgrade to Pioneer Quantum Ultra for reliable, eco-friendly, and efficient heating and cooling all year round.
Control your indoor climate in a smart and efficient way with this multi-zone mini split air conditioner. This 30000 BTU 4 zone mini split ac unit offers effective cooling and heating across multiple zones, making temperature control both efficient and convenient. The Wifi-enabled feature allows temperature adjustments right from your smartphone. With a notable 23 SEER2 rating, this energy star inverter air conditioner exemplifies energy efficiency. 6 modes and 5 wind speeds ensure that your comfort is customizable according to your preferences. For added convenience, a 24-hour timer allows you to set operating times conforming to your daily schedule. Whether sleeping, working from home or resting, the whisper-quiet operation ensures your peace and comfort aren't disturbed.Please note:The installation of this mini split ac unit should be done only by a Licensed HVAC installer.
