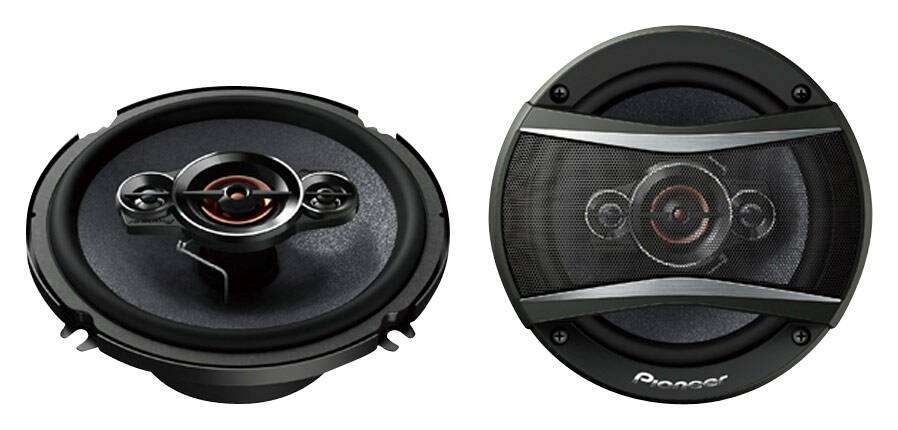

Name: Pioneer - TS-A Series 6.5" 4-Way Coaxial Speakers (Pair) - Black
Brand: Pioneer
SKU: 4609510

Key Specs
- RMS Power: 60 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 350 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Minimum Frequency Response: 32 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 38 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 91 decibels
- Speaker Size: 6-1/2"
- Speaker Type: Coaxial
- Tweeter Composition: PI
- Woofer Composition: Multilayer Mica Matrix
- Woofer Surround Material: Rubber
General
- Brand: Pioneer
- Model Number: TSA1686R
- Product Name: TS-A Series 6.5" 4-Way Coaxial Speakers (Pair)
- Color: Black
- Number Of Speakers: 2
Audio
- RMS Power: 60 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 350 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Minimum Frequency Response: 32 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 38 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Sensitivity: 91 decibels
Features
- Integrated Crossover: true
- Marine: false
- Grille Included: true
Design
- Speaker Size: 6-1/2"
- Speaker Type: Coaxial
- Tweeter Composition: PI
- Woofer Composition: Multilayer Mica Matrix
- Woofer Surround Material: Rubber
Dimensions
- Cutout Diameter: 5.63 inches
- Mount Depth: 2.1875 inches
- Flush Mount: true
- Product Height: 9 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
Other
- UPC: 884938311472

Pioneer TS-A Series Coaxial Speakers (Pair): Listen to your favorite music in your vehicle by adding these coaxial speakers, which feature improved spiders for stiff suspension and accurate audio response. The heat-resistant voice coil wire and cooling baskets with air vents help dissipate heat to handle high power levels.

Geek Squad® Installation Recommended
Visit your local Best Buy store for more information.

Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
Handles up to 350W peak power (60W nominal): For robust audio output.
32Hz - 38kHz frequency response: Promotes accurate cross-spectrum sound.
6.5" Multilayer Mica Matrix woofer cone: Delivers optimal sound reproduction and responsiveness. A lightweight elastic polymer surround offers high sensitivity.
PET tweeter: Creates crisp, detailed highs.
4 ohms impedance: Efficiently conducts power.
5.63" cutout diameter: Allows easy installation in your vehicle.
