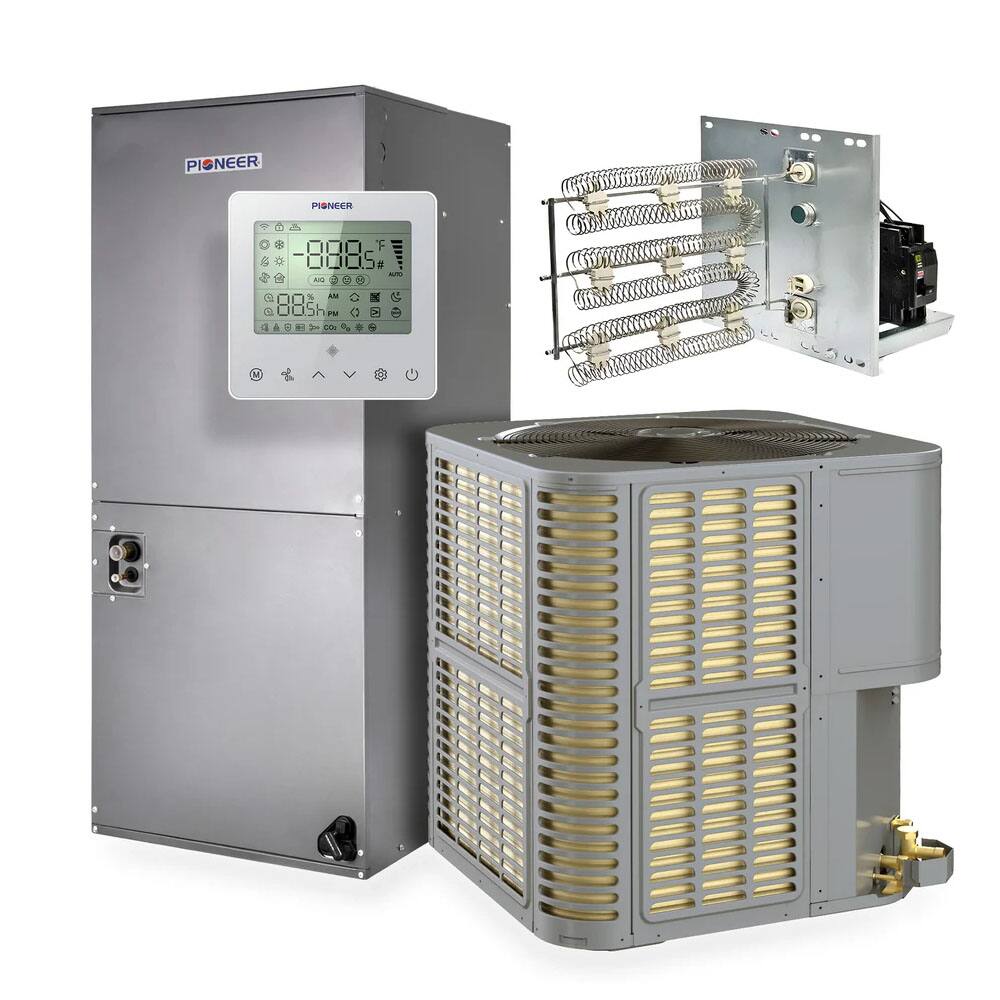

Pioneer - Vertex 56,000 BTU 4.6 17 SEER2 Ducted Central Split Air Conditioner Inverter Heat Pump 230V - Gray
Reviews coming soon
About this product
Ducted air conditioning units provide climate control for multiple rooms using a single system and a network of air ducts. Pioneer's ducted split systems offer whole-house heating and cooling with consistent comfort. Available in various configurations, our units range from 24,000-60,000 BTU with a SEER of 18. Built from quality materials with smart design, they deliver lasting performance.
Features
SWITCHABLE CAPACITY & FUTURE-PROOF REFRIGERANT
This innovative system features field-adjustable capacity settings via dipswitches on the outdoor unit, allowing installers to precisely match the tonnage to the home's specific load requirements. It utilizes the latest low-GWP R454b refrigerant, compliant with new environmental regulations.
ULTIMATE INSTALLATION VERSATILITY

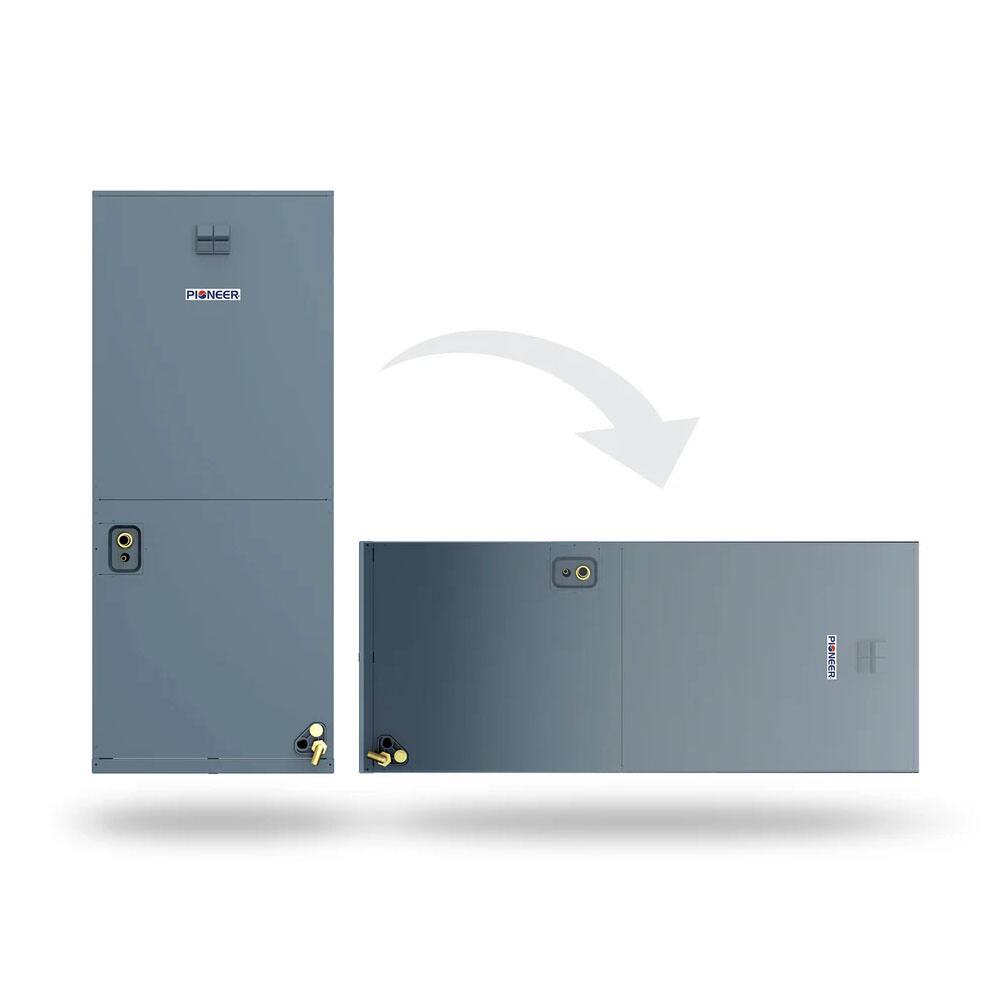

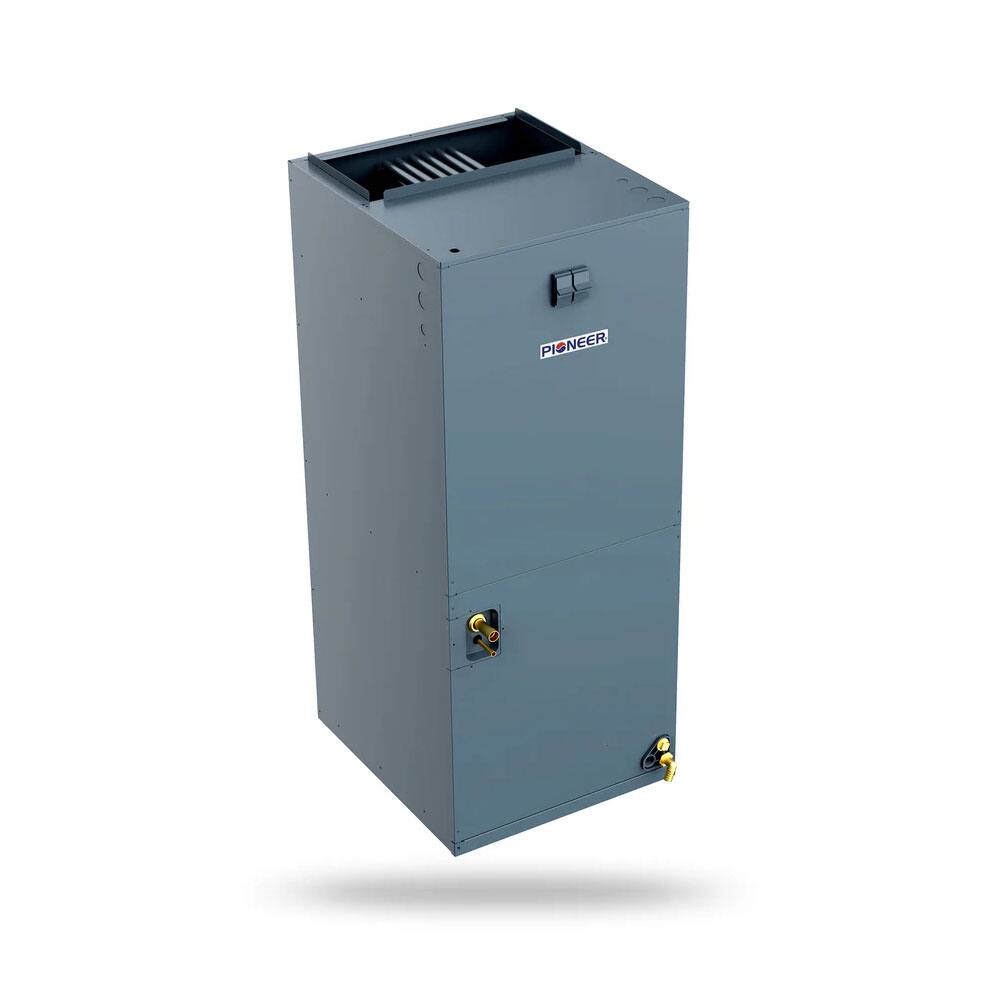

Designed for any home layout. The indoor air handling unit is fully convertible for multi-position applications, supporting Upflow, Downflow, Horizontal Left, or Horizontal Right configurations.
SPACE-SAVING TOP DISCHARGE OUTDOOR UNIT

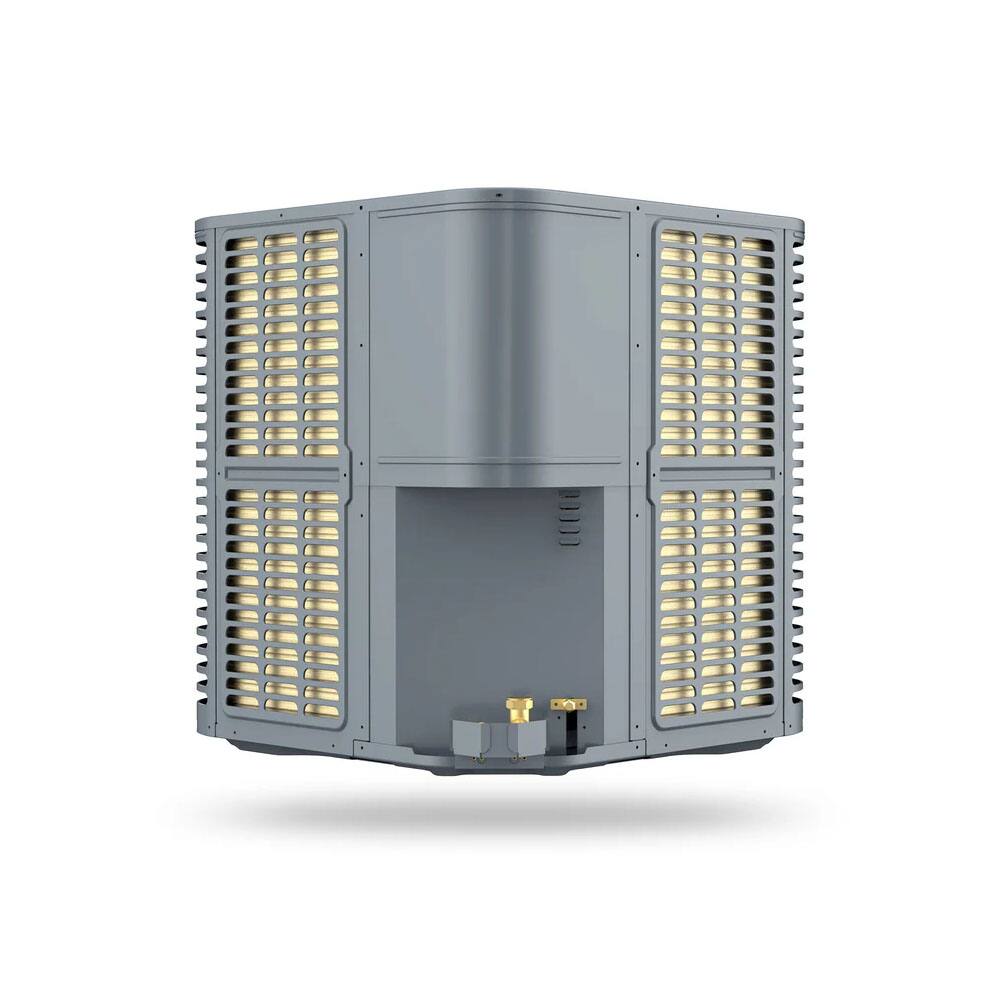

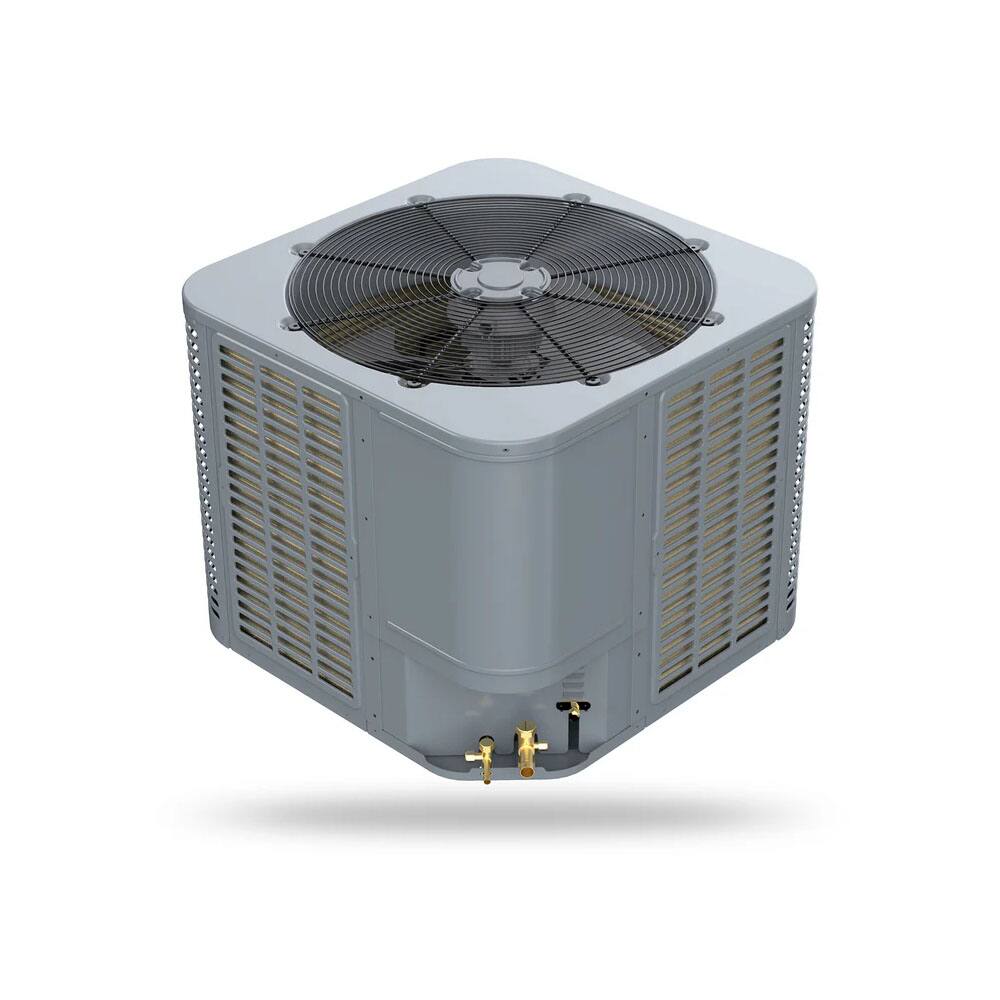

Unlike traditional side-blow condensers, the Vertex outdoor unit features a compact footprint with vertical (top) air discharge. This design is ideal for tight installations between homes or in narrow side yards, as it requires less clearance and directs noise and exhaust upwards away from neighbors.
HIGH-EFFICIENCY COLD CLIMATE PERFORMANCE
Powered by a full DC Inverter variable-speed compressor, this system achieves up to 17 SEER2 for significant energy savings. Most models are Energy Star Cold Climate certified, providing reliable heating performance even when outdoor temperatures drop significantly (maintains high COP at 5°F).
DUAL CONTROL COMPATIBILITY

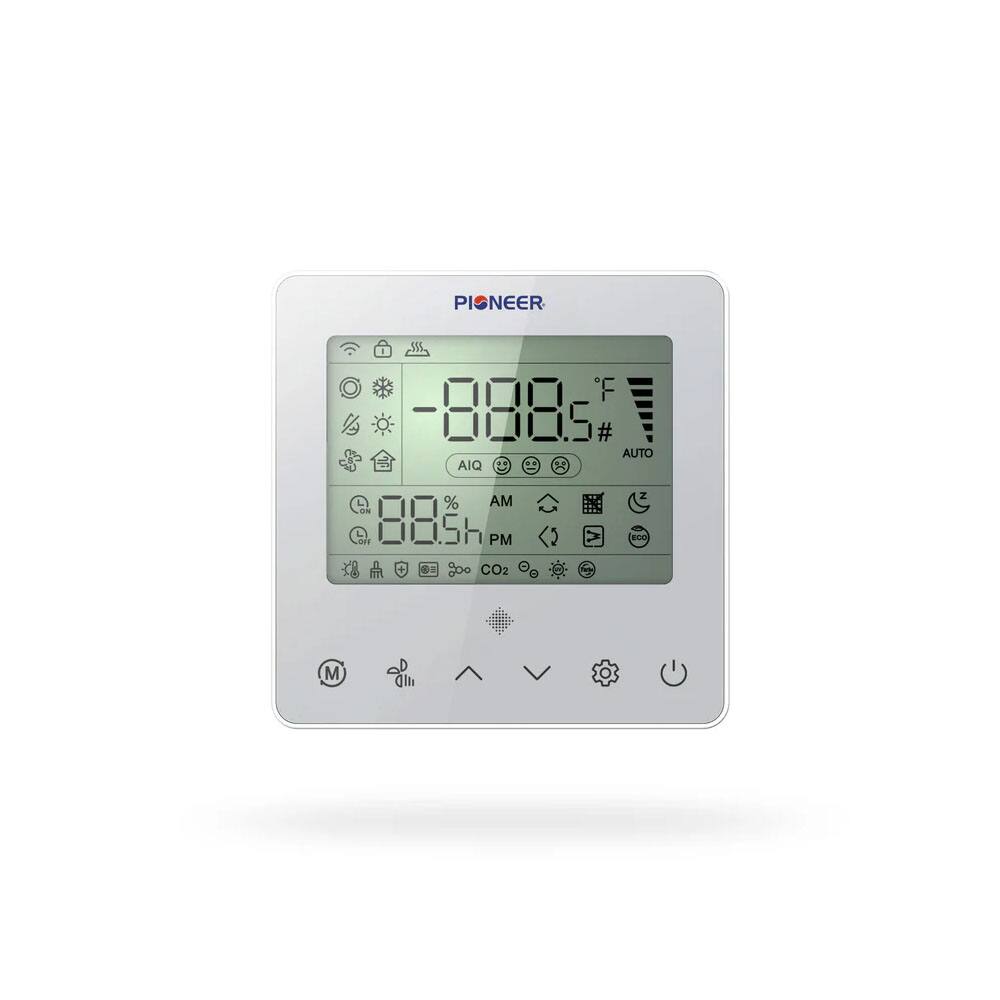

The system comes standard with a proprietary digital RS485 communicating thermostat for maximum efficiency and fully automated variable capacity operation. However, it is also fully compatible with any generic 24V analog thermostat for easy retrofit integration into existing control systems.
Specifications
- Recommended Room Size2800 square feetBTU Cooling Rating55500 british thermal unitsNumber of Cool Settings5Number of Fan Speeds5Airflow Rate1205 cubic feet per minuteRemote ControlYes
Reviews
This product doesn't have any reviews yet.
