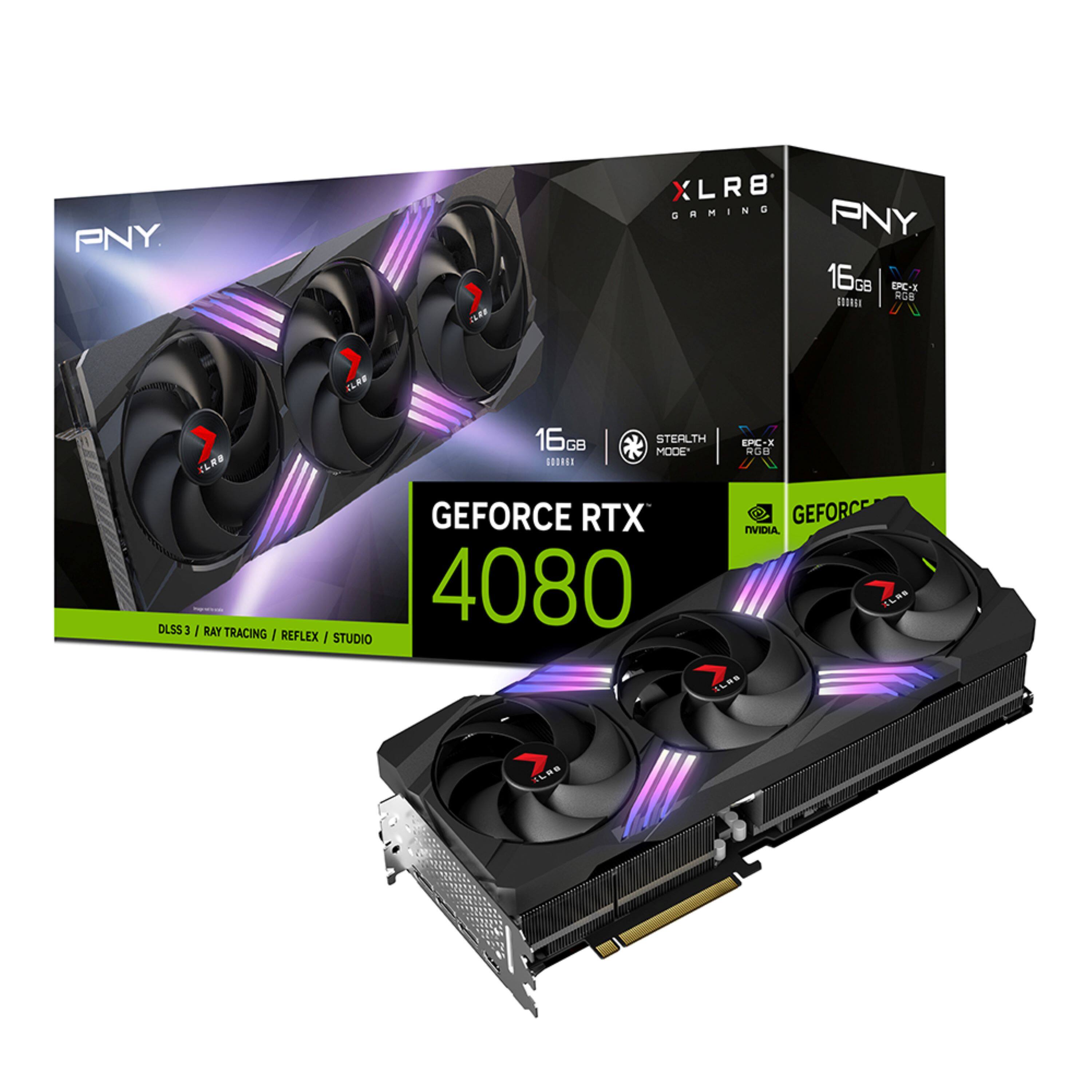

PNY - NVIDIA GeForce RTX 4080 16GB GDDR6X PCI Express 4.0 Graphics Card with Triple Fan and DLSS 3 - Black
- Key Specs
- GPU Base Clock Frequency: 2.205 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.505 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 4-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 4.0
- Product Height: 71.1 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 136.8 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 331.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4080 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: PNY
- Model Number: VCG408016TFXXPB1
- Product Name: NVIDIA GeForce RTX 4080 16GB GDDR6X PCI Express 4.0 Graphics Card with Triple Fan and DLSS 3
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 4080 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2022
- Performance
- GPU Base Clock Frequency: 2.205 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.505 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 3 x DisplayPort 1.4 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Power Connector: One 16-pin to Three 8-pin (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 3 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR6X (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 23 gigahertz
- Compatibility
- Slot Size: 4-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- System Requirements: PCI Express-compliant motherboard with one quadruple-width x16 graphics slot, Three 8-pin power connectors, 750 W system power supply, Microsoft Windows 11 64-bit, Windows 10 (November 2018 or later) 64-bit, Linux 64-bit, Internet connection (The software that a product must have for it to be able to integrate with another product.)
- PCI Express Version: PCI Express 4.0
- Operating System Compatibility: Windows, Linux
- Features
- Included Software: GeForce Experience
- Power
- Total Graphics Power: 320 watts
- Recommended Power Supply: 750 watts
- Dimensions
- Product Height: 71.1 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 136.8 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 331.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 4.23 pounds (The out of box weight of the item.)
- Other
- UPC: 751492756400
NVIDIA GeForce RTX 40 Series GPUs are beyond fast for gamers and creators. They're powered by the ultra-efficient NVIDIA Ada Lovelace architecture which delivers a quantum leap in both performance and AI-powered graphics. Experience lifelike virtual worlds with ray tracing and ultra-high FPS gaming with the lowest latency. Discover revolutionary new ways to create and unprecedented workflow acceleration. The NVIDIA GeForce RTX 4080 (16GB) delivers the ultra performance and features that enthusiast gamers and creators demand. Bring your games and creative projects to life with ray tracing and AI-powered graphics. It’s powered by the ultra-efficient NVIDIA Ada Lovelace architecture and 16GB of superfast G6X memory. The new NVIDIA Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics. It has new Streaming Multiprocessors, 3rd generation Ray Tracing Cores, and 4th generation Tensor Cores. It’s built on a new custom TSMC 4N process, runs with blazing fast clocks, and features a large L2 cache. It enables fast ray tracing, new ways to create, and much more.
- NVIDIA DLSS 3: Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- Graphics processing unit (GPU)/clock speed: NVIDIA Ada Lovelace, with 2205MHz core clock and 2505MHz boost clock speeds to help meet the needs of demanding games.
- On-board memory/memory type/processors/memory bandwidth: 16GB GDDR6X (256-bit) on-board memory, plus 9728 CUDA processing cores and up to 736GB/sec of memory bandwidth provide the memory needed to create striking visual realism.
- Interface: PCI Express 4.0 interface - Offers compatibility with a range of systems. Also includes DisplayPort and HDMI outputs for expanded connectivity.
- NVIDIA GeForce Experience: NVIDIA GeForce Experience - Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. It's the essential companion to your GeForce graphics card.
- NVIDIA DLSS 3: Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing.
- Graphics processing unit (GPU)/clock speed: NVIDIA Ada Lovelace, with 2205MHz core clock and 2505MHz boost clock speeds to help meet the needs of demanding games.
- On-board memory/memory type/processors/memory bandwidth: 16GB GDDR6X (256-bit) on-board memory, plus 9728 CUDA processing cores and up to 736GB/sec of memory bandwidth provide the memory needed to create striking visual realism.
- Interface: PCI Express 4.0 interface - Offers compatibility with a range of systems. Also includes DisplayPort and HDMI outputs for expanded connectivity.
- NVIDIA GeForce Experience: NVIDIA GeForce Experience - Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up to date and optimize your game settings. It's the essential companion to your GeForce graphics card.
Whats Included
- 1x PNY GeForce RTX 4080 16GB XLR8 Gaming VERTO EPIC-X RGB Triple Fan Graphics Card DLSS 3
- 1 x Support Bracket Included
- 1 x One 16-pin to Three 8-pin Power Cable Included
- 1x PNY GeForce RTX 4080 16GB XLR8 Gaming VERTO EPIC-X RGB Triple Fan Graphics Card DLSS 3
- 1 x Support Bracket Included
- 1 x One 16-pin to Three 8-pin Power Cable Included
Q: Does this card come with connector cables or do I need to buy my own?
A: It comes with 1 power adapter that requires 3 VGA power cables from your psu to connect to it.
Q: Does the 12VHPWR connector cable remain a concern for melting?
A: User error, very few cases reported, ensure retention clip engages properly.
Q: Can the RGB lights on this be changed to red?
A: Yes, using the VelocityX software provided by PNY.
Q: when is the drop for this item?
A: undefined
A: It won't matter what time you are on. The scalpers with their bots will have bought out every single card within seconds of the release. If you want a card you will have to buy from a scalper at twice the msrp or more. This is happening because Best Buy isn't selling the cards from the stores but only online where you don't stand a chance of getting one. You would think that they would take better care of their customers than this but this must be the cheapest way for them to sell out without the trouble of actually sending products to the stores. This is the same way the 30 series cards were handled and you couldn't get one in a store for almost a year.
