Power Acoustik - Gothic Series 10" Dual-Voice-Coil 2-Ohm Subwoofer - Black
Model: GW3-10
SKU: 8927746
This item is no longer available in new condition. See similar items below
- Key Specs
- RMS Power: 1000 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 2200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 2 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 30 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 81.3 decibels
- Dual Voice Coils: true
- Woofer Size: 10"
- Mount Depth: 6 inches
- Woofer Composition: Twisted & Woven Flax Fiber Con
- Woofer Surround Material: Rubber
- General
- Brand: Power Acoustik
- Model Number: GW3-10
- Product Name: Gothic Series 10" Dual-Voice-Coil 2-Ohm Subwoofer
- Color: Black
- Audio Power
- RMS Power: 1000 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 2200 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Integrated Amplifier: false
- Audio
- Impedance: 2 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Minimum Frequency Response: 30 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 0.25 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Sensitivity: 81.3 decibels
- Features
- Dual Voice Coils: true
- Grille Included: false
- Marine: false
- Dimensions
- Woofer Size: 10"
- Cutout Diameter: 9.6 inches
- Mount Depth: 6 inches
- Magnet Size: 204 ounces
- Product Height: 11.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11.63 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 17.5 pounds (The out of box weight of the item.)
- Design
- Woofer Composition: Twisted & Woven Flax Fiber Con
- Woofer Surround Material: Rubber
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 709483046443

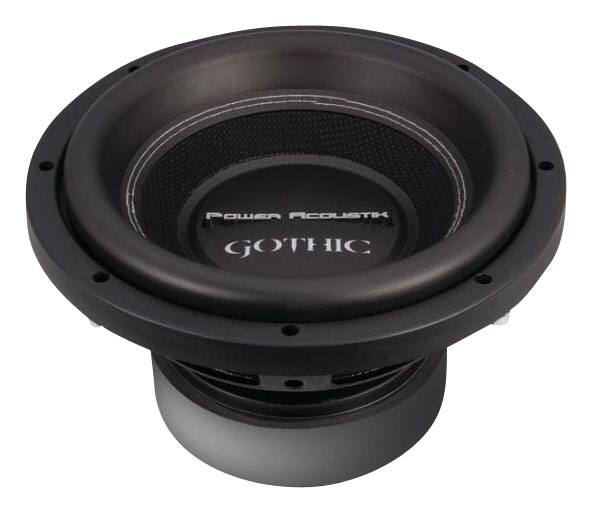

This 10 in. 2,200 watt Gothic Series 2-Ohm Dual Voice-Coil Subwoofer from Power Acoustik use torsion-twisted flax fibers that are woven together for ultimate strength and less elasticity. A heavy soaking in epoxy combined with the sonic qualities of pulp paper, flax proves itself worthy of any system. A strong and flexible heat-resistant compound, nitrile butadiene rubber is used widely in automotive applications. Gothic woofers also utilize an extended excursion NBR surround for its strength and flexible properties during extreme movement.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 2200W maximum power (1000W RMS): For rich, dynamic bass.
- 9-5/8" mounting diameter; 6" mounting depth: For a proper fit.
- 10" twisted, woven flax-fiber woofer cone: With an overcast stitched-cone assembly delivers booming lows.
- Dual 2-ohm voice coils: Conduct power evenly to keep the subwoofer at an appropriate level.
- NBR (nitrile butadiene rubber) surround: Offers strength and durability.
- Back plate and T-Yoke venting: Helps dissipate heat effectively for optimal performance.
- Nickel-plated compression terminals: Ensure a simple and secure connection.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 2200W maximum power (1000W RMS): For rich, dynamic bass.
- 9-5/8" mounting diameter; 6" mounting depth: For a proper fit.
- 10" twisted, woven flax-fiber woofer cone: With an overcast stitched-cone assembly delivers booming lows.
- Dual 2-ohm voice coils: Conduct power evenly to keep the subwoofer at an appropriate level.
- NBR (nitrile butadiene rubber) surround: Offers strength and durability.
- Back plate and T-Yoke venting: Helps dissipate heat effectively for optimal performance.
- Nickel-plated compression terminals: Ensure a simple and secure connection.
Whats Included
- Power Acoustik Gothic Series 10" Dual-Voice-Coil 2-Ohm Subwoofer
- Owner's manual
- Power Acoustik Gothic Series 10" Dual-Voice-Coil 2-Ohm Subwoofer
- Owner's manual
Product Manuals
Q: Can this sun be ran with a 1 ohm stable audiopipe 1000 watt amp
A: No. It has to be 4ohm subs.
Q: Whats would be the best amp to run 2 of the gothic gw3-12
A: These are dual 2ohm. So you want to find an amplifier that produces up to 2000rms at .5 or 2ohm.
A: yes that amp will work and sound decent but the sub would be under powered! i’ve got a power acoustic razor 2500 watt powering one 12 and it hits hard!! had 2 of the 12’s on that amp but needed a bigger amp so i deleted one sub until i can upgrade my amp
