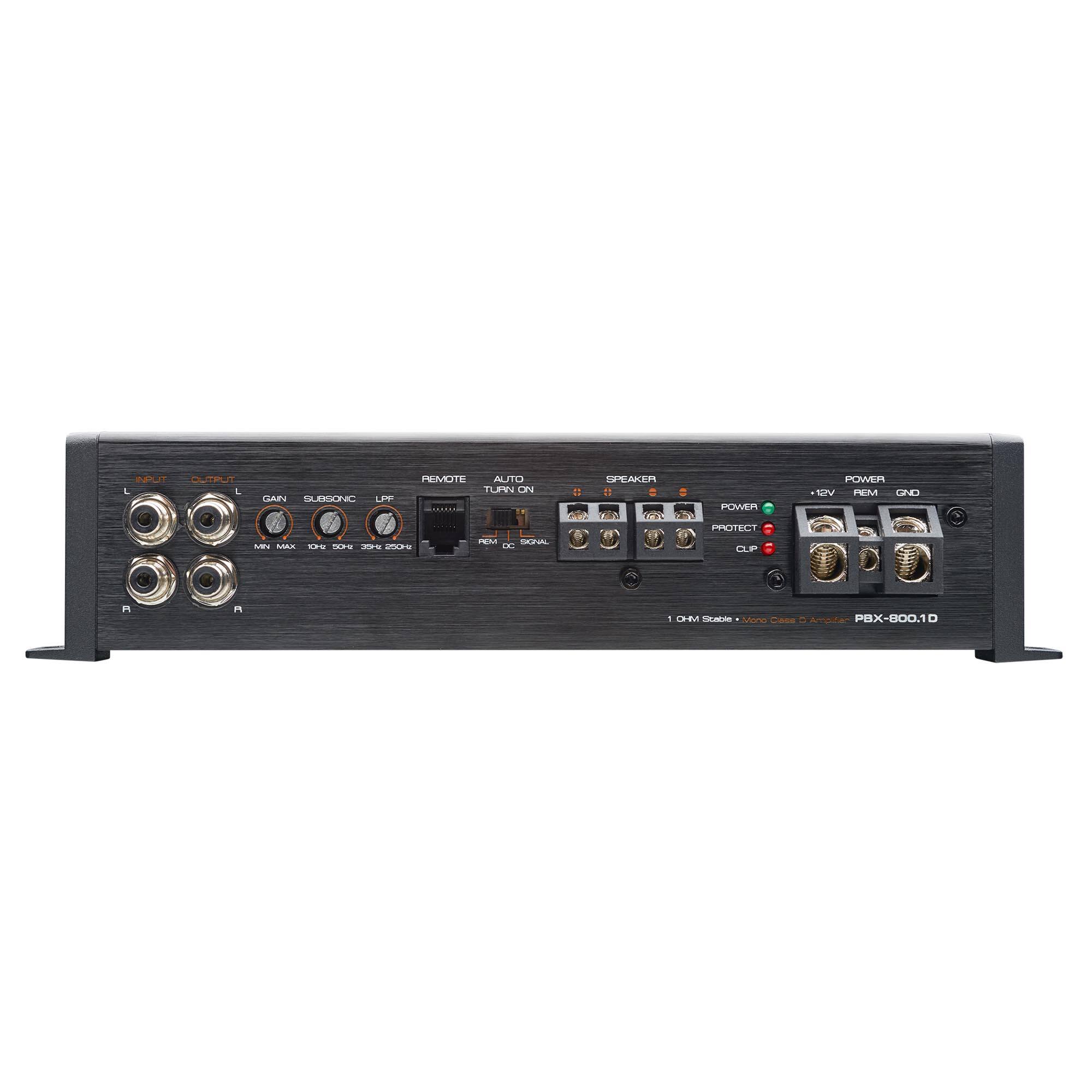

Powerbass - PBX-800.1D - Mono Class D 600W x 1 (2 ohm), 800W x 1 (1 ohm) Amplifier - Black/Gray
Specifications
- Amplifier ClassDNumber Of Channels1Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Powerbass
- Model Number: PBX-800.1D
- Product Name: PowerBass PBX-800.1D - Mono Class D 600W x 1 (2 ohm), 800W x 1 (1 ohm) Amplifier
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 800 watts
- Total Power Handling Maximum: 1600 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 1
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 12.500 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.750 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.500 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 6.0 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 823871009633
800 Watt High Efficiency Class D Design Front Load Terminal Design 1-OHM Stable Mono Block Amplifier Ultra Low Current Draw Double Sided Copper Plated PCB PWM MOSFET Power Supply Digital Sound Optimization Circuitry High Damping Control Circuit Variable Subsonic Filter High Current Voltage Ripple Rejection Circuitry Balanced RCA Inputs Selectable Auto Turn On Circuit Remote Soft Delay Turn On/Off Circuit 40 Click Variable Low Pass Electronic Crossover Variable Gain Control Wired Secondary Remote Gain Control Included Calibrated Visual Clipping Indicator Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output Specifications Peak Power: 1600 watts Subwoofer Frequency Range: 10Hz - 300 Hz Dimensions (in Inches): 10.25x7x2.25 Depth: 10.25 Channels (mono): 1 4-ohm Power: 400 watts x 1 4-ohm Mono Power: 400 watts x 1 2-ohm Power: 600 watts x 1 1-ohm Mono Power: 800 watts x 1 Nominal Impedance: 1 Height: 2.25 Width: 7 Subwoofer EQ Frequency: 40 Hz- 100 Hz Low-Pass Crossover Freq: 35 Hz - 250 Hz High-Pass Crossover Freq: N/A Crossover Slope: 24 dB Input Sensitivity: 0.25 V - 7 V S/N Ratio: >95 dB Strapped Output Power @ 2ohms: 1600 watts x 1 Output Power (14.4 V) @ 4 ohm: 400 watts x 1 Output Power (14.4 V) @ 2 ohm: 600 watts x 1 Output Power (14.4 V) @ 1 ohm: 800 watts x 1 Frequency Response: 10 Hz - 300 Hz
- Key Feature: 800 Watt High Efficiency Class D Design
- Key Feature: Front Load Terminal Design
- Key Feature: 1-OHM Stable Mono Block Amplifier
- Key Feature: Ultra Low Current Draw
- Key Feature: Double Sided Copper Plated PCB
- Key Feature: 800 Watt High Efficiency Class D Design
- Key Feature: Front Load Terminal Design
- Key Feature: 1-OHM Stable Mono Block Amplifier
- Key Feature: Ultra Low Current Draw
- Key Feature: Double Sided Copper Plated PCB
Whats Included
- PowerBass PBX-800.1D - Mono Class D 600W x 1 (2 ohm), 800W x 1 (1 ohm) Amplifier
- PowerBass PBX-800.1D - Mono Class D 600W x 1 (2 ohm), 800W x 1 (1 ohm) Amplifier
