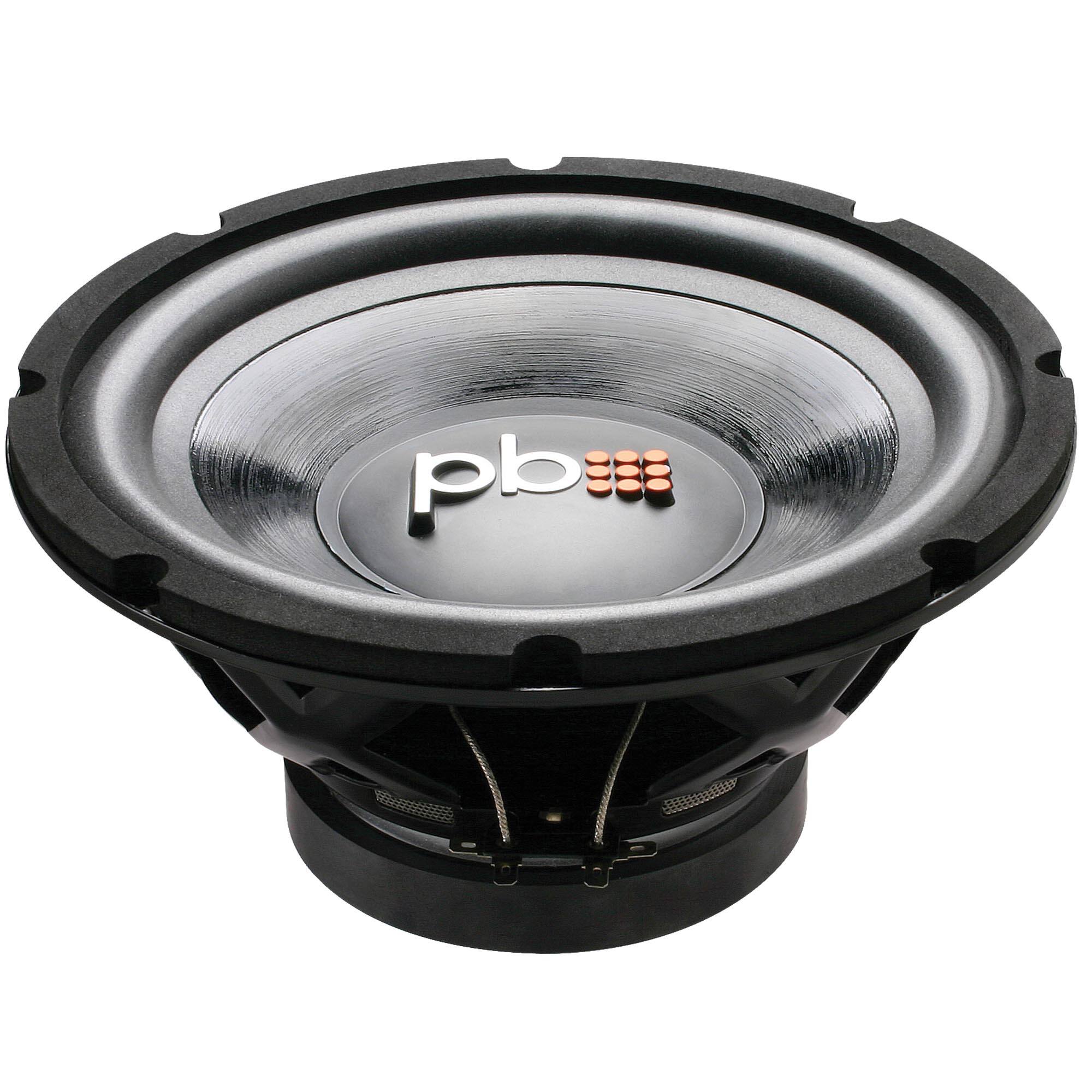

Powerbass - PS-10 - 10" Single 4-Ohm Subwoofer - Black/Gray
Woofer Size
10"Specifications
- RMS Power225 wattsWoofer Size10"
- Key Specs
- RMS Power: 225 watts (The maximum amount of continuous power the device is able to handle.)
- Woofer Size: 10"
- General
- Brand: Powerbass
- Model Number: PS-10
- Product Name: PowerBass PS-10 - 10" Single 4-Ohm Subwoofer
- Color: Black/Gray
- Audio Power
- RMS Power: 225 watts (The maximum amount of continuous power the device is able to handle.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 10"
- Product Height: 11.800 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.500 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.900 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 9.5 pounds (The out of box weight of the item.)
- Enclosure
- Enclosed: true
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 823871002436
PowerBass PS-10 10" Subwoofer 4-Ohm Subwoofer These woofers have a 2" BASV voice coils that you would normally find on a more expensive subwoofer. This large voice coil and former insures increased power handling and better linear travel. Versatility is what our engineers were tasked with designing these PS Subwoofers. They have the PowerBass DNA to be optimized for both sealed and ported enclosures so no matter what kind of music you listen to, they will perform! Features - • 10" Single 4-Ohm Woofer • 225 watt RMS/450 Watts Max • DDC Treated Paper Cone • 4-Layer Treated Foam Surround • 2" BASV Voice Coil Former • Stamped Steel Basket • Optimized for Sealed or Ported Enclosures Specifications - • Nominal Impedance: 4-ohm • BL: 11.84 • Voice Coil Size: 2 in • Material: DDC coated paper cone • Magnet Size: 40 oz • Sensitivity (1W / 1M): 90 db • Cutout Diameter: 9 1/8" • Mounting Depth: 5.09 in • Spl: 90 dB • No: 0.256% • Qts: 0.44 • Qes: 0.47 • Qms: 6.91 • Mms: 104.23 g • Cms: 227.34 uM/N • Vas: 35.86 Ltr • SD: 333.29 sqCM • Fs: 32.7hz • Test Impedance: 3.1-ohm • VC Impedance: 4-ohm • Size: 10 in • Sensitivity: 90 db • Frequency Response: 33hz - 500hz • Voice Coil Size: 2" • Power Handling (RMS/Peak): 225 / 450 watts
- Key Feature: 10" Single 4-Ohm Woofer
- Key Feature: 225 watt RMS/550 Watts Max
- Key Feature: 4-Layer Treated Foam Surround
- Key Feature: 2" BASV Voice Coil Former
- Key Feature: Optimized for Sealed or Ported Enclosures
Whats Included
- PowerBass PS-10 - 10" Single 4-Ohm Subwoofer
