PYLE - Bluetooth In-Wall Receiver - Black
FREE shipping to
Related Item
Specifications
- Continuous Watts x Channel @ Ohms4Number of Channels4Network Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 4
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Network Connector(s): No network connectors
- General
- Brand: PYLE
- Model Number: PWA15BT
- Product Name: Bluetooth In-Wall Receiver
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 4
- Number of Channels: 4 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Amplifier Type: Power amplifiers
- Inputs
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: RCA
- Video Only Outputs: 1 x Component video (The number and type of video signal only outputs the product has.)
- Dimensions
- Product Height: 3.35 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.13 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.57 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.98 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 068888757270
Control Bluetooth wireless music streaming in any room with the Pyle In-Wall Amplifier System. This wall plate receiver adds convenient microphone paging ability along with simple source audio control. Install the system on any wall in the home or office to unlock versatile sound configuration that is easily accessible. Built-in Bluetooth allows you to stream music to a connected intercom or speaker system hassle-free. Enjoy features like rotary control volume adjustment 1/4 mic input USB port for device charging -- along with an Aux (3.5mm) audio jack for connecting and streaming audio from external devices. The rear panel speaker terminal block allows you to connect the receiver to a pair of speakers. Universal standard size gang plate fits most deep electrical boxes and allows for a clean installation. Add convenient audio control with the Pyle PWA15BT In-Wall / Wall Plate Bluetooth Audio Control Receiver.
DETAILS
Features:

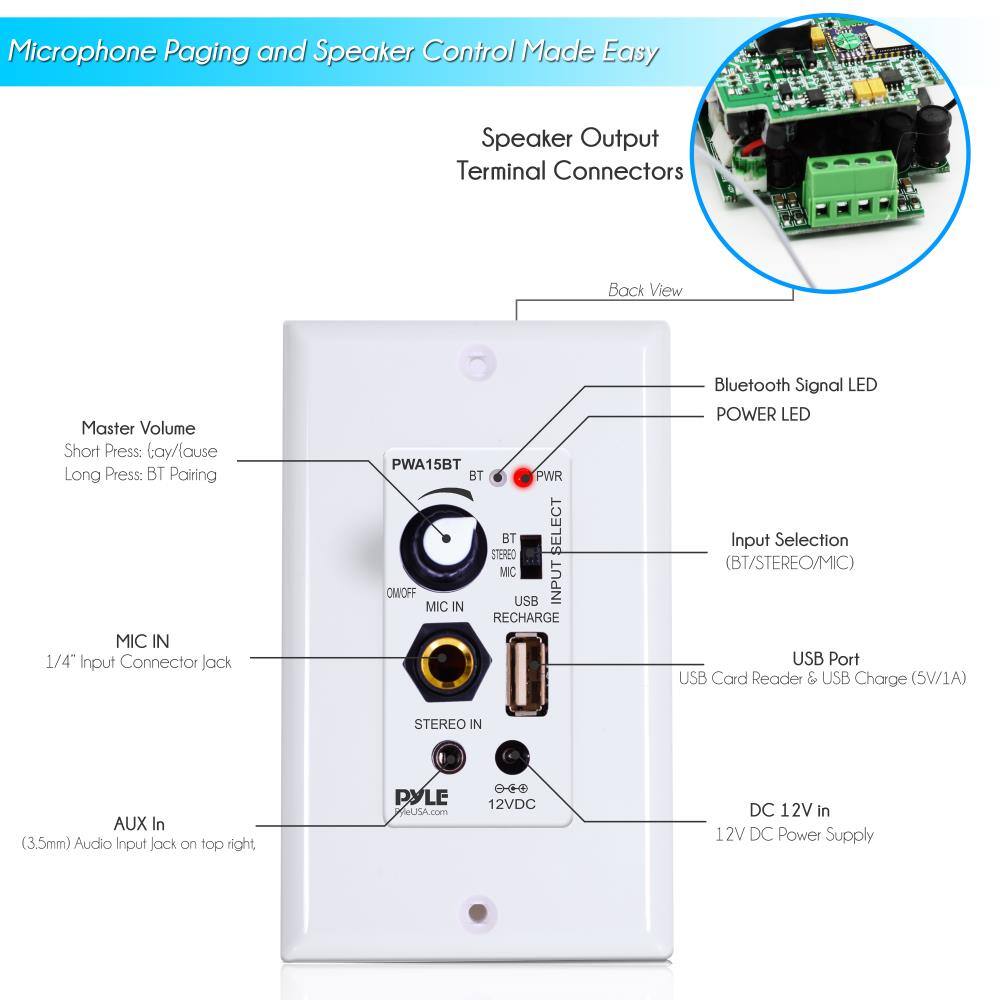

- Microphone Paging and Speaker Control Made Easy
- Bluetooth Wireless Music Streaming Ability
- In-Wall Audio Control Receiver with Built-in Amplifier
- Universal Gang Box / Wall Plate Standard Size
- Can be Hard-Wired or Powered via Included Power Cable
- Aux (3.5mm) Input
- Connect & Stream Audio from Your Favorite Devices
- (Smartphones Tablets MP3 Players Laptops Computers etc.)

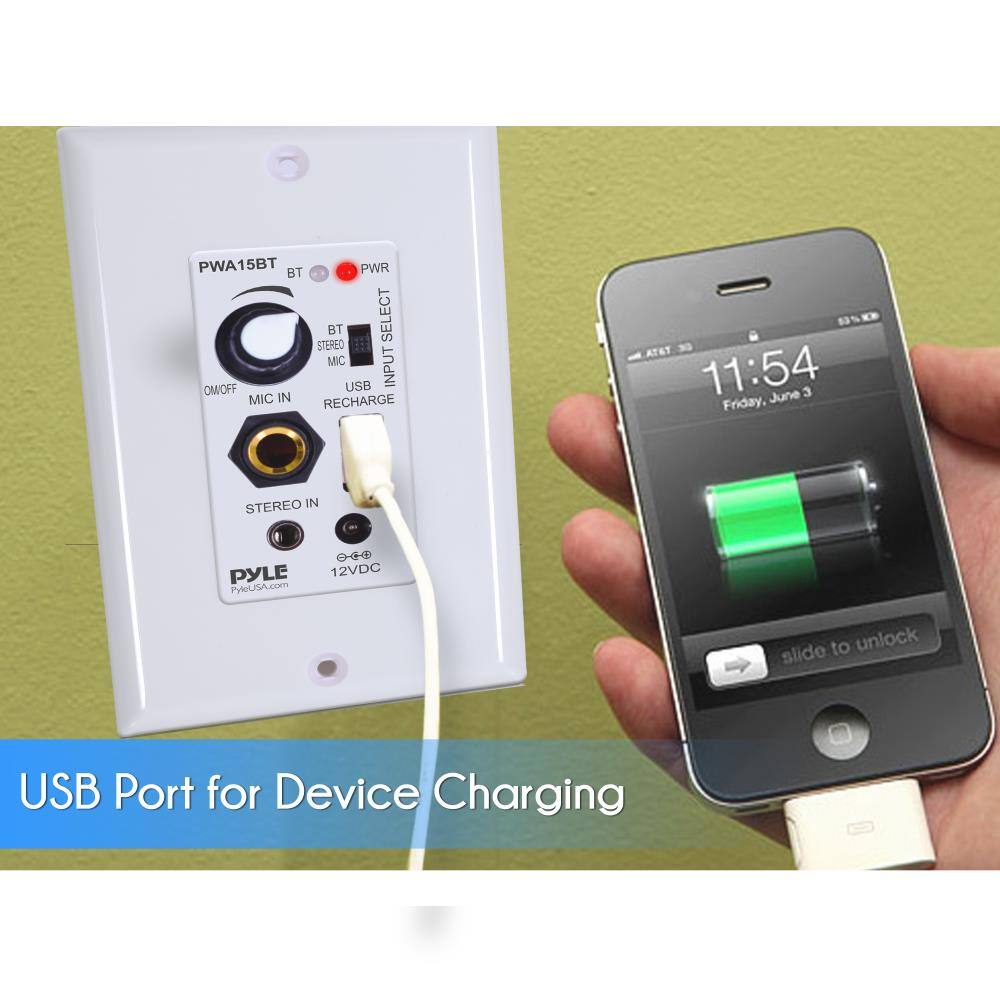

- USB Port for Device Charging
- 1/4 Microphone Input
- Rotary Master Volume Level Control
- Speaker Terminal Block Connect (2) Speakers
- Input Selector Switch (Stereo Mic Bluetooth)
- LED Indicator Lights
- Power ON/OFF Switch
- Perfect for Home or Office Applications
- Built-in Safety: Circuit and Overload Protection
- Accessories Included: Power Adapter & Wall Plate Cover
- *Power Supply Cable Available Model Sold Separately: PS5A
- *Mic Only Works When Switched to Microphone Mode
Bluetooth Connectivity:
- Controller Receives & Directs Bluetooth Wireless Audio
- Works with All of Your Favorite Devices:
- (Smartphones MP3 Players Tablets Laptops Computers etc.)
- Bluetooth Network Name: PYLEUSA (No Password Required)
- Bluetooth Version: 4.0
- Wireless Range: 30 Feet (10 Meters)

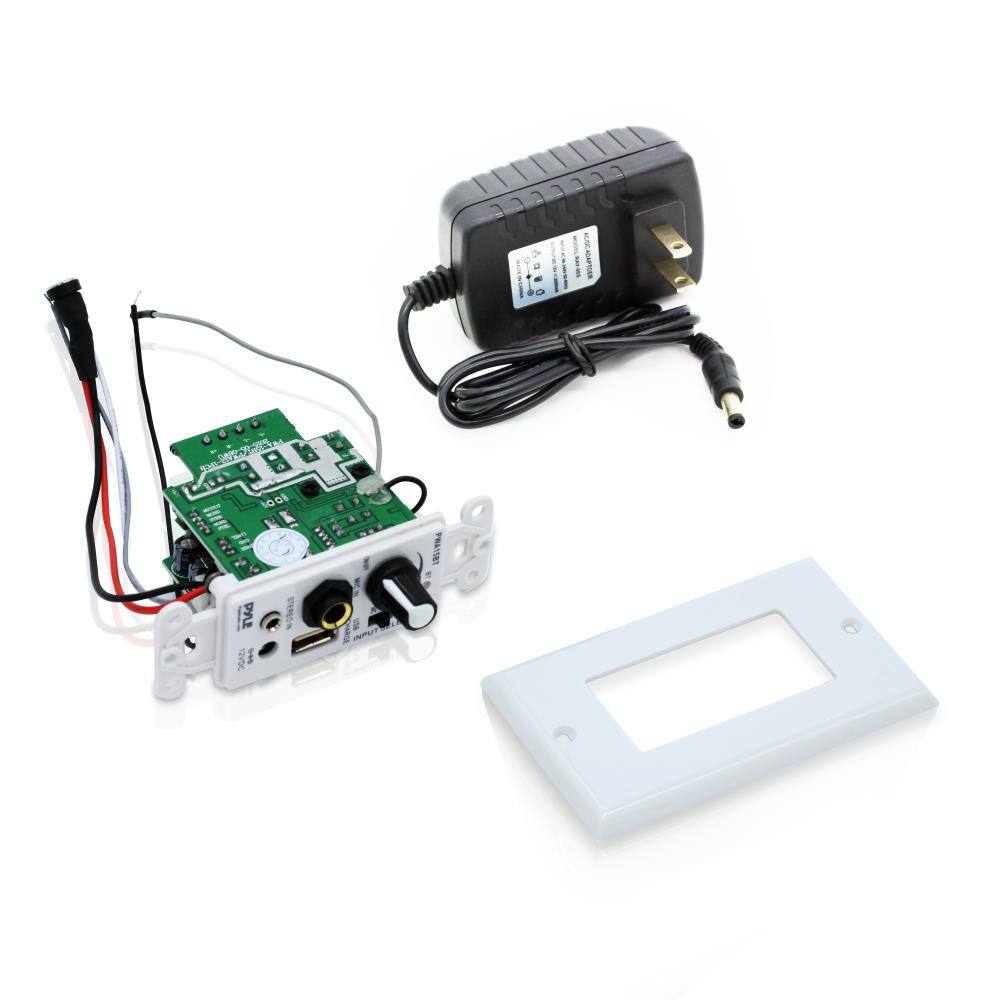

What’s In The Box:
- Bluetooth In-Wall Receiver
- Power Adapter
Technical Specs:
- Power Output: 100 Watt Peak 40 Watt RMS
- Construction Material: Engineered ABS
- Mic Input Type: Dynamic
- Power Amp Type: Stereo Class-T
- Minimum Load Resistance: 4 Ohm
- T.H.D.: 0.06% (8 Ohm 1 kHz)
- Power Draw: 2 Amps
- Power: AC 120-240V 50/60Hz (12V DC Adapter)
- Product Dimensions (LxWxH): 2.76” x 3.35” x 4.53” -inches
Whats In The Box
- Microphone Paging and Speaker Control Made Easy: Bluetooth Wireless Music Streaming Ability
- In-Wall Audio Control Receiver with Built-in Amplifier: Universal Gang Box / Wall Plate Standard Size
- Can be Hard-Wired or Powered via Included Power Cable: Aux (3.5mm) Input
- Connect & Stream Audio from Your Favorite Devices: (Smartphones, Tablets, MP3 Players, Laptops, Computers, etc.)
- USB Port for Device Charging: 1/4'' Microphone Input
- Microphone Paging and Speaker Control Made Easy: Bluetooth Wireless Music Streaming Ability
- In-Wall Audio Control Receiver with Built-in Amplifier: Universal Gang Box / Wall Plate Standard Size
- Can be Hard-Wired or Powered via Included Power Cable: Aux (3.5mm) Input
- Connect & Stream Audio from Your Favorite Devices: (Smartphones, Tablets, MP3 Players, Laptops, Computers, etc.)
- USB Port for Device Charging: 1/4'' Microphone Input
Whats Included
- 1
- 1
