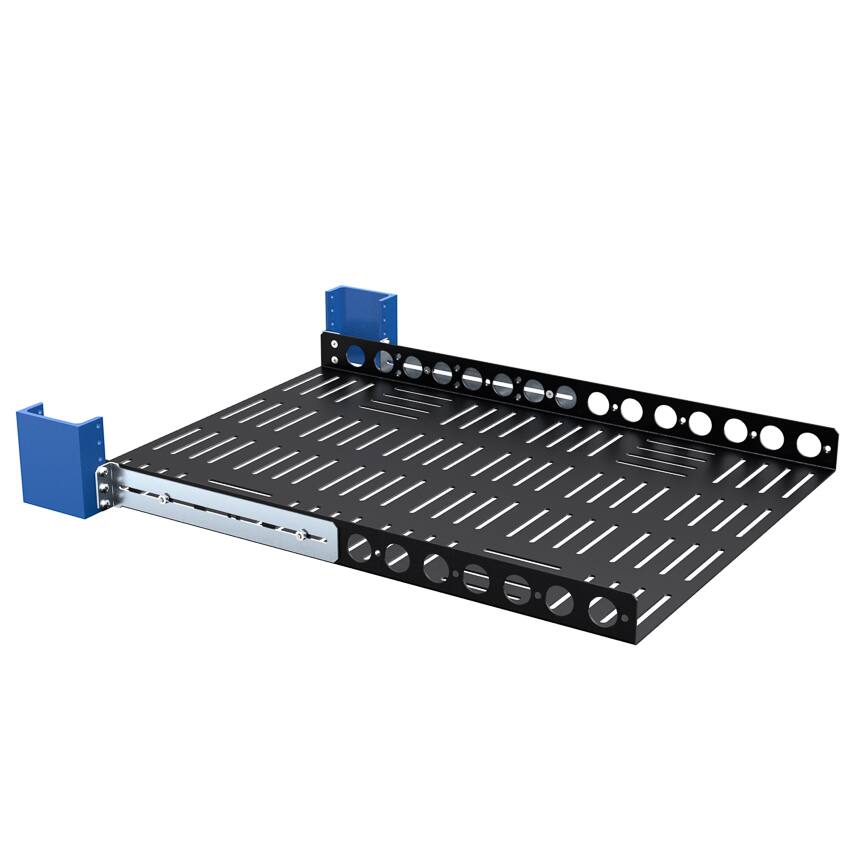

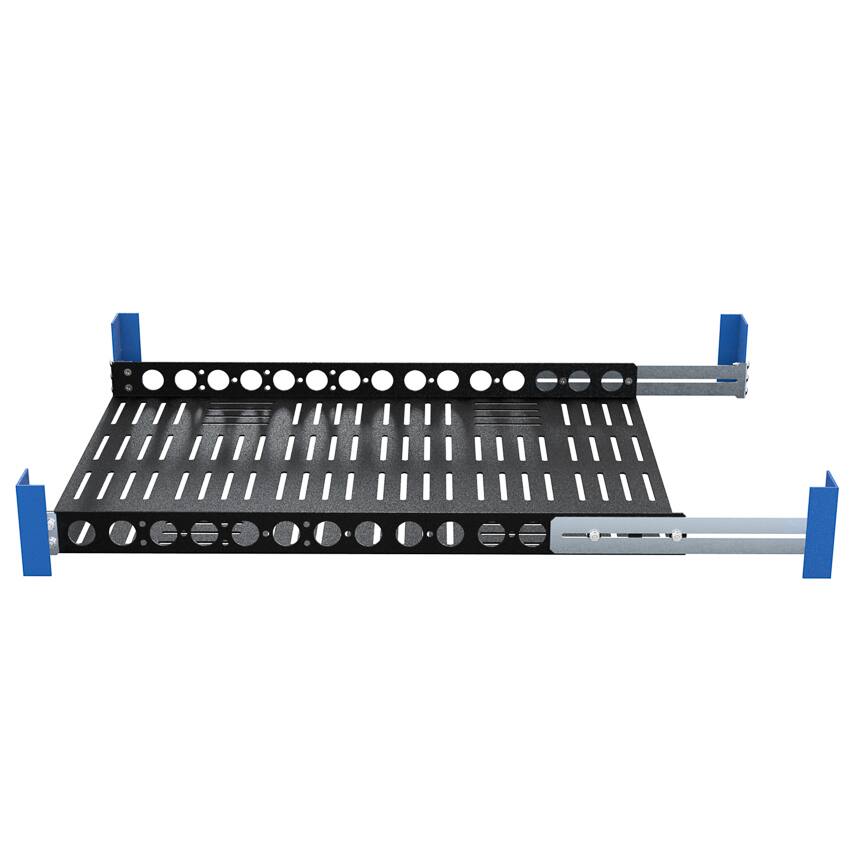

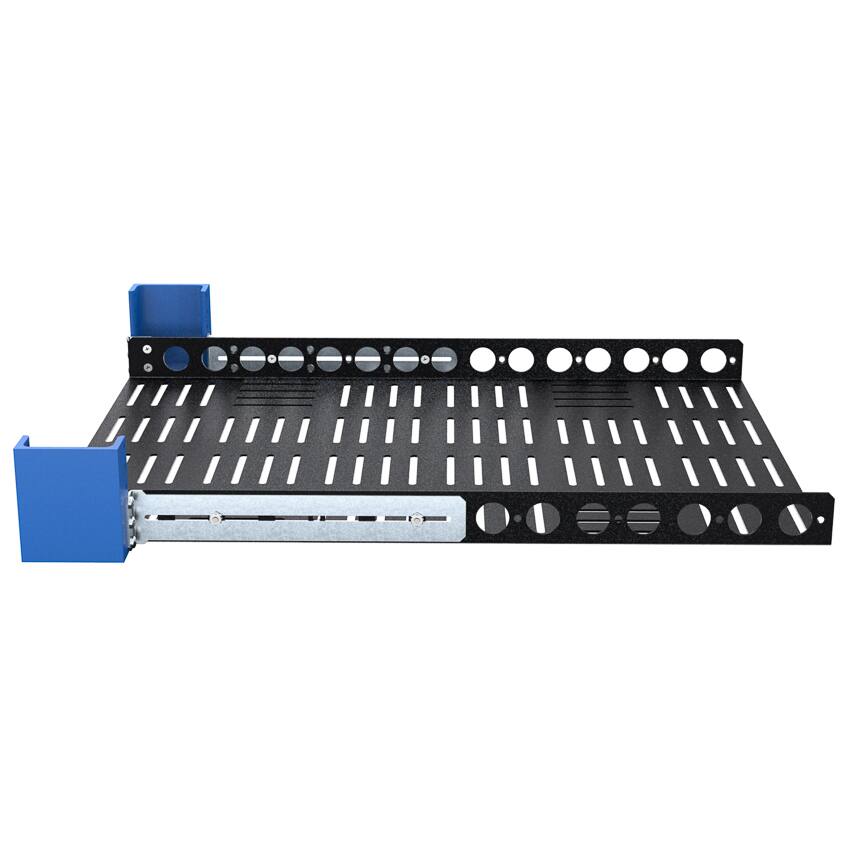

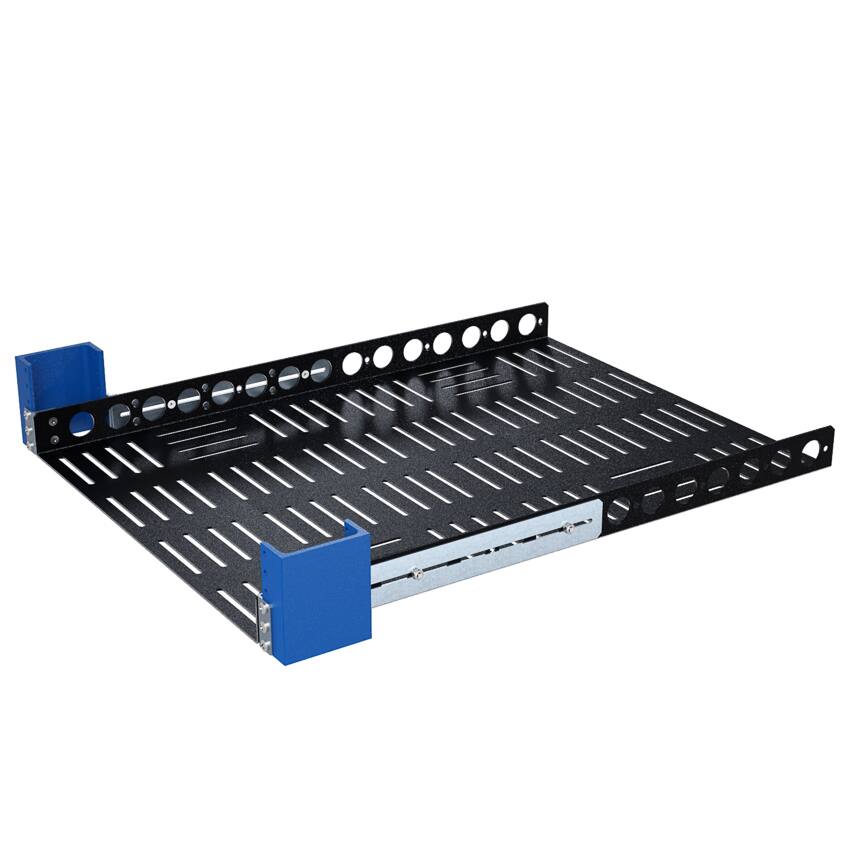

RackSolutions - 1U Light Duty Fixed Shelf 24in Depth - Black

Model: 108-4013
SKU: 10183748

Reviews coming soon

Sold & shipped by

About this product

The RackSolutions 1U Light Duty Fixed Shelf holds the equipment in a rack that has no rack ears: server towers, printers, desktop PCs and similar. It is built from US steel and supports up to 100 lbs, 45.36 kg. Mounting depth adjusts from 3in to 29.75in, 76 to 755 mm, which is an unusually wide range and lets the same shelf serve shallow wall cabinets and full-depth racks. It fits any 2Post or 4Post rack with square, round or threaded holes. The vented surface keeps air moving and includes pass-throughs so cable ties can anchor equipment directly to the shelf. An anti-slip mat is supplied. The shelf can be mounted either way up: one orientation gives maximum usable width, the other consumes the least rack space.

Features
  • US steel construction

    supports up to 100 lbs, 45.36 kg, for server towers, printers and desktop PCs

  • Fits 2Post and 4Post

    mounting depth adjusts from 3in to 29.75in, 76 to 755 mm, in square, round or threaded holes

  • Vented with tie pass-throughs

    airflow moves through the shelf and cable ties pass through the surface for anchoring

  • Anti-slip mat included

    keeps equipment in position on the surface rather than creeping toward the edge

  • Reversible mounting

    fit it one way for maximum usable width or the other for minimum U space consumed

Specifications
  • Brand
    RackSolutions
    Model Number
    108-4013
    Product Name
    RackSolutions 1U Light Duty Fixed Shelf 24in Depth
    Color
    Black
    Product Type
    Wall mount
    Compatibility
    Universal
