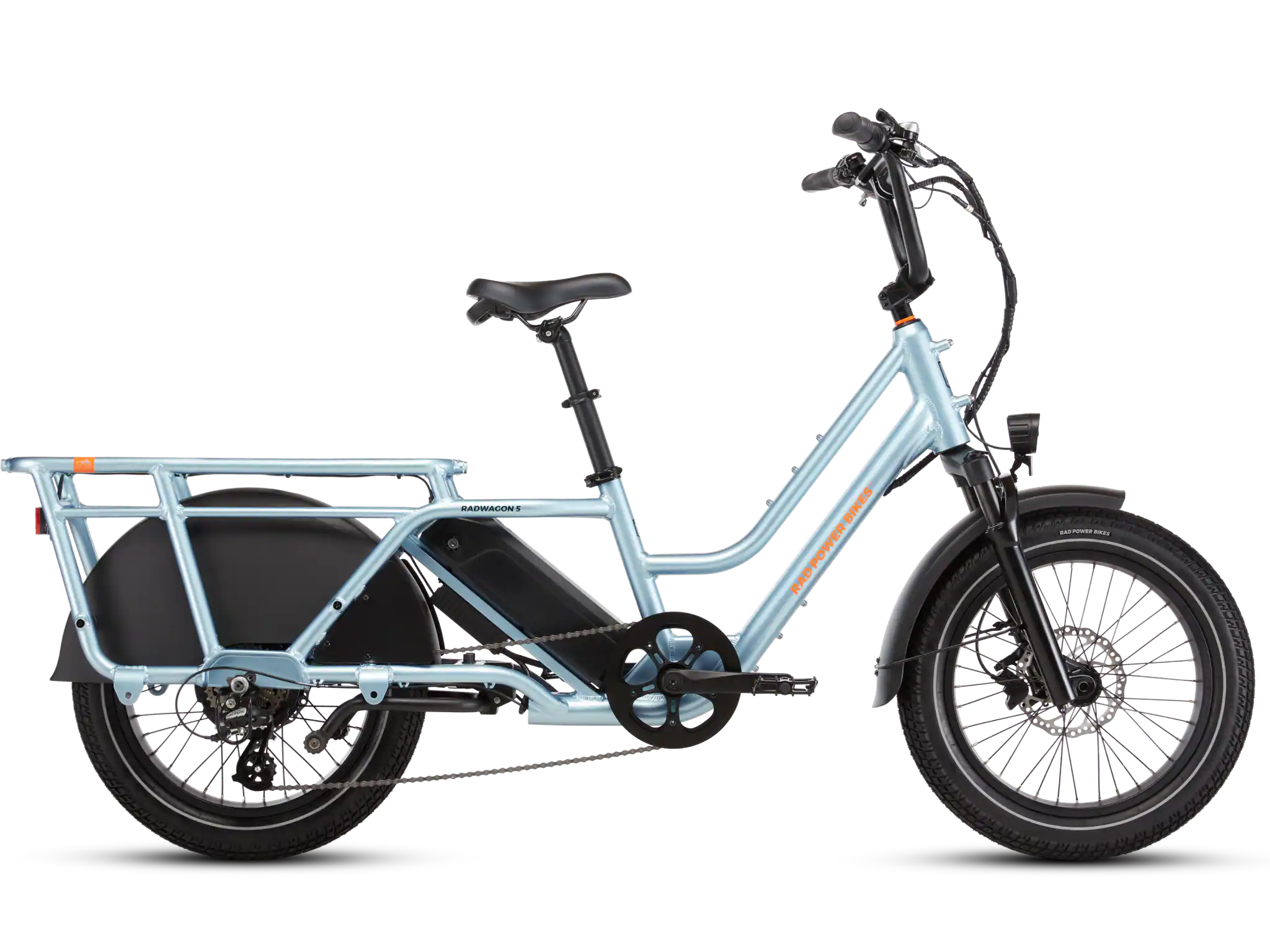

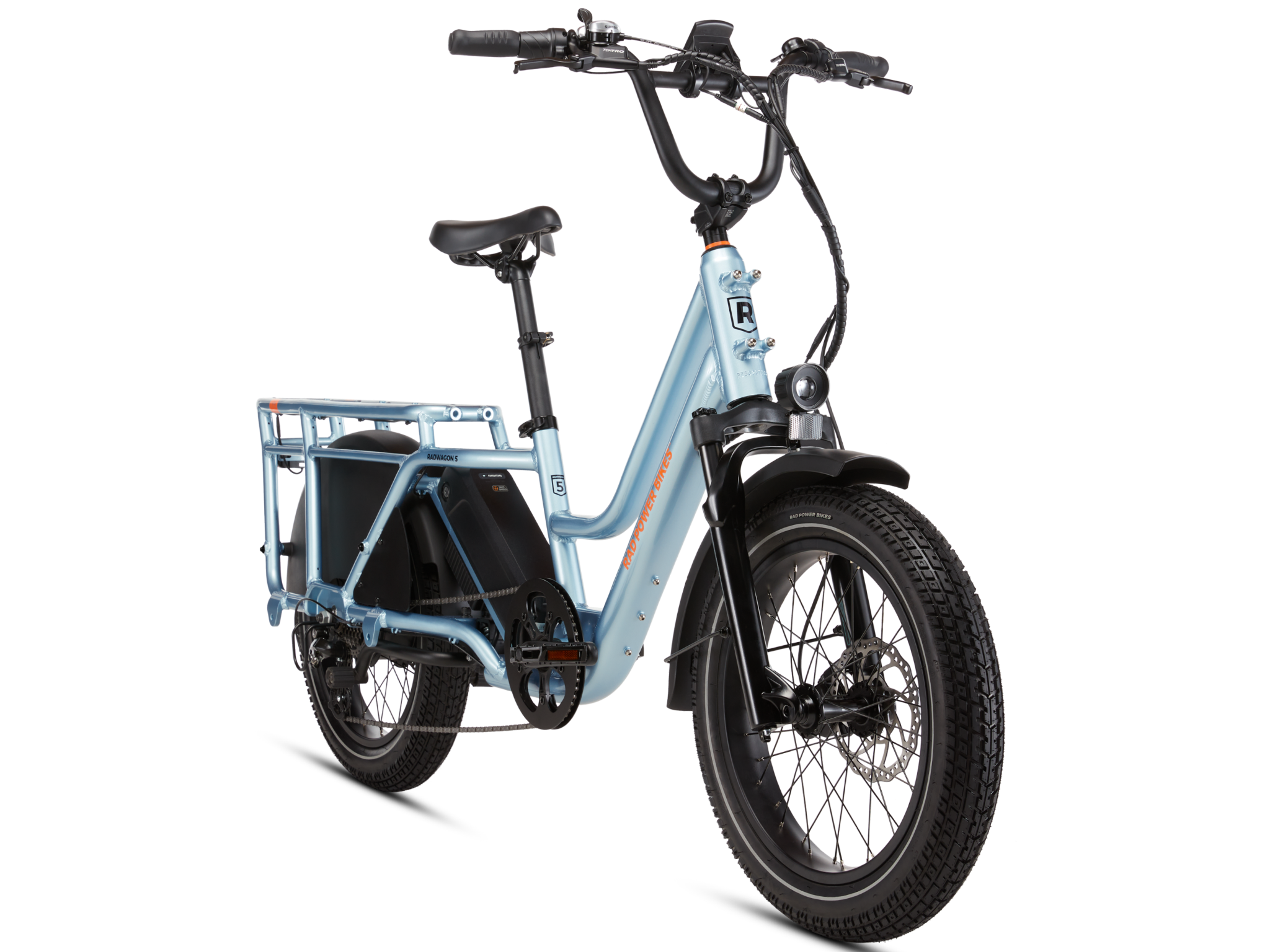

Rad Power Bikes - RadWagon 5 - Cargo ebike w/ 60 miles max operating range & 28 mph max speed - one Size - Metallic Blue

Name: Rad Power Bikes - RadWagon 5 - Cargo ebike w/ 60 miles max operating range & 28 mph max speed - one Size - Metallic Blue
Brand: Rad Power Bikes
SKU: 6611644
Rating: 0 (0 reviews)

Model: 102-00045

SKU: 6611644

This item is no longer available in new condition. See similar items below

Key Specs
- Color: Metallic Blue
- Product Weight: 86 pounds (The out of box weight of the item.)
- Maximum Operating Range: 60 miles
- Maximum Speed: 28 miles per hour
- Motor Power (Nominal): 750 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Throttle Control Mechanism: Half twist, Pedal assist
- Product Safety Certifications and Standard(s): UL 2271, UL 2849 (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Electric Bike Classification: Class 3 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
General
- Brand: Rad Power Bikes
- Model Number: 102-00045
- Product Name: RadWagon 5 - Cargo ebike w/ 60 miles max operating range & 28 mph max speed - Metallic Blue
- Color: Metallic Blue
- Electric Bike Classification: Class 3 (Refers to the out of the box classification of the electric bike prior to any additional modifications. The three-tiered classification system is used to define and regulate the operation of the vehicle based on its speed capabilities. The use of these vehicles varies from state to state so it is important to check your local regulations prior to operating. Class 1: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 20 miles per hour. Class 2: Bicycle equipped with a throttle-actuated motor that ceases to assist when the e-bike reaches 20 miles per hour. Class 3: The bicycle is equipped with a motor that provides assistance only when the rider is pedaling, which ceases to assist when the e-bike reaches 28 miles per hour.)
- Bicycle Type: Adults bike
- Bike Style: Electric bikes
- Recommended Terrain: Gravel, Hardpacked trails, Paved roadways and trails
- Assembly Required: Yes
Dimensions
- Product Width: 26.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Height: 44 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 76 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 86 pounds (The out of box weight of the item.)
- Maximum Weight Capacity: 350 pounds (The maximum load that can be supported by the product.)
- Recommended Maximum User Height: 75 inches
- Recommended Minimum User Height: 59 inches
- Maximum Seat Height: 37 inches
- Minimum Seat Height: 25 inches
- Bicycle Size: one Size (The size of the bicycle as stated by the manufacturer.)
Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
Display
- Display Type: LCD
- Information Displayed: Assist mode, Battery life, Distance, Odometer, Speed
Performance
- Maximum Operating Range: 60 miles
- Maximum Speed: 28 miles per hour
- Motor Power (Nominal): 750 watts (Also known as rated power, this is the maximum power a motor can produce without damaging itself under normal working conditions for an extended period of time.)
- Motor Power (Maximum): 750 watts (Also known as peak power, this is the maximum power a motor can produce for a short period of time under ideal conditions. Used for example when climbing a steep grade.)
- Number of Speed Settings: 2
Power
- Throttle Control Mechanism: Half twist, Pedal assist
- Electric Bike Motor Type: Rear hub motor
- Batteries Included: true (Indicates whether the product comes with the required batteries for its operation.)
- Removable Battery: true
- Battery Charge Time: 7.5 hours (Battery charge time will vary depending on the product configuration, product model, applications loaded on the product, power management setting of the product and the product features used by the customer. Charging time will likely decrease with time and usage of the battery.)
- Battery Chemistry: Lithium-ion
- Battery Capacity: 720 watt hours (The amount of energy stored in the battery.)
- Battery Amperage: 15 ampere hours
- Battery Voltage: 48 volts
- Battery Indicator Light: true
- Rear-Rack Mounted Battery: false
Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL 2271, UL 2849 (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Meets And Exceeds All UL Safety Standards: Yes (Indicates that the product, as stated by the manufacturer, is required to, or has met and surpassed the standards established by Underwriter Laboratories (UL) for ensuring quality and safety.)
- Ingress Protection (IP) Rating: IPX6 (A 4 to 6 character code classifying a product's degree of protection against intrusion of solid particles and liquids as well as impact. Each number in the IP Code denotes a level of protection, determined through testing and published by the International Electrotechnical Commission (IEC). The first digit represents the degree of protection against solid foreign objects or particles and the second digit represents the degree of protection against water ingress.)
Features
- Passenger Ready: false

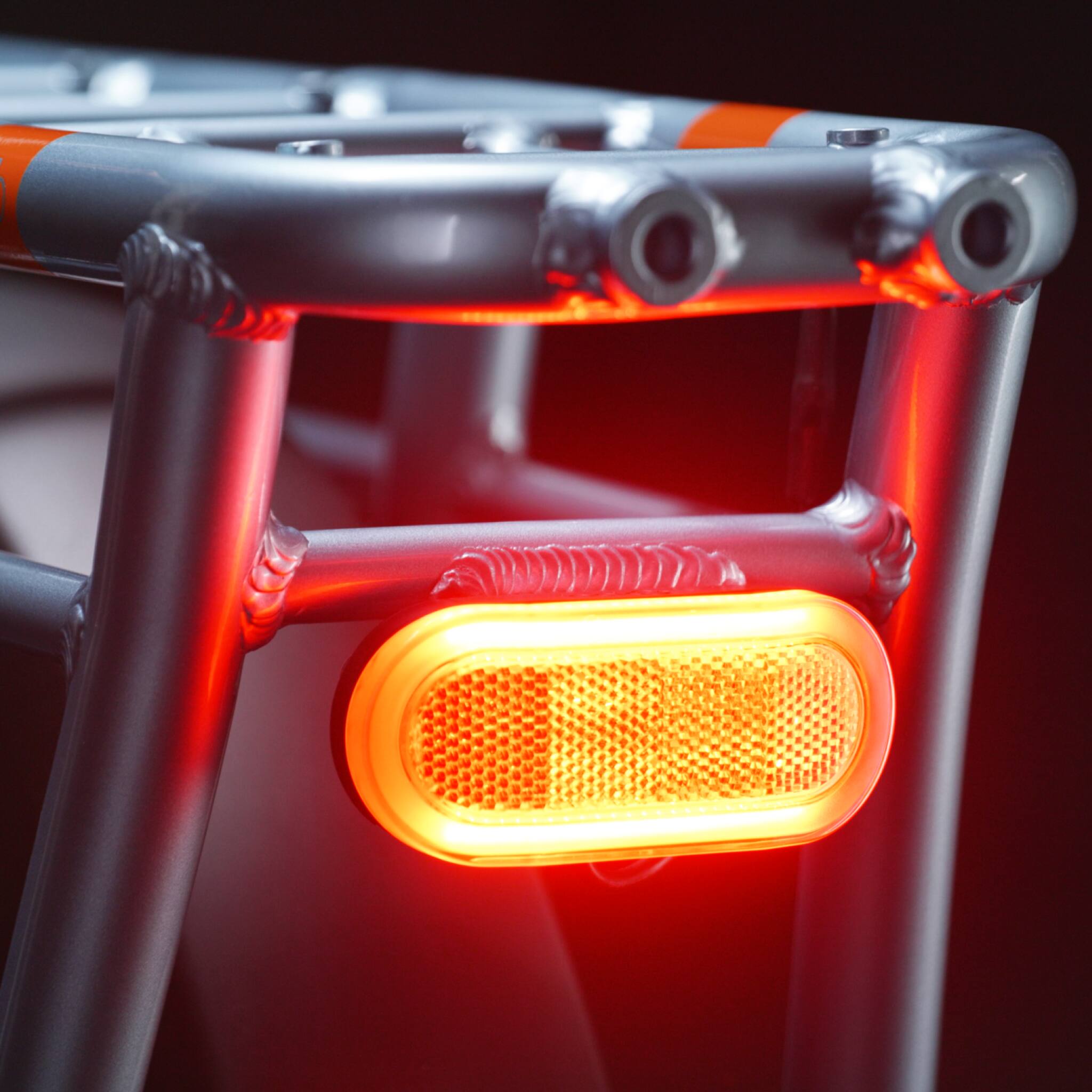

- Integrated Lights Included: Headlight, Tail light, Turn signal (Indicates the types of active lighting integrated into the product that actively generates light from a bulb instead of reflecting light from another source.)
- Padded Seat: true
- Adjustable Seat(s): true
- Adjustable Handlebar(s): false
- Kickstand: true
- Front Rack: false
- Rear Rack: true
- Fenders: true
Design
- Bicycle Frame Design: Step-through (Step-through frames, also known as open-frame or low-step bicycles, have a lower curved horizontal top tube which allow the rider to step through the frame when mounting and dismounting. Step-over frames, also known as diamond frames, have a horizontal top tube that connects to the seat tube and down tube to form a triangle. Riders must step over the frame when mounting and dismounting this style of bicycle.)
- Foldable Design: false
- Frame Material(s): Aluminum
- Gear Shifting Method: Trigger
- Derailleur: true
- Chain Guard: true
Brakes
- Brake Style: Hydraulic disc, Hydraulic disc
- Rear Brakes: true
Tires
- Suspension Type: Front
- Tire Type: Pneumatic tubed
- Wheel Diameter: 20 inches
- Wheel Thickness: 3.3 inches
Warranty
- Warranty - Parts: 2-Year Warranty
- Warranty - Labor: 2-Year Warranty
Other
- UPC: 850066859216

Most electric cargo bikes are workhorses. The RadWagon 5 is a work-stallion. This family-friendly, heavy-lifting ebike can carry up to 375 lbs — even uphill. Its motor delivers 90 Nm of torque, and with over 60 miles of range per charge, it's built for extra-long trips. To keep you (and any pint-sized passengers!) comfortable, it features a responsive torque sensor for a natural ride feel, a low center of gravity for added stability, and durable front suspension to absorb unexpected bumps. Choose from five levels of pedal assist to pedal as much or as little as you like, or use the twist-grip throttle when you want the motor to take over. Easily switch between three top-speed settings (20, 25, and 28 mph) to set your pace. The full-color display helps you track your stats in real time and even serves as an on-the-go phone charger. For ultimate peace of mind, the RadWagon 5 is packed with advanced safety features, including rear-facing turn signals, a 200-lumen headlight, fast-acting hydraulic disc brakes, and a UL-listed Safe Shield Battery with thermal-resistant technology.

Pedal Assist: For a tailor-fit ride, choose from 5 levels of pedal assist. This puts a little (or a lot!) Of power behind every pedal stroke.
Twist-Grip Throttle: Tired of pedaling? Simply twist the throttle, and let the motor kick in.
Torque Sensor: Experience a natural ride feel. When you pedal harder, the torque sensor kicks up the power.

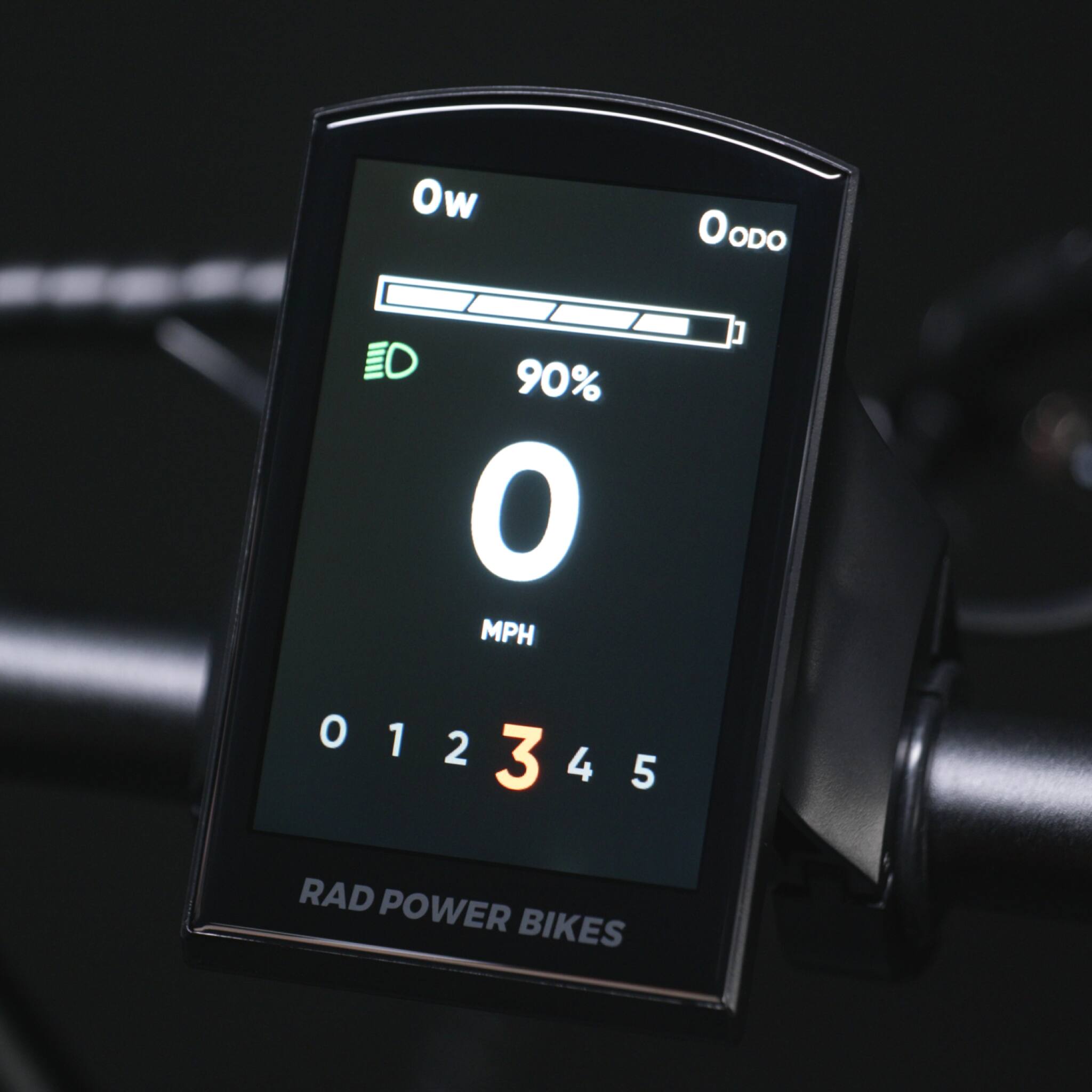

Full-Color Display: track your stats in full color and charge your device miles from an outlet.
Adjustable Speed Settings: Easily alternate between class 1, 2 and 3 speed settings to pick your max speed setting: 20, 25, or 28 MPH.
Weather Protection: The IPX 6 weather protection safeguards against heavy rain, and the full fenders keep gunk out of your gears.

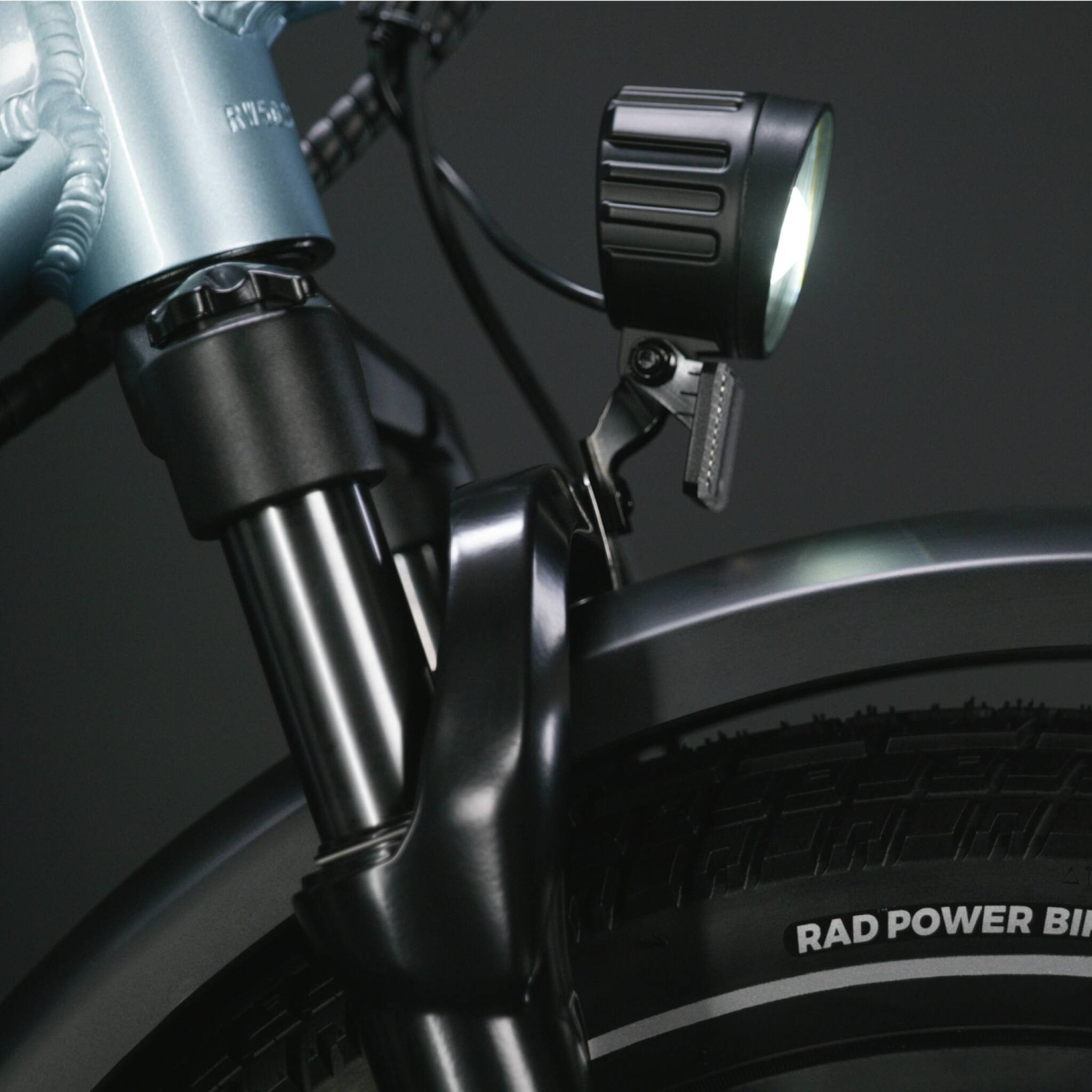

Safety Certified: When you’re in the saddle, you’re in good hands. The UL-Listed Safe Shield battery features thermal resistant tech, while the 200 lumen headlight and dual turn signals work to keep you seen.
Hydraulic Disc Brakes: Fast-acting hydraulic disc brakes bring you to a prompt, graceful stop.
Gearing: Ride confidently with 7-speed gearing.
Included Rear Rack: Load up on gear, and get going.
Rider Height: 4'11"-6'3"
Ul Certified: Both the electrical system and the battery on this model are UL Certified to UL2849 and UL2271.
Nyc Consumers: nyc consumers please review fire safety info available here: https://www.nyc.gov/site/fdny/codes/reference/lithium-ion-battery-safety.page

Product Manuals

User Manual

Disclaimers

Rad ebikes are not to be operated by anyone under the age of 16
The purchaser, operators, and riders of this product are responsible for knowing and complying with all state, local and federal regulations regarding the use, storage, and disposal of this product and all components. The purchaser, operators, and riders should read and follow product instructions (see the Owner's Manual), including all safety precautions including, but not limited to, use of protective gear.
California Proposition 65 Warning: This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
The purchaser and rider of this product are responsible for knowing and obeying all state and local regulations regarding the use of this product. It is highly encouraged that you read and follow the product instructions including all safety precautions and use protective gear.

Q: Does the ebike have a throttle?

A: This ebike has a throttle; you can use the twist-grip throttle whenever you want the motor to take over.

Q: What is the range of the ebike on a single charge?

A: The maximum operating range of this ebike is 60 miles on a single charge.

Q: What is the weight of the ebike?

A: The product weight of the Rad Power Bike is 86 pounds.

Q: Are there different levels of pedal assist?

A: This ebike has five levels of pedal assist so you can pedal as much or as little as you like.

Q: What is the maximum speed of the ebike?

A: The maximum speed of the RadWagon 5 ebike is 28 mph.

Q: Can the display be used to charge a phone?

A: The full-color display can be used as an on-the-go phone charger.
