Renogy - 40A MPPT Controller w/Bluetooth - Black
About This Item
- General
- Brand: Renogy
- Model Number: RNG-CTRL-RVR40-BT-G3-US
- Product Name: 40A MPPT Controller w/Bluetooth
- Color: Black
- Compatibility

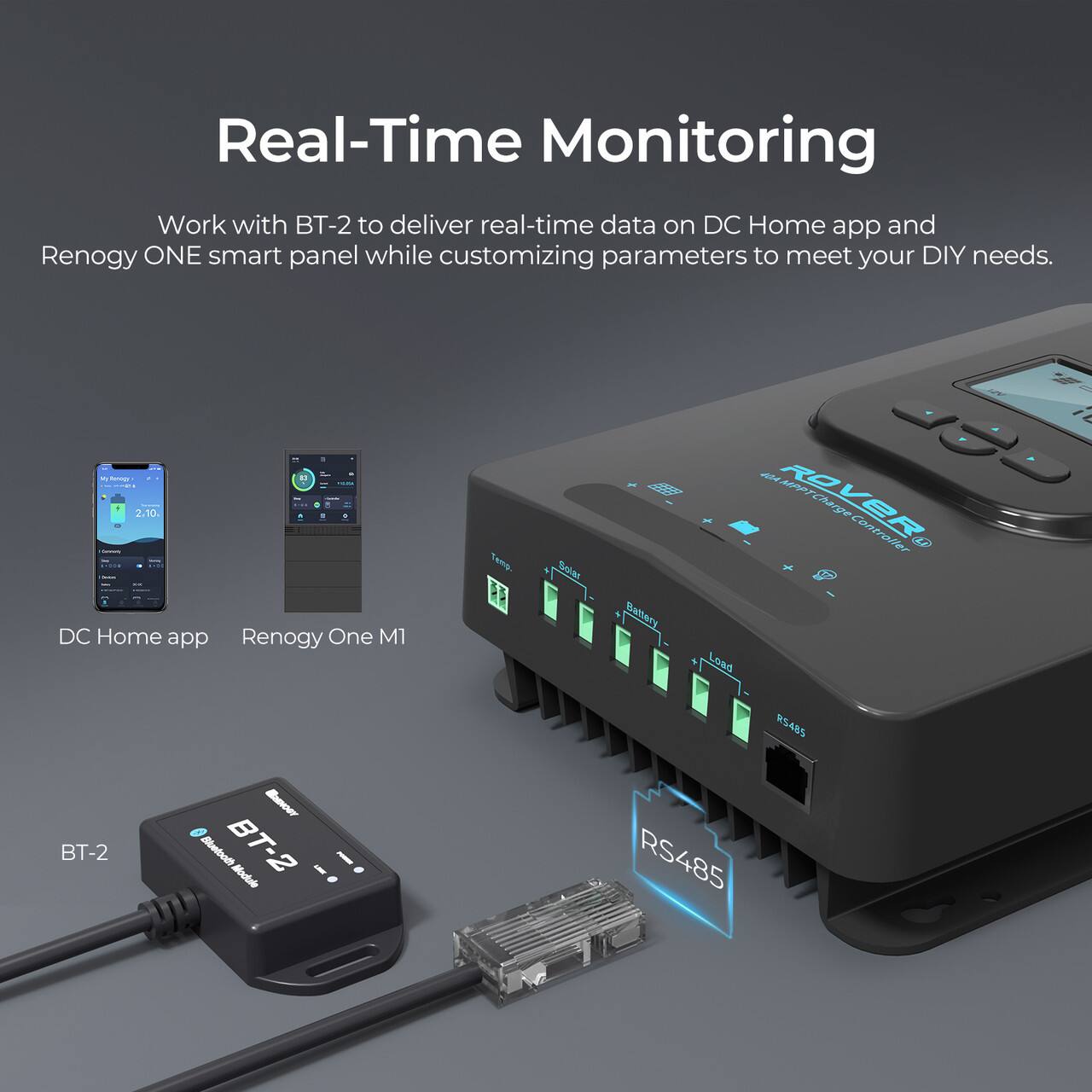

- Compatibility: Communicate with the Renogy BT-2 Bluetooth, which will enable you to monitor the status and productivity of your panels through the Renogy DC Home App. fit for Gel Sealed Flooded and Lithium Battery
- Power
- Voltage: 0 volts (Amount of power needed to support an electrical current.)
- Dimensions
- Product Height: 3.05 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6.78 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 9.38 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4.41 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 816360026761

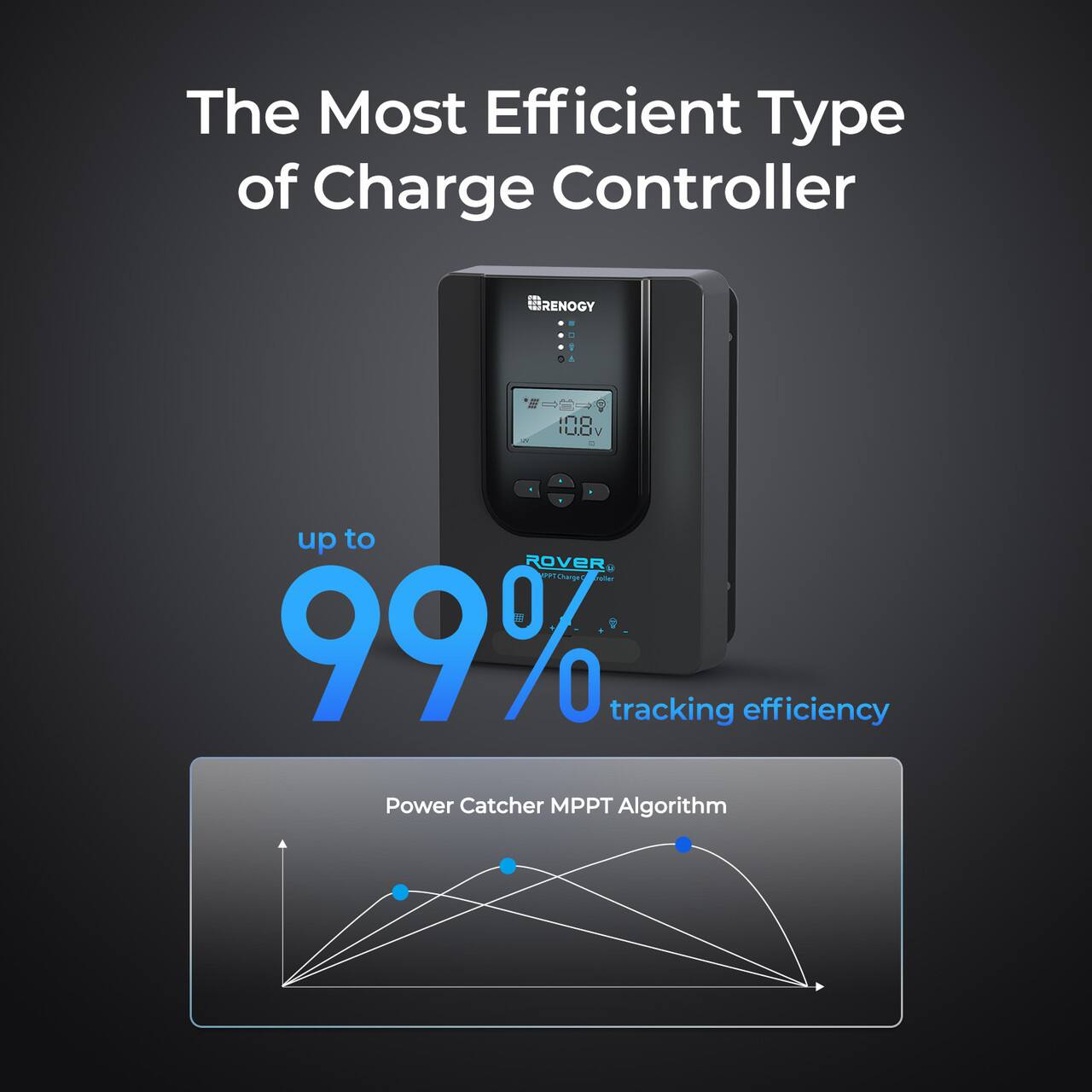

The Renogy Rover 40A Solar Charge Controller is the ultimate solution for both 12V and 24V systems, offering unparalleled versatility. It harnesses the maximum power from your solar panels, ensuring optimal charging efficiency.

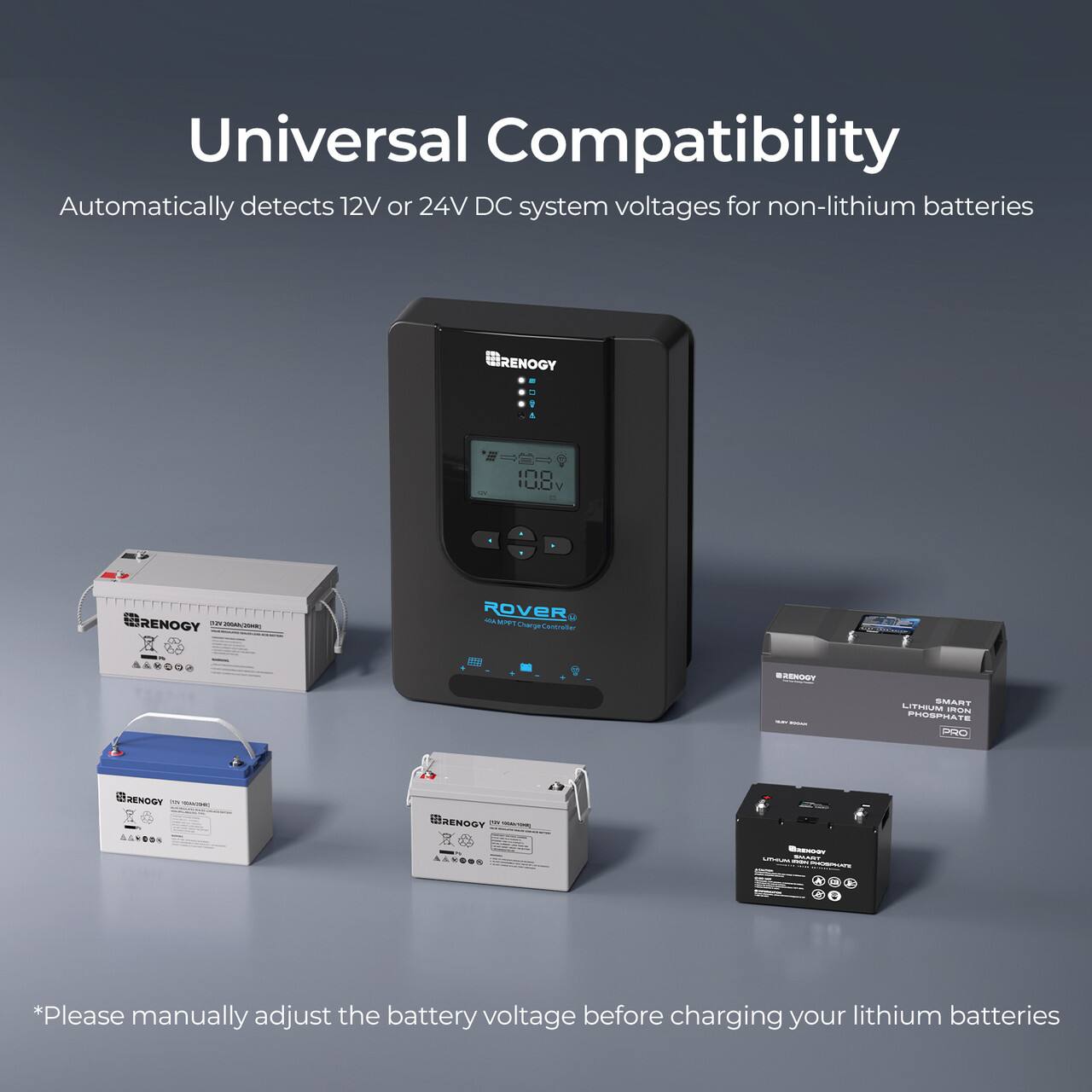

- 12/24 Automatically Detect and Multiple Battery Adaptation: Capable with and automatically detects 12V or 24V DC system voltages. Perfect for Sealed Lead Acid, GEL, Flooded Battery. Especially design of user mode to let user custom Lithium Battery parameter manually to solve the common issue of voltage matching of lithium battery.
- 4-Stage Safely Charging: Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithium batteries as well as Lithium Reactivation. Intelligent charging method prolong your battery’s life.

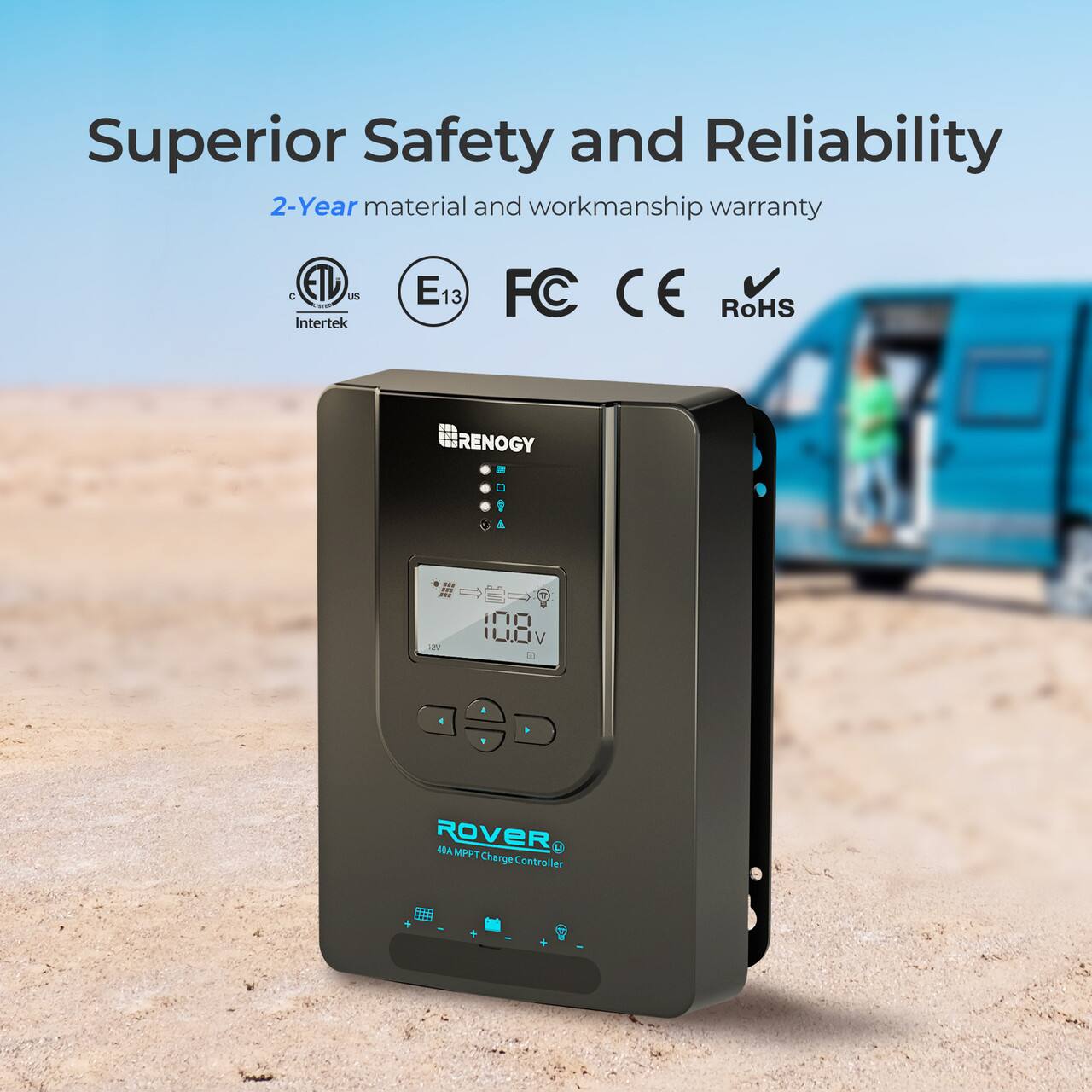

- Extremely Safe: Full system protection from program and insulated shell safeguards your solar system. The intelligent self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, overheating, and reverse current. The UL certificated Rover charge controller with insulated shell prevents you from accident and keep your solar system in safe in high temperature.
- Easy to Understand and Set up: LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes, you can understand the charging status and set the parameter better and easier with the display. Easy to mount design and mounting brackets are included for convenient set up. You can connect DC appliances directly to the load terminals, 5 load modes for better load management, make it easy for you to use your device.
- 12/24 Automatically Detect and Multiple Battery Adaptation: Capable with and automatically detects 12V or 24V DC system voltages. Perfect for Sealed Lead Acid, GEL, Flooded Battery. Especially design of user mode to let user custom Lithium Battery parameter manually to solve the common issue of voltage matching of lithium battery.
- 4-Stage Safely Charging: Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithium batteries as well as Lithium Reactivation. Intelligent charging method prolong your battery’s life.
- Extremely Safe: Full system protection from program and insulated shell safeguards your solar system. The intelligent self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, overheating, and reverse current. The UL certificated Rover charge controller with insulated shell prevents you from accident and keep your solar system in safe in high temperature.
- Easy to Understand and Set up: LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes, you can understand the charging status and set the parameter better and easier with the display. Easy to mount design and mounting brackets are included for convenient set up. You can connect DC appliances directly to the load terminals, 5 load modes for better load management, make it easy for you to use your device.
Whats Included

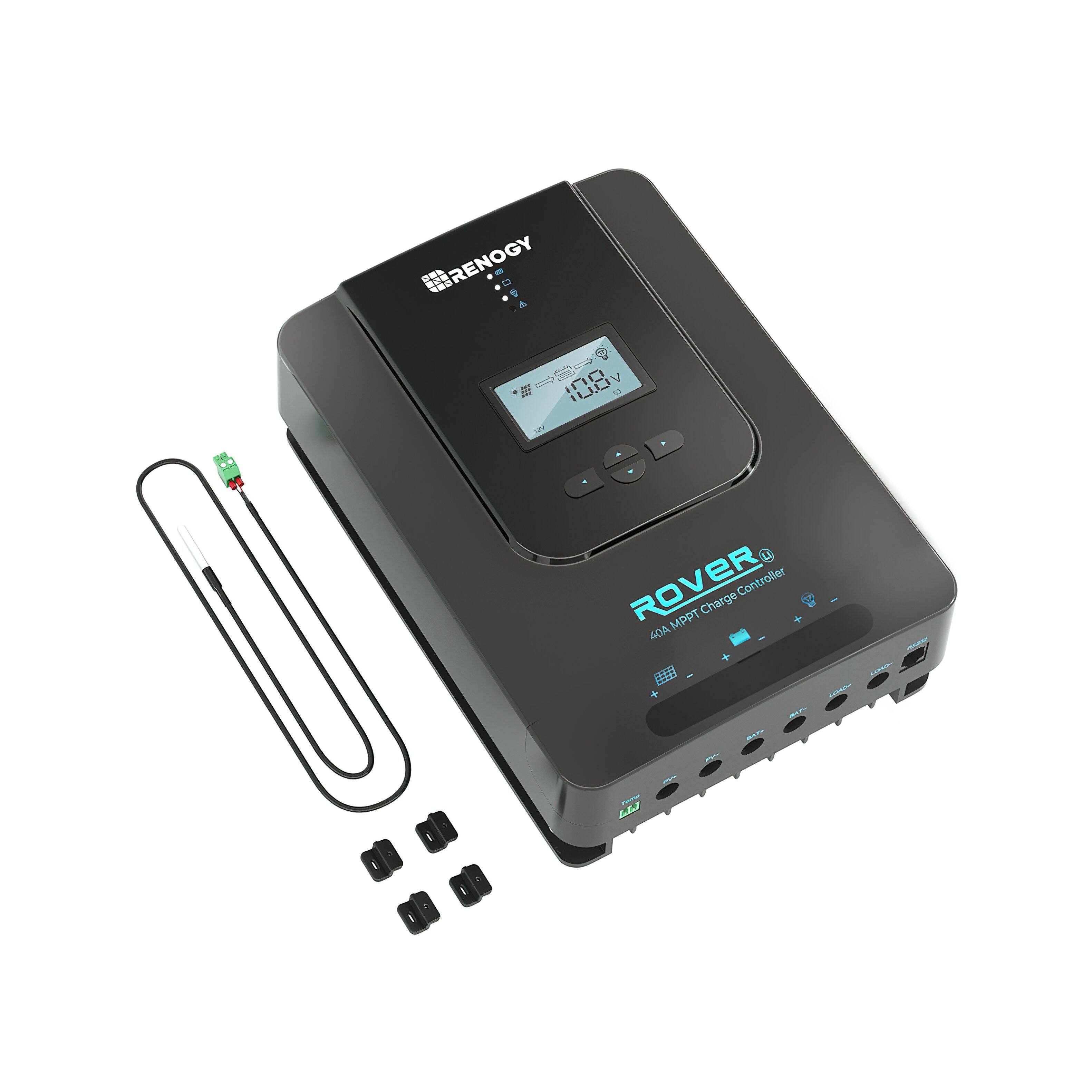

- 1 Rover Li 40 Amp MPPT Solar Charge Controller w/Bluetooth Module
- 1 Rover Li 40 Amp MPPT Solar Charge Controller w/Bluetooth Module
Product Manuals
Q: What are the dimensions of the controller?
A: The controller is 3.05 inches high, 9.38 inches deep, and 6.78 inches wide.
Q: Is there a warranty on the controller?
A: The manufacturer's warranty for both parts and labor on this controller is 3 years.
Q: Can the controller be used with different types of batteries?
A: The controller is compatible with gel, sealed, flooded, and lithium batteries.
