Rotel - RC-1590MKII Stereo Preamplifier - Silver
Color
SilverRelated Item
Specifications
- Number of Channels2Surround Sound SupportedNot ApplicableAudio Only Inputs1 x Phono, 3 x Optical digital audio, 3 x Coaxial digital audio, Balanced XLR, Unbalanced RCA, 1 x USB-B, 1 x 3.5mm audioAudio/Video InputsNo audio/video inputsNetwork Connector(s)1 x LAN, 1 x RS-232Wireless ConnectivityBluetooth
- Key Specs
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)

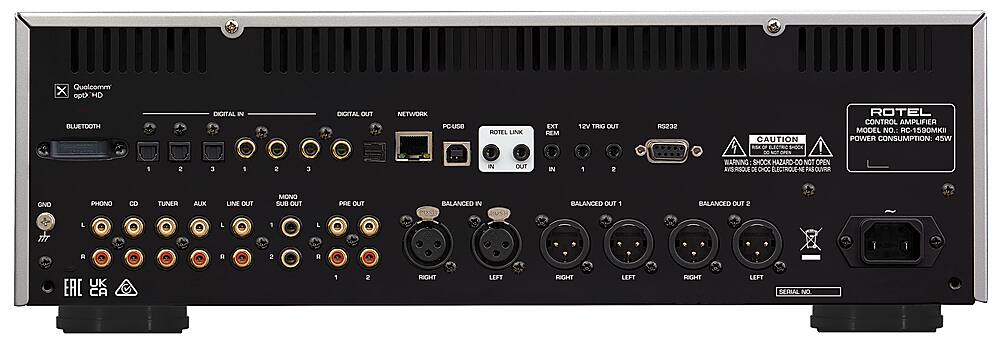

- Audio Only Inputs: 1 x Phono, 3 x Optical digital audio, 3 x Coaxial digital audio, Balanced XLR, Unbalanced RCA, 1 x USB-B, 1 x 3.5mm audio
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN, 1 x RS-232
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- General
- Brand: Rotel
- Model Number: RC-1590MKII Silver
- Product Name: RC-1590MKII Stereo Preamplifier
- Color: Silver
- Audio
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- High Resolution Audio: true (Hear music the way musicians and sound technicians intended it to be heard. Products that support hi-res audio deliver audio signals with a dynamic range and bandwidth far greater than that of a standard CD so you'll be able to enjoy pure music with outstanding sound quality. The device supports high-resolution audio signals, which more closely resemble the quality of music as it was originally recorded, with more texture and detail than can be heard via typical music streaming services or CDs.)
- Surround Sound Supported: Not Applicable (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Maximum Sampling Rate Supported: 384 (Generally, the higher the sampling rate, the greater the quality of audio and/or video.)
- Equalizer: true (Allows for the control of different frequencies within an audio signal, such as adjusting treble and bass levels.)
- High/Low Pass Filters: None
- Preamp/Processor Design: Solid state (Tube design processors use vacuum tubes to process sound, a method typically more expensive than the transistors used in solid-state processors. Depending on the desired sound, one may prefer the warm tonal quality and character that tubes provide or the crisp, clean sound of solid-state circuitry.)
- Inputs
- Audio Only Inputs: 1 x Phono, 3 x Optical digital audio, 3 x Coaxial digital audio, Balanced XLR, Unbalanced RCA, 1 x USB-B, 1 x 3.5mm audio
- Video Only Inputs: No video only inputs (The number and type of video signal only inputs the product has.)
- Audio/Video Inputs: No audio/video inputs (The number and type of HDMI inputs the product has.)
- Network Connector(s): 1 x LAN, 1 x RS-232
- Number of HDMI Inputs (Total): 0
- Number of USB Inputs: 1
- Outputs
- Video Only Outputs: No video only outputs (The number and type of video signal only outputs the product has.)
- Audio/Video Outputs: No audio/video outputs (The number and type of HDMI outputs the product has.)
- Number of Subwoofer Pre Outs: 2
- Number of HDMI Outputs (Total): 0
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Features
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Remote Control Included: true
- Effect Type(s): None
- Connectivity
- Wireless Multi-Room Audio: false (Technology that allows multiple speakers and/or soundbars to be connected wirelessly and play audio in separate rooms.)
- Wireless Connectivity: Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- IP Control: true (Allows electronic devices to be controlled over a home network via a web-based interface. Typically refers to devices not traditionally controlled in this manner, such as A/V receivers.)
- Display
- On-Screen Display: true
- Dimensions
- Product Height: 6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 23 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 672563770111
The RC-1590MKII is a reference level preamplifier delivering an unprecedented level of acoustic audio performance.This preamplifier includes support for all popular source inputs including analog, digital, PC-USB with MQA, wireless aptX HD and AAC Bluetooth streaming, XLR Balanced, iPod USB and a Moving Magnet Phono stage. The dual, in-house manufactured, toroidal transformers isolate power to all critical analog and digital circuits delivering an ultra-low noise floor and reduced distortion.A premium Texas Instruments DAC with supporting acoustically tuned audio circuits ensure the RC-1590MKII sets a new standard for Rotel products.
- Circuit Design: Digital source inputs are enhanced by a high-end 32-bit/384kHz Texas Instruments DAC, along with custom output filter circuits for precise and clear audio. Analog signal paths have DIRECT-PATH bypass modes for signal purity, reducing noise and distortion, immersing you in the music.
- Source Inputs: The RC-1590MKII supports a full array of inputs ensuring connection to your favorite sources including a Moving Magnet Phono input for vinyl lovers, analog, digital, XLR balanced, high quality aptX HD and AAC wireless Bluetooth, and PC-USB supporting MQA unfolding and rendering as well as certified Roon Tested.
- Power Supply: The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufactured toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.
- Circuit Design: Digital source inputs are enhanced by a high-end 32-bit/384kHz Texas Instruments DAC, along with custom output filter circuits for precise and clear audio. Analog signal paths have DIRECT-PATH bypass modes for signal purity, reducing noise and distortion, immersing you in the music.
- Source Inputs: The RC-1590MKII supports a full array of inputs ensuring connection to your favorite sources including a Moving Magnet Phono input for vinyl lovers, analog, digital, XLR balanced, high quality aptX HD and AAC wireless Bluetooth, and PC-USB supporting MQA unfolding and rendering as well as certified Roon Tested.
- Power Supply: The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufactured toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.
Whats Included
- Rotel RC-1590MKII Amplifier
- Remote
- Manual
- Power Cord
- Rotel RC-1590MKII Amplifier
- Remote
- Manual
- Power Cord
Q: What is the maximum sampling rate supported by the preamplifier?
A: The maximum sampling rate supported is 384.
Q: Can the preamplifier be controlled remotely?
A: Yes, the preamplifier can be controlled remotely as it includes a remote control.
Q: How many channels does the preamplifier support?
A: This preamplifier has 2 channels.
Q: What types of digital audio inputs does the preamplifier have?
A: This preamplifier has three optical digital audio inputs and three coaxial digital audio inputs.
Q: Does this preamp have tone controls?
A: undefined
Q: Are the two subwoofer outputs discreet?
A: undefined
