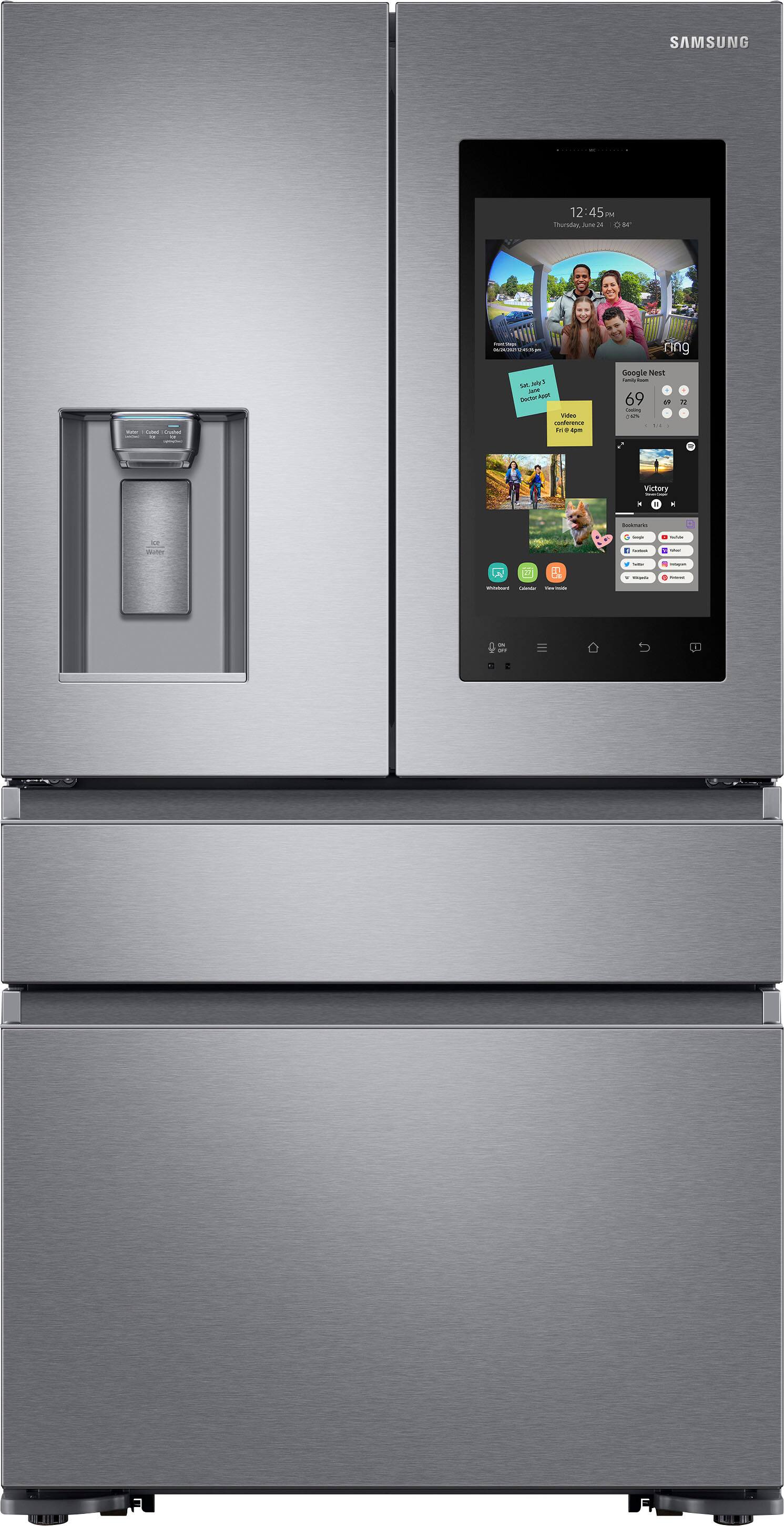

Samsung - 22.2 cu. ft. 4-Door French Door Counter Depth Smart Refrigerator with Family Hub - Stainless steel
Model: RF23M8570SR
SKU: 5796738
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Stainless steel
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 29 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 29 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 22.2 cubic feet
- Refrigerator Style: French Door
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Bixby, Amazon Alexa (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Samsung
- Model Number: RF23M8570SR
- Product Name: 22.2 cu. ft. 4-Door French Door Counter Depth Smart Refrigerator with Family Hub
- Color: Stainless steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 70 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 29 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 68 7/8 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 70 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 29 1/4 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 29 1/4 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 24 inches (Measurement from the back of the product to its front, not including the door.)
- Depth With Door 90 Degrees Open: 43 1/8 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 326.2 pounds (The out of box weight of the item.)
- Capacity
- Total Capacity: 22.2 cubic feet
- Refrigerator Capacity: 12.5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 6.6 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Convertible Temperature Zone Capacity: 3.1 cubic feet (Total amount of space within the convertible temperature compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Freestanding (The size, arrangement, and physical configuration of the product.)
- Panel Ready: false (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: French Door
- Fingerprint Resistant: true
- Convertible Temperature Zone: true (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Convertible Temperature Zone Location: Bottom left
- Convertible Temperature Zone Range: 29 to 42°F
- Door-Open Alarm: true
- Sabbath Mode: false (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Touchscreen
- Defrost Type: Automatic, Automatic (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Hinge Setting: Fixed left, Fixed right
- Lighting Type: LED
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Refrigerator
- Daily Ice Production: 8.8 pounds (Maximum quantity of ice that can be produced within 24 hours.)
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: External
- Dispensed Water Type: Cold Water
- Storage
- Number of External Doors/Drawers: 4
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Fixed, Adjustable, Removable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Dairy Center: true (Designated storage with closure for dairy items such as butter, yogurt, and cream cheese, helps keep these items accessible and may reduce the risk of cross-contamination.)
- Gallon Door Storage: true (Designated storage space for gallon-sized containers, such as milk, juice, and water.)
- Humidity-Controlled Crisper: true
- Deli Meat Drawer: false (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Spill-proof glass,Tempered Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Freezer Door Type: Pull Out Drawer
- Freezer Shelf Material: Other
- Freezer Interior Light: true
- Quick Freeze: false (Feature that allows you to quickly reduce the temperature when needed, perfect for chilling drinks or freezing large quantities of fresh food. Fast freezing may help maintain food quality.)
- Filter Info
- Water Filtration: true
- Water Filter Model Number: HAF-QIN (The water filter model(s) recommended for use with the product.)
- Electrical Specification
- Estimated Annual Electricity Use: 662 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Estimated Annual Operating Cost: 79 United States dollars (Predicted cost of operating the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: SmartThings, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Voice Assistant Built-in: Bixby, Amazon Alexa (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Other
- UPC: 887276198118
Samsung’s Family Hub refrigerator helps you connect to what’s most important: your family and home, whenever and wherever. Family Hub lets you see inside your refrigerator from anywhere, manage your family’s calendars, stream music and stay connected right from your Family Hub screen. Now with Family Board, a digital bulletin board, you can create a home screen with personalized pictures, stickers and hand-written notes for your family.
- FlexZone Drawer: A flexible storage drawer with four different temperature settings and an adjustable Smart Divider to stay organized.
- Twin Cooling Plus: Independent fridge and freezer controls keep food fresher longer.
- 22.2 Cu. Ft. Capacity: Large capacity to fit all your favorite foods.
- Ice Master: Produces up to 8.8 lbs. of ice per day.
- Fingerprint Resistant: A special finish to reduce smudges and minimize cleaning.
- Wi-Fi and Bixby Enabled: Use your smartphone to control the temperature and monitor your refrigerator remotely.
- Adjustable Shelves: Adjustable shelves go from standard to slide-in or flip-up, to store tall items with ease.
- High-Efficiency LED Lighting: LED lighting designed to beautifully light up the interior of your fridge so you’re able to quickly spot what you want.
- ENERGY STAR® Certified: Eco-friendly and energy-efficient.
- AutoFill Water Pitcher: A built-in pitcher that automatically refills with filtered water and the option to infuse with a flavor of your choice.
- Counter Depth: Offers a premium, built-in look.
- Food: See inside your refrigerator from anywhere, with 3 built-in cameras.

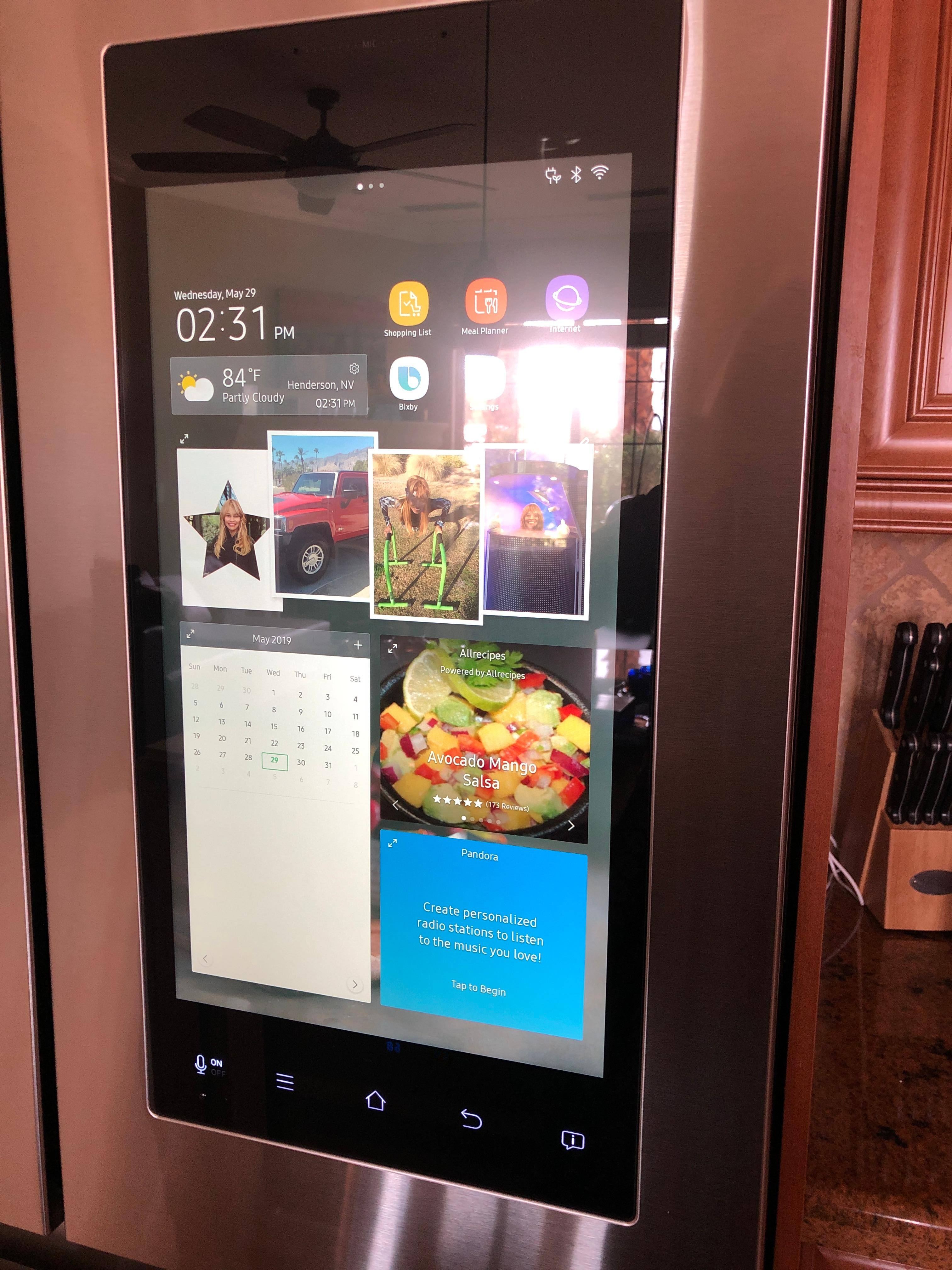

- Family: Create your custom home screen with Family Board, by adding personalized pictures, stickers and handwritten notes.
- Fun: Stream your favorite music service directly on your Family Hub screen.

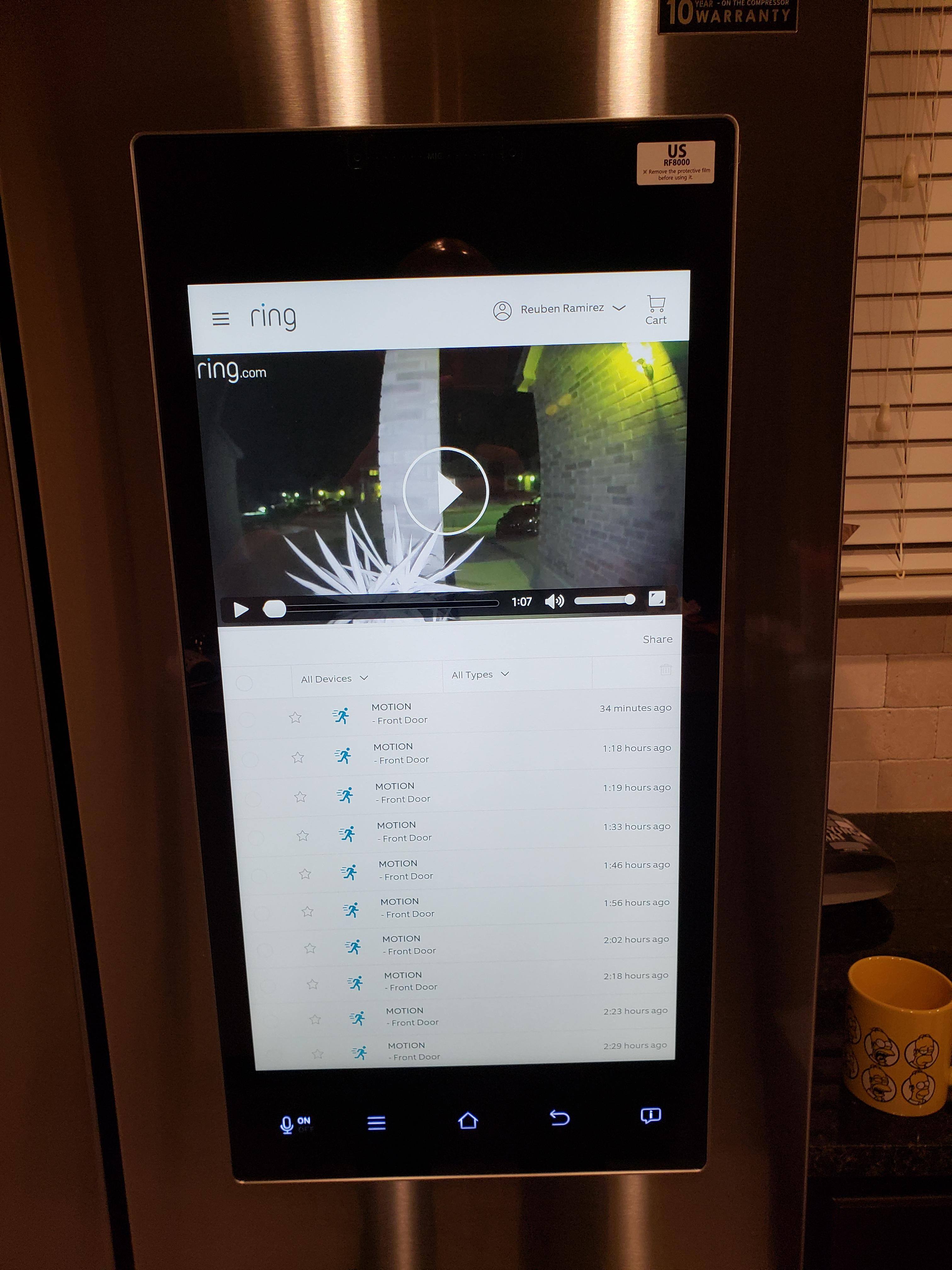

- Your Home: Access your smart devices and Samsung appliances from your Family Hub screen; set lights, hear and speak to someone at your front door, monitor your baby’s room and receive laundry end of cycle notifications.
- Bixby Voice 2.0: Intelligent voice assistant allows hands free navigation and recognizes user’s voice in order to provide a personalized experience.
- Access your Smart Device: Mirror your Samsung TV or Samsung phone and answer calls hands free directly from your Family Hub.
- Organize your Food: Create and share shopping lists, plan meals based on the food inside your refrigerator and automatically set expiration dates.
- Stay Connected: Send photos and notes to your Family Hub from your mobile device.
- Order Food from Grubhub: Order your favorite food from Grubhub right from your Family Hub screen.
- Customize your Screen Saver: Customize your screen saver with a picture slide show, weather and animations.
- Manage your family’s calendars: View and manage your family’s calendars and events right from your Family Hub screen.
Whats Included
- Samsung Family Hub 22.2 Cu. Ft. Counter Depth 4-Door French Door
- Water filter
Product Manuals
Documents
- Energy_Guide_PDF

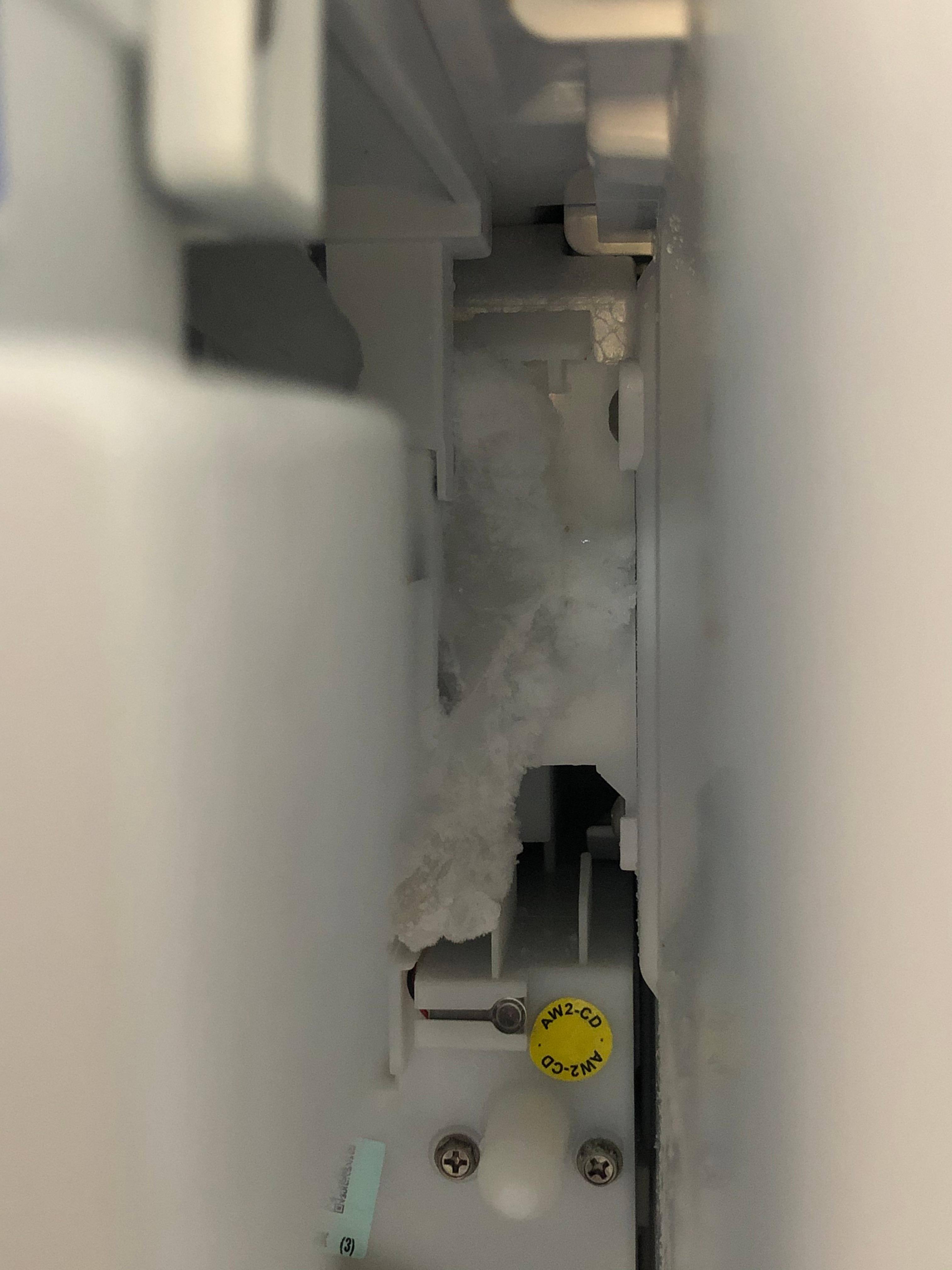

A: I've only had mine for 9 months, but the ice maker has been fine so far. I've noticed frost accumulating on the walls of the container holding the ice, every week or so I'll scrape it out. Frost only seems to accumulate when ice doesn't need to be replenished for a long time.
A: The doors and drawers are flat.
Q: Does this model have handles ?
A: It has “hidden” handles. There’s pockets for your hands on top and under the doors.
A: I have the same issue Rita! What i do if i have people over is buy a 10 pound bag of ice due to the small ice maker.
A: The power cord is located at the bottom of the fridge.
A: There is no additional adapter to buy and will connect to your wifi easily. The family hub setup is similar to any tablet you would setup at home. We have a family of four and has plenty of room for us. It probably depends how much food you keep at any given time though so could be different for you. I believe there are larger sizes of the fridge if needed and fits in your home.
A: The bottom one is a Freezer.
Q: Does this model have a built in camera?
A: It sure does, janet! In fact, you can read all about the features of the "Inner-View Camera" beginning on page 66 of the user manual (https://bit.ly/3BeSkj1). ^Jecca
