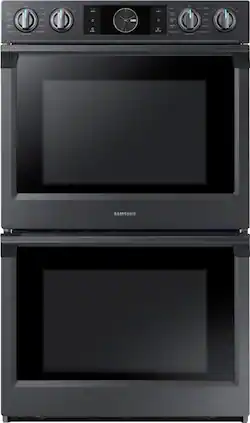

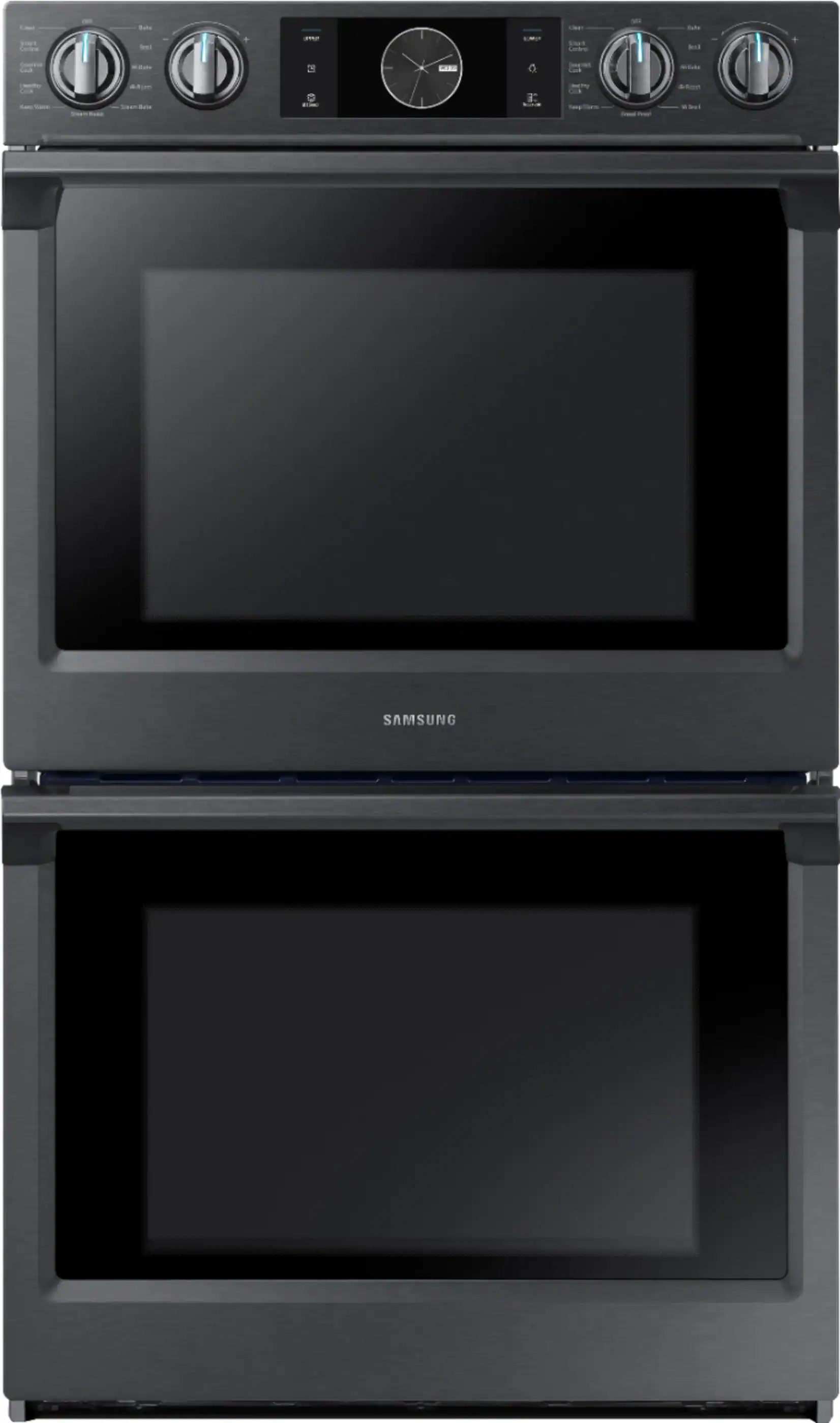

Samsung - 30" Double Wall Oven with Flex Duo, Steam Cook and WiFi - Black Stainless Steel
Model: NV51K7770DG
SKU: 5581719
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: Black stainless steel
- Product Height: 51 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 23 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Nest, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: Samsung
- Model Number: NV51K7770DG
- Product Name: 30" Double Wall Oven with Flex Duo, Steam Cook and WiFi
- Color: Black Stainless Steel
- Color Finish: Black stainless steel
- Dimensions
- Product Height: 51 3/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 7/8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 25 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Depth Without Handle: 23 1/8 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 273.4 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 50 1/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 28 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 23 1/2 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Oven 1 Capacity: 5.1 cubic feet
- Oven 2 Capacity: 5.1 cubic feet
- Features
- Oven Type: Double wall oven
- Oven Power Source: Electric
- Fingerprint Resistant: true
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Clock Display: true
- Oven Light: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Delay Clean Option: false
- Hidden Bake Element: true (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Keep Warm Setting: true
- Timer: true
- Time Bake: true (Allows you to program the appliance to run at a pre-determined time and automatically turn off when baking time is finished. Plan for mealtime or entertaining by setting your oven to start baking at a convenient time and reduce the worry of overcooking your food with the automatic shut off feature.)
- Rapid Preheat: true
- Dehydration Settings: false (This function sets the oven at a low temperature, typically under 200 degrees Fahrenheit, for an extended period of time. During this time, warm air circulates throughout the oven to draw moisture out of foods.)
- Oven 1 Specification
- Oven 1 Location: Upper
- Oven 1 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 1 Window: true
- Oven 1 Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 1 Rack Positions: 6
- Number of Oven 1 Racks: 3
- Oven 2 Specification
- Oven 2 Location: Lower
- Oven 2 Interior Height: 18 3/8 inches
- Oven 2 Interior Width: 24 15/16 inches
- Oven 2 Interior Depth: 19 1/8 inches
- Oven 2 Convection: true (A fan and exhaust system that circulate air to heat the entire oven interior consistently for baking and roasting.)
- Oven 2 Window: true
- Oven 2 Cleaning Method: Self-Steam Cleaning (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Number of Oven 2 Rack Positions: 6
- Number of Oven 2 Racks: 3
- Electrical Specification
- Amperage: 40 amperes (Strength of electrical current.)
- Voltage: 240 volts (Amount of power needed to support an electrical current.)
- Wattage: 2400 watts (Measurement of electrical power.)
- Kilowatt Rating At 208 Volts: true
- Kilowatt Rating At 240 Volts: true
- Included
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Certifications Listings & Approvals
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: Free of PFAS, PFOA, lead, and cadmium. Libre de PFAS, PFOA, plomo, y cadmio (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Nest, SmartThings (Compatible with or able to be connected to other smart devices or applications.)
- Other
- UPC: 887276181677
The Samsung Double Wall Oven has steam cooking so you can bake and roast with professional results. Steam cook delivers moisture at precise times for a crisp, browned outside, and tender inside. Dual convection circulates air faster for more even and efficient cooking results. The 5.1 cu of capacity can accommodate a roast, multiple casserole dishes, or several racks of cookies.
- Ready2Fit™Guarantee: Replacing a similar wall oven from Samsung or another brand? Samsung wall ovens are guaranteed for an exact fit to make replacement easy.
- Steam cook: Delivers moisture at precise times for a crisp and brown outside and tender inside.
- Digital-analog controls: The ultimate interface, a combination of analog-knobs and a digital touch screen.
- Flex Duo™: Cook two different dishes in the upper oven at different temperatures simultaneously.
- Large Capacity: 5.1 cu ft capacity accommodates a roast, multiple casserole dishes, or several racks of cookies.
- Dual Convection: Dual convection circulates air faster for more even and efficient cooking results.
- Gourmet Cook: A pre-programmed recipe guide to help you cook with consistently good results.
- WiFi Enabled: Remotely monitor and control the oven from your smartphone with Wi-Fi connectivity.
- LED Lighting: Signature LED lights combine halogen and LED for a brighter interior, eliminating the need to open the door to check progress so that you can maintain a consistent temperature.
- Soft Close Door: Gently closes the oven door.
- Gliding Rack: Use the gliding rack to easily & safely take food out of the oven.
- Blue LED Illuminated Knobs: Blue LED Illuminated knobs visually let you know if your oven is on, even at a distance.
- Hidden Heating: A hidden heating element makes surfaces smooth and cleaning easier.
- Rapid Preheat: Virtually eliminates preheating, saving about 10-15 minutes.*
- Broil: Broil element browns your favorite desserts and veggies.
- Hybrid & Self Clean: Hybrid self clean, combines the ease of steam cleaning, with the effectiveness of self cleaning, with less odor and better performance than both combined.
- Heavy Duty Racks: 3 heavy duty professional style racks that are sturdy and durable.
- Color Finish Options: Available in Stainless Steel and Fingerprint Resistant Black Stainless Steel.
- Ready2Fit™Guarantee: Replacing a similar wall oven from Samsung or another brand? Samsung wall ovens are guaranteed for an exact fit to make replacement easy.
- Steam cook: Delivers moisture at precise times for a crisp and brown outside and tender inside.
- Digital-analog controls: The ultimate interface, a combination of analog-knobs and a digital touch screen.
- Flex Duo™: Cook two different dishes in the upper oven at different temperatures simultaneously.
- Large Capacity: 5.1 cu ft capacity accommodates a roast, multiple casserole dishes, or several racks of cookies.
- Dual Convection: Dual convection circulates air faster for more even and efficient cooking results.
- Gourmet Cook: A pre-programmed recipe guide to help you cook with consistently good results.
- WiFi Enabled: Remotely monitor and control the oven from your smartphone with Wi-Fi connectivity.
- LED Lighting: Signature LED lights combine halogen and LED for a brighter interior, eliminating the need to open the door to check progress so that you can maintain a consistent temperature.
- Soft Close Door: Gently closes the oven door.
- Gliding Rack: Use the gliding rack to easily & safely take food out of the oven.
- Blue LED Illuminated Knobs: Blue LED Illuminated knobs visually let you know if your oven is on, even at a distance.
- Hidden Heating: A hidden heating element makes surfaces smooth and cleaning easier.
- Rapid Preheat: Virtually eliminates preheating, saving about 10-15 minutes.*
- Broil: Broil element browns your favorite desserts and veggies.
- Hybrid & Self Clean: Hybrid self clean, combines the ease of steam cleaning, with the effectiveness of self cleaning, with less odor and better performance than both combined.
- Heavy Duty Racks: 3 heavy duty professional style racks that are sturdy and durable.
- Color Finish Options: Available in Stainless Steel and Fingerprint Resistant Black Stainless Steel.
Whats Included
- Samsung 30" Double Wall Oven
- Owner's manual
- Samsung 30" Double Wall Oven
- Owner's manual
A: The clock does not stay on all the time. When you are baking, the info screen remains lit with cooking information. There is an issue with the latest Samsung firmware which breaks the WiFi capability of this oven. No monitoring or adjusting the temperature with your phone, etc. Samsung has been less than helpful. If you are purchasing it for the smart features look elsewhere.
Q: can this oven use LP or natural gas with the correction conversion kit?
A: No, this model is electric.
A: It comes with bare copper cables that you wire into your electrical receptacle with wire nuts. I suppose you could wire it to a plug but you'd be in control of both the male and female side. I think 30A should be fine
Q: can the clock be changed from analog to digital?
A: yes it has 3 or 4 choices for both analog and digital. it puts the date on there as well so it makes it even more useful
Q: What size opening does this double oven require in the cabinetry? Width x height x depth.
A: Samsung.com indicates the cut out as 28-1/2" W x 50-1/4" H x 23-1/2" D.
Q: Does the black stainless steel finish scratch easily?
A: We have only had our new appliances for a month or so but it seems very durable and easy to keep clean.
A: Look at the documents on BestBuy product page, it lists the cut out dimensions. For me, it needed around a half an inch bigger than the existing hole so I had to cut it a little bigger on the top side.
Q: How does thermometer work that came with ovens?
A: Great!
