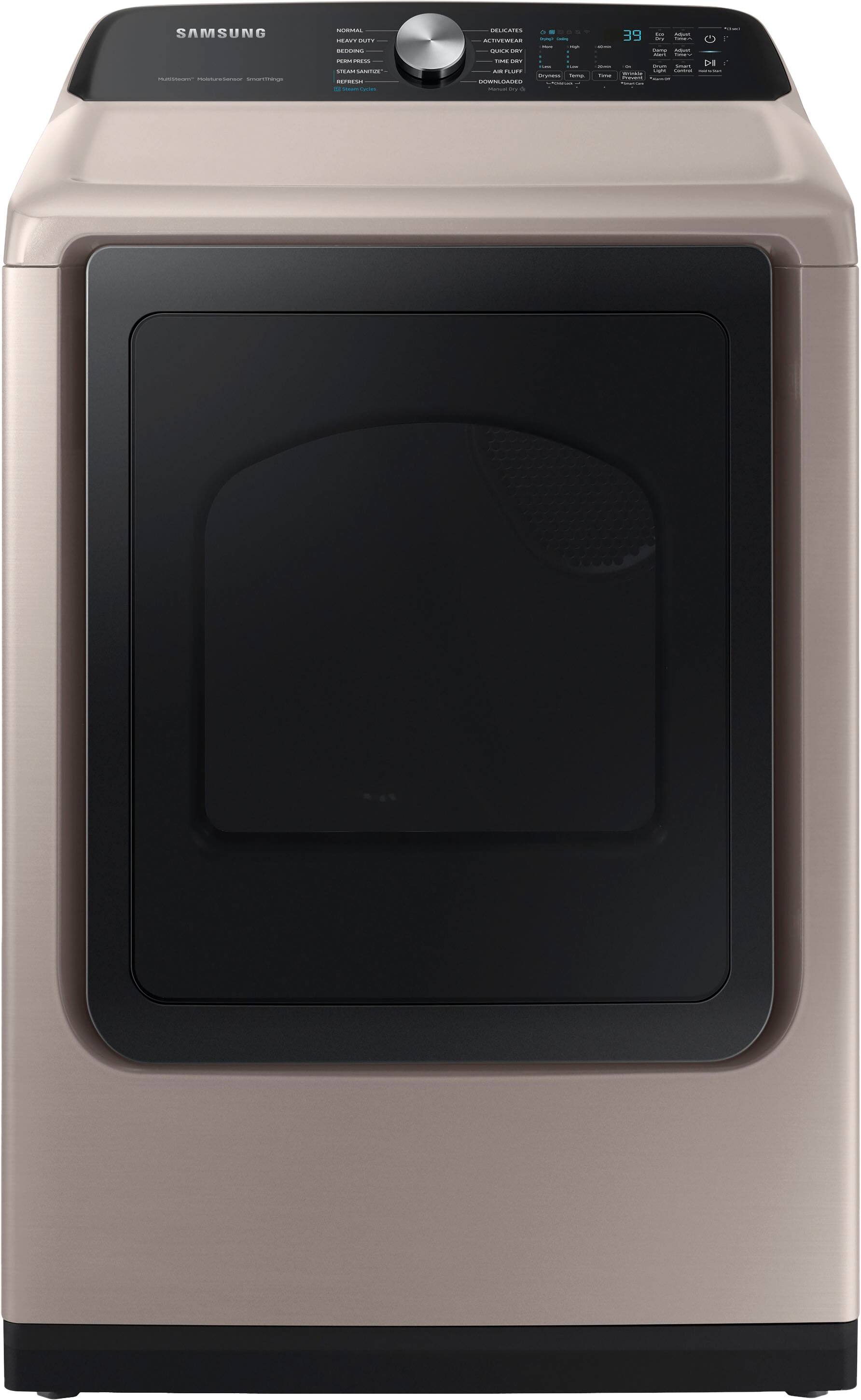

Samsung - 7.4 Cu. Ft. Smart Gas Dryer with Steam Sanitize+ - Champagne
- Key Specs
- Color Finish: Champagne
- Product Height: 44 11/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 50 1/8 inches (Measurement from the back of the product to its front, with door fully open.)
- Capacity: 7.4 cubic feet
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Dryer Heating Source: Gas
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Matching Washer Model Number: WA52A5500AC / WA51A5505AC
- Stackable: false (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Propane Conversion Kit Model Compatibility: LPKIT-4/XAA
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Samsung
- Model Number: DVG52A5500C/A3
- Product Name: 7.4 Cu. Ft. Smart Gas Dryer with Steam Sanitize+
- Color: Champagne
- Color Finish: Champagne
- Dimensions
- Product Height: 44 11/16 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 27 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 30 1/4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth With Door Open: 50 1/8 inches (Measurement from the back of the product to its front, with door fully open.)
- Product Weight: 119 pounds (The out of box weight of the item.)
- Capacity
- Capacity: 7.4 cubic feet
- Features
- Steam Function: true (In washers, this feature may be employed before, during, or after the main wash cycle. Steam aids in stain removal, activating detergent, sanitizing, and softening wrinkles. In dryers, this feature can be used to remove wrinkles or quickly freshen clothing items.)
- Water Source: Fill hose
- Dryer Heating Source: Gas
- Propane (LP) Convertible: true
- Moisture Sensor: true (This feature automatically senses moisture levels of the items in the cycle to determine the proper drying time.)
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- End-Of-Cycle Signal: true (An audible alert and/or visual indicator that notifies you when a pre-selected cycle is complete.)
- Time-Remaining Display: true
- Vibration Reduction: true (Additional features, such as sensors that adjust spin speeds or weights that counter unbalanced loads, help to minimize vibration for smoother, quieter operation.)
- Interior Light(s): true
- Total Maximum BTU Rating: 1000 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Design
- Reversible Door Hinge: true
- Exhaust Vent Location: Bottom, Left, Rear
- Drum Material: Anodized steel
- Cycle Specifications
- Number Of Drying Cycles: 12
- Temperature Settings: 5
- Compatibility
- Pedestal Available: false
- Matching Washer Available: true
- Matching Washer Type: Top load
- Matching Washer Model Number: WA52A5500AC / WA51A5505AC
- Stackable: false (To stack with similar products, ensure that the necessary support and/or installation hardware is in place to reduce safety hazards.)
- Propane Conversion Kit Model Compatibility: LPKIT-4/XAA
- Included
- Propane Conversion Kit Included: false
- Electrical Specification
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Connectivity
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Other
- UPC: 887276557793
Samsung’s new Smart Dryer has integrated Wi-Fi that allows you to remotely start or stop your cycle, schedule laundry on your time, and receive end of cycle alerts and more, right from your smartphone. Also, the Steam Sanitize+ cycle eliminates 99.9% of germs and bacteria while relaxing and smoothing away wrinkles from everyday wear.
- Wi-Fi Connectivity: Wi-Fi connected so you can receive end of cycle alerts, remotely start or stop your drying, schedule cycles on your time, and more, right from your smartphone with the SmartThings App.¹
- Steam Sanitize+: The Steam Sanitize+ cycle removes 99.9% of germs and bacteria, over 95% of pollen, and kills 100% of dust mites.² Multi-Steam Technology steams away wrinkles, odors, and static.
- Sensor Dry: Automatically optimizes the time and temperature of your drying cycle to protect your clothes from heat damage, while avoiding excess energy use.³
- CleanGuard: Have peace of mind with antimicrobial technology that protects high-touch areas of your dryer.⁴
- Smart Care: Easy troubleshooting from the convenience of your smartphone.⁵ Smart Care interacts with your washer and dryer to perform an immediate diagnosis and offer quick solutions.
- Interior Drum Light: Put an end to stray socks or smaller laundry items that are hard to spot. An interior drum light brightly illuminates your laundry and the rest of the interior, so you can quickly and safely check your dryer’s contents.
- Reversible Dryer Door: Choose the direction your dryer door opens to better suit your laundry room layout.
- Accessibility (AUI, Braille): Aiding the visually and hearing impaired, your washer and dryer now features audio assistance, playing a different sound for each option, and braille right next to key control panel buttons.
- Large 7.4 cu. ft. Capacity: Fewer loads, less time in the laundry room, and more time doing the things you love.
- Lint Filter Indicator: Stop worrying about lint or fluff building up and blocking your dryer’s air intake. The Lint Filter Indicator light on the control panel will provide you with a helpful reminder when it is time to clean the filter, so your dryer maintains optimal performance.
- Wi-Fi Connectivity: Wi-Fi connected so you can receive end of cycle alerts, remotely start or stop your drying, schedule cycles on your time, and more, right from your smartphone with the SmartThings App.¹
- Steam Sanitize+: The Steam Sanitize+ cycle removes 99.9% of germs and bacteria, over 95% of pollen, and kills 100% of dust mites.² Multi-Steam Technology steams away wrinkles, odors, and static.
- Sensor Dry: Automatically optimizes the time and temperature of your drying cycle to protect your clothes from heat damage, while avoiding excess energy use.³
- CleanGuard: Have peace of mind with antimicrobial technology that protects high-touch areas of your dryer.⁴
- Smart Care: Easy troubleshooting from the convenience of your smartphone.⁵ Smart Care interacts with your washer and dryer to perform an immediate diagnosis and offer quick solutions.
- Interior Drum Light: Put an end to stray socks or smaller laundry items that are hard to spot. An interior drum light brightly illuminates your laundry and the rest of the interior, so you can quickly and safely check your dryer’s contents.
- Reversible Dryer Door: Choose the direction your dryer door opens to better suit your laundry room layout.
- Accessibility (AUI, Braille): Aiding the visually and hearing impaired, your washer and dryer now features audio assistance, playing a different sound for each option, and braille right next to key control panel buttons.
- Large 7.4 cu. ft. Capacity: Fewer loads, less time in the laundry room, and more time doing the things you love.
- Lint Filter Indicator: Stop worrying about lint or fluff building up and blocking your dryer’s air intake. The Lint Filter Indicator light on the control panel will provide you with a helpful reminder when it is time to clean the filter, so your dryer maintains optimal performance.
A: We just had this same issue with a new dryer. There was nothing wrong with the dryer. It was the vent was blocked.
Q: Do I need a pan to sit underneath this dryer?
A: No you don’t.
Q: What size gas line/connections are needed?
A: My home required a 5/8 gas line.
A: It comes with the vent coming out the back but there is an adjustable vent package
A: We had the same problem. Found out it was a blockage in air return. We have a new build. It had nothing to do with the dryer. Double check air return.
A: The y connector and the short water hose(that splits the hot water from the washer) is included. You need to purchase the hose for the steam line. I just purchased and realized this after we wanted to hook up machine. The advertising is misleading. Don’t do what I do. I have to drive a hour back to Best Buy to get this hose which cost $30. Now also you can use the dryer without the steam function until you get that hose.
Q: Hi my dryer doesn’t work but there’s power what should we do?
A: Hello Joyce, We understand how you feel about your dryer that isn't working. Let us help you. Here is a link with steps that could help with your dryer. Please check the embedded links and watch the video fully for more details. Samsung dryer turns on but will not start or spin https://www.samsung.com/us/support/troubleshoot/TSG10007168/ Should you need more assistance, please feel free to get back to us via the following options: 1. Facebook Messenger: http://m.me/samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.commuity.samsung.com/t5/Samsung-Community/ct-p/us 4. Samsung Customer Care: 1-800-7267864 (1800-SAMSUNG) Please provide us with this reference number (1150670957) when you message us so our team can retrieve your information. Thank you. -Kimberly
A: Hi DarrenB, We understand how you feel regarding this dryer. We are here to help you. Please check page 55 of the user manual for steps to take when the dryer is noisy. https://downloadcenter.samsung.com/content/UM/202410/20241015032053189/DC68-03784S-04_IB_DV7000_EN_MES_240910.pdf Should you still need support, please don’t hesitate to reach out to us through the channels below. 1. Facebook Messenger: http://m.me/samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.community.samsung.com/t5/Samsung-Community/ct-p/us When you message us, provide us with this reference number (1149146373), and it will help our team pull up your information. ^Rodel
