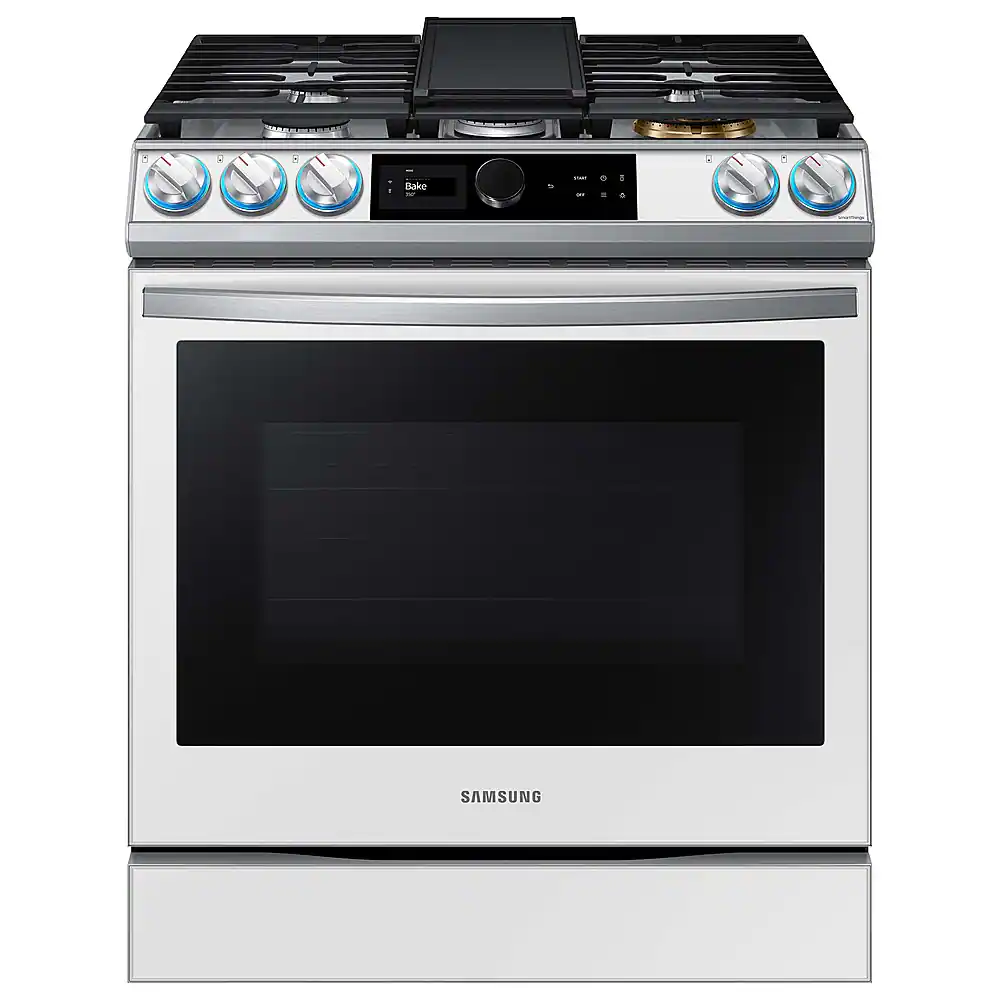

Samsung - BESPOKE 6.0 cu. ft. Smart Slide-in Gas Range with Smart Dial, Air Fry & Wi-Fi - White Glass
Model: NX60BB871112/AA
SKU: 6491827
This item is no longer available in new condition. See similar items below
- Key Specs
- Color Finish: White
- Product Height: 37 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Number of Burners: 5
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Samsung
- Model Number: NX60BB871112/AA
- Product Name: BESPOKE 6.0 cu. ft. Smart Slide-in Gas Range with Smart Dial, Air Fry & Wi-Fi
- Color: White Glass
- Color Finish: White
- Dimensions
- Product Height: 37 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 11/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Depth Without Handle: 26 7/16 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 28 11/16 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Product Weight: 220 pounds (The out of box weight of the item.)
- Capacity
- Oven Capacity: 6 cubic feet (Standard ovens typically have capacities of about 5 cubic feet, while wall ovens typically have about 3 cubic feet of space.)
- Features
- Range Type: Slide-In (Freestanding ranges have finished sides and a backguard where the oven controls are located; this style allows for the most versatility in placement. Slide-in ranges may have unfinished sides and are wider at the top to overlap the countertop on each side, allowing for a built-in appearance. Drop-in ranges are also known for their built-in style and are designed to fit custom cabinetry or countertops.)
- Downdraft Ventilation: false (This ventilation system, typically integrated right into the cooktop, pulls smoke and fumes downward in order to ventilate them away from the cooking area. If a range hood is not an option due to your cooktop location or you need more cabinet space above the cooking surface, downdraft ventilation will save space while ensuring smoke and odors are still being ventilated.)
- Range Power Source: Gas
- Gas Type: Natural gas
- Fingerprint Resistant: false
- Control Type: Touchscreen, Knob
- Oven Control Location: Front panel
- Oven Light: true
- Propane (LP) Convertible: true
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Functions
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Hidden Bake Element: false (This feature provides more space within the cooking cavity and allows for cleaning without navigating around an exposed heating element.)
- Oven Cooking Modes: Convection, Air fry, Bake, Broil, Roast, Dehydrate, Proof
- Oven Settings: Keep Warm Setting
- Oven Features
- Oven Cleaning Method: Self-cleaning high heat (There are several ways to clean the inside of your oven. Depending on the model, it might require manual cleaning or have a self-clean function. Self-clean functions use either high heat or steam to break down grease and food debris within the cooking cavity.)
- Single/Double Oven: Single Oven
- Drawer Type: Storage (Many ranges have a drawer located beneath the oven. In some models, this drawer functions as a broiler for high-heat cooking and browning. Other models have warming drawers to keep prepared foods warm until serving. If the drawer has no cooking function, it serves as convenient storage for pans and baking sheets.)
- Cooktop Features
- Number of Burners: 5
- Sealed Burners: true (A cap covers the internal components of the burner to prevent food spilling into the flame or under the cooktop, allowing for easier cleaning.)
- Specialty Burner(s): Dual Ring, True Simmer (Do more with your cooktop with burners designed for specific cooking needs and precise control. For example, simmer burners provide consistent, low-temperature heat for melting delicate foods or simmering sauces, while power burners provide high cooking power for quick boiling, searing, or stir-fry cooking.)
- Grate Material: Cast iron
- Burner Rating
- Burner 1 Rating: 16000 british thermal units (An average home cooktop burner gives off about 7,000 BTUs of heating power. Burners with higher BTU ratings are better suited for searing or stir-fry cooking, while lower burner ratings are ideal for simmering.)
- Burner 2 Rating: 9500 british thermal units
- Burner 3 Rating: 22000 british thermal units
- Burner 4 Rating: 5000 british thermal units
- Burner 5 Rating: 10000 british thermal units
- Total Maximum BTU Rating: 62500 (The total amount of gas, measured in British Thermal Units (BTU), used by the appliance when operating at its maximum output.)
- Included
- Propane Conversion Kit Included: true
- Gas Regulator Inlet Thread Size: 1/2 inch (The internal (female) thread size of the gas inlet connection on the appliance’s gas regulator. Note: this is not referring to the gas line size requirement.)
- Certifications Listings & Approvals
- ADA Compliant: true (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Chemical Disclosures: This product contains (Este producto contiene) one or more regulated perfluoroalkyl and polyfluoroalkyl substances or PFAS. For more information on PFAS or chemicals in this product, visit (Para obtener mas informacion sobre PFAS o productos quimicos en este producto, visite) https://image-us.samsung.com/SamsungUS/home/my-assets/120123/California_AB_1200_Cookware_Disclosure_Memo_2023.pdf (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 887276594743
The Bespoke Smart Front Control Slide-in Gas Range features a Smart Dial, Air Fry and Wi-Fi. Bespoke kitchen appliances are now available in three complementary colors to the Bespoke 4-Door Flex Refrigerator.
- Smart Dial: Every time you turn the Smart Dial, it learns your cooking behavior and preselects cooking modes, temperatures, and cook times that you use most often, ultimately saving you time. Smart Dial simplifies all oven settings into one single dial.
- No Preheat-Air Fry: No need to store a separate Air Fry appliance anymore. Enjoy healthier¹ fried foods fast with Air Fry mode built into your range – no preheating needed. Air Fry tray included in select models.
- Convection+: Powerful Convection+ saves you time by cooking food fast and more evenly. The fan, with a heated element, circulates hot air in the oven for perfect baking and roasting
- Illuminated Knobs: Blue illuminated knobs let you know when your cooktop is on or off.
- Dual Ring Brass Power Burner: Make meals in a snap with a range that has the most powerful burner in its class. Rapidly boil water and sear meat with this 22K BTU Dual Ring Brass Power Burner or turn down to a true simmer. Ideal for melting chocolate or simmering sauces.²
- Flexible Cooktop: The 5-burner cooktop with continuous cast iron edge-to-edge grates allows you to easily slide your pots and pans across more usable cooktop space and adds a more premium look to your kitchen.
- Reversible Cast Iron Griddle: Cook a variety of breakfast foods, burgers or grilled sandwiches on the reversible cast iron griddle.
- Large Oven Capacity: This large 6.0 cu. ft. oven easily accommodates large dishes or roasting pans.
- Wi-Fi: Monitor your cooktop and adjust cook time and temperature of your oven right from your smartphone through the SmartThings App.⁴
- Voice Control: Control your oven by voice when you're busy doing other things by using your favorite virtual assistant, whether it's Bixby, Amazon Alexa, or Google.⁵
- Self Clean: Get help from your oven with Self Clean. The self cleaning system deep cleans by heating up to a high temperature to burn off grease and food residue.
- Ready2Fit Guarantee: If your Samsung Front Control Slide-in Range doesn't fit your 30" Freestanding Range cutout, enjoy $100 on us to cover any countertop modification costs.
- Built-in Temperature Probe: Know the internal temperature of meats with a built-in temperature probe you can check on your oven or smartphone.
- SmartThings Cooking: Samsung's SmartThings Cooking service makes meal planning a seamless process. Search, plan, purchase and prep weekly meals via the SmartThings App on your Family Hub or smartphone. SmartThings Cooking recommends personalized recipes based on preferences,
- Smart Dial: Every time you turn the Smart Dial, it learns your cooking behavior and preselects cooking modes, temperatures, and cook times that you use most often, ultimately saving you time. Smart Dial simplifies all oven settings into one single dial.
- No Preheat-Air Fry: No need to store a separate Air Fry appliance anymore. Enjoy healthier¹ fried foods fast with Air Fry mode built into your range – no preheating needed. Air Fry tray included in select models.
- Convection+: Powerful Convection+ saves you time by cooking food fast and more evenly. The fan, with a heated element, circulates hot air in the oven for perfect baking and roasting
- Illuminated Knobs: Blue illuminated knobs let you know when your cooktop is on or off.
- Dual Ring Brass Power Burner: Make meals in a snap with a range that has the most powerful burner in its class. Rapidly boil water and sear meat with this 22K BTU Dual Ring Brass Power Burner or turn down to a true simmer. Ideal for melting chocolate or simmering sauces.²
- Flexible Cooktop: The 5-burner cooktop with continuous cast iron edge-to-edge grates allows you to easily slide your pots and pans across more usable cooktop space and adds a more premium look to your kitchen.
- Reversible Cast Iron Griddle: Cook a variety of breakfast foods, burgers or grilled sandwiches on the reversible cast iron griddle.
- Large Oven Capacity: This large 6.0 cu. ft. oven easily accommodates large dishes or roasting pans.
- Wi-Fi: Monitor your cooktop and adjust cook time and temperature of your oven right from your smartphone through the SmartThings App.⁴
- Voice Control: Control your oven by voice when you're busy doing other things by using your favorite virtual assistant, whether it's Bixby, Amazon Alexa, or Google.⁵
- Self Clean: Get help from your oven with Self Clean. The self cleaning system deep cleans by heating up to a high temperature to burn off grease and food residue.
- Ready2Fit Guarantee: If your Samsung Front Control Slide-in Range doesn't fit your 30" Freestanding Range cutout, enjoy $100 on us to cover any countertop modification costs.
- Built-in Temperature Probe: Know the internal temperature of meats with a built-in temperature probe you can check on your oven or smartphone.
- SmartThings Cooking: Samsung's SmartThings Cooking service makes meal planning a seamless process. Search, plan, purchase and prep weekly meals via the SmartThings App on your Family Hub or smartphone. SmartThings Cooking recommends personalized recipes based on preferences,
A: The range is about 28 inches from edge of "back vent" to edge of front NOT including the handle. Handle is additional approx 1 1/2 inches. Need to keep space between back of range and rear wall and this leaves a rather large gap in the back. We installed a range gap filler piece.
A: Good day. Those were excellent questions! Yes, this oven has a broiler, and the cooling vents are located at the back of the oven range. For performance reasons, the fan may be turned on or off during the operation, while the cooling fan will continue to run until the oven has cooled down, whether by convection cooking or not. For more information on broiling and convection cooking, you may refer to page 25 of the manual: https://downloadcenter.samsung.com/content/UM/202202/20220216120537149/NX60T8711SS_AA_DG68-01220A-07_EN_MES_CFR_211207.pdf If you require further assistance in the future, please do not hesitate to reach us through the channels listed below: 1. Facebook Messenger: http://m.me/samsungsupport 2. Twitter: https://twitter.com/messages/compose?recipient_id=18768513 3. Samsung Community: https://us.community.samsung.com/t5/Samsung-Community/ct-p/us Please provide us with this reference number (1145128731) to help our team pull up your information when you message us. Thank you for choosing Samsung. Have a wonderful day! —Vannesa
A: When the burner is on, the knob display lights up with a blue light.
Q: Can the air fry feature be used without wi-fi?
A: Yes. The whole range and all the features can be used without wifi.
Q: Does this stove require a vent hood
A: No, I do not have one…it has a vent built I
A: Hi there, Our Samsung ranges do not have a decibel rating, and any noise that is outside the operation can be addressed by the link provided below. Samsung cooktop and range sounds and operational noises: https://www.samsung.com/us/support/troubleshooting/TSG01110180/ Have a great day, -Ernest-
Q: Is the range available in 36”?
A: No, Magy, this range is adjustable from 36 1/4 to 37 inches. You can check the link below and see page 2 (Product Dimensions & Weight WxHxD) for reference. Specifications: https://image-us.samsung.com/SamsungUS/home/home-appliances/ranges/pdf/09272023/NX60T8711_V8.pdf Have a great day, -Ernest-
A: Hi Calvo, We are glad to answer your question about the Gas Pipe size for this Samsung range model. The Gas Pipe diameter is either 0.5 inches or 0.75 inches and should go through a Gas Shut-Off Valve. Leo
