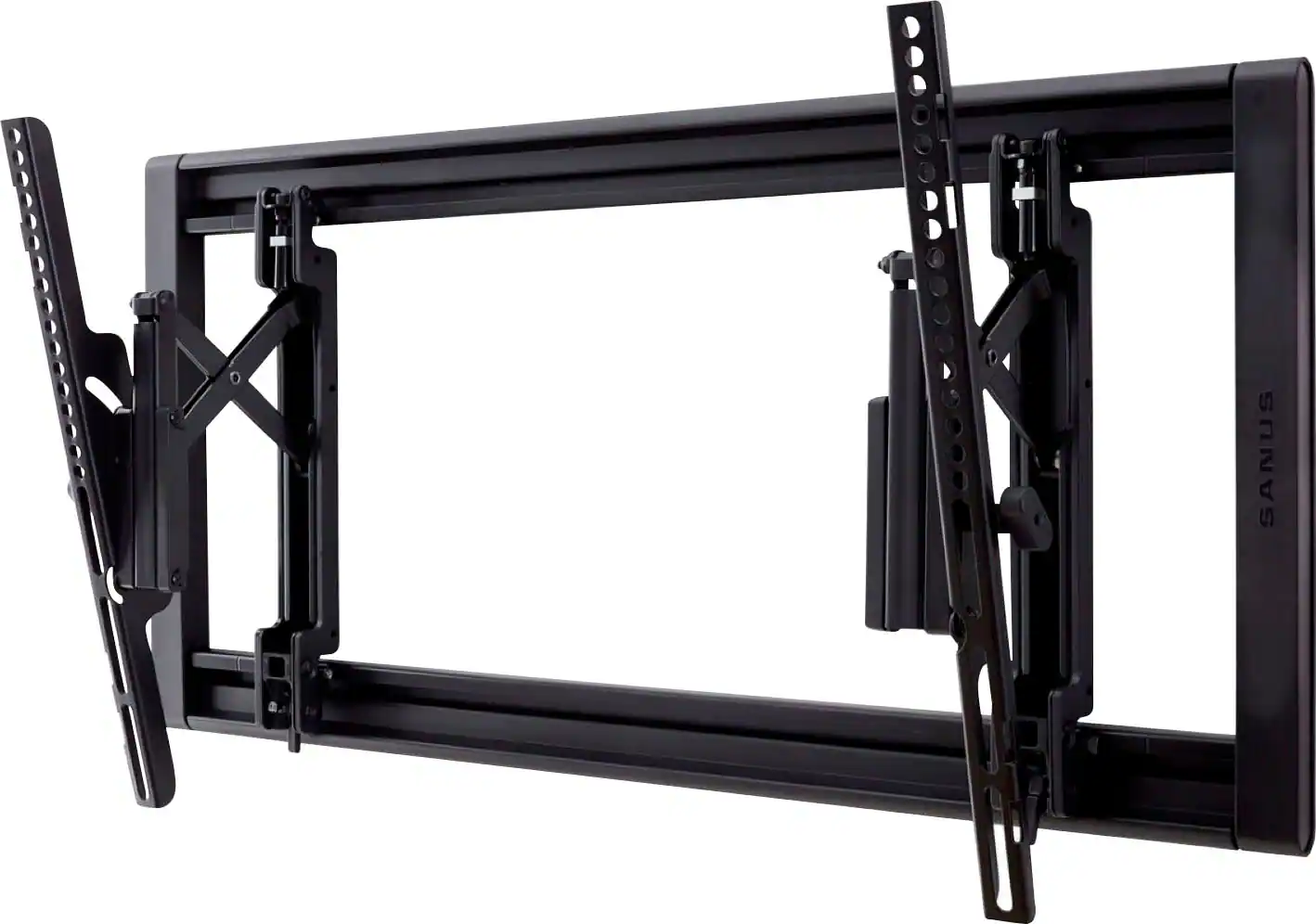

SANUS Elite - Advanced Tilt 4D TV Wall Mount for Most TVs 42"-90" up to 150lbs- Extends 6.8" for Easy Cable Access and Max Tilt - Black
Key Accessories:
Related Item
About This Item
- General
- Brand: SANUS Elite
- Model Number: BLT3-B1
- Product Name: Advanced Tilt 4D TV Wall Mount for Most TVs 42"-90" up to 150lbs- Extends 6.8" for Easy Cable Access and Max Tilt
- Color: Black
- Assembly Required: Yes
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Tilting, Swiveling
- Pan: 15° (Angles to the left or right for customized viewing and/or accessibility.)
- Tilt: up 7°/ down 12° (Angles upward or downward for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Adjustable Height: false
- Cord Storage: false
- Compatibility
- Maximum Weight Capacity: 150 pounds (The maximum load that can be supported by the product.)
- Compatibility: Fits 42"-90" TVs. Holds up to 150 lbs.
- Mount Location: Wall
- Maximum Television Size: 90 inches
- Minimum Television Size: 42 inches
- VESA Wall Mount Standard: 150mm x 150mm, 600mm x 400mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 16.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 31.3 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.1 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 6.8 inches
- Product Weight: 9.6 pounds (The out of box weight of the item.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal, Plastic
- Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: Not applicable
- Other
- UPC: 793795534644
The SANUS Elite BLT3 Advanced Tilt 4D TV Wall Mount features a revolutionary design, providing 6.8” of extension on a tilting mount. Tilt 4D advanced technology tilts in four directions. The extension allows even the largest of TVs to achieve the maximum listed tilt range. Large TVs installed on traditional tilting mounts often hit the wall, limiting the maximum tilt that can be achieved. The BLT3 solves this issue by extending from the wall, offering TVs a larger tilt range. More tilt translates to better glare reduction. This makes the BLT3 the go-to tilting mount for all above-eye-level mounting locations, like over the fireplace. Additionally, because the mount can extend the TV 6.8” from the wall, cables and wires can be accessed quickly and easily while the TV is still mounted. This makes the initial hook-up and future device switches a quick and easy process.
- Advanced Tilt 4D TV Wall Mount: Advanced technology tilts TV in four directions for easy cable hookup and improved viewing angles.
- Easy Cable Hookup: Mount extends 6.8" from the wall for easy cable hookup.
- Maximum Tilt: Large TVs installed on traditional tilting mounts often hit the wall, limiting the maximum tilt that can be achieved. The BLT3 solves this issue by extending from the wall, offering TVs a larger tilt range. More tilt translates to better glare reduction.
- Thin Profile: Seamlessly places TV just 2.1" from the wall and blends with TV and décor.
- Effortlessly swivel your bracket - Perfect for 50, 55, 65, and 75 inch TVs and more: Effortlessly moves TV to the ideal position.
- ProSet Technology: Easy adjust level and height of TV after installation
- Open Wall Plate Design: Allows BLT3 to be mounted directly over electrical outlets or media boxes
Whats Included
- Advanced 4D Tilt TV Wall Mount
- Mounting hardware
- Instruction manual
- Wall plate template
Product Manuals
Q: How far does the mount extend from the wall?
A: This mount extends 6.8 inches from the wall.
Q: Does this mount come with the necessary hardware for installation?
A: Yes, the necessary hardware for installation is included with the mount.
Q: What is the minimum TV size that this mount is compatible with?
A: The minimum TV size compatible with this mount is 42 inches.
Q: Why is the open wall plate design beneficial?
A: The open wall plate design allows the mount to be installed over electrical outlets or media boxes.
Q: What is the maximum weight capacity of this TV mount?
A: The maximum weight capacity of this TV mount is 150 pounds.
Q: Does this mount allow for tilting the TV?
A: Yes, the Advanced Tilt 4D technology allows tilting the TV in four directions.
A: This mount lets you hang the TV set perfectly straight, if that's what you prefer. It also lets you pull the TV away from the wall four inches, giving you room to plug the various cords in. You can then push the TV back to the wall with around an inch or two of clearance, or leave it out from the wall. Your choice!
