Satechi - Thunderbolt 4 Dock - Dual 4K@60Hz HDMI, 100W Charging, 40Gbps, 2 USB-A 3.2, Ethernet for MacBook Pro/Air - Space Gray
Satechi - Thunderbolt 4 Dock - Dual 4K@60Hz HDMI, 100W Charging, 40Gbps, 2 USB-A 3.2, Ethernet for MacBook Pro/Air - Space Gray
Related Item
About This Item
- Key Specs
- Maximum Number of Displays Supported: 4
- Maximum Supported Resolution: 4K (2160p)
- Number of DisplayPort Outputs (Total): 0
- Number of Thunderbolt Ports (Total): 2
- General
- Brand: Satechi
- Model Number: ST-DT4MDM-US
- Product Name: Thunderbolt 4 Dock - Dual 4K@60Hz HDMI, 100W Charging, 40Gbps, 2 USB-A 3.2, Ethernet for MacBook Pro/Air
- Color: Space Gray
- Display
- Maximum Number of Displays Supported: 4
- Maximum Supported Resolution: 4K (2160p)
- Maximum Supported Refresh Rate: 150Hz (The number of frames per second the device can support, expressed as a frequency. Higher rates help produce smooth, seamless pictures.)
- Ports
- Display Connector(s): 2 x HDMI 2.0 (The number and type of connectors used to connect to an external display.)
- Number of DisplayPort Outputs (Total): 0
- Number of HDMI Ports (Total): 2
- Number of Thunderbolt Ports (Total): 2
- Number of VGA Ports: 0 (VGA (Video Graphics Adapter or Video Graphics Array) is a display standard that transmits via analog signals. This type of interface is typically used to connect a computer to a display device such as a monitor, projector, or TV.)
- Number Of Ethernet Ports: 1
- Number of USB Ports (Total): 7
- USB Ports: 2 x USB-A 3.2 (The number and type of USB ports the product has.)
- Power
- Powered: true
- Power Supply Included: true
- Cable Length: 0.8 feet
- Compatibility
- Brand Compatibility: MacBook Pro, iMac, iMac Pro, Mac Mini, PC
- Model Compatibility: MacBook Pro, iMac, iMac Pro, Mac Mini, PC
- Dimensions
- Product Height: 0.72 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 8.42 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 3.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.36 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 810086361182

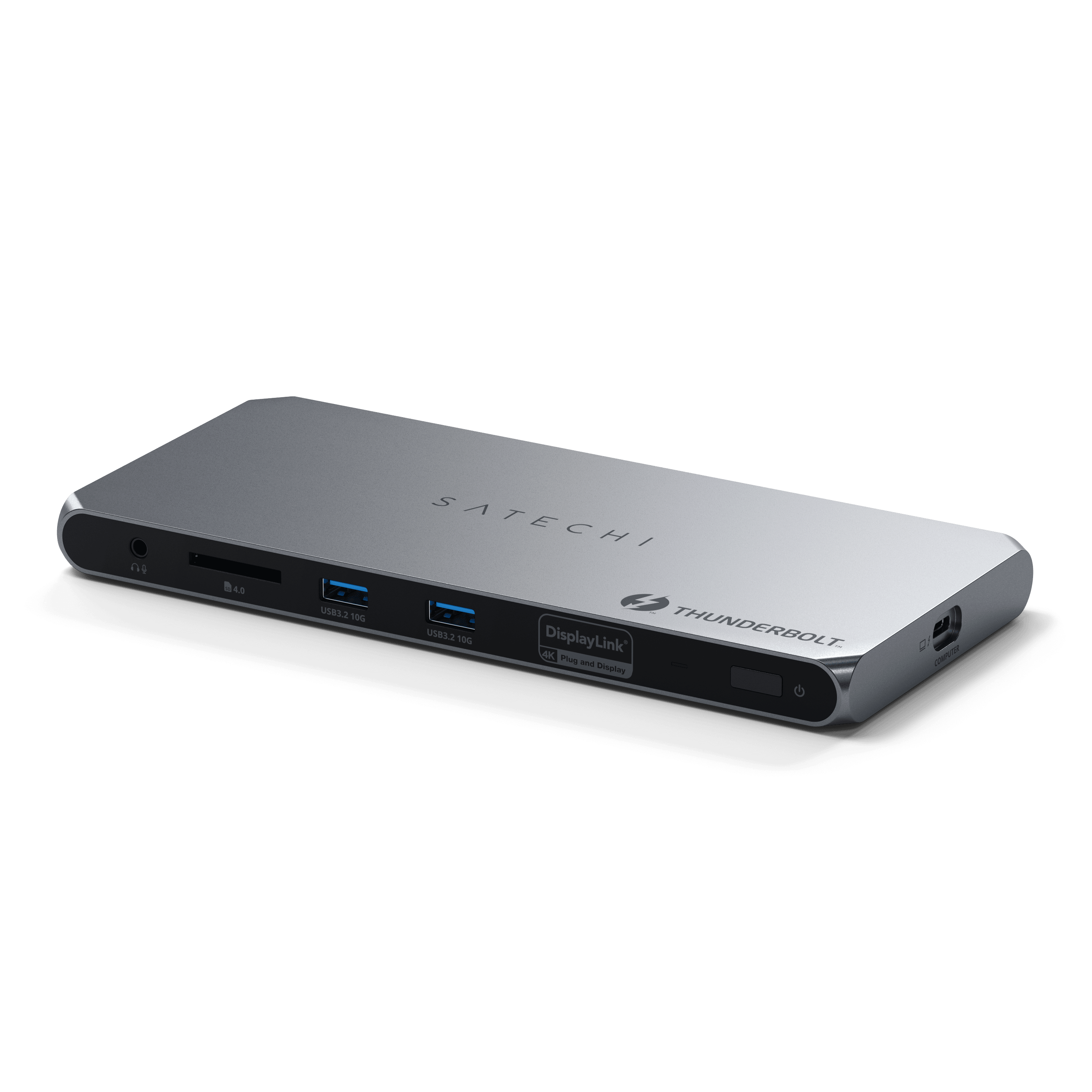

Revolutionize your workspace with the Satechi Thunderbolt 4 Dock with DisplayLink. Connect up to four external 4K/60Hz monitors: two via Thunderbolt 4 and two via HDMI. Experience blazing data transfer speeds up to 40Gbps via three Thunderbolt 4 ports and up to 10Gbps via two USB-A 3.2 ports. Charge your laptop with up to 96W USB-C PD charging while expanding your peripherals with a UHS-II SD 4.0 card reader up to 312MB/s and Gigabit Ethernet. Supports daisy-chain up to 6 devices. Compatible with MacBook Air/Pro M5/M4, iMac M4, Mac Mini M4, Mac Studio M4, and a wide range of Windows PCs. DisplayLink software required. Includes 1 meter Thunderbolt 4 cable, 180W AC adapter, and C5 power cord. Covered by a 2-year limited warranty.
- Multiply Display Capabilities: Supports up to 4 external extended displays at 4K/60Hz, 2 via thunderbolt 4 ports and 2 via HDMI (DisplayLink required). Limited to 3 external extended display for Mac M2/M1 processors, 1 via Thunderbolt 4 port and 2 via HDMI ports. Note: Requires installation of DisplayLink Drivers before using

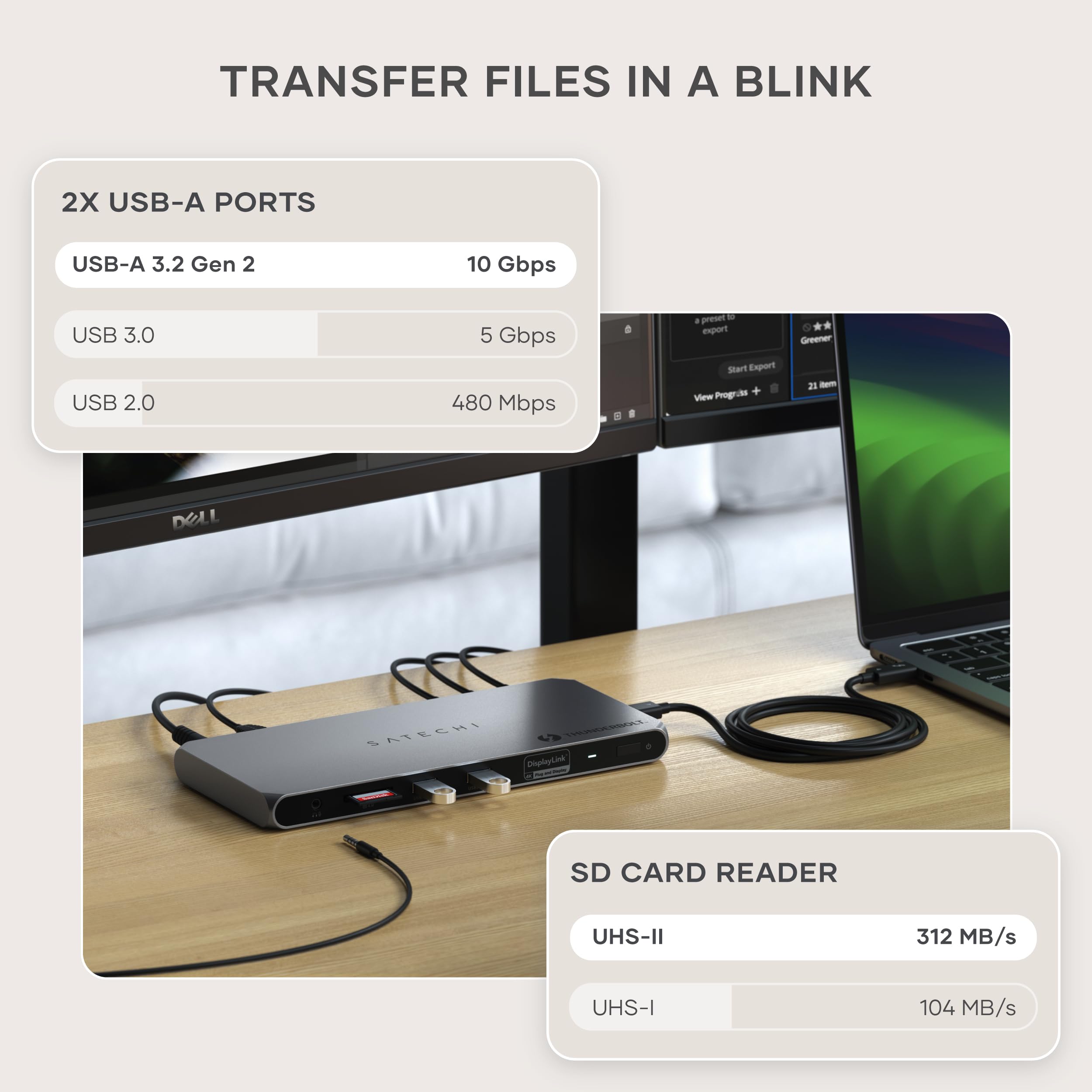

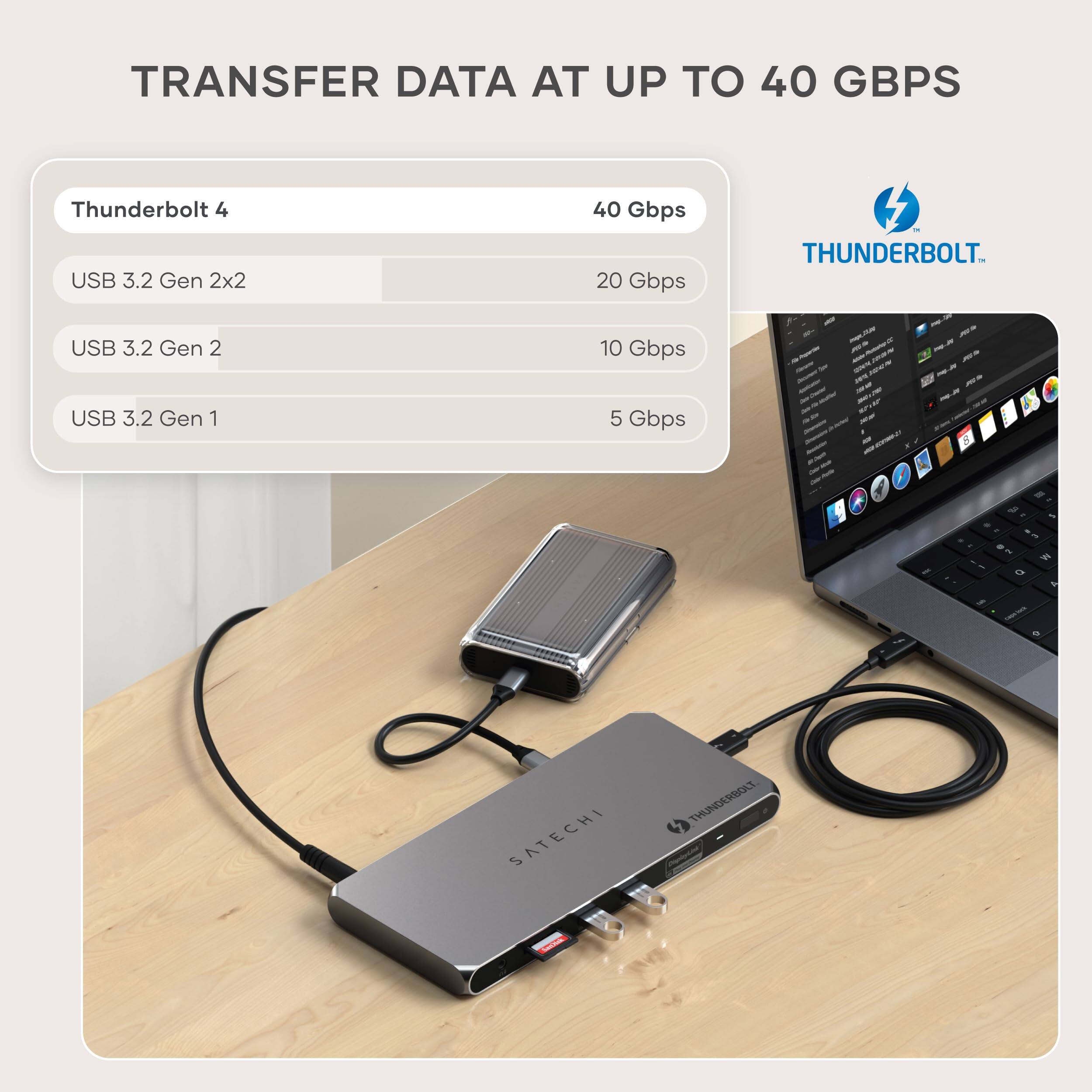

- Maximizing Efficiency: Experience blazing data transfers speeds via 3 of our Thunderbolt 4 ports up to 40Gbps data and 2 USB-A port up to 10Gbps data through our Thunderbolt 4 docking station. Supports daisy-chain up to 6 devices. Providing data transfer speeds up to 32Gbps for external Graphic cards and Thunderbolt based SSDs

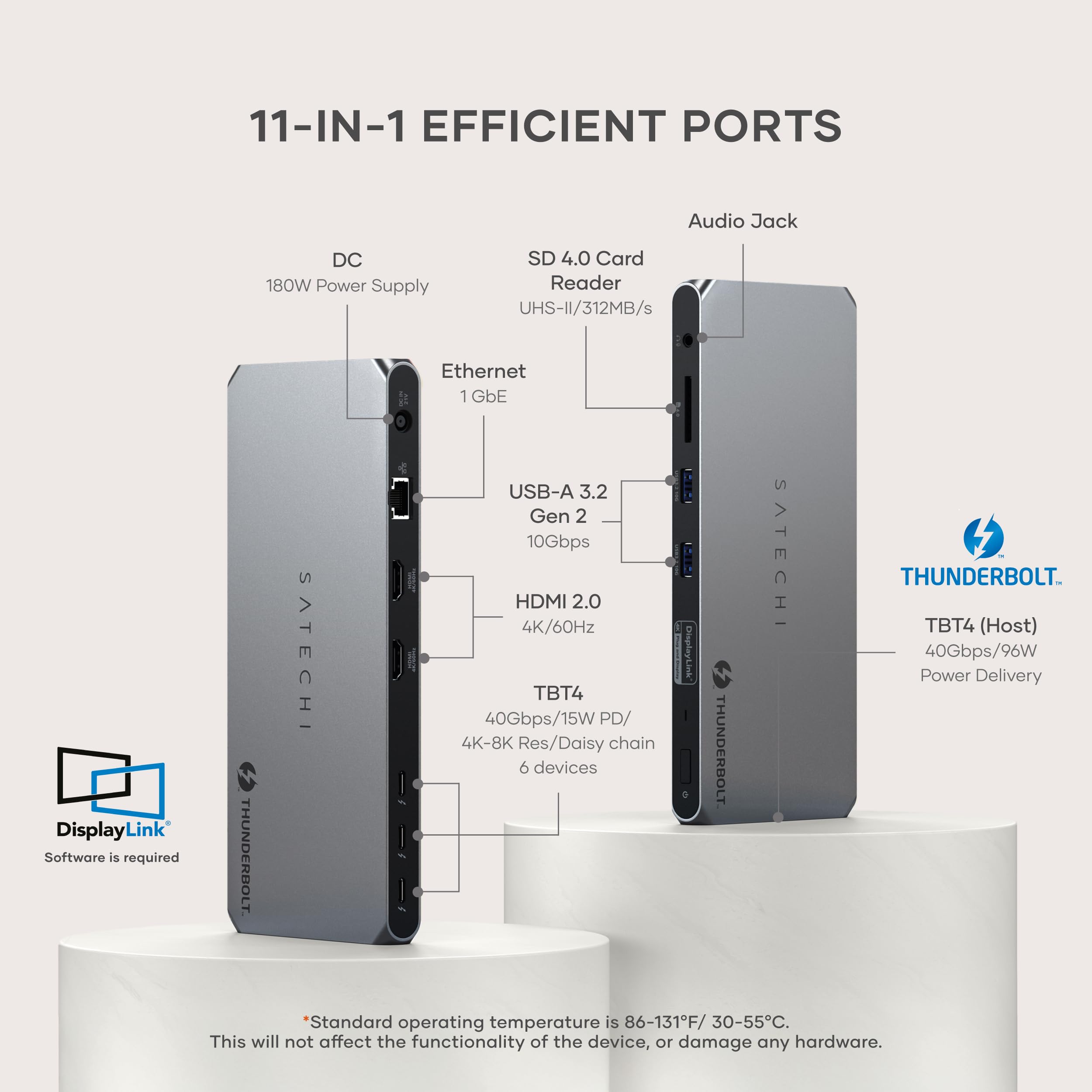

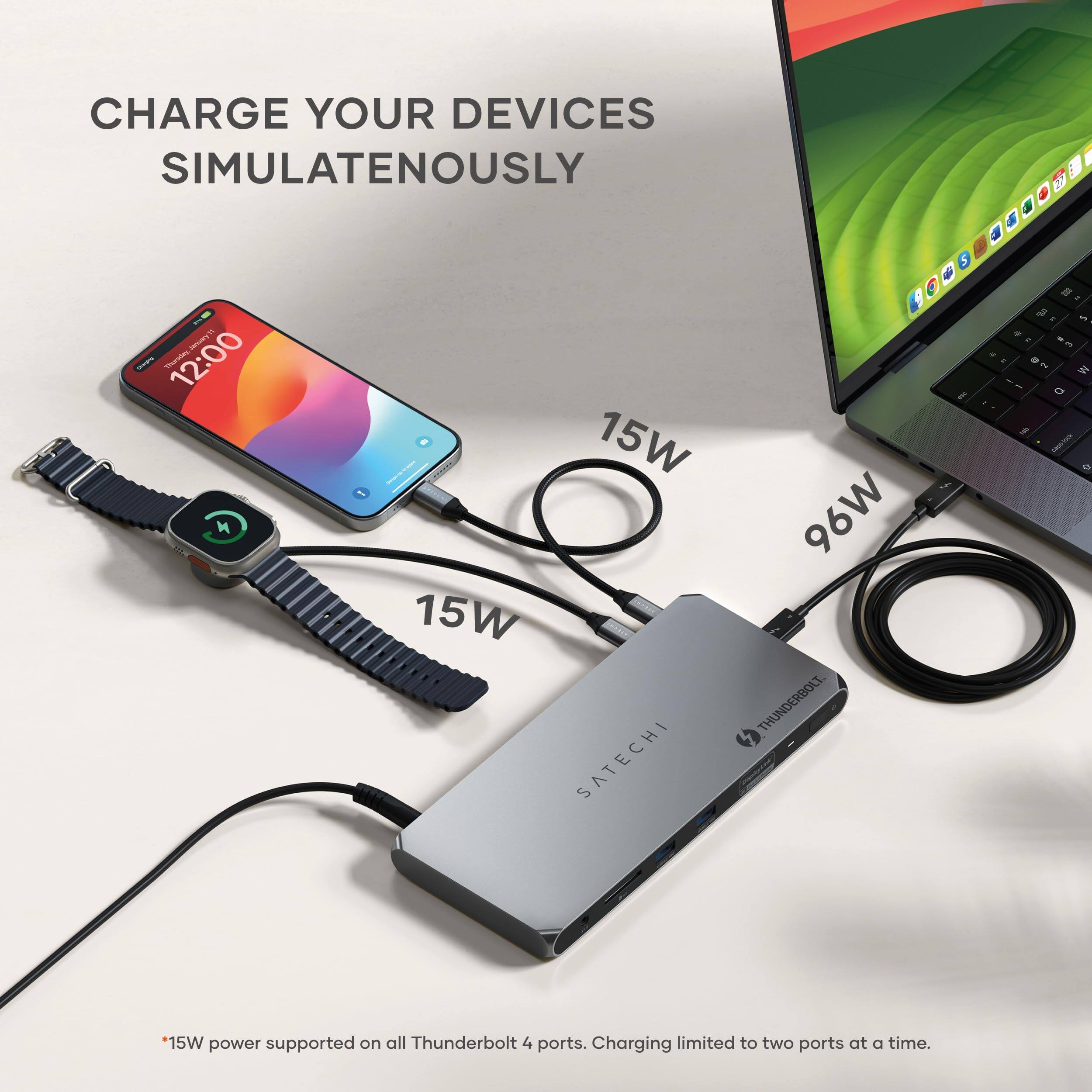

- Expand Your Peripherals: Our Thunderbolt 4 hub offers a USB-C 96W PD charging port to charge your device simultaneously, a UHS-II SD (4.0) card reader up to 312MB/s, and an ethernet port up to 1000Mbps for stable connection. Standard operating temperature is 86-131F/30-55C. This will not affect the functionality of the device, or damage any hardware
- Compatibility: Works with Thunderbolt 4 and USB 4 devices, MacBook Air/Pro M5/M4, iMac M4, Mac Mini M4, Mac Studio M4, and a wide range of Windows PCs including models from Lenovo, Microsoft Surface, Dell, HP, Razer, and Huawei, as well as Chrome OS devices
- What You Get: With your purchase you will receive 1 meter Thunderbolt 4 cable, 180W AC adapter, C5 power cord, a prompt customer service, and a user manual for your convenience. Satechi products are covered by a 2-year limited warranty against defects in materials and workmanship under normal use
Whats Included
- 1m Thunderbolt 4 cable, 180W AC adapter, C5 power cord, user manual
