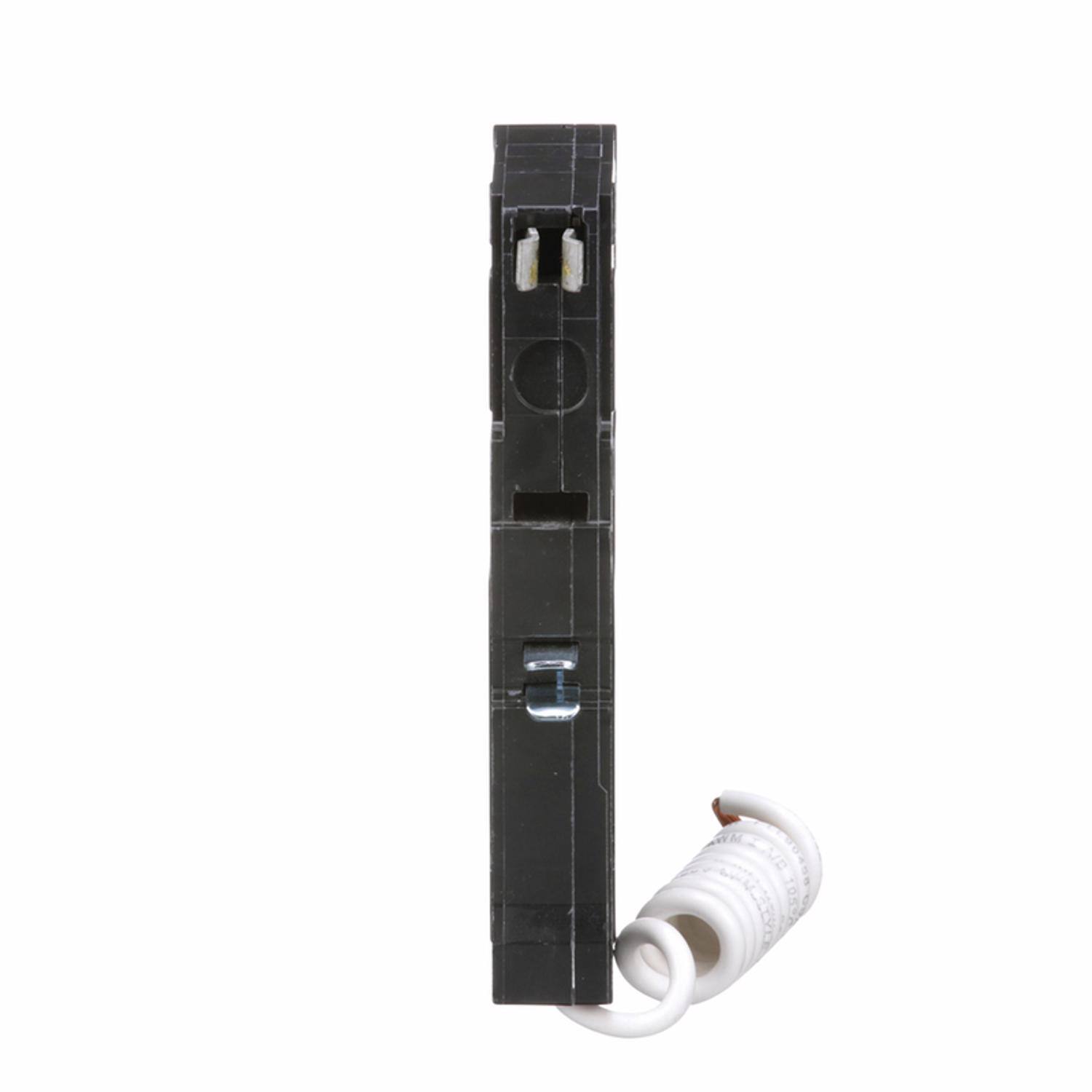

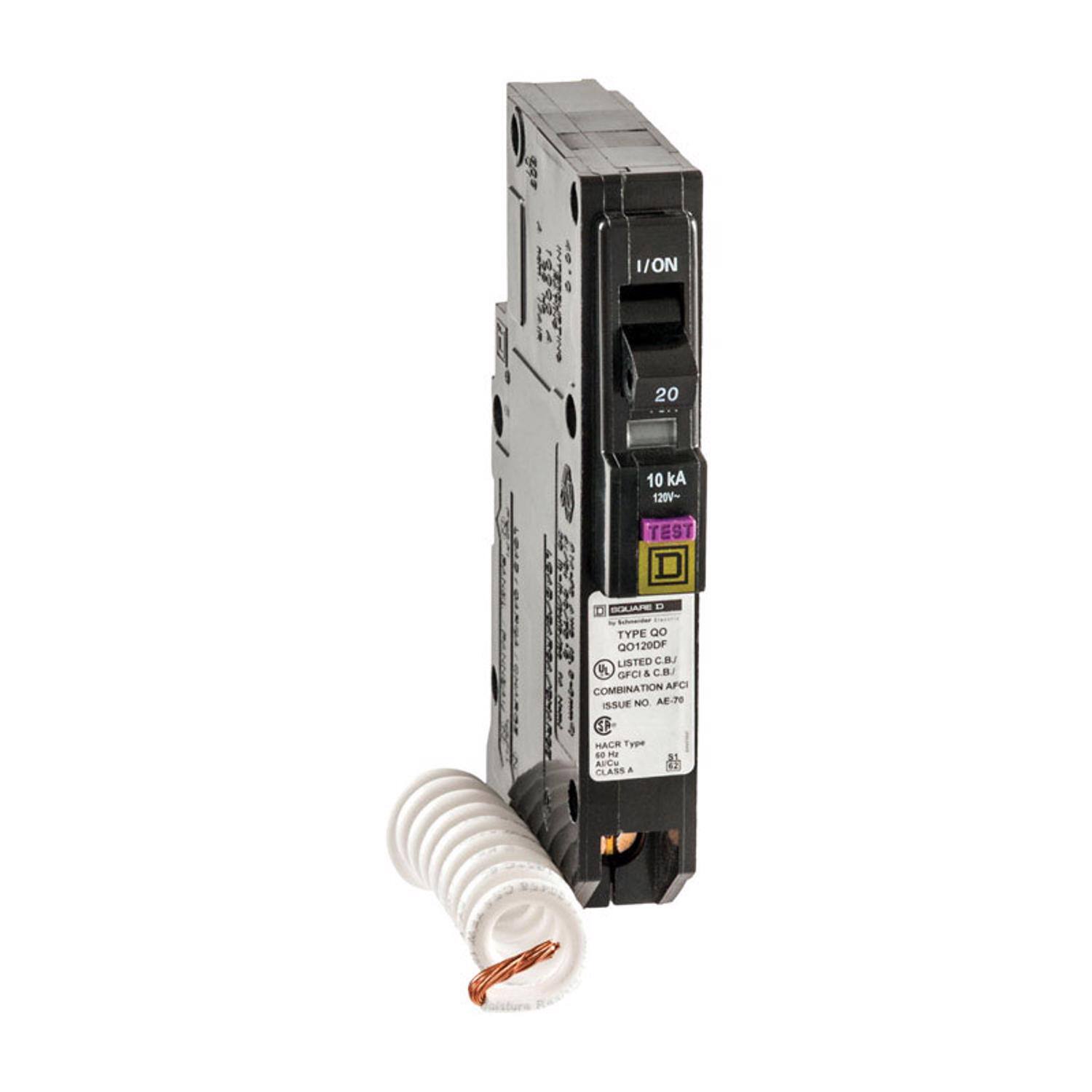

Schneider Electric - Square D QO 20 amps Arc Fault/Ground Fault Single Pole Circuit Breaker
Amperage
20 amperesRelated Item
About This Item
- General
- Brand: Schneider Electric
- Model Number: QO120DFC
- Product Name: Square D QO 20 amps Arc Fault/Ground Fault Single Pole Circuit Breaker
- Power
- Amperage: 20 amperes (Strength of electrical current.)
- Maximum Voltage: 120 volts
- Ground Fault Interrupter: true
- Arc Fault Circuit Interrupter: true
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Dimensions
- Product Height: 4.75 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 0.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.91 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.35 pounds (The out of box weight of the item.)
- Other
- UPC: 785901401681
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a dual function feature with pigtail. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is in clam packaging.
- Feature 1: Packaging Type: Sleeve
- Feature 2: Product Series: QO
Reviews
This product doesn't have any reviews yet.
Compare similar products
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and is plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a dual function feature with pigtail. This provides combination arc fault and ground fault protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. This product is in clam packaging.
