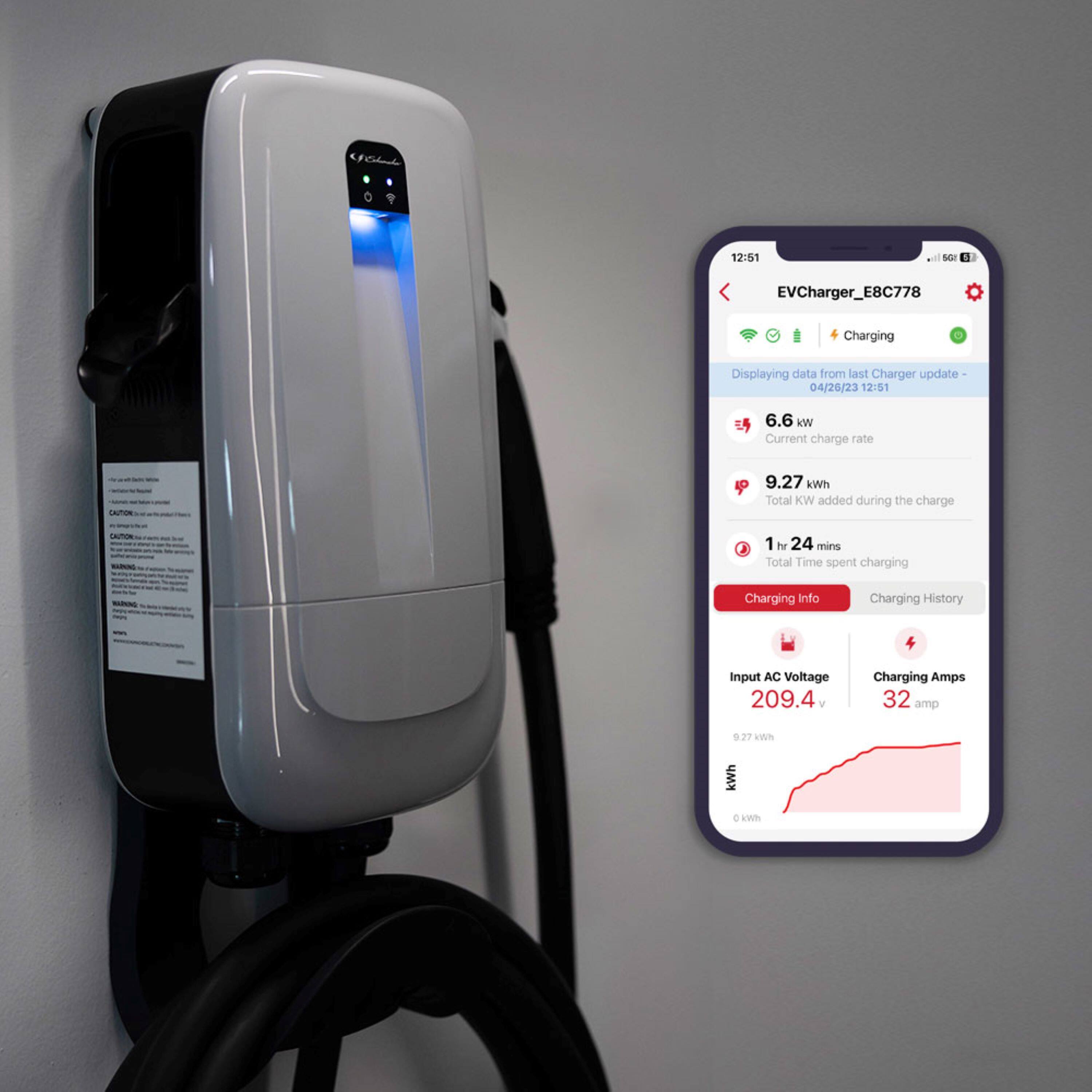

Schumacher Electric - Level 2 240V NEMA 14-50 Plug-in EV Wall Charger with Wi-Fi/Bluetooth and J1772 Connector - Gray
Related Item
- General
- Brand: Schumacher Electric
- Model Number: SEV1600P1450
- Product Name: Level 2 240V NEMA 14-50 Plug-in EV Wall Charger with Wi-Fi/Bluetooth and J1772 Connector
- Color: Gray
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)

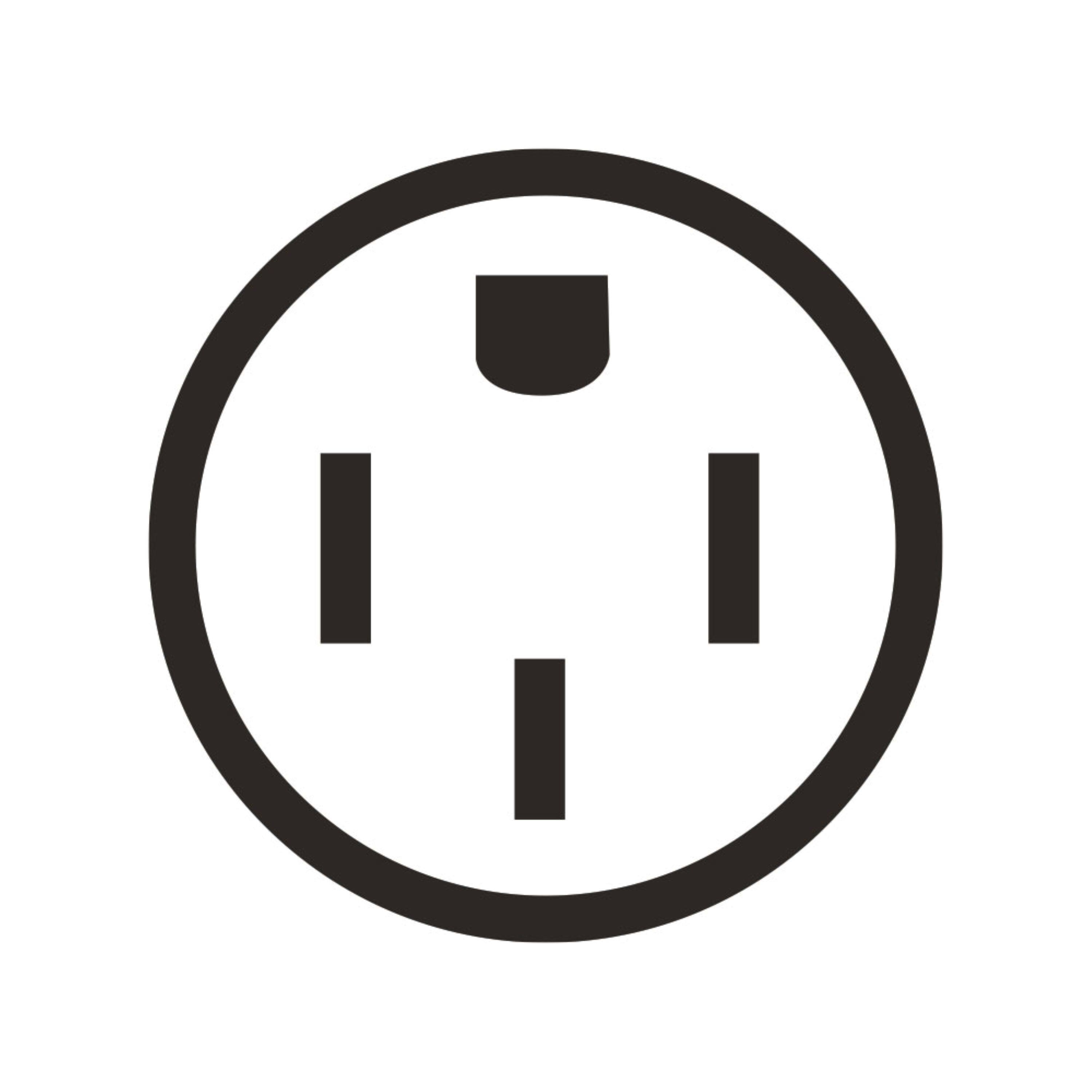

- Input Wiring Type: NEMA 14-50
- Charging Cable Length: 25 feet
- Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Number of Vehicles Charged Simultaneously: 1
- Mount Type: Wall
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Dimensions
- Product Height: 5.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 23.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years limited
- Warranty - Labor: 3 years limited
- Other
- UPC: 026666826006
Electric Vehicles are quickly occupying a growing share of the new automobile market. Owners of EVs prefer charging their vehicle at home and are updating their home with the newest EV charging technology. With the Schumacher SEV1600P1450 Level 2 EV Wall Charger, homeowners can enjoy the convenience of fast charging in their own home garage or driveway. The Schumacher SEV1600P1450 NEMA 14-50 Level 2 EV Wall Charger has a configurable current up to 50A (when hardwired), allowing it to charge up to eight times faster than a standard Level 1 charger. The included charging gun with an SAE-J1772 (universal) connector is compatible with most North American EVs, although Tesla vehicles will require an adapter (sold separately). The charger is also easy to use. Simply plug the charging gun into the EV’s charging port and charging is automatic. Integrated Wi-Fi and Bluetooth then let users connect to the SchuPower app to monitor and schedule charging. A low-profile design and built-in cord management with the flexible cable cradle prevent the unit from cluttering up the garage or drive, giving homeowners plenty of clearance when pulling a vehicle into or out of the space. There is also an interchangeable dock with dual docking capability letting users customize their usage for added comfort and convenience. A 25-foot charging cable makes it possible to easily charge vehicles parked in a garage or driveway whether the charger is installed indoors or outdoors. The Schumacher SEV1600P1450 Level 2 EV Wall Charger must be installed by a licensed electrician. Any changes to the wall charger’s electrical settings must also be made by a licensed electrician.
- Rapid Charging: The SEV1600P1450 employs Level 2 charging, which is up to eight times faster than a level 1 charger.
- Adds Range Quickly: The Schumacher Level 2 EV charger can add from 15 to 48 miles of range per hour.
- Industry Leading Power: With output power of 240V and a rated current of 50A (hardwired only), the SEV1600P1450 is one of the fastest chargers on the market.
- Bluetooth/Wi-Fi Connected: The integrated Wi-Fi and Bluetooth provide a secure connection to the SchuPower App.

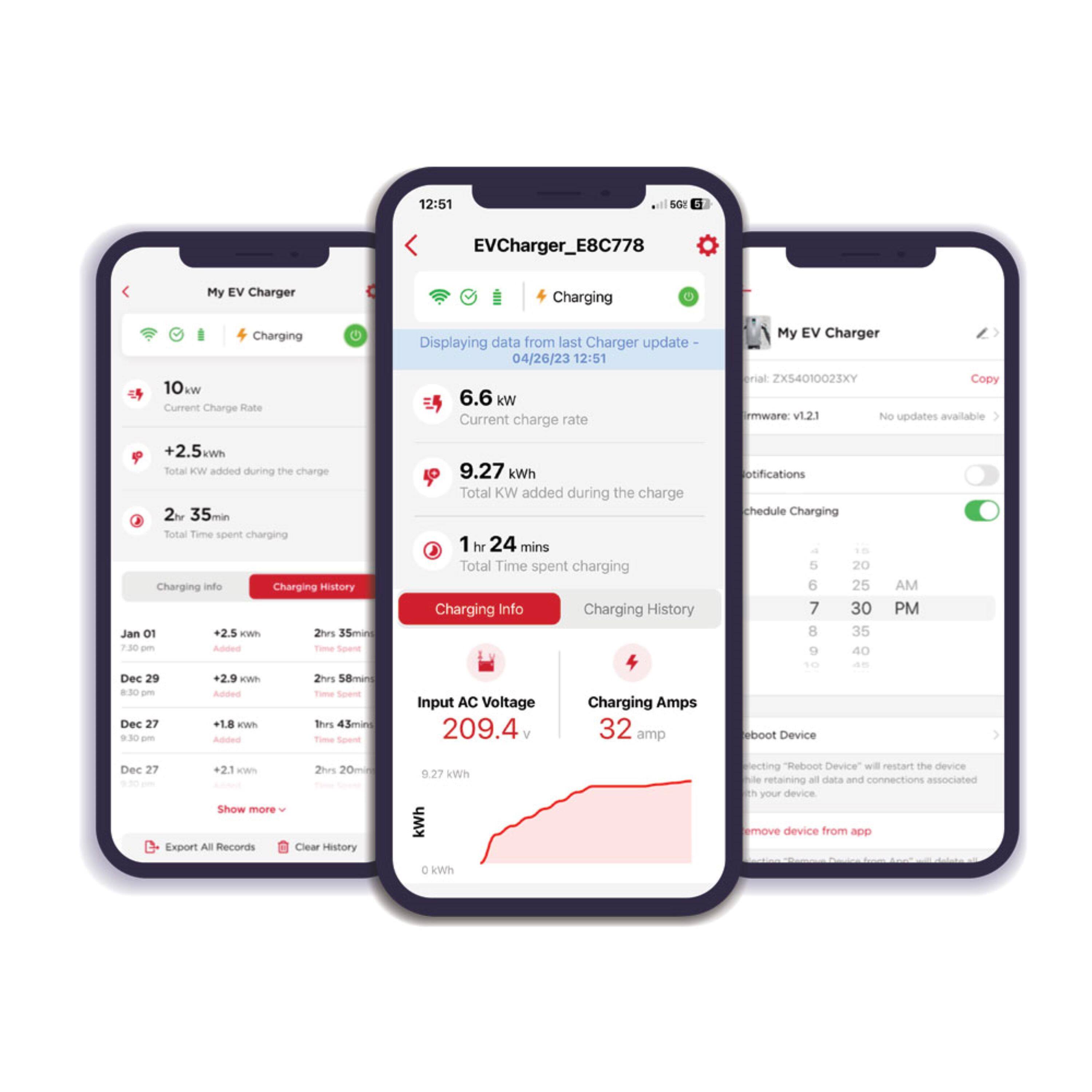

- SchuPower App: The SchuPower App allows users to schedule charging, start and stop a charging session in real time, track charging history, see any faults or errors that occur during charging, and monitor charging in real time with a “pull down to refresh” feature.
- Universal Connector: The charging gun features a J1772 universal connector that is compatible with most North American EVs. Tesla vehicles will need an adapter (sold separately).
- Extra-long Charging Cable: With an impressive 25-foot charging cable, the SEV1600P1450 can be installed nearly anywhere in a garage or driveway and still provide easy charging of multiple vehicles.
- Configurable Current: The unit’s current can be configured to work with your home’s power system with current settings of 16A, 24A, 32A, 40A, 48A (hardwired only), and 50A (hardwired only).
- Configurable Power: The unit’s power can be configured to work with your home’s power system with power settings of 3.8kW, 5.8kW, 7.7kW, 9.6kW, 11.5kW (hardwired only), and 12.0kW (hardwired only).
- Cord Management: Easily store the charging cable in the built-in cable cradle.

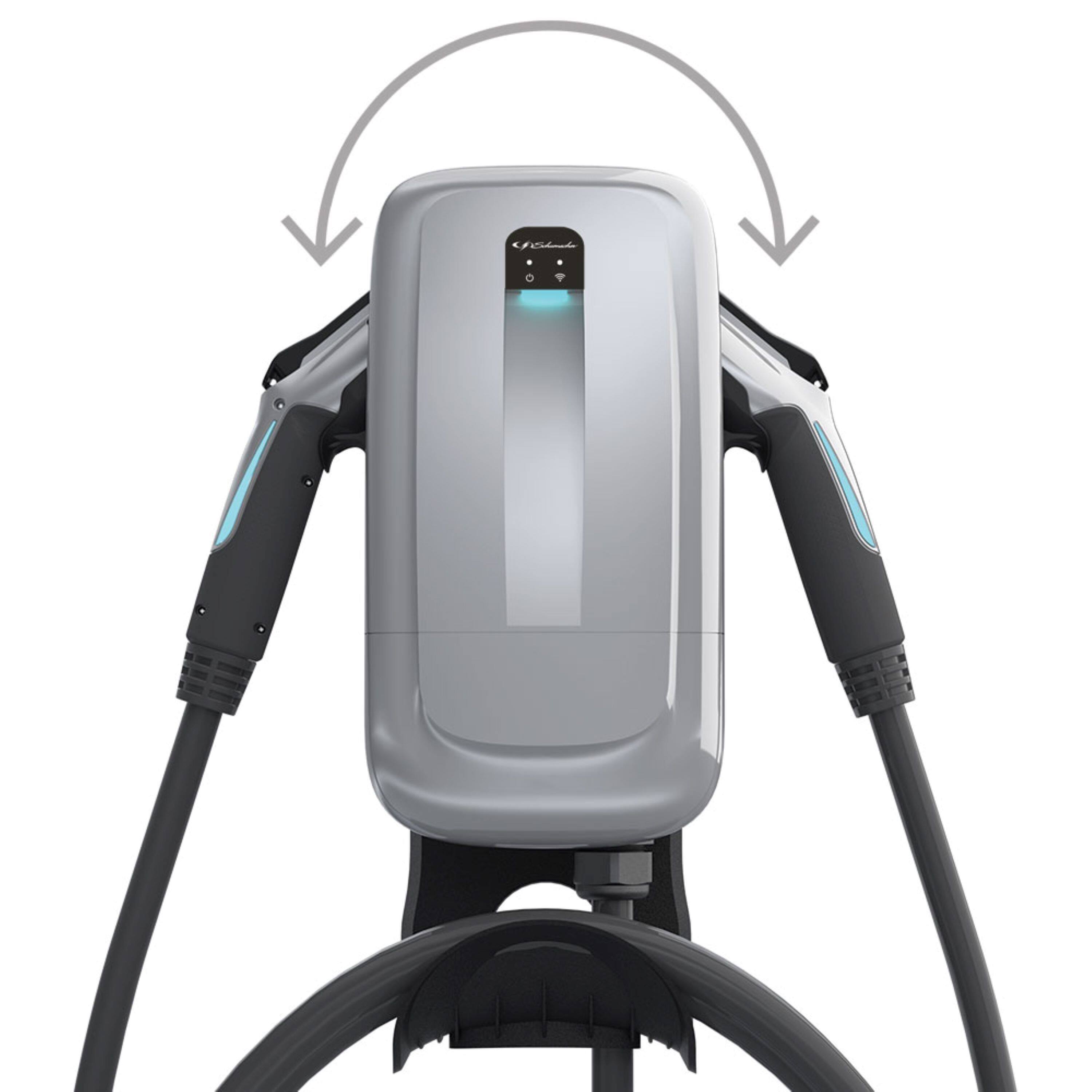

- Interchangeable Dock: The interchangeable dock lets you store the charging gun on either side of the unit.
- Low-Profile Design: The compact design ensures that the unit only extends 4.25 inches from the wall to allow plenty of clearance for vehicles.
- Weather-Resistant: The weather-resistant enclosure allow homeowners to install the charger indoors or outdoors with peace of mind.
- Tax Credits and Rebates: The SEV1600P1450 may be eligible for federal, state, and local tax credits and rebates.
- Energy Star and MET Certified: The Schumacher SEV1600P1450 is certified by Energy Star for energy efficiency and MET for safety.
- Three-year Warranty: The Schumacher SEV1600P1450 features a three-year manufacturer warranty.
- Rapid Charging: The SEV1600P1450 employs Level 2 charging, which is up to eight times faster than a level 1 charger.
- Adds Range Quickly: The Schumacher Level 2 EV charger can add from 15 to 48 miles of range per hour.
- Industry Leading Power: With output power of 240V and a rated current of 50A (hardwired only), the SEV1600P1450 is one of the fastest chargers on the market.
- Bluetooth/Wi-Fi Connected: The integrated Wi-Fi and Bluetooth provide a secure connection to the SchuPower App.
- SchuPower App: The SchuPower App allows users to schedule charging, start and stop a charging session in real time, track charging history, see any faults or errors that occur during charging, and monitor charging in real time with a “pull down to refresh” feature.
- Universal Connector: The charging gun features a J1772 universal connector that is compatible with most North American EVs. Tesla vehicles will need an adapter (sold separately).
- Extra-long Charging Cable: With an impressive 25-foot charging cable, the SEV1600P1450 can be installed nearly anywhere in a garage or driveway and still provide easy charging of multiple vehicles.
- Configurable Current: The unit’s current can be configured to work with your home’s power system with current settings of 16A, 24A, 32A, 40A, 48A (hardwired only), and 50A (hardwired only).
- Configurable Power: The unit’s power can be configured to work with your home’s power system with power settings of 3.8kW, 5.8kW, 7.7kW, 9.6kW, 11.5kW (hardwired only), and 12.0kW (hardwired only).
- Cord Management: Easily store the charging cable in the built-in cable cradle.
- Interchangeable Dock: The interchangeable dock lets you store the charging gun on either side of the unit.
- Low-Profile Design: The compact design ensures that the unit only extends 4.25 inches from the wall to allow plenty of clearance for vehicles.
- Weather-Resistant: The weather-resistant enclosure allow homeowners to install the charger indoors or outdoors with peace of mind.
- Tax Credits and Rebates: The SEV1600P1450 may be eligible for federal, state, and local tax credits and rebates.
- Energy Star and MET Certified: The Schumacher SEV1600P1450 is certified by Energy Star for energy efficiency and MET for safety.
- Three-year Warranty: The Schumacher SEV1600P1450 features a three-year manufacturer warranty.
Whats Included
- Schumacher Electric Level 2 240V NEMA 14-50 Plug-in EV Wall Charger with Wi-Fi/Bluetooth and J1772 Connector
- Output cable with EV charging gun
- Cable cradle
- (2) 5.5 mm (0.22 in.) x 50 mm (2 in.) lag screws for wall mounting
- (2) 4 mm (0.16 in.) x 16 mm (0.63 in.) self-tapping screws to attach the cable cradle
- Mounting template
- User manual
- Schumacher Electric Level 2 240V NEMA 14-50 Plug-in EV Wall Charger with Wi-Fi/Bluetooth and J1772 Connector
- Output cable with EV charging gun
- Cable cradle
- (2) 5.5 mm (0.22 in.) x 50 mm (2 in.) lag screws for wall mounting
- (2) 4 mm (0.16 in.) x 16 mm (0.63 in.) self-tapping screws to attach the cable cradle
- Mounting template
- User manual
Q: How much faster is Level 2 charging compared to Level 1?
A: Level 2 charging is up to eight times faster than Level 1 charging.
Q: What type of connector does the charging gun use?
A: The charging gun uses a J1772 universal connector, which is compatible with most North American Electric Vehicles.
Q: Can I use this charger outdoors?
A: Yes, the charger has a weather-resistant enclosure, allowing for both indoor and outdoor installation.
Q: Does this charger have smart features?
A: Yes, it has built-in Wi-Fi and Bluetooth, allowing you to monitor and schedule charging through the SchuPower app.
Q: Is the current adjustable on this charger?
A: Yes, the current can be configured to 16A, 24A, 32A, 40A, 48A (hardwired only), or 50A (hardwired only).
Q: How long is the charging cable?
A: The charging cable is 25 feet long.
Q: How do. i. get it to. release from the vehicle after. charging?
A: We are sorry to hear you experienced an issue with our product. Our customer service team is available Monday - Friday 7:00am to 6:00pm central standard time to assist you in troubleshooting the problem.
