Schumacher Electric - Level 2 50A 240V Hardwired EV Wall Charger with Wi-Fi/Bluetooth Connection and J1772 Connector - Gray
Related Item
- General
- Brand: Schumacher Electric
- Model Number: SEV1600HW
- Product Name: Level 2 50A 240V Hardwired EV Wall Charger with Wi-Fi/Bluetooth Connection and J1772 Connector
- Color: Gray
- Power
- Electric Vehicle Charging Level: Level 2 (Level 1 chargers connect to a standard 120V outlet but may take nearly a day to charge a vehicle. Level 2 chargers connect to a dedicated 240V outlet and charge most vehicles within a few hours. Level 3 chargers require a specialized charger and are typically found in public, fast charging stations. Charging requirements vary by vehicle.)
- Input Wiring Type: Hardwired
- Charging Cable Length: 25 feet
- Connectivity
- Connector Type(s): SAE J1722 (Type 1) (Type of interface connection found on the device.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Number of Vehicles Charged Simultaneously: 1
- Mount Type: Wall
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Dimensions
- Product Height: 5.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 15 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 23.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years limited
- Warranty - Labor: 3 years limited
- Other
- UPC: 026666816007
For EV owners, Level 2 home charging offers faster charging and the convenience of charging in their own garage or driveway during time spent at home. The Schumacher SEV1600HW Hardwired Level 2 EV Wall Charger has a configurable current up to 50A, allowing the unit to charge up to eight times faster than standard Level 1 chargers. A charging gun with an SAE-J1772 (universal) connector is compatible with most North American EVs. Tesla vehicles will need an adapter (sold separately). The charger is also easy to use. Simply plug the charging gun into your EV’s charging port and charging is automatic. Integrated Wi-Fi and Bluetooth then lets users connect to the SchuPower app to monitor and schedule charging. A low-profile design and built-in cord management with the flexible cable cradle prevent the unit from cluttering up the garage, giving users plenty of clearance when pulling a vehicle into or out of the space. There is also an interchangeable dock with dual docking capability letting homeowners customize their usage for added comfort and convenience. A 25-foot charging cable allows user to easily charge vehicles parked in their garage or driveway whether the charger is installed indoors or outdoors. The Schumacher SEV1600HW Level 2 EV Wall Charger must be installed by a licensed electrician. Any changes to the wall charger’s electrical settings must also be made by a licensed electrician.
- Rapid Charging: The SEV1600HW employs Level 2 charging, which is up to eight times faster than a level 1 charger.
- Adds Range Quickly: The Schumacher Level 2 EV charger can add from 15 to 48 miles of range per hour.
- Industry Leading Power: With output power of 240V and a rated current of 50A, the SEV1600HW is one of the fastest chargers on the market.

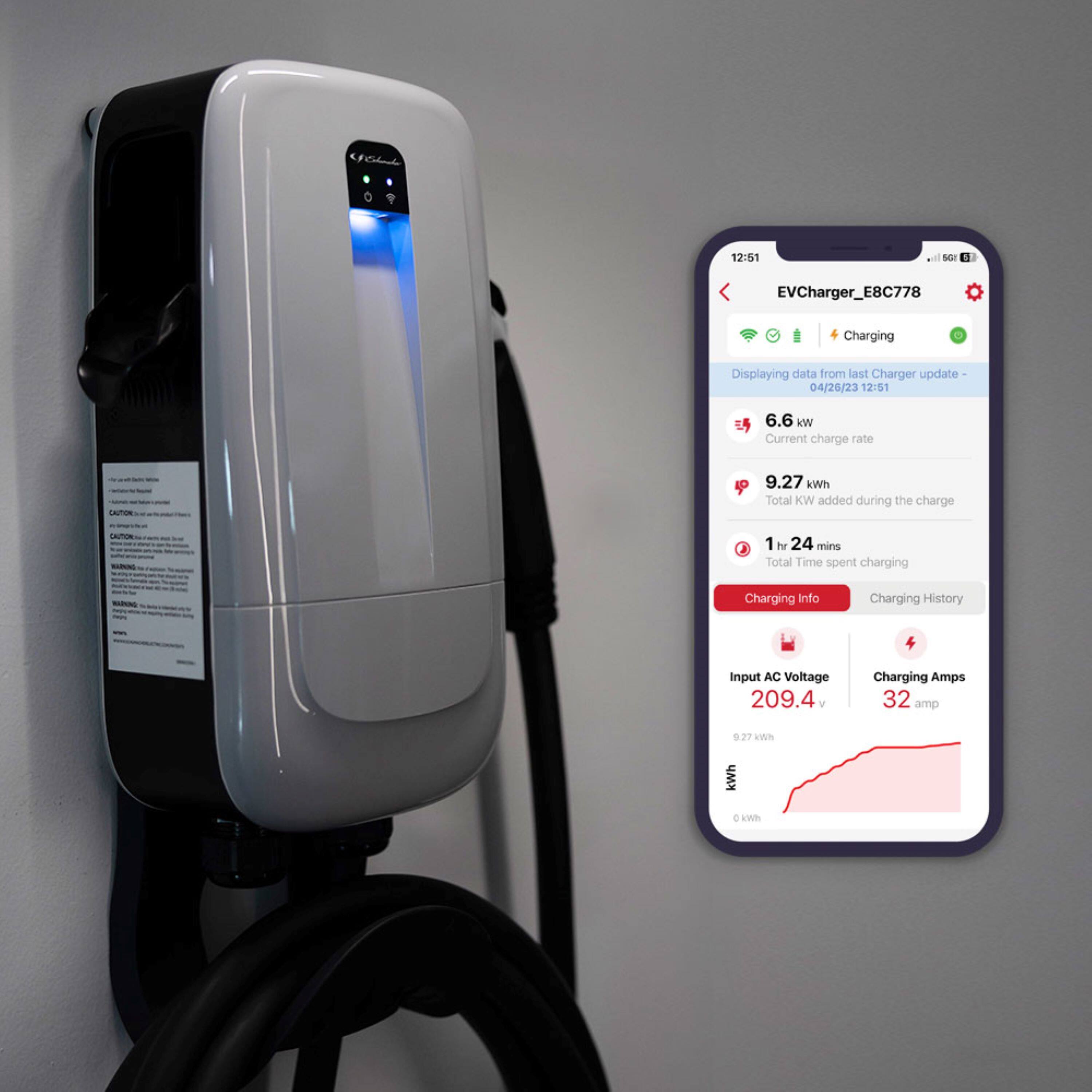

- Bluetooth/Wi-Fi Connected: The integrated Wi-Fi and Bluetooth provide a secure connection to the SchuPower App.

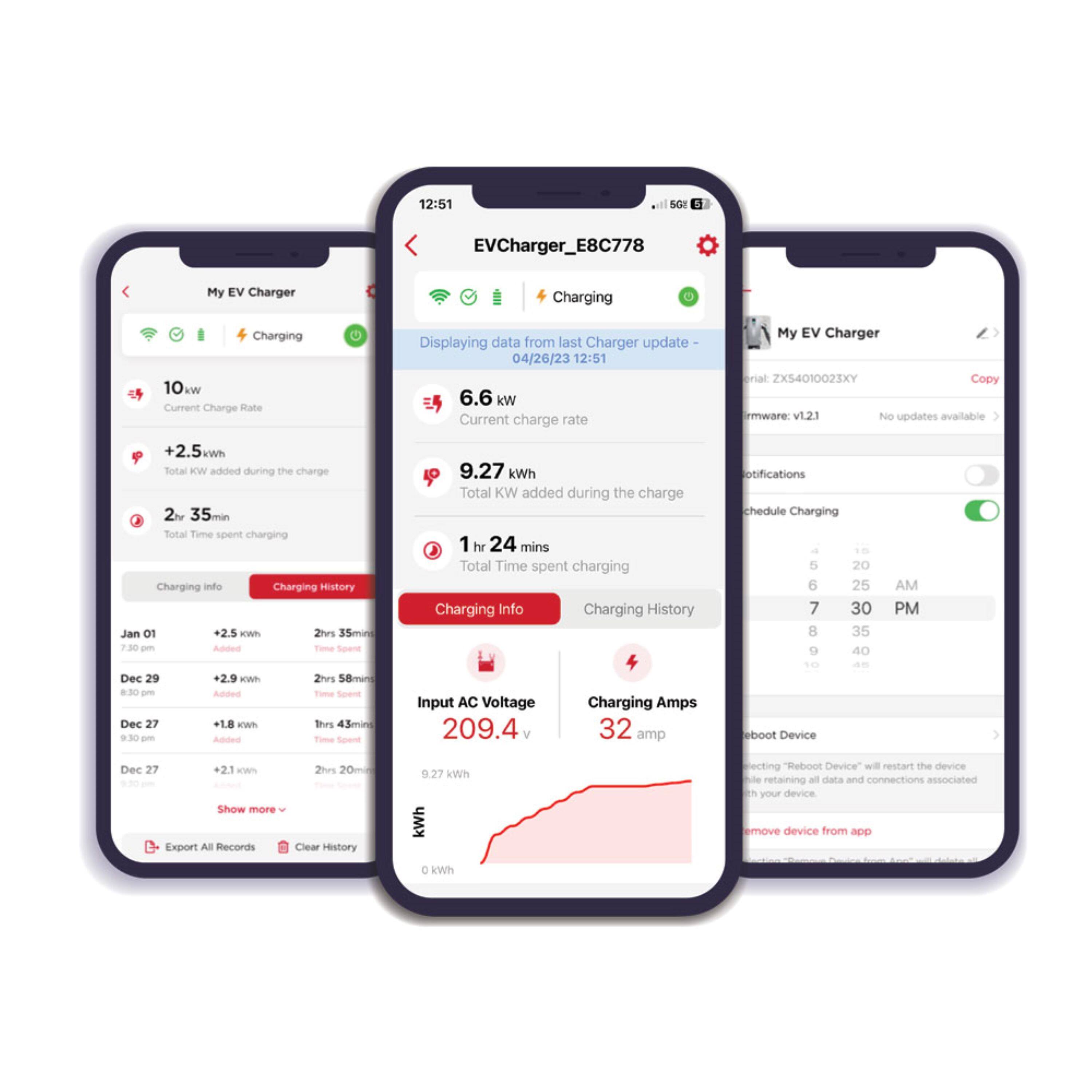

- SchuPower App: The SchuPower App allows users to schedule charging, start and stop a charging session in real time, track charging history, see any faults or errors that occur during charging, and monitor charging in real time with a “pull down to refresh” feature.

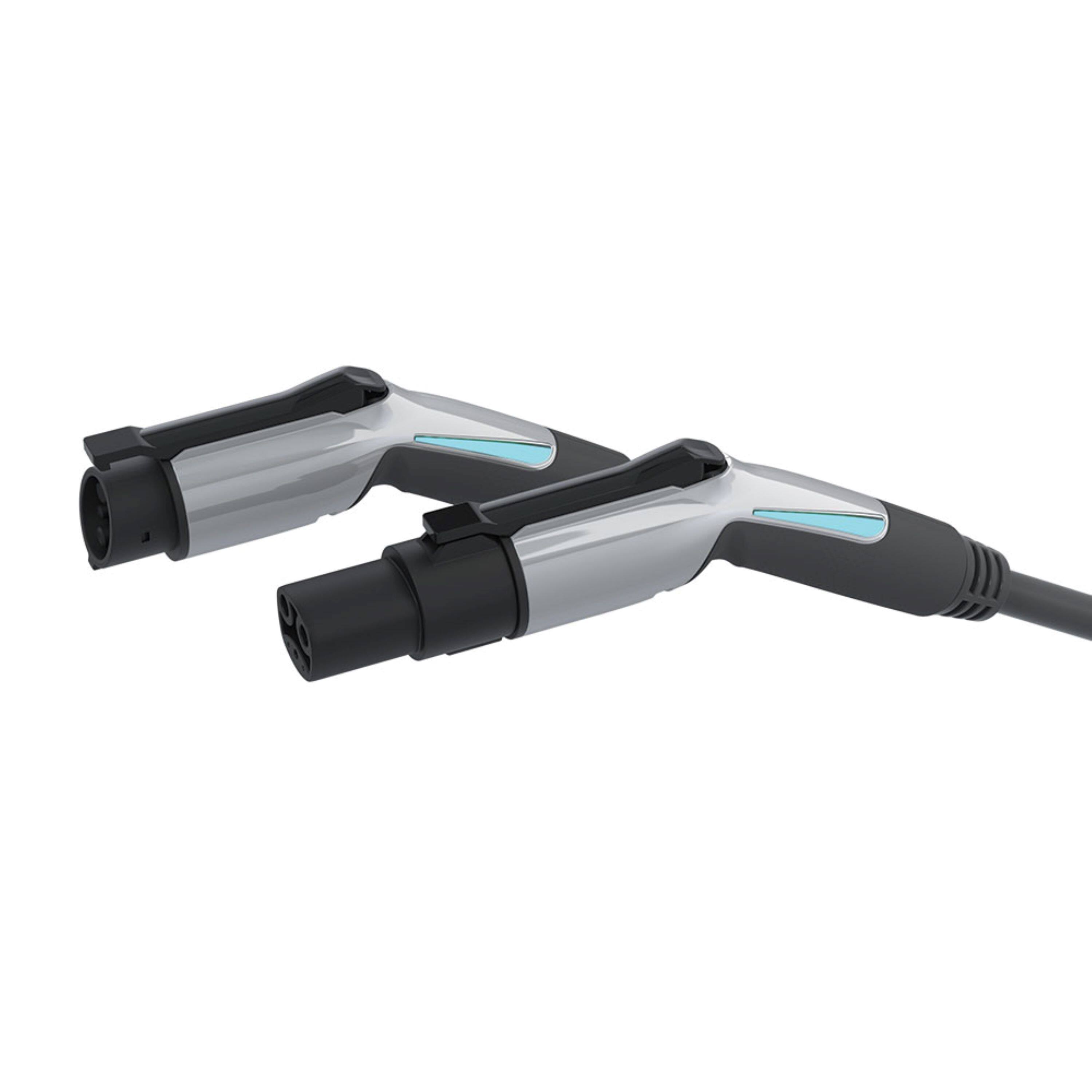

- Universal Connector: The charging gun features a J1772 universal connector that is compatible with most North American EVs. Tesla vehicles will need an adapter (sold separately).
- Extra-long Charging Cable: With an impressive 25-foot charging cable, the SEV1600HW can be installed nearly anywhere in a garage or driveway and still provide easy charging of multiple vehicles.
- Configurable Current: The unit’s current can be configured to work with your home’s power system with current settings of 16A, 24A, 32A, 40A, 48A, and 50A.
- Configurable Power: The unit’s power can be configured to work with your home’s power system with power settings of 3.8kW, 5.8kW, 7.7kW, 9.6kW, 11.5kW, and 12.0kW.
- Cord Management: Easily store the charging cable in the built-in cable cradle.

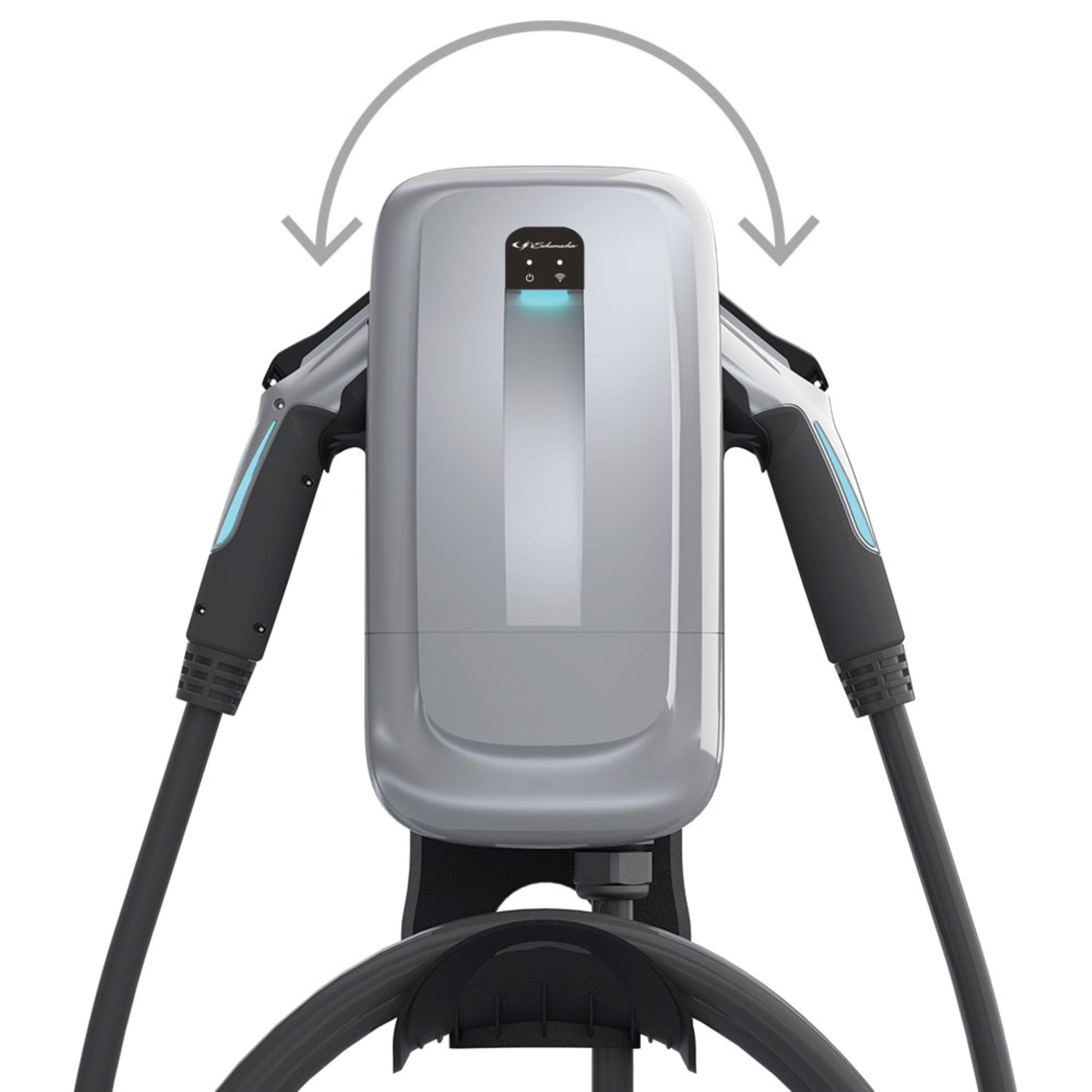

- Interchangeable Dock: The interchangeable dock lets you store the charging gun on either side of the unit.
- Low-Profile Design: The compact design ensures that the unit only extends 4.25 inches from the wall to allow plenty of clearance for vehicles.
- Weather-Resistant: The weather-resistant enclosure allow homeowners to install the charger indoors or outdoors with peace of mind
- Tax Credits and Rebates: The SEV1600HW may be eligible for federal, state, and local tax credits and rebates.
- Energy Star and MET Certified: The Schumacher SEV1600HW is certified by Energy Star for energy efficiency and MET for safety.
- Three-year Warranty: The Schumacher SEV1600HW features a three-year manufacturer warranty.
Whats Included
- Schumacher Electric SEV1600HW Level 2 50A 240V Hardwired EV Wall Charger with Wi-Fi/Bluetooth Connection and J1772 Connector
- Output cable with EV charging gun
- Cable cradle
- (2) 5.5 mm (0.22 in.) x 50 mm (2 in.) lag screws for wall mounting
- (2) 4 mm (0.16 in.) x 16 mm (0.63 in.) self-tapping screws to attach the cable cradle
- Mounting template
- User manual
Q: How fast can this charger charge an electric vehicle compared to a Level 1 charger?
A: This Level 2 charger is designed to charge electric vehicles up to eight times faster than standard Level 1 chargers.
Q: What is the length of the charging cable?
A: The charging cable is 25 feet long.
Q: Is the charger compatible with a mobile app?
A: This charger is compatible with a mobile app.
Q: Does the charger have any features for monitoring and scheduling charging?
A: This charger allows you to monitor and schedule charging through its integrated Wi-Fi and Bluetooth connectivity, which connects to the SchuPower app.
Q: What type of connector does the charging gun have?
A: The charging gun has an SAE-J1772 (Type 1) connector.
Q: Can the charger be used with Tesla vehicles?
A: Tesla vehicles will need an adapter for the charger since it has a universal connector.
