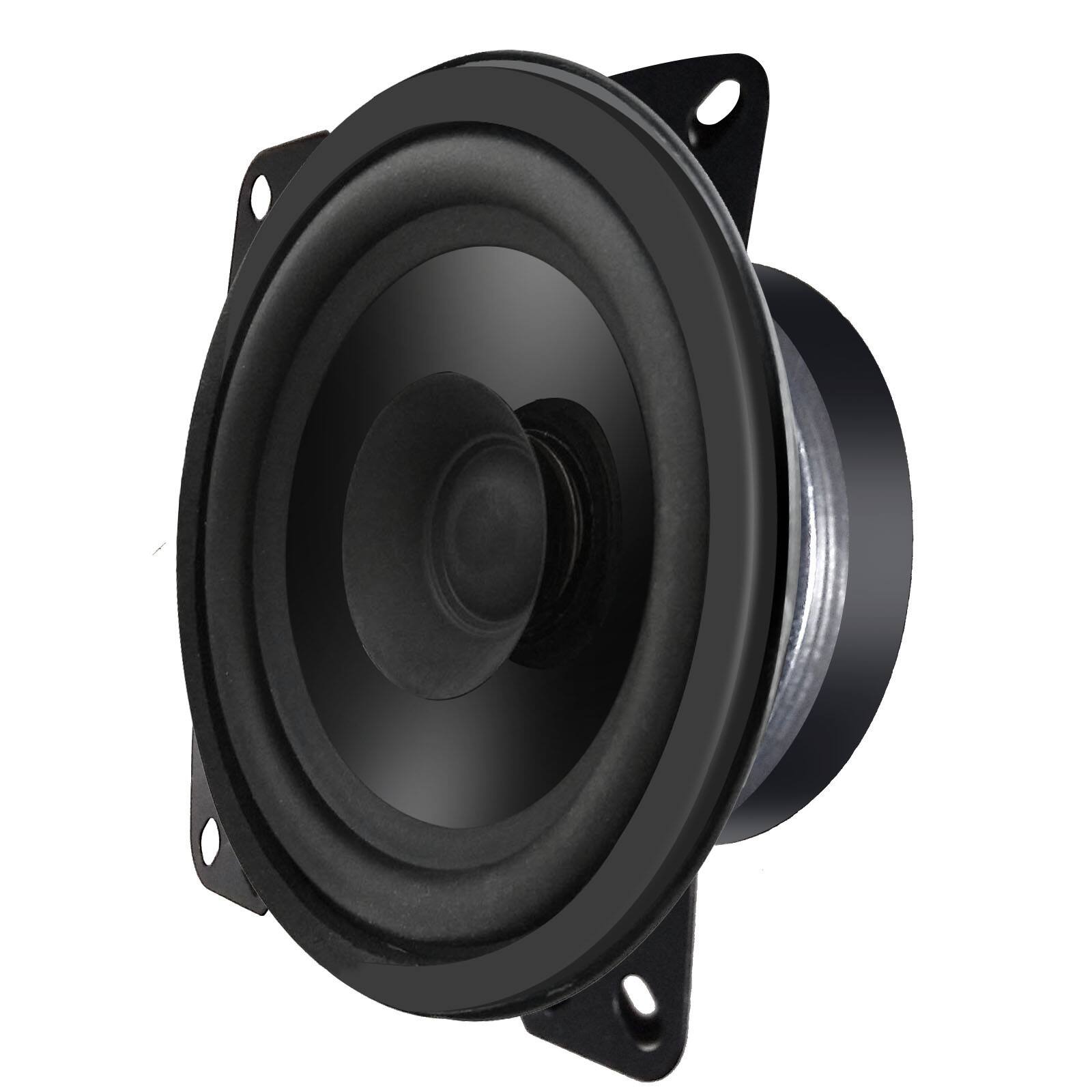

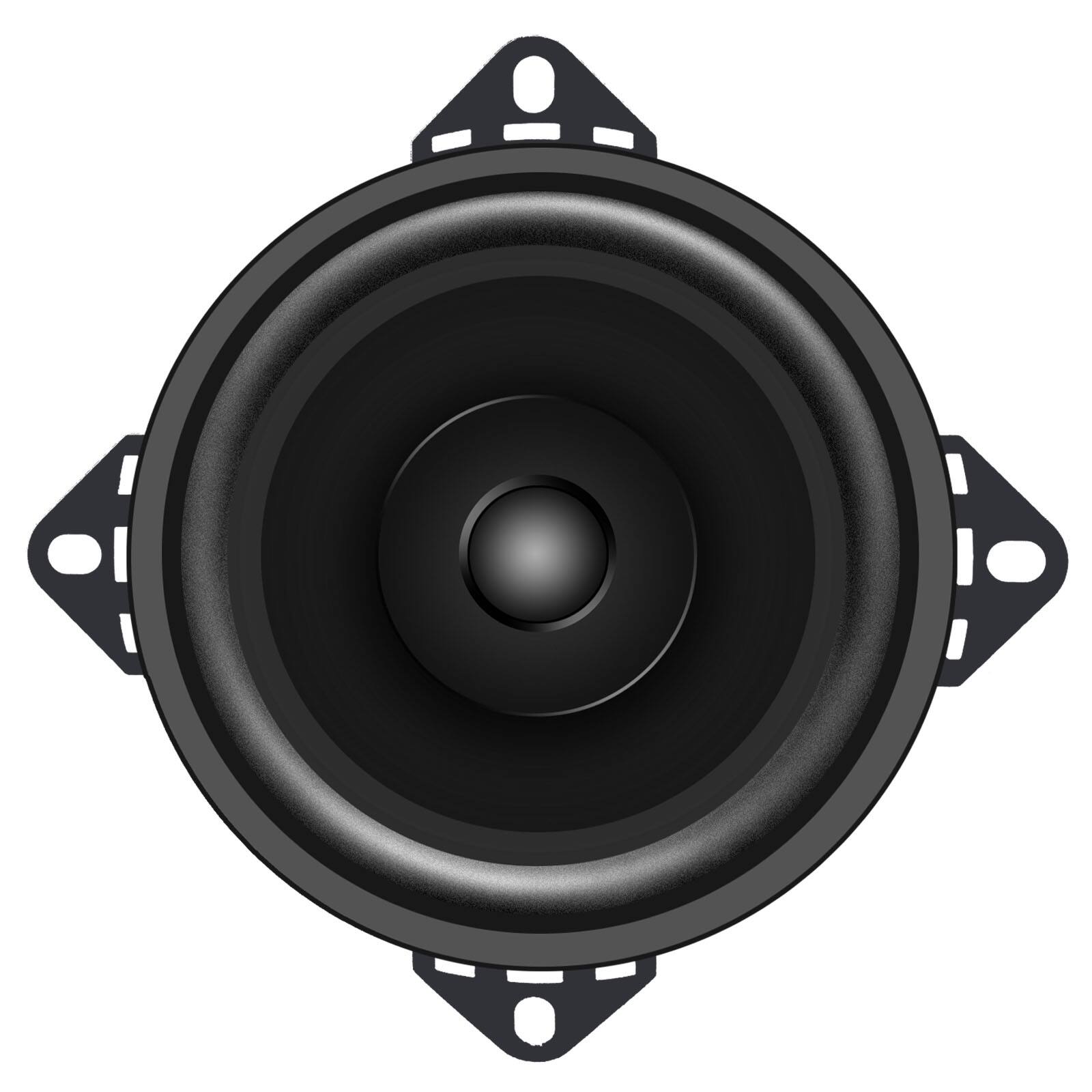

SDX - 4” Dual Cone OE Replacement Speaker - Black
Related Item
Specifications
- Speaker Size4"
- Key Specs
- Speaker Size: 4"
- General
- Brand: SDX
- Model Number: CS17040
- Product Name: 4” Dual Cone OE Replacement Speaker
- Color: Black
- Design
- Speaker Size: 4"

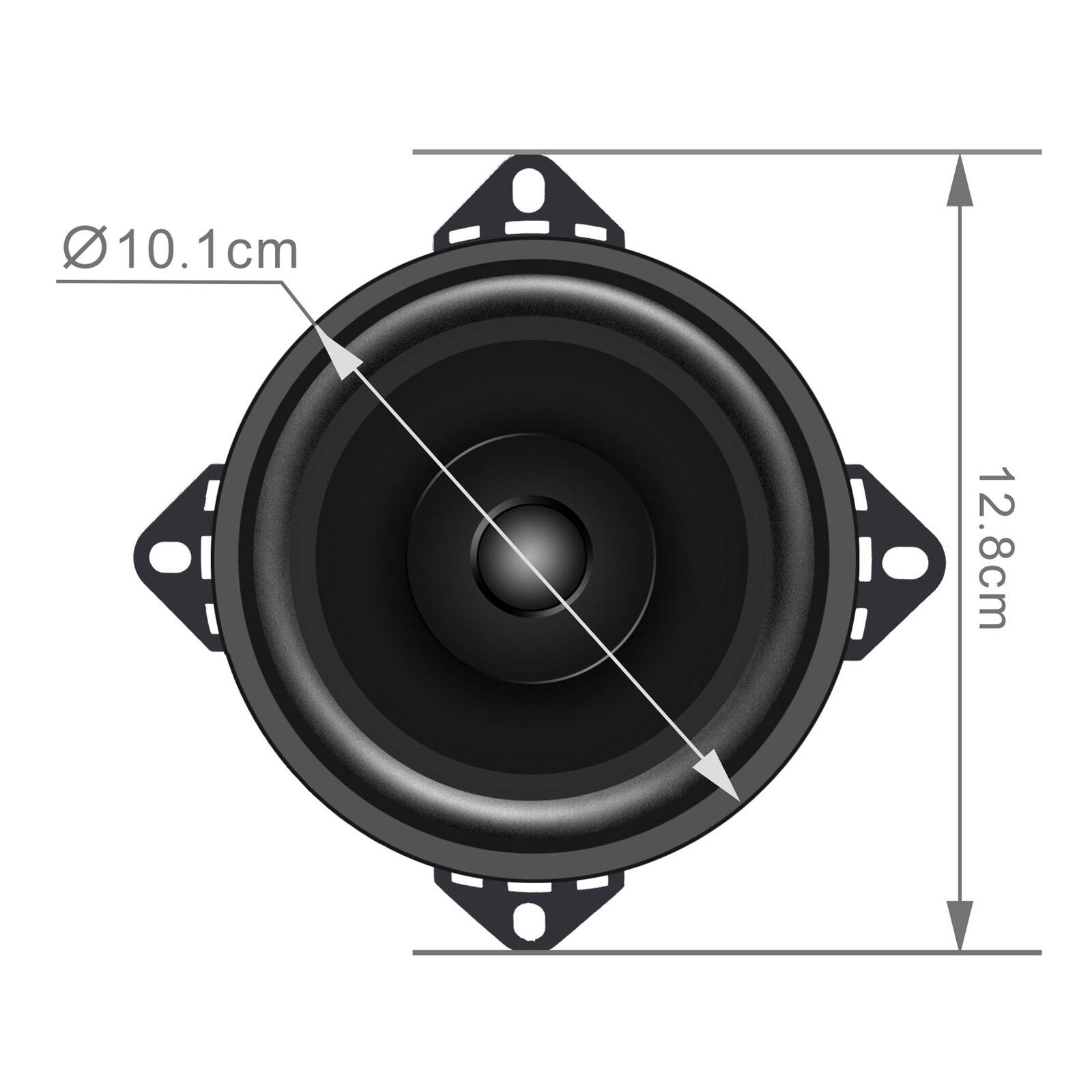

- Dimensions
- Product Height: 7.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.8 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.3 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.9 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Other
- UPC: 872535000264
Engineered as an original equipment equivalent part, this speaker offers a reliable, low-cost solution for repairing existing products rather than replacing whole systems. The steel frame and standard 4" form factor ensure mechanical compatibility with thousands of legacy and current devices.
- • Maximum Output Power: 45W• Impedance: 4 ohms: This speaker delivers functional reliability at a competitive price point. With 45W peak power handling and a 4-ohm impedance, it pulls higher current from low-voltage amplifiers (common in automotive and portable devices) to achieve noticeable volume.
- • Sensitivity: 88 dB/w/m • Frequency Range: 92-15KHz: The 88 dB sensitivity ensures acceptable efficiency for moderate-powered amps (5–20W RMS). The steel frame provides durability in vibration-prone environments (e.g., car doors or portable equipment)
- • Magnet Dimension/Weight: 5.4 oz • Voice Coil: 0.76": Aluminum-clad copper wire offers better heat dissipation than plain copper, improving long-term reliability in thermally constrained enclosures.
Whats Included
